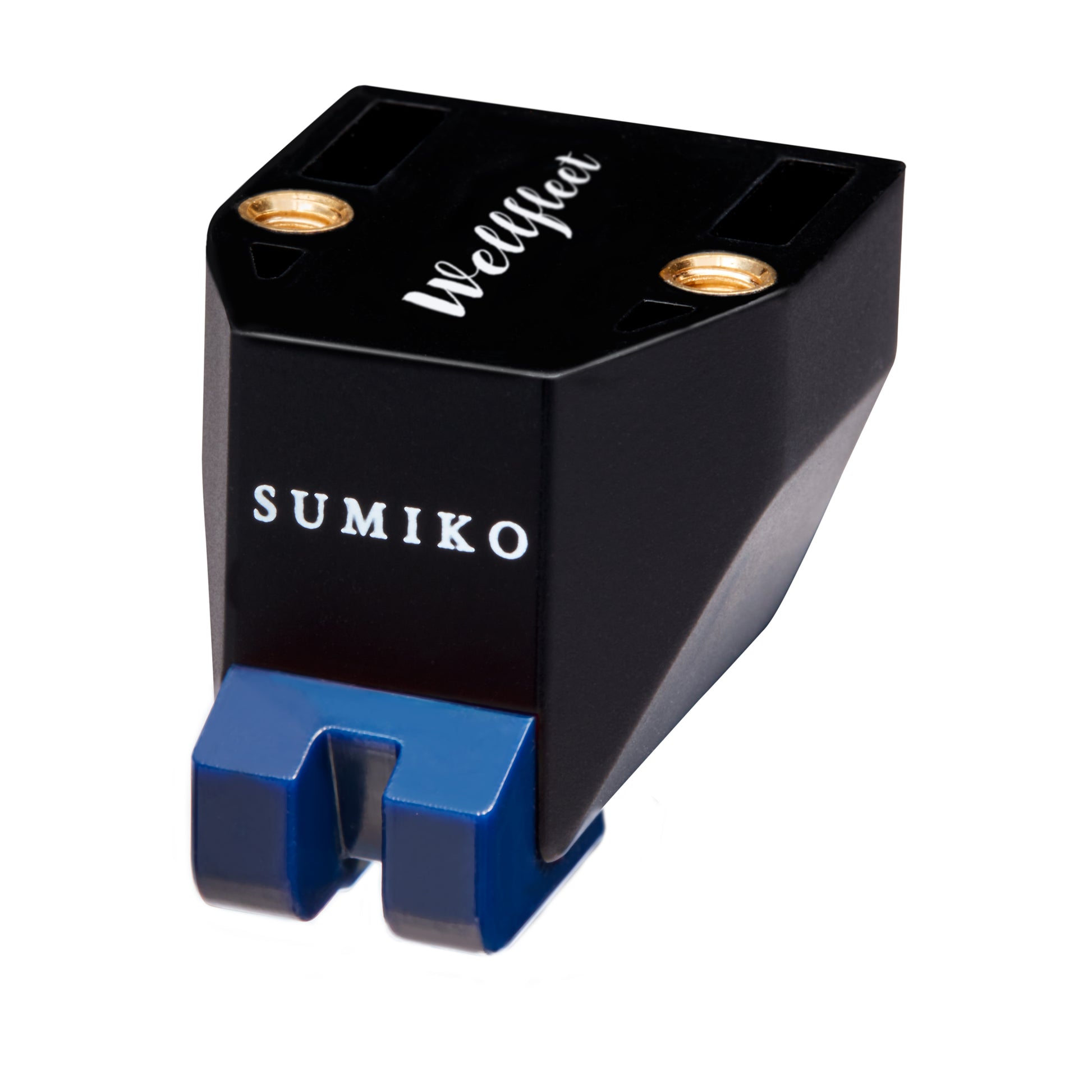

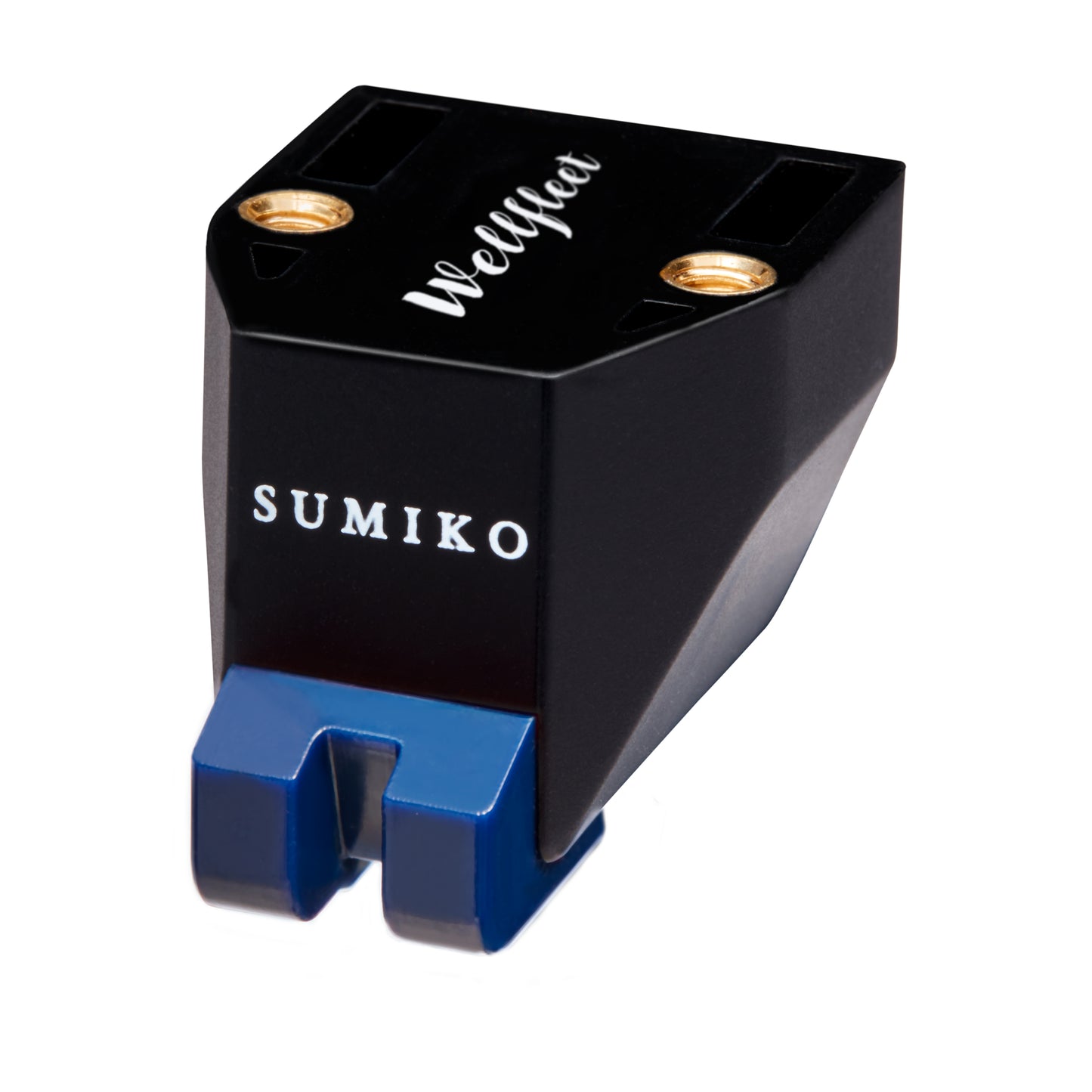

Sumiko Wellfleet MM Cartridge
Sumiko Wellfleet MM Cartridge
Regular price
£479.95 GBP
Regular price
Sale price
£479.95 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The Wellfleet is the seventh model up in the slightly confusingly named Oyster series of cartridges from Sumiko. This takes the successful Moonstone recipe and tweaks the stylus assembly further again, with a nude Elliptical diamond mounted on the very small 0.5mm diameter aluminium cantilever with low mass magnets. The output is fairly low (by MM standards) at 3mV due to the reduced magnet size.
This cartridge can also be downgraded by fitting the Rainier, Olympia, Moonstone and Wellfleet stylus assemblies (or play 78s with the RS78 stylus).
Specifications
-OUTPUT VOLTAGE: 3 mV
-CHANNEL BALANCE (@ 1000HZ): 0.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 30 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 70 μm
-COMPLIANCE, DYNAMIC, LATERAL: 13 μm
-STYLUS TYPE: 0.3 x 0.7mil Nude Elliptical
-TRACKING FORCE RANGE: 1.8 - 2.2 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 26 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 450 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: 0.5mm Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.5g
-CHANNEL BALANCE (@ 1000HZ): 0.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 30 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 70 μm
-COMPLIANCE, DYNAMIC, LATERAL: 13 μm
-STYLUS TYPE: 0.3 x 0.7mil Nude Elliptical
-TRACKING FORCE RANGE: 1.8 - 2.2 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 26 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 450 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: 0.5mm Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.5g
