Sumiko Rainier MM Cartridge
Sumiko Rainier MM Cartridge
Regular price
£159.95 GBP
Regular price
Sale price
£159.95 GBP
Unit price
/
per

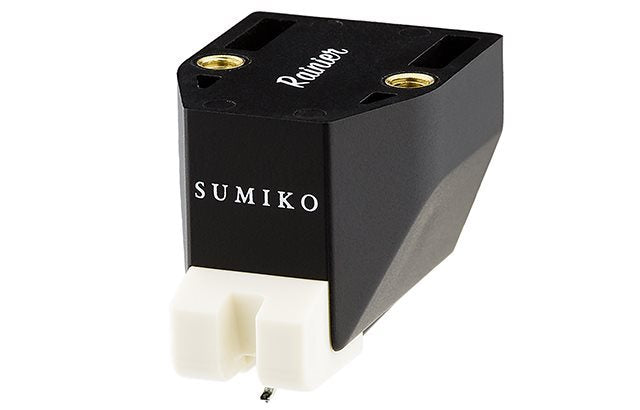

The Rainier is the fourth model up in the slightly confusingly named Oyster series of cartridges from Sumiko, and the first to benefit from the 'next generation' housing design, which not only improves rigidity and lowers resonance but also adds threaded inserts making it even easier to fit.
An Elliptical bonded diamond is used on an Aluminium cantilever. Unusually at this price point it also features an Alnico magnet, which are prized for their natural and grain free character.
This cartridge can also be upgraded by fitting the Olympia, Moonstone and Wellfleet stylus assemblies (as well as play 78s with the RS78 stylus).
Specifications
-OUTPUT VOLTAGE: 5 mV
-CHANNEL BALANCE (@ 1000HZ): 1.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 25 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 10 μm
-STYLUS TYPE: 0.3 x 0.7mil Elliptical
-TRACKING FORCE RANGE: 1.8 - 2.2 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 450 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.5g
-CHANNEL BALANCE (@ 1000HZ): 1.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 25 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 10 μm
-STYLUS TYPE: 0.3 x 0.7mil Elliptical
-TRACKING FORCE RANGE: 1.8 - 2.2 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 450 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.5g
