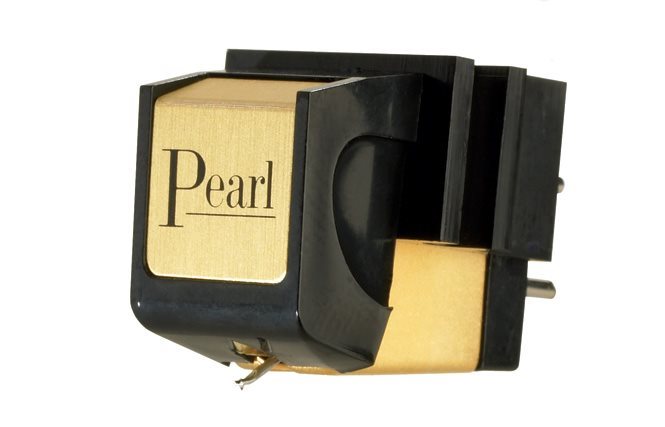

Sumiko Pearl MM Cartridge
Sumiko Pearl MM Cartridge
Regular price
£129.95 GBP
Regular price
Sale price
£129.95 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
The Pearl is the third model up in the slightly confusingly named Oyster series of cartridges from Sumiko. This model is the first one in the range to benefit from an Elliptical stylus profile, bringing improved resolution and frequency range.
Unusually at this price point it also features an Alnico magnet, which are prized for their natural and grain free character.
This cartridge can also be downgraded by fitment of the Spherical tipped Black Pearl stylus assembly.
Specifications
-OUTPUT VOLTAGE: 4 mV
-CHANNEL BALANCE (@ 1000HZ): 0.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 30 dB
-CHANNEL SEPARATION (@ 15000HZ): 17 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 12 μm
-STYLUS TYPE: 0.3 x 0.7mil Elliptical
-TRACKING FORCE RANGE: 1.5 - 2.5 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 520 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.0g
-CHANNEL BALANCE (@ 1000HZ): 0.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 30 dB
-CHANNEL SEPARATION (@ 15000HZ): 17 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 12 μm
-STYLUS TYPE: 0.3 x 0.7mil Elliptical
-TRACKING FORCE RANGE: 1.5 - 2.5 g
-RECOMMENDED TRACKING FORCE: 2.0 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 520 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 6.0g
