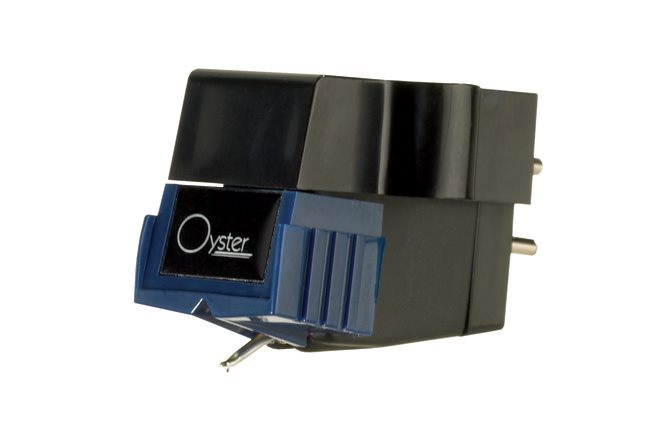

Sumiko Oyster MM Cartridge
Sumiko Oyster MM Cartridge
Regular price
£74.95 GBP
Regular price
Sale price
£74.95 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
The Oyster is the start of the slightly confusingly named Oyster series of cartridges from Sumiko. It features a conical diamond profile on an aluminium cantilever. Unusually at this price point it also features an Alnico magnet, which are prized for their natural and grain free character.
Specifications
-OUTPUT VOLTAGE: 5 mV
-CHANNEL BALANCE (@ 1000HZ): 1 dB
-CHANNEL SEPARATION (@ 1000HZ): 25 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 12 μm
-STYLUS TYPE: 0.7mil Spherical
-TRACKING FORCE RANGE: 1.5 - 2.5 g
-RECOMMENDED TRACKING FORCE: 2.3 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 490 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 5.3 g
-CHANNEL BALANCE (@ 1000HZ): 1 dB
-CHANNEL SEPARATION (@ 1000HZ): 25 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 60 μm
-COMPLIANCE, DYNAMIC, LATERAL: 12 μm
-STYLUS TYPE: 0.7mil Spherical
-TRACKING FORCE RANGE: 1.5 - 2.5 g
-RECOMMENDED TRACKING FORCE: 2.3 g
-TRACKING ANGLE: 25 °
-INTERNAL IMPEDANCE: 1130 Ω
-INTERNAL INDUCTANCE: 490 mH
-MAGNET TYPE: Alnico
-CANTILEVER MATERIAL: Aluminium Tube
-COIL WIRE MATERIAL: Pure Copper
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE :100 - 200 pF
-CARTRIDGE WEIGHT: 5.3 g
