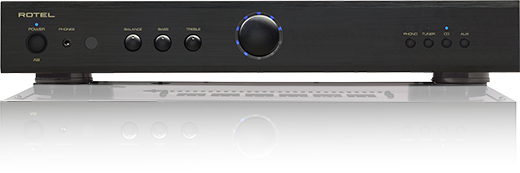

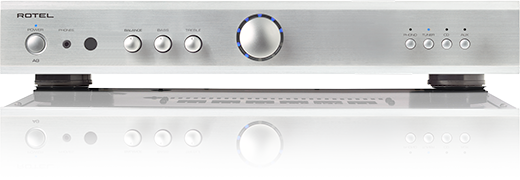

Rotel A8 Integrated Amplifier
Rotel A8 Integrated Amplifier
Regular price
£400.00 GBP
Regular price
Sale price
£400.00 GBP
Unit price
/
per
The A8 is the entry level integrated amplifier from Rotel. It offers exceptional value for money, whilst remaining true to the Rotel philosophy as they have managed to include the sonically beneficial linear power supply and a Class A/B amplifier design even at this price point.
There are three line level inputs, an MM phono stage, a 3.5mm headphone socket and remote control - basically everything you could wish for. It's housed in a full width but low height enclosure.
The illumination LED can be adjusted to change their colour to Red, Green, Blue or Purple depending upon your mood or setting. Tone controls and a balance control also allow the user to adjust for a sub optimal listening environment.
Specifications
Power Output 30 W/ Ch (8 Ω) 40 W/ Ch (4 Ω)
Total Harmonic Distortion (THD)<0.03%
Frequency Response: Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0 dB, Phono Input: 20Hz - 20k Hz, -0.5 dB, +0 dB
S/N Ratio (IHF "A" Weighted), Line Level Inputs: 90 dB (Max Volume), Line Level Inputs: 102 (Min Volume), Phono Input: 80 dB
Intermodulation Distortion (60 Hz:7k Hz, 4:1) <0.03%
Damping Factor 80Input Sensitivity: Line Level Inputs: 180 mV, Phono Input (MM): 2.5 mV
Input Impedance: Line Level Inputs: 60k Ω, Phono Input (MM): 40 kΩ
Input Overload: Line Level Inputs: 4 V, Phono Input: 50 mV
Tone Controls: ±6 dB at 100 Hz / 10k Hz
Dimensions (W × H × D)430 × 73 × 347 mm 17” x 2 7/8” x 13 5/8” Front Panel Height 60 mm (2 3/8”)
Power Requirements 230 V, 50 Hz
Power Consumption 110 W Standby Power Consumption<0.5 W
Net Weight5.8 kg, 12.8 lbs
Power Requirements 230 V, 50 Hz
Power Consumption 110 W Standby Power Consumption<0.5 W
Net Weight5.8 kg, 12.8 lbs
