Rega Aria mk3 MM & MC Phono Stage (Click & Collect only)

Rega Aria mk3 MM & MC Phono Stage (Click & Collect only)

Regular price £1,100.00 GBP
Regular price Sale price £1,100.00 GBP
Sale Sold out
Tax included.

*This is available for Click and Collect only, sorry we are not able to mail order this item*
The Aria is a high quality MM and MC phono stage, internally the two are separate circuits each optimised for the job in hand, there are even separate inputs too allowing two arms (one with MM and one with MC) to be connected at the same time if desired.

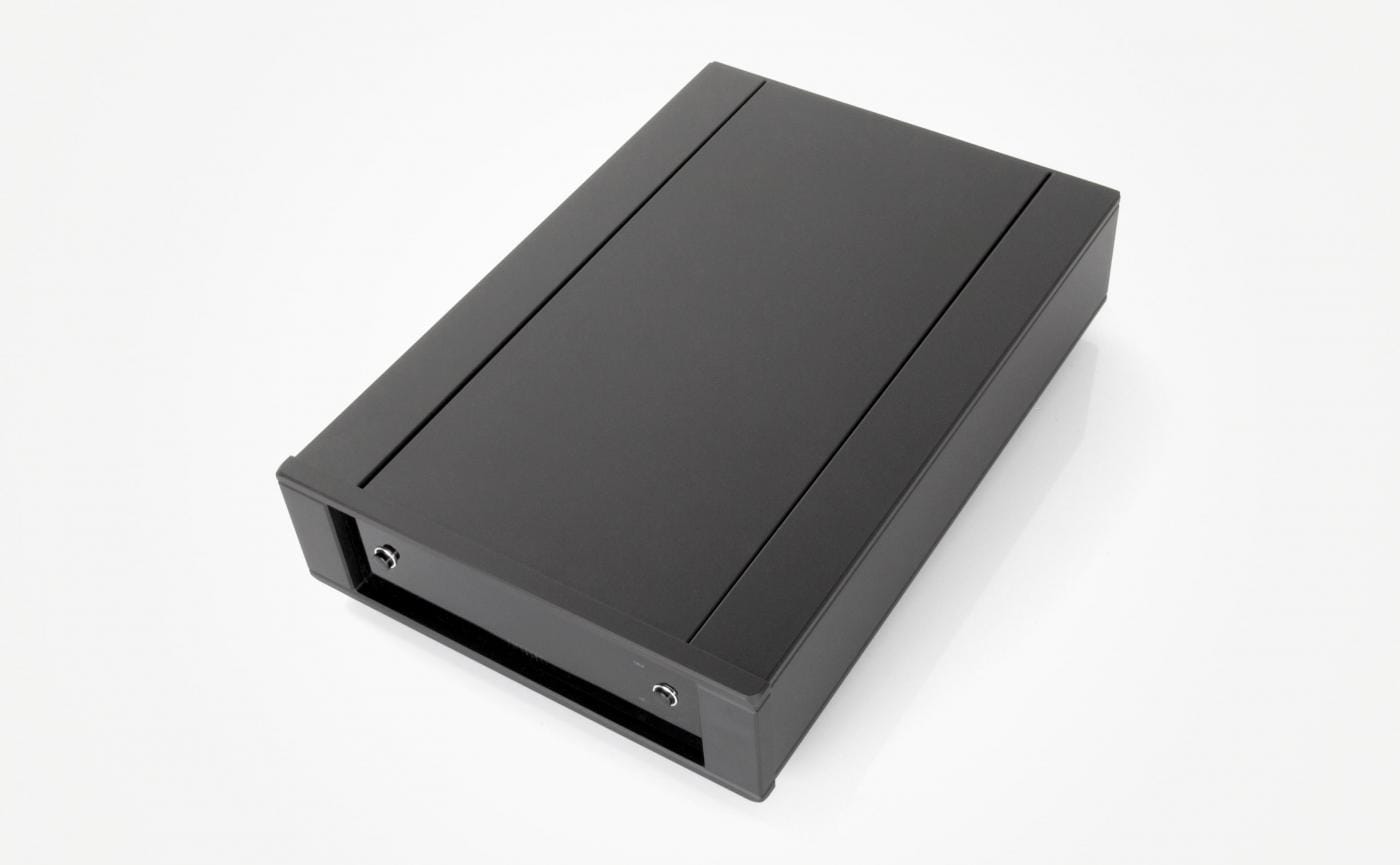

The aluminium half width case is compact and very well screened to keep noise to a minimum and there's no digital switching circuitry or switch mode power supplies to pollute the delicate signals. An advance self-adjusting servo keeps the MC input circuit at its optimum, compensating for any variations in ambient or operating temperature.

The MC input is adjustable for loading, capacitance and gain.

High performance switchable MC & MM stage
Fully adjustable MC stage
MC input uses parallel connected low noise FET's
MM input uses low noise bipolar transistors
Custom designed case
All analogue amplifier
Bespoke input circuitry for MM & MC
Lifetime warranty against manufacture defects

MM Stage design & features

The MM input uses low noise, bipolar input transistors also configured as a compound pair. There are two separate power supplies for each channel and further sub-power supplies for each of the low noise input circuits. Nichicon FG electrolytic capacitors have been used in critical positions throughout the power supplies. Polypropylene capacitors have been used in the signal path and equalization networks. Discrete circuitry is used throughout the signal path ensuring full control of the circuit design.

MC Stage Design & Features

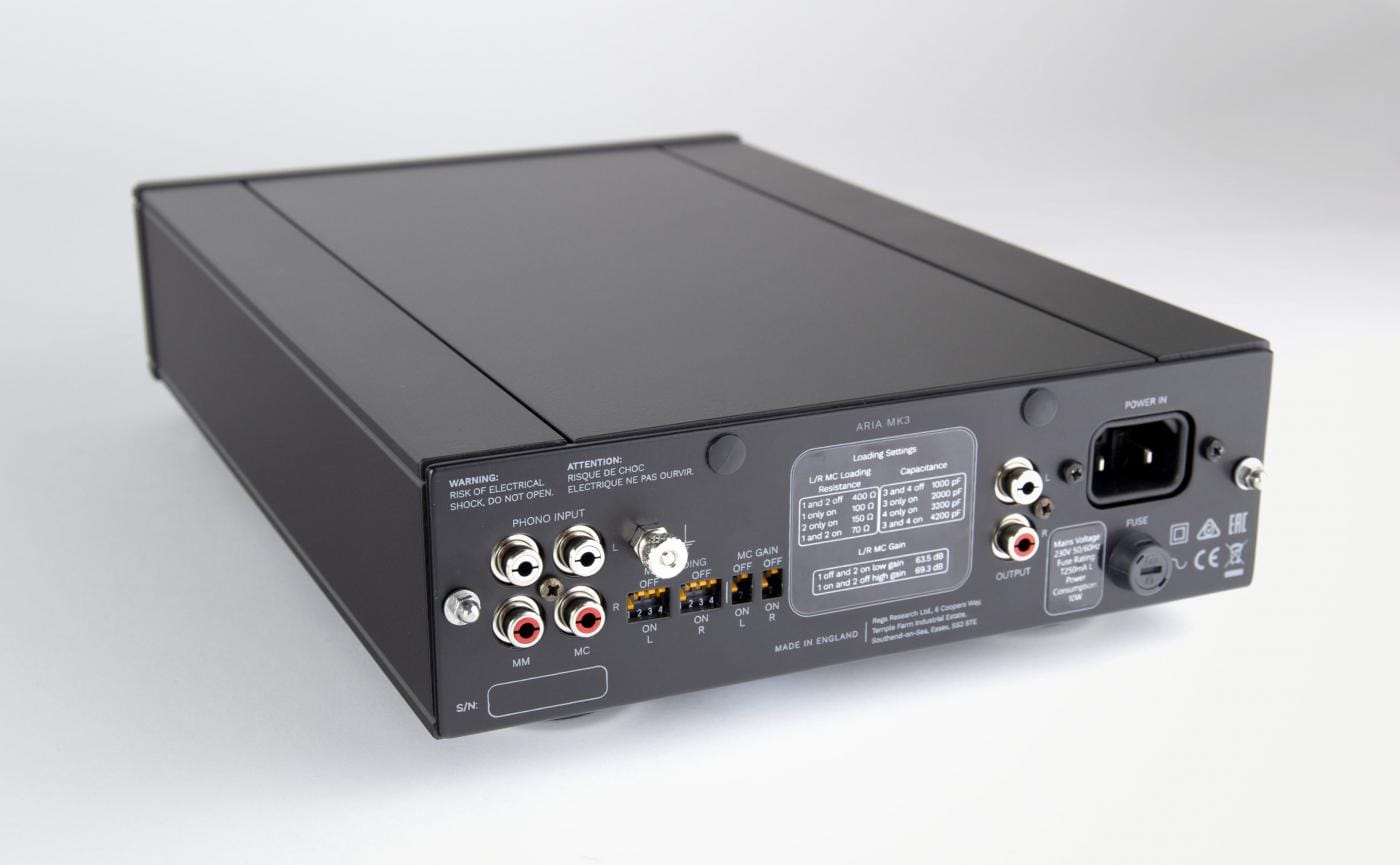

The MC input uses parallel connected, low noise FETs (Field Effect Transistors) configured as a compound pair. The use of FET transistors ensures there is no bias current flowing in the cartridge coil so as not to upset the delicate magnetic geometry of the cartridge. The MC input has the provision for selecting resistive input loading of 70 Ω to 400 Ω and capacitive loading of 1000 pF to 4200 pF. The input sensitivity can be changed by 6 dB via the back panel.

Maximum Output Level
11 V RMS

Rated Output Level
200 mV

Output Resistance
100 Ω

Minimum Output Resistance for a -3 dB @ 15Hz
1 k

Power Consumption
10 W

Ambient Operating Temperature
5 to 35 °C

Dimensions (W × H × D)
218 x 78 x 315 mm
