Quad 33 Pre amplifier - New Edition
Quad 33 Pre amplifier - New Edition
Couldn't load pickup availability
The iconic Quad 33 pre amplifier is a design classic. It was Quads first transistor pre amplifier and was introduced in 1967. The design won Quad an award from the Council of Industrial Design in 1969. It's easy to forget just how radical this product was back when it was launched. It's still a great looking product today.
So it's with great delight we will see its return in November 2024 with a new edition, that's faithful to the original in many ways, with some modern touches to boot.
The design now features a remote control, switchable MM and MC phono stage, headphone output and balanced inputs and outputs alongside regular single ended RCA connections, making this one very flexible pre amplifier.
The backlit display gives access to some of the other features including an implementation of the famous Quad tilt tonal balance control first seen in the Quad 44. These are much more useful than crude tone controls for the rare occasions when you may need to adjust the sound.
More details will follow when it's officially launched (as it's currently under an embargo until November) but if you're keen to get hold of one please let us know as supply is going to be quite limited for a good while.
Naturally the matching 303 power amplifier is also having similar treatment, you can see details about it here.
Model QUAD 33
General Description Pre Amplifier
Design Philosophy and Core Technology Illuminated LCD screen
Dedicated High Performance Low Noise MM/MC Phono stage
Classic QUAD 'Tilt' adjustment
Classic QUAD / Tone Controls
Dedicated Current-Feedback Headphone Amplifier

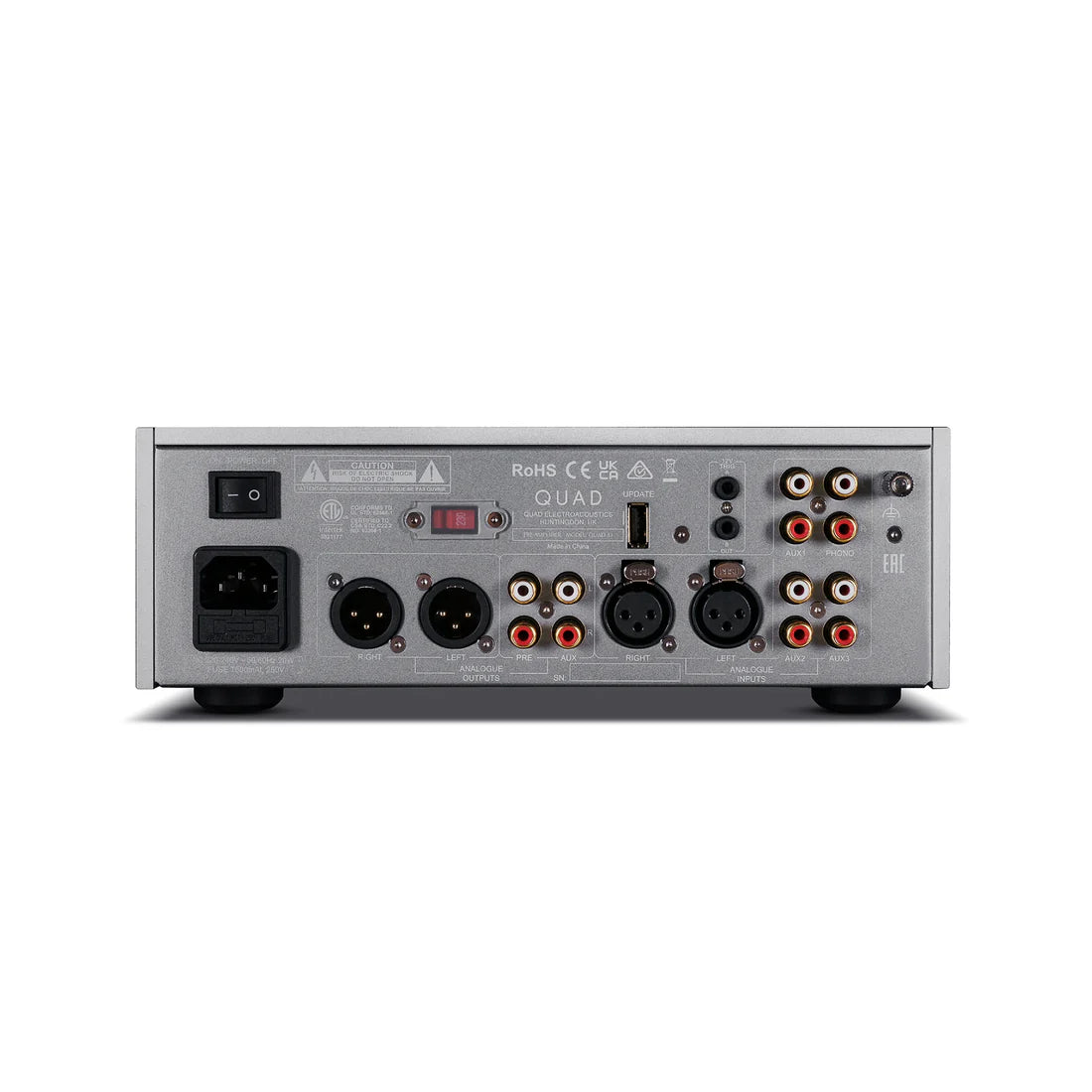

Inputs 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable)
Outputs 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out
Pre Amplifier Section
Gain 0dB (Line / XLR)
+46dB (Phono MM)
+63.5dB (Phono MC)
Input Sensitivity (Vout=695mV) 695mV (Line / XLR)
3.2mV (Phono MM)
460uV (Phono MC)
Input Impedance 10k (Line / XLR)
47k/100pF (Phono MM)
100R/1.7nF (Phono MC)
Total Harmonic Distortion (THD) <0.0005% (1kHz, Line/XLR)
<0.002% (1kHz, Phono MM / MC)
Frequency Response 20Hz - 20kHz (+/-0.2dB)
Signal-to-Noise ratio (S/N) > 108dB (A-weighted, Line/XLR)
> 82dB (A-weighted, Phono MM)
> 74dB (A-weighted, Phono MC)
Output Impedance 120 ohms
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35 ohms
Load Impedance 20 - 600 ohms
General
Standby Power Consumption <0.5W
Net weight 4kg
Gross weight 4.96kg
Dimensions (mm) (W x H x D) 258 x 165 x 82.9
Carton Size (mm) (W x H x D) 330 x 257 x 192
Finish Classic QUAD Grey
Standard accessories Power Cord, Remote Control, User Manual.
