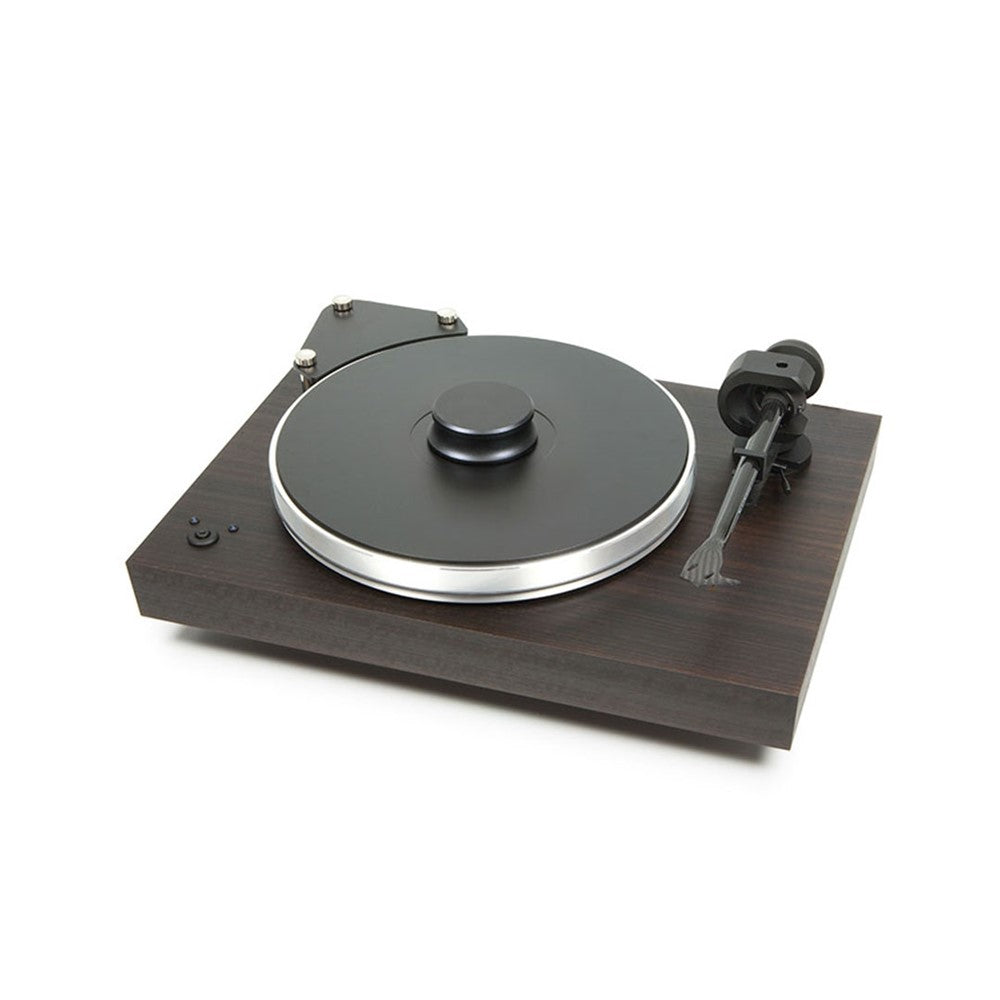

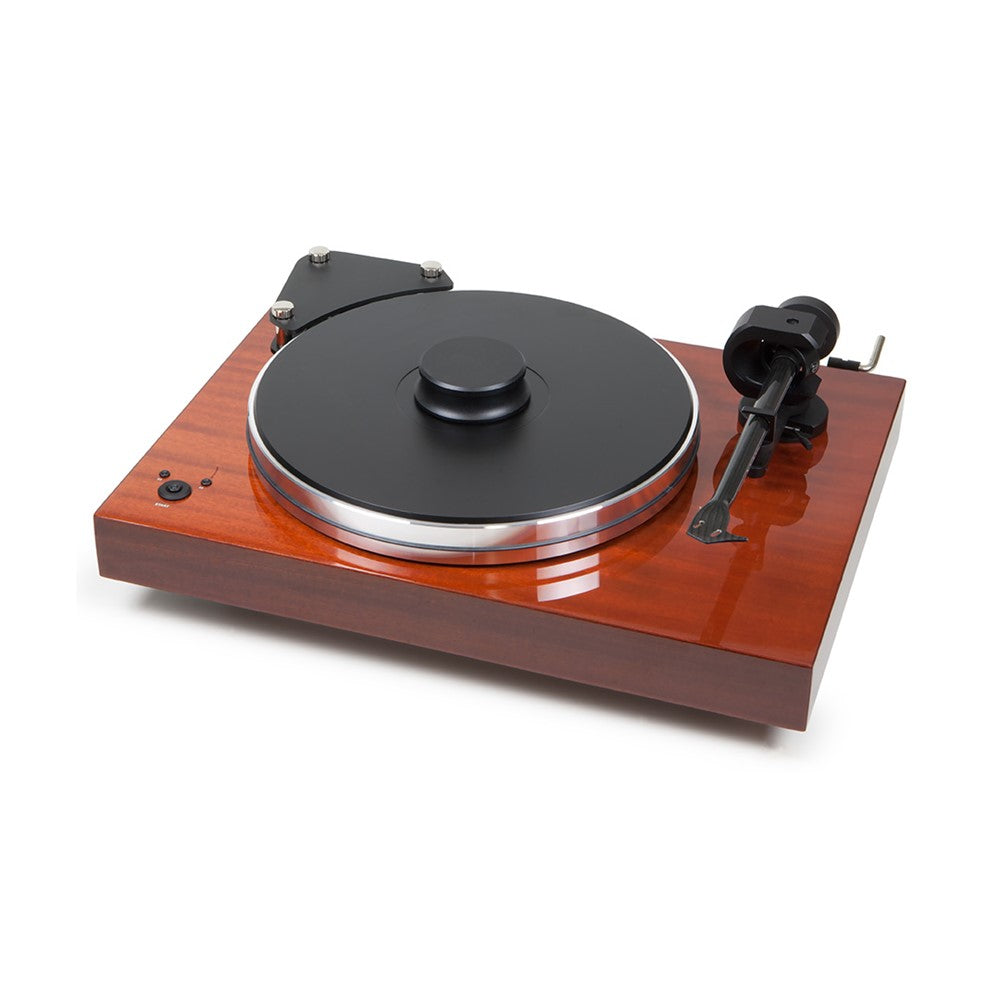

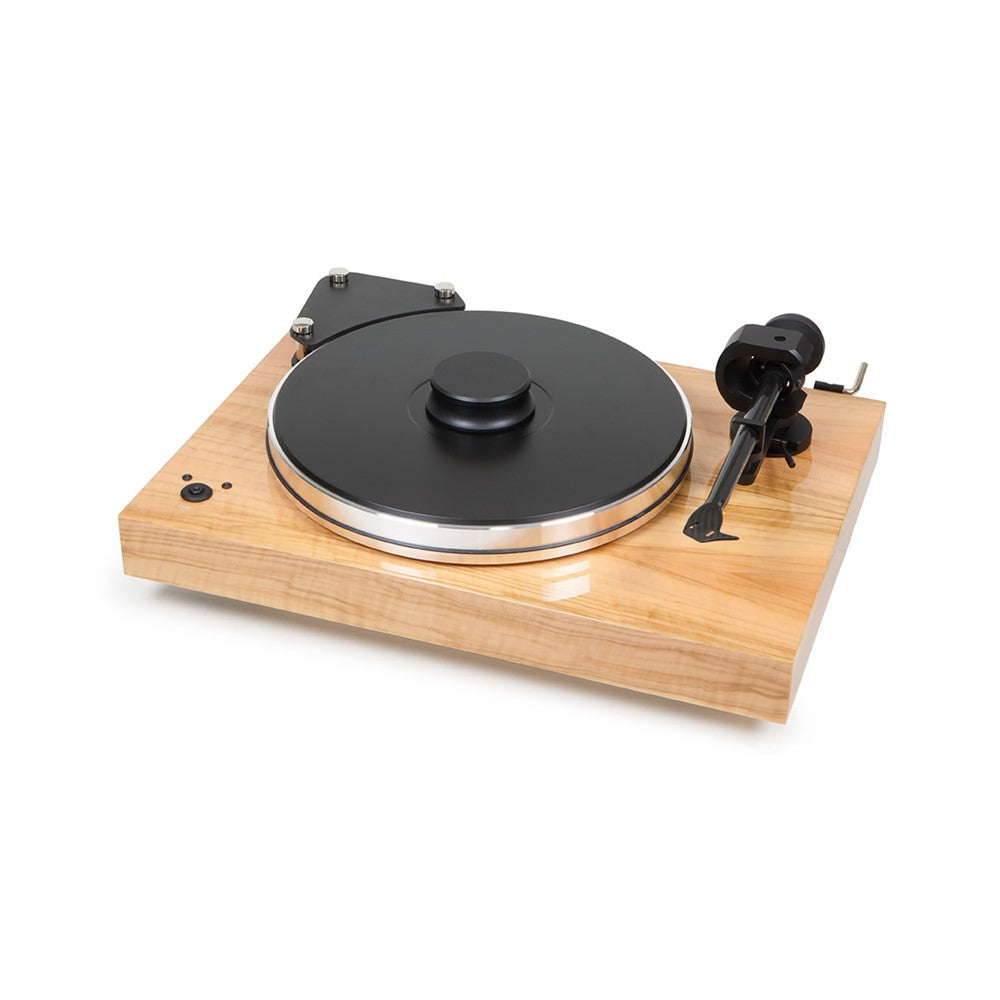

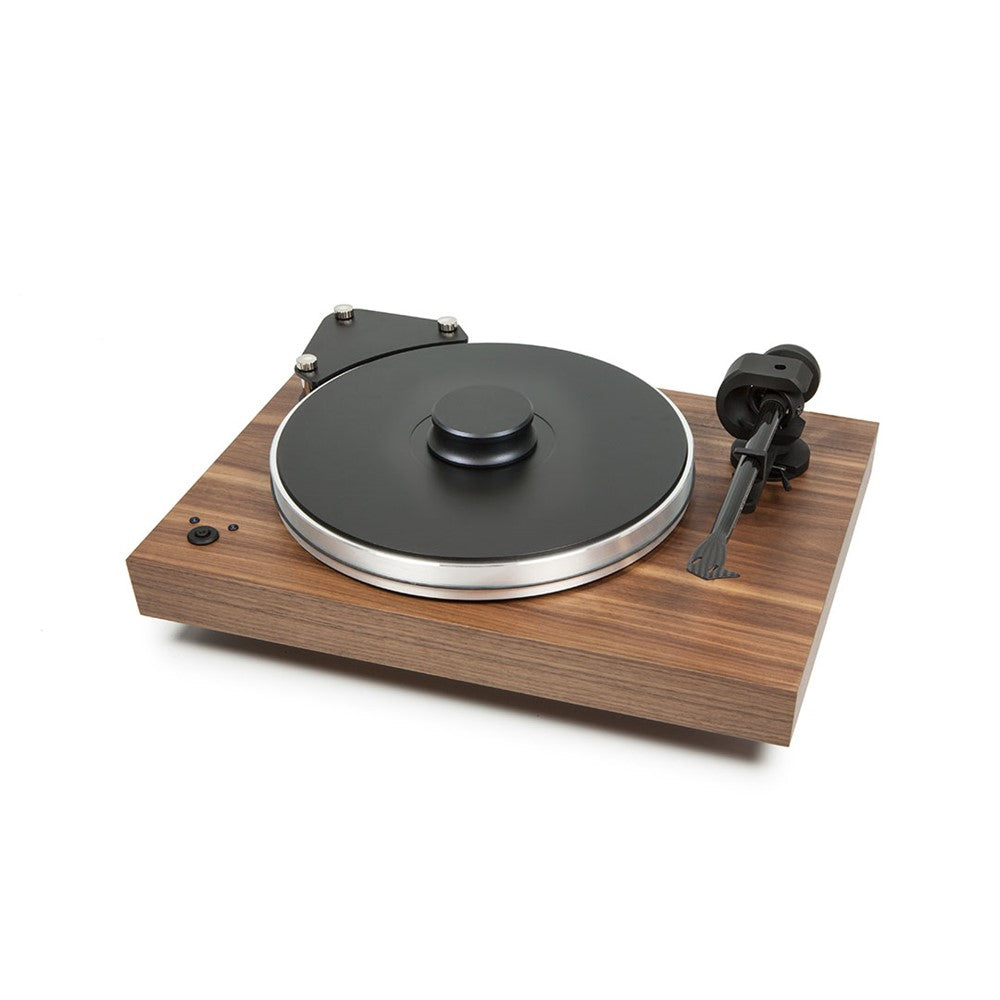

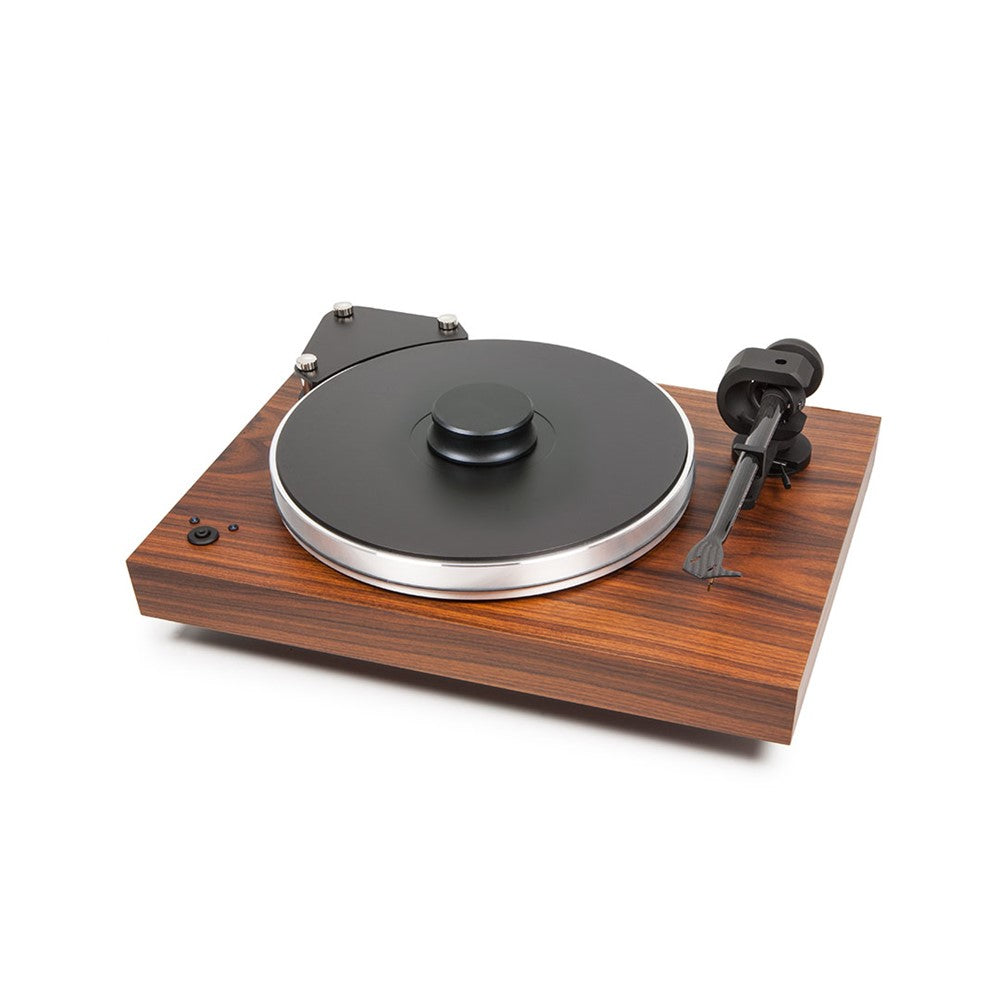

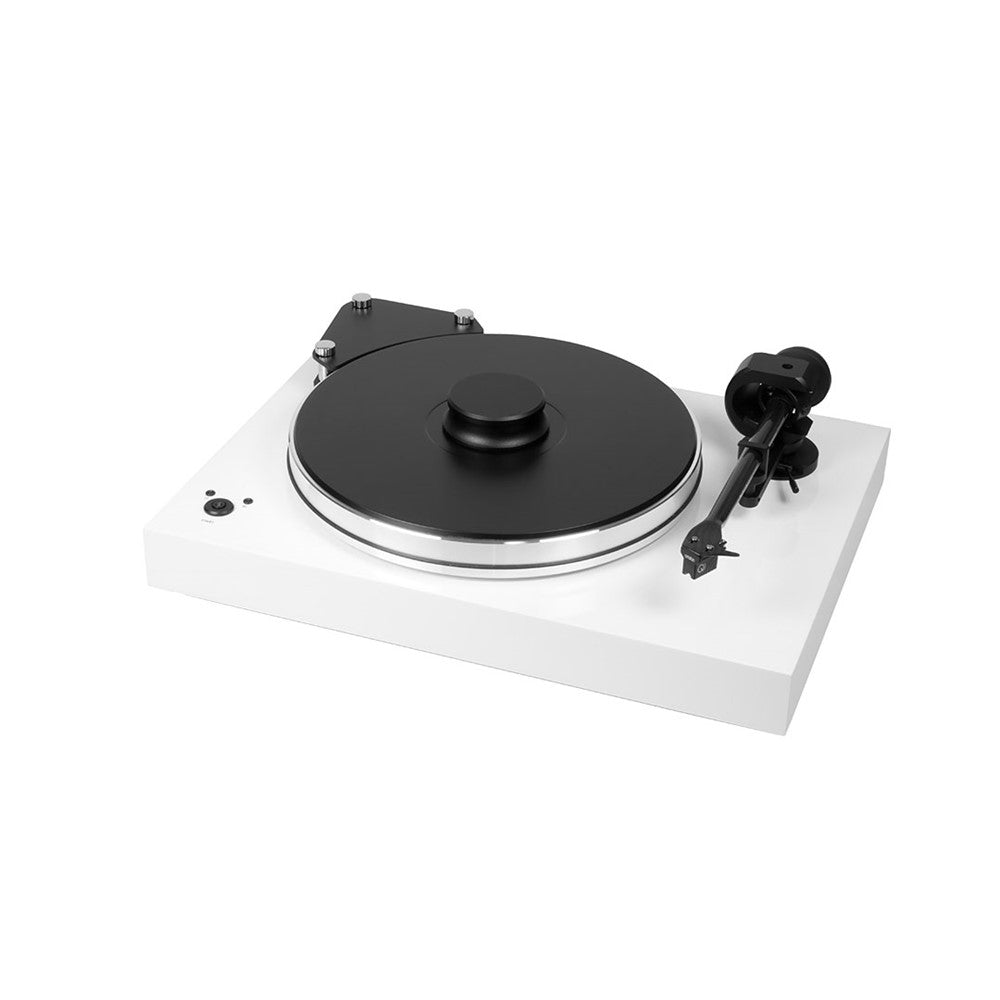

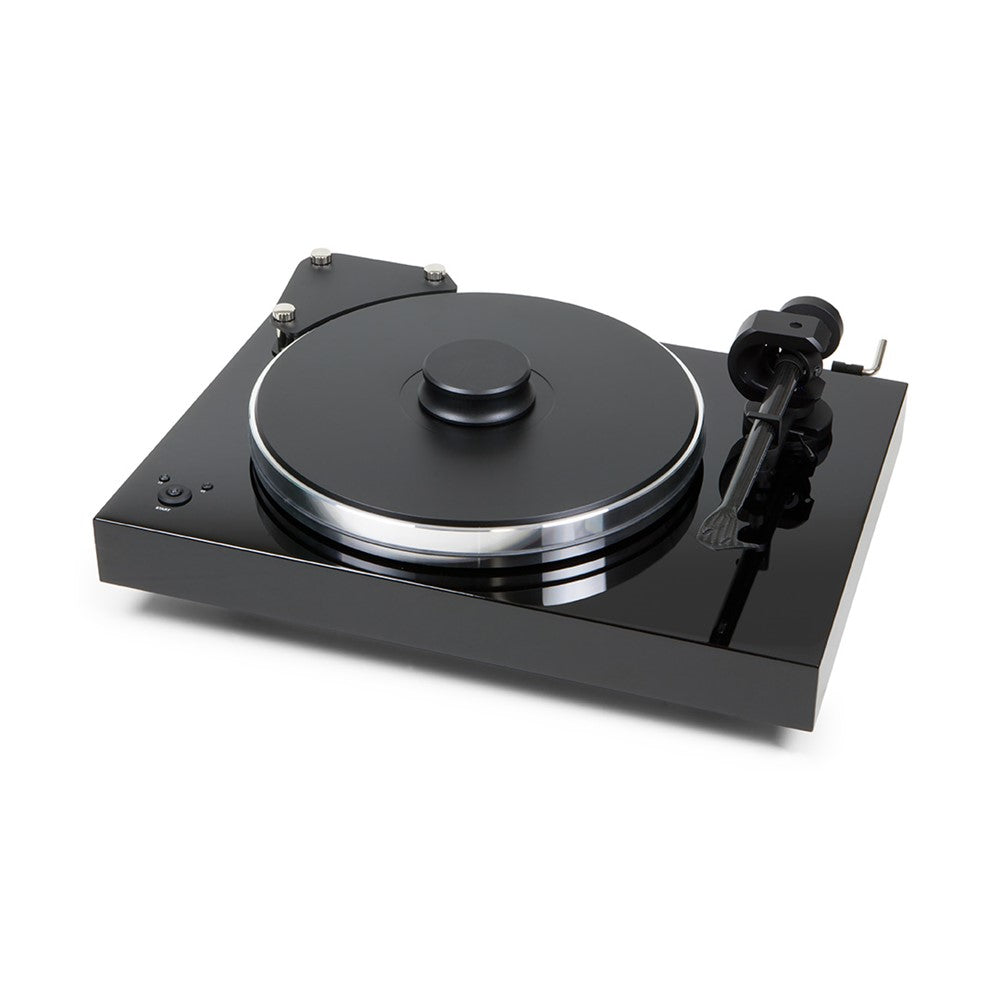

Xtension 9 Evolution incorporates all our turntable design experience in a slimline size to fit standard audio racks. The chassis is made from heavyweight non-resonant CNC machined MDF. This offers us a solid and acoustically outstanding base to build a turntable as MDF has very little material typical resonances. We avoided hollow spaces in the chassis as these could have a negative impact on the sound quality. Choose from our various finish options, either luxury hand painted colours or real wood veneers.
Technical Specifications:
Drive Principle: Perimeter Belt Drive Speeds: 33 & 45 RPM Speed Variance (33 RPM): 0.09 % Speed Variance (45 RPM): 0.09 % Wow and Flutter (33 RPM): 0.1 % Wow and Flutter (45 RPM): 0.1 % Motor: 9V AC Turntable Signal to Noise Ratio: 73 dB Main Bearing: Inverted Ceramic Ball Main Platter Material: Vinyl-Topped Aluminium with TPE Lining Plinth Material: Metal-Packed MDF Tonearm Type: Adjustable Tonearm Material: Carbon Fibre Effective Tonearm Length: 230 mm Overhang: 18 mm Effective Tonearm Mass: 8.5 g VTA Adjustment: Yes Output Connection: 5-Pin Connector Output Level: Phono Level External Power Supply Rating: 15V-1600mA DC Maximum Power Consumption: 4 W Dimensions (W x H x D): 465 x 185 x 350 mm Weight: 16 kg
