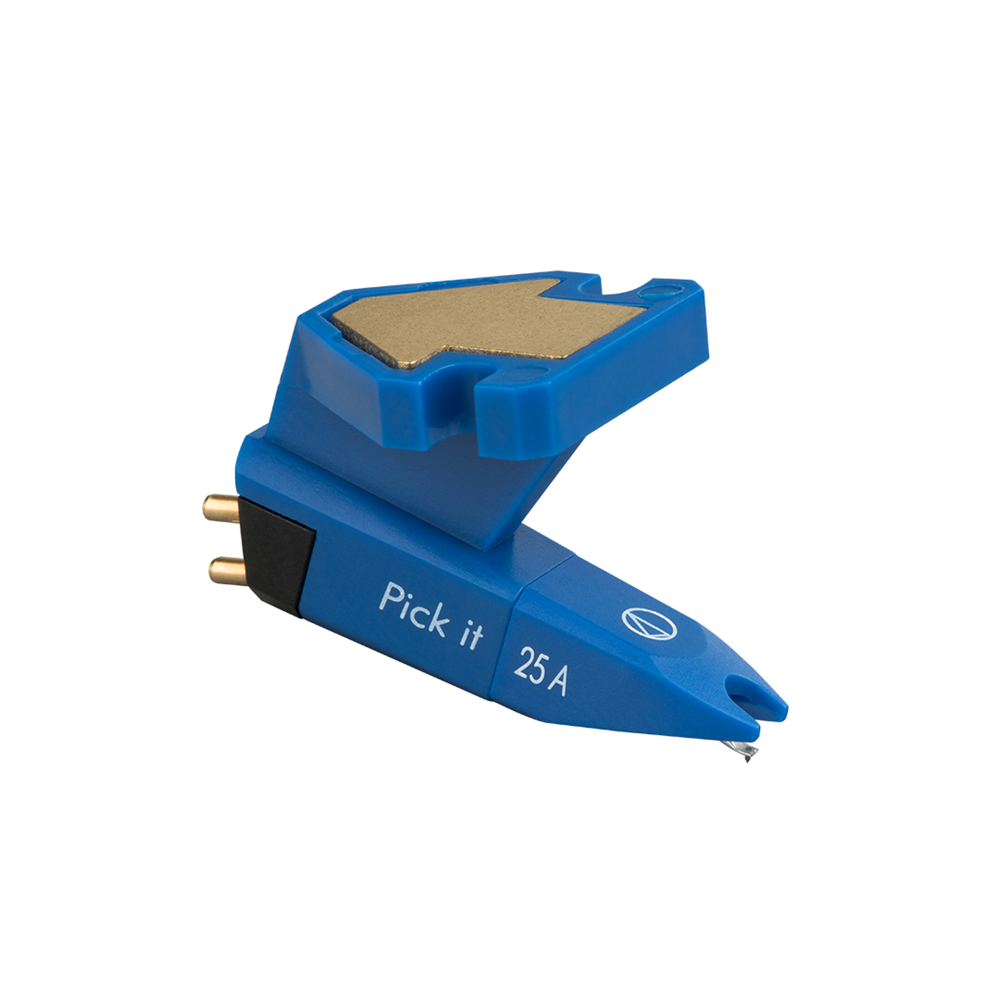

Pro-Ject Pick-It 25A MM Cartridge
Pro-Ject Pick-It 25A MM Cartridge
Regular price
£65.00 GBP
Regular price
Sale price
£65.00 GBP
Unit price
/
per
The Pick-It 25A celebrates the 25th anniversary of Pro-Ject with a special cartridge collaboration with Ortofon. Based on their classic OM10 cartridge, this model features pick up coils made from pure silver wire for improved treble quality and resolution.
Technical Specifications
Stylus type elliptical
Weight 5 g
Stylus tip radius 8 x 18 µm
Frequency response 20 - 24.000 Hz
Output voltage 5.5 mV
Channel separation >25dB @ 1kHz
Compliance dynamic/lateral 25 µm/mN
Tracking force range 1.25-1.75 g
Recommended tracking force 1.5 g
Tracking angle 20°
Internal inductance 580 mH
Recommended load resistance 47 kΩ
Recommended load capacitance 200-600 pF
Stylus type elliptical
Weight 5 g
Stylus tip radius 8 x 18 µm
Frequency response 20 - 24.000 Hz
Output voltage 5.5 mV
Channel separation >25dB @ 1kHz
Compliance dynamic/lateral 25 µm/mN
Tracking force range 1.25-1.75 g
Recommended tracking force 1.5 g
Tracking angle 20°
Internal inductance 580 mH
Recommended load resistance 47 kΩ
Recommended load capacitance 200-600 pF
