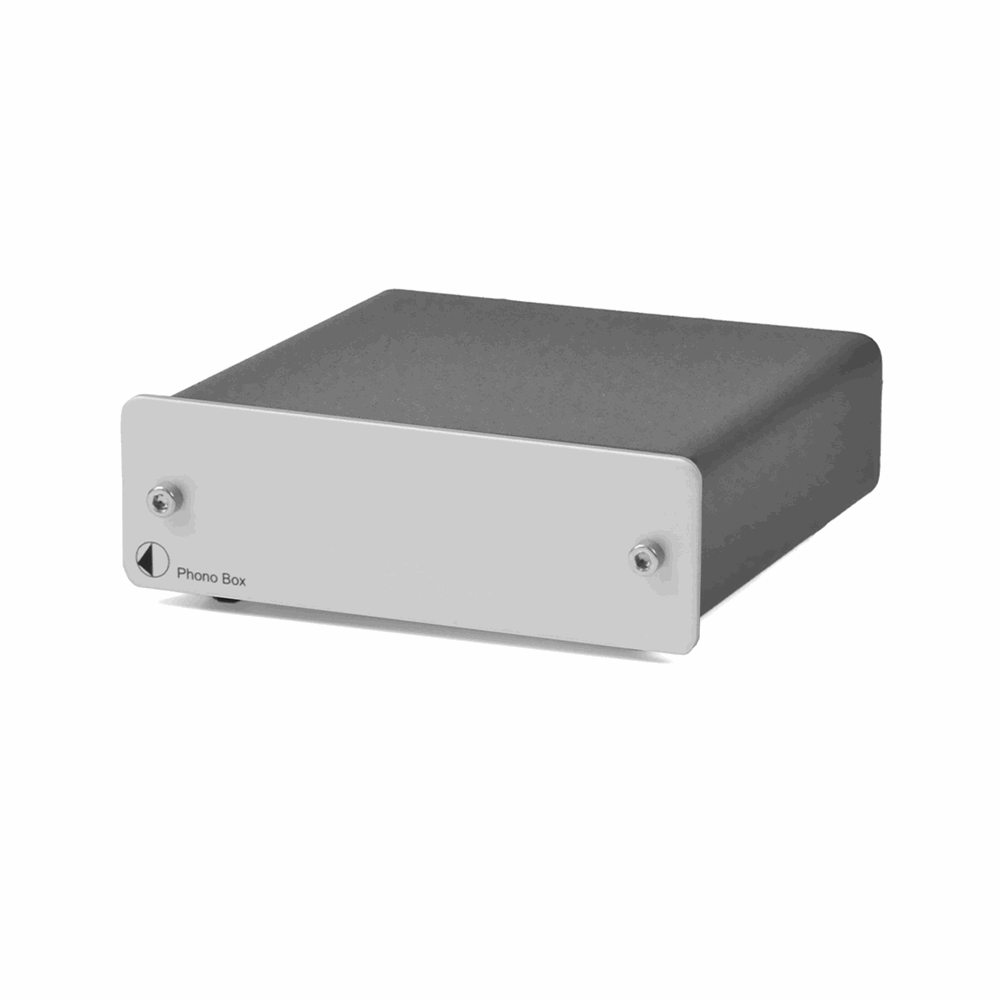

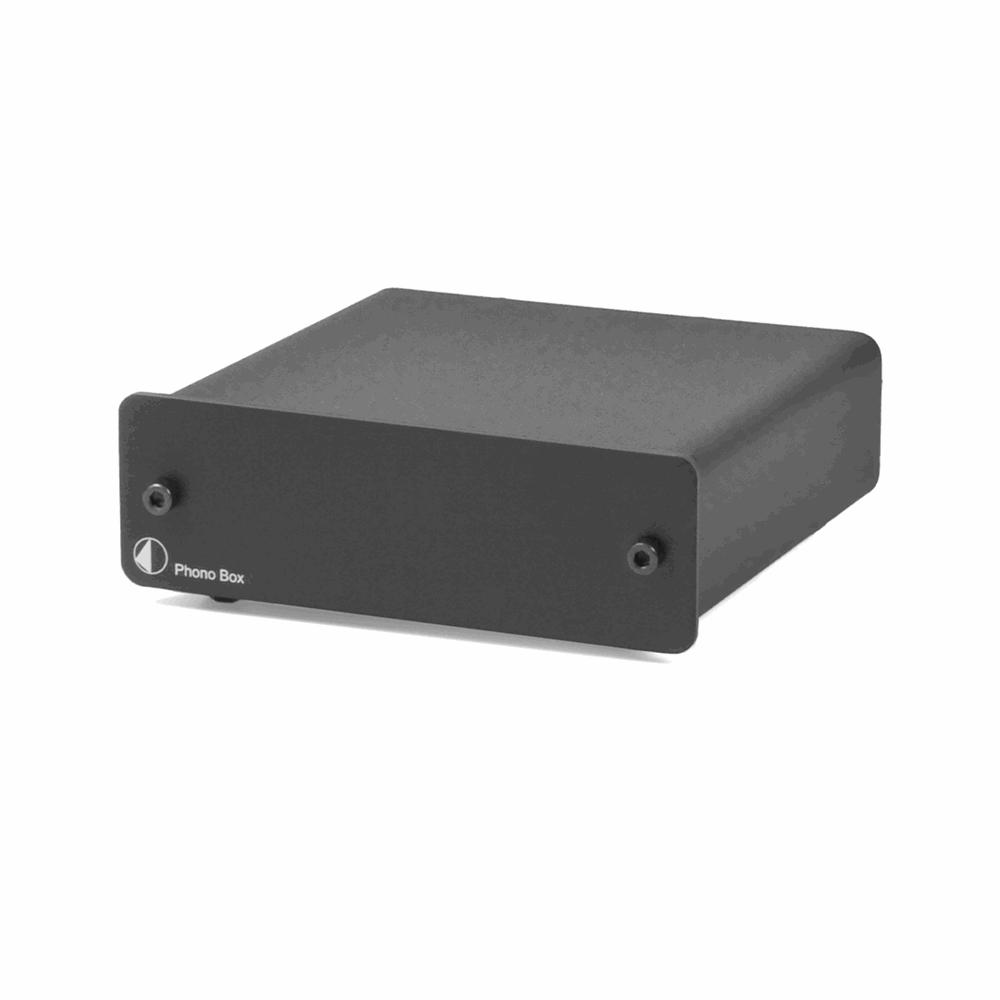

Pro-Ject Phono Box (MM & MC)

The Pro-Ject Phono Box is one of the most popular phono stages on the market today. Combining affordability, simplicity and great sound; it's a simple addition that helps turntables sing. Boasting a sophisticated internal design that employs low-noise ICs and precise RIAA equalisation circuitry, the Phono Box is often found used with far more expensive turntables. Simply connect the In and Output cables, push the switch to select Moving Magnet or Moving Coil operation (depending on your turntable cartridge), plug it in and off you go.

Key Features:

Small size allows installation close to record player

Precise RIAA equalisation

Suitable for MM (Moving Magnet), HOMC (High output MC, on the MM setting) and Low output MC (Moving Coil) cartridges

Metal case shields the electronics from interference

Special low-noise ICs used inside

Low output impedance, suitable to drive most amplifiers and long interconnect cables

Gold-plated RCA connectors

Outboard power supply included

Technical Specifications:

Input Impedance: MM: 47kΩ / 120pF MC: 100Ω / 120pF

Gain: MM: 40dB MC: 60dB

Output Voltage (Typically): MM: 300mV (at 1kHz / 3mV) MC: 300mV (at 1kHz / 0.3mV)

Maximum Output: 9.5V (1kHz) Noise Floor: MM: 86dB (94dB - A weighted) MC: 68dB (75dB - A weighted)

THD: MM: 0.01% MC: 0.05%

RIAA Curve Accuracy: 20Hz - 20kHz / max. 0.5dB

Input: 1x Pair RCA Phono Sockets

Line-Level Output: 1x Pair RCA Phono Sockets

Outboard Power Supply: 18V / 500mA DC

Dimensions: 103 x 36 x 104mm 103 x 36 x 115mm (Incl. Sockets)

Weight: 540g

We are authorised Pro-Ject dealers. We have these products in-stock and ready for dispatch.
