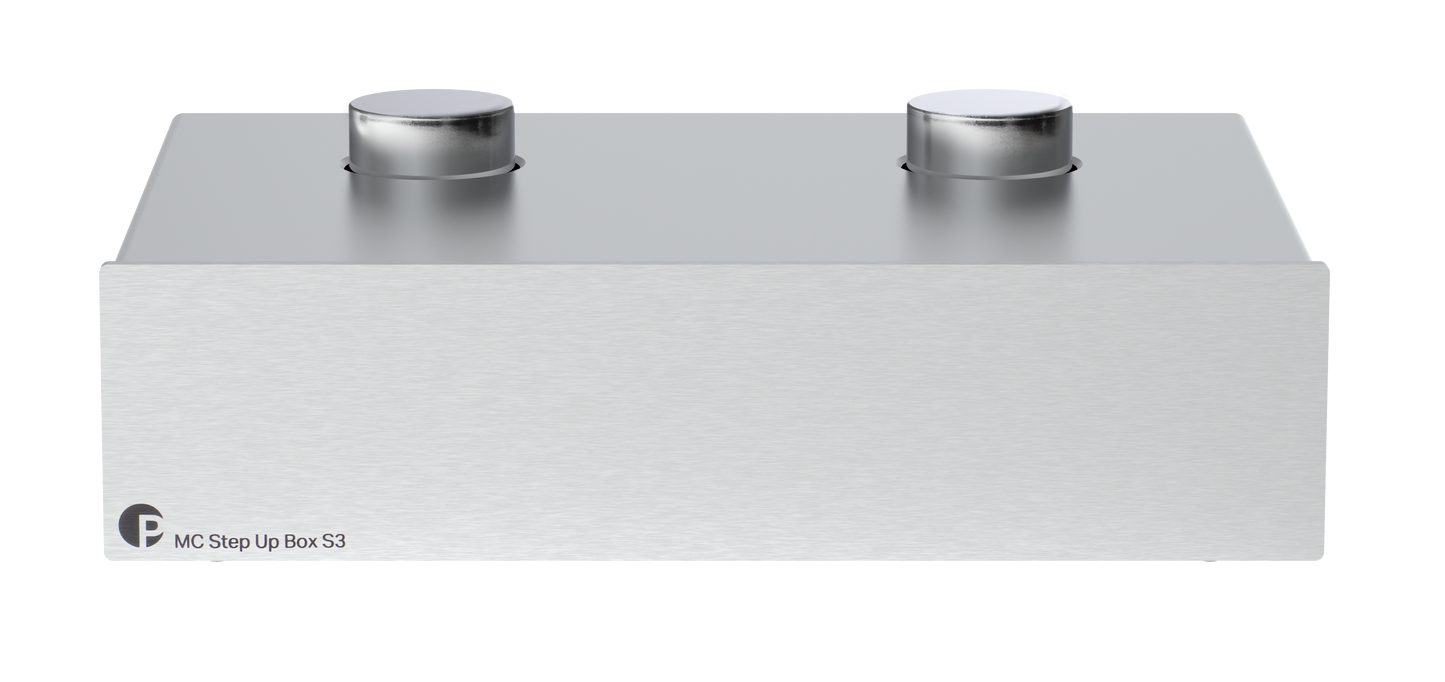

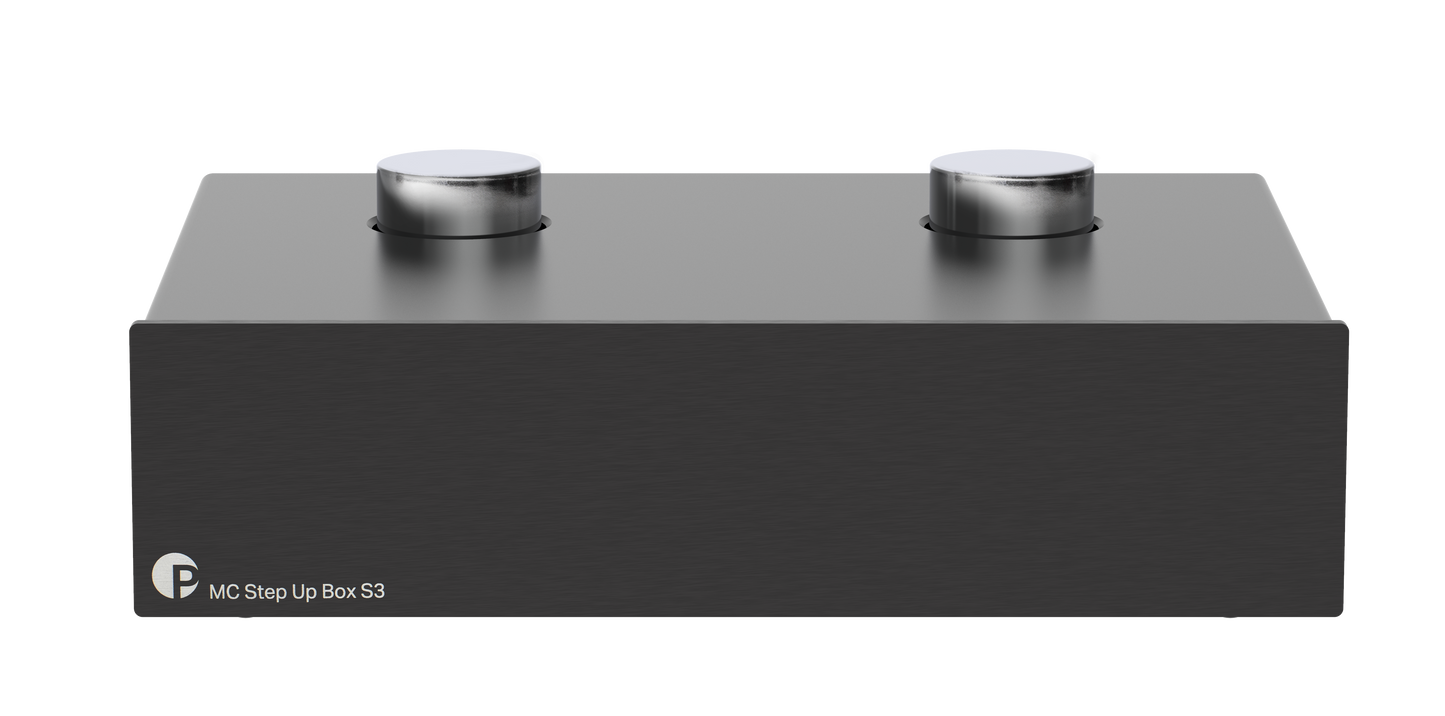

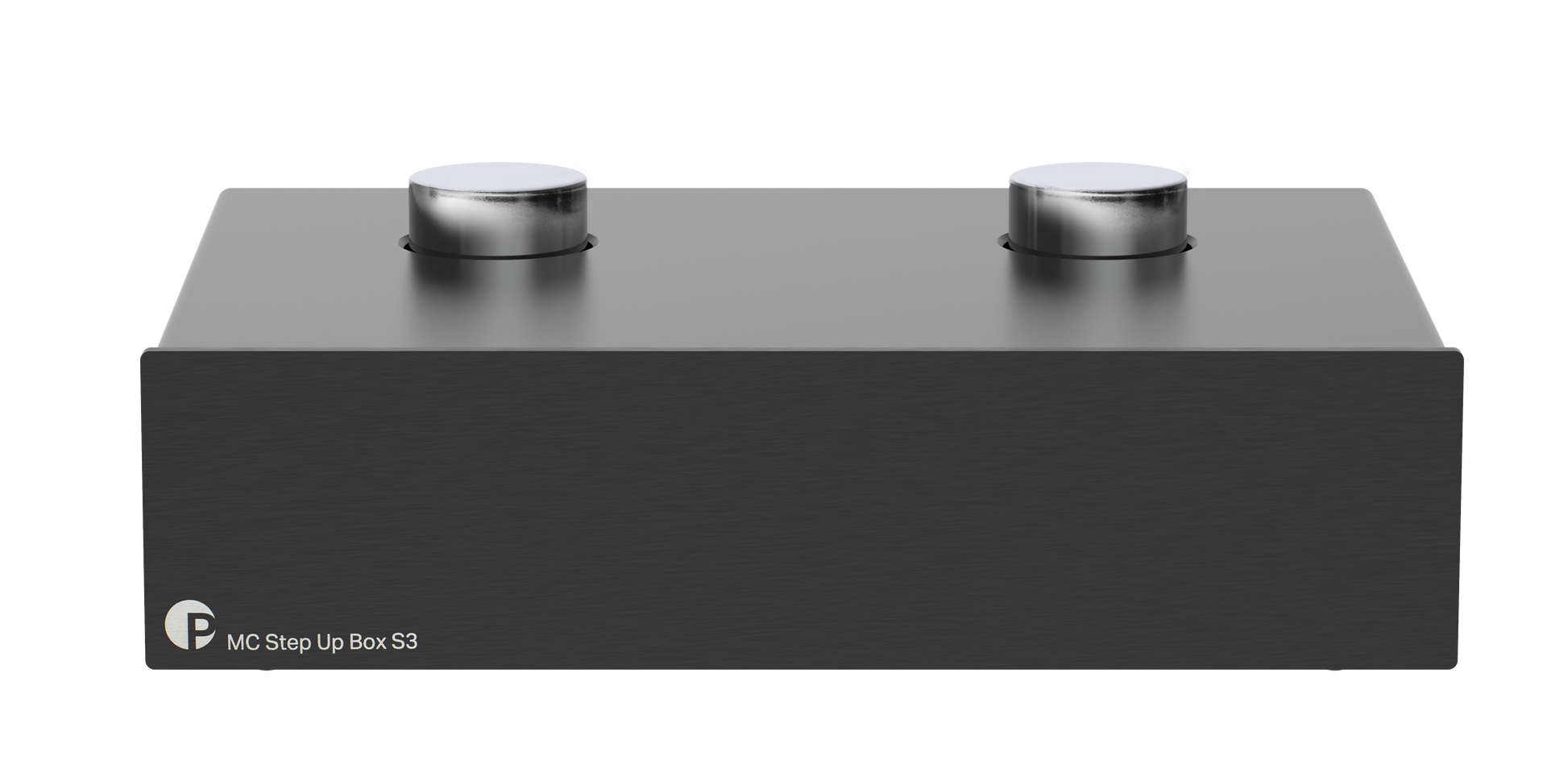

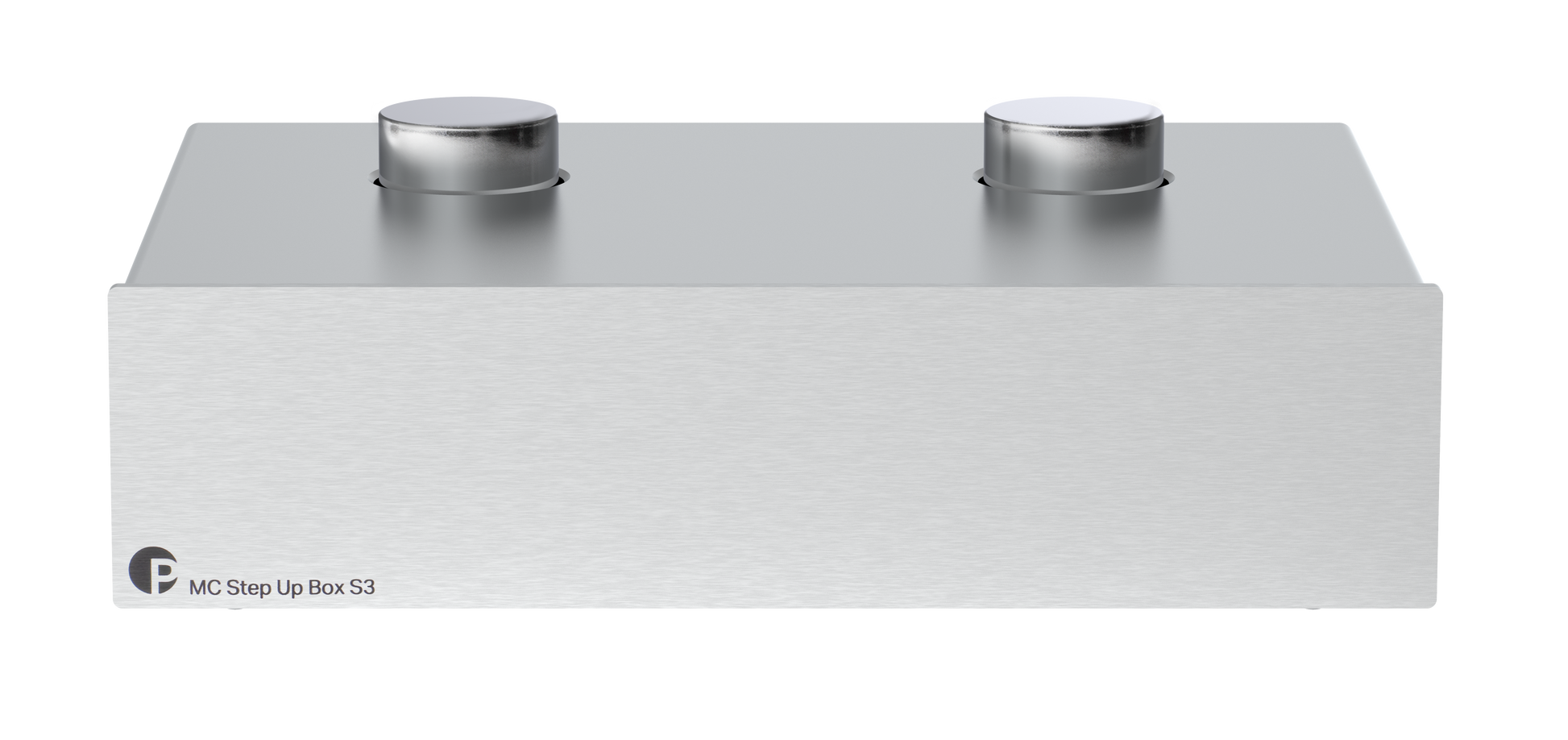

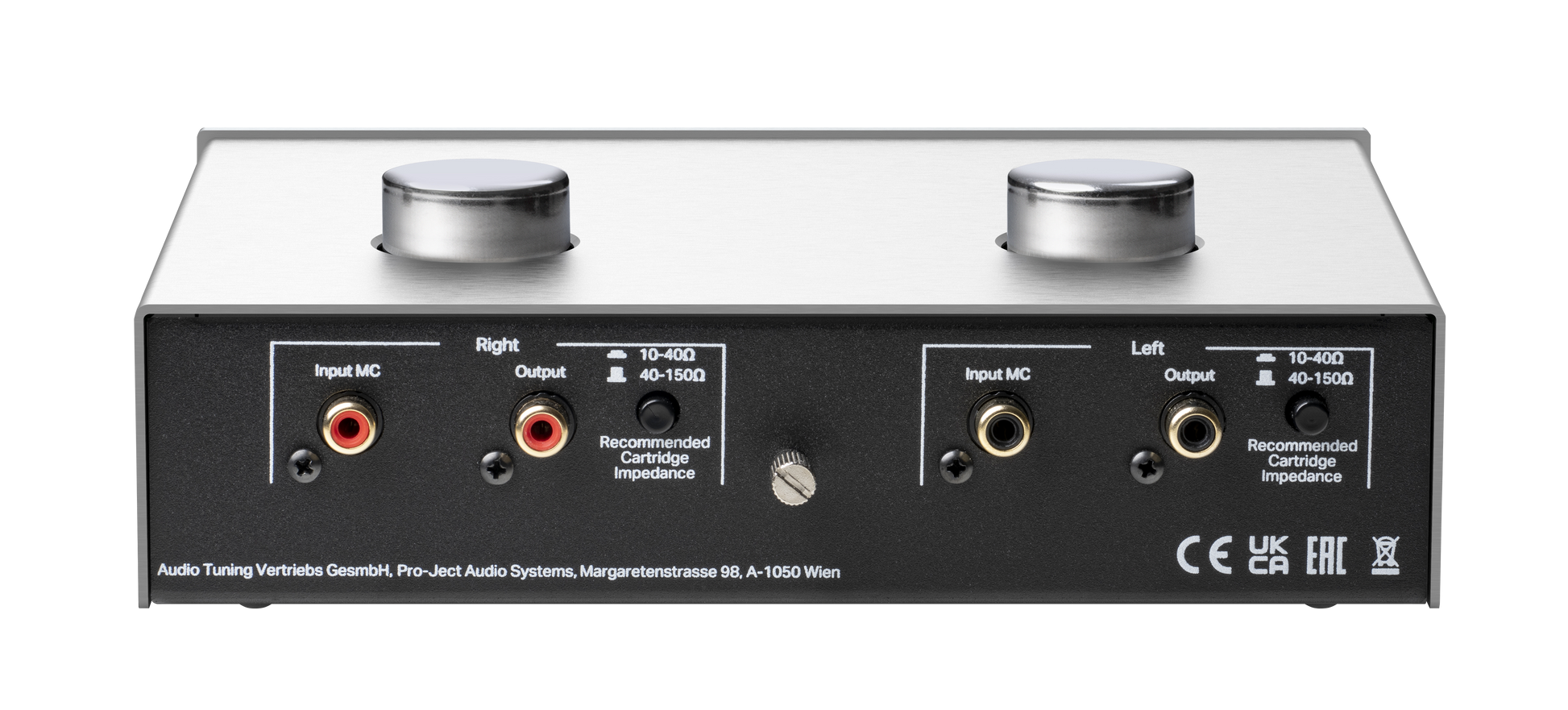

Housed in a smart aluminium chassis, the MC Step Up Box S3 is a very reasonably priced European made step up transformer. It has a step up ratio of 1:16 which will suit the majority of cartridges and there's the ability to change the load on the rear panel (settings are intended for 10 to 40 Ohms and 40 to 150 Ohms, which encompasses the majority of cartridge designs it's likely to be partnered with.
SPECIFICATIONS
STEP UP RATIO: 1:16
FREQUENCY RESPONSE: ± 1 dB (10Hz - 55kHz)
TRANSFORMER OUTPUT LOAD: 47kΩ / 100pF
TRANSFORMER GAIN: 21 dB (Cartridges 10 - 40Ω) / 24dB (Cartridges 40 - 150Ω)
RCA LINE INPUT(S): 1 Stereo Pair
FIXED ANALOGUE OUTPUT(S): 1 x RCA Pair
DIMENSIONS (W X H X D): 206 x 65 x 164 mm
WEIGHT: 0.94 kg
