Pro-Ject Large Tonearm RCA Junction Box for Debut Carbon & 6 Perspex Turntables

Pro-Ject Large Tonearm RCA Junction Box for Debut Carbon & 6 Perspex Turntables

Regular price £21.00 GBP
Regular price Sale price £21.00 GBP
Sale Sold out
Tax included.

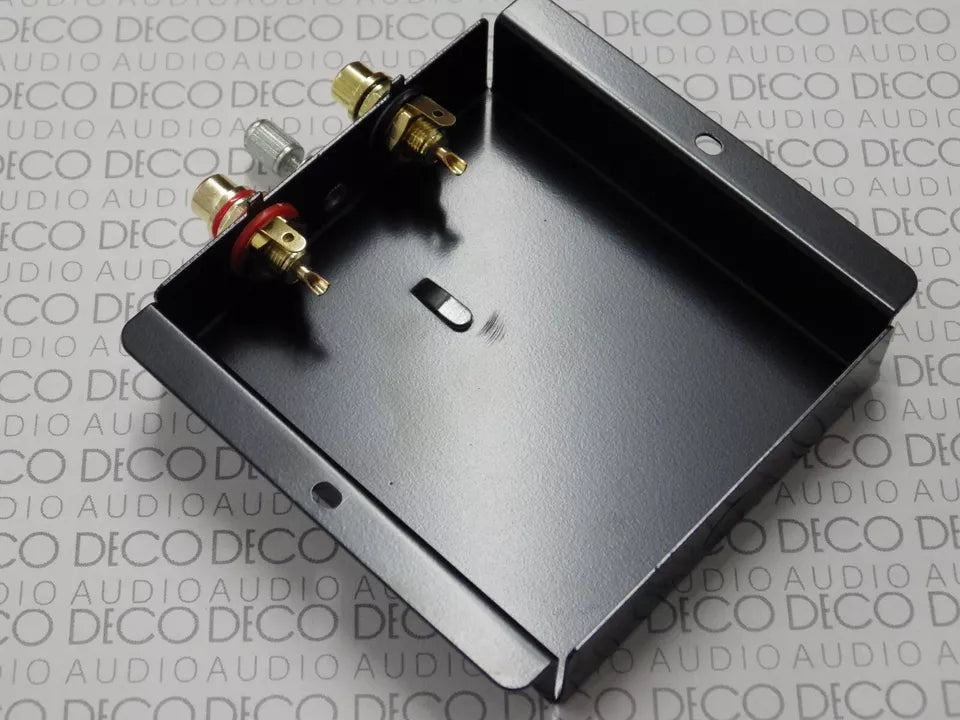

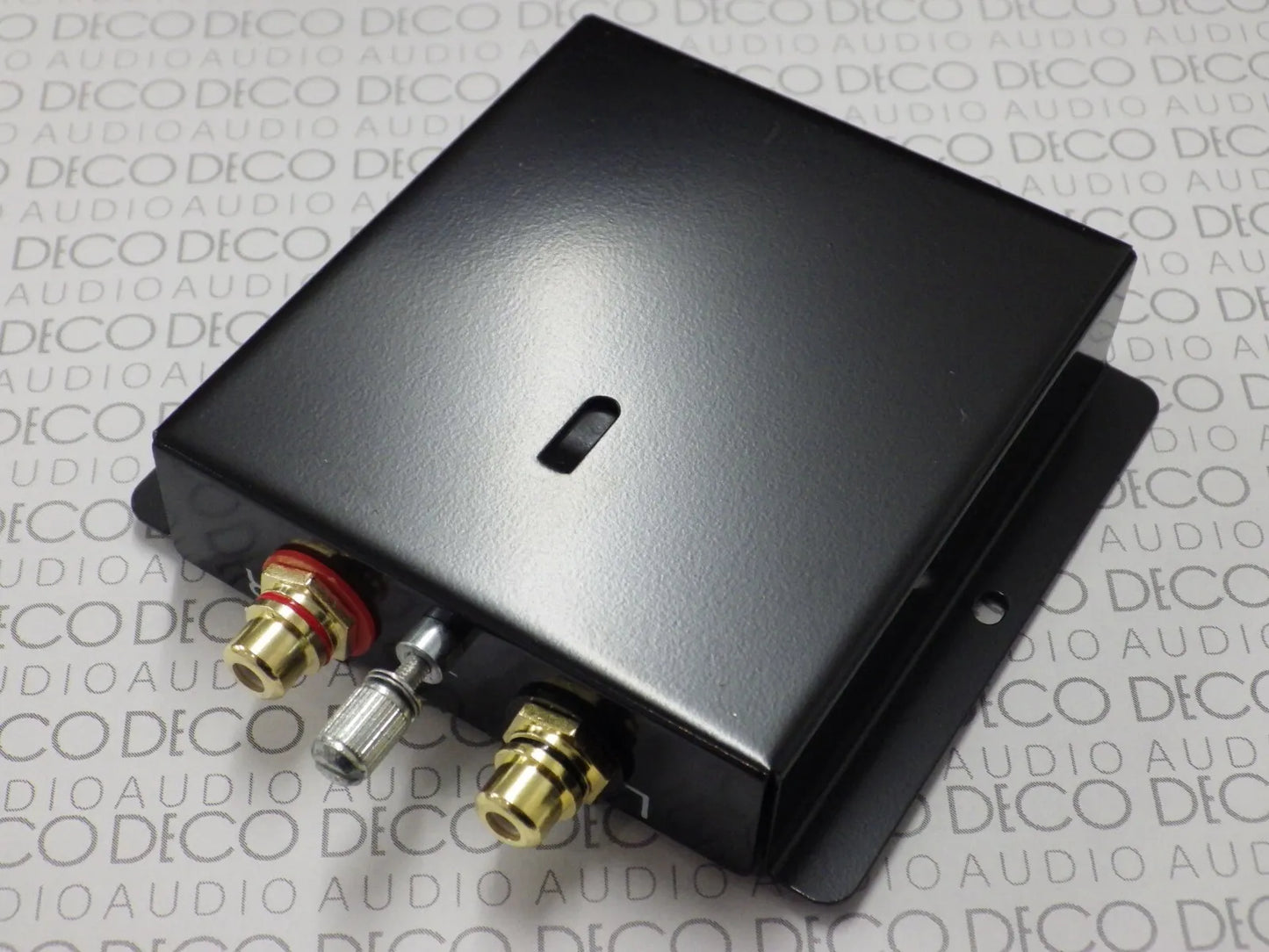

This large junction box (break out box) is normally found on the underside of certain Pro-Ject turntables (see list below) where it terminated the tonearm wiring to the outside world. Naturally it can also be used on a variety of other turntables / tonearm boards for situations where you want to terminate the internal arm cables into RCA output sockets. Made from steel, this sturdy box helps reduce hum pickup from the delicate internal wiring and has a pair of gold plated RCA sockets mounted to it, as well as a ground binding post. Please note that the RCA sockets will need to be soldered to the arm wiring and the ground wire is normally connected via a circa 4mm female spade connector to the cutout out in the metal work (which already has bare metal on it).

Dimensions:
- Hole centres: approx 90mm
- Depth: 90mm (excluding sockets)
- Width: 100mm (at widest point)
- Height: 20mm

Found on the following Pro-Ject turntables:
- Debut Carbon
- Debut Carbon Esprit SB
- 6 Perspex

We are fully authorised Pro-Ject Dealers, this is a brand new Genuine Pro-Ject spare part. These items are in-stock and ready for dispatch.
