The Evo CC tonearm range is available in 3 lengths and 2 finishes. As the name suggests this arm is an evolution of the original 9CC, with the most significant difference being an improved bearing housing which is much more rigid. The arm base is still a Linn fitment, the VTA easily adjusted and the external cable exiting through the SME type 5 pin tonearm plug, allowing easy wiring upgrades.

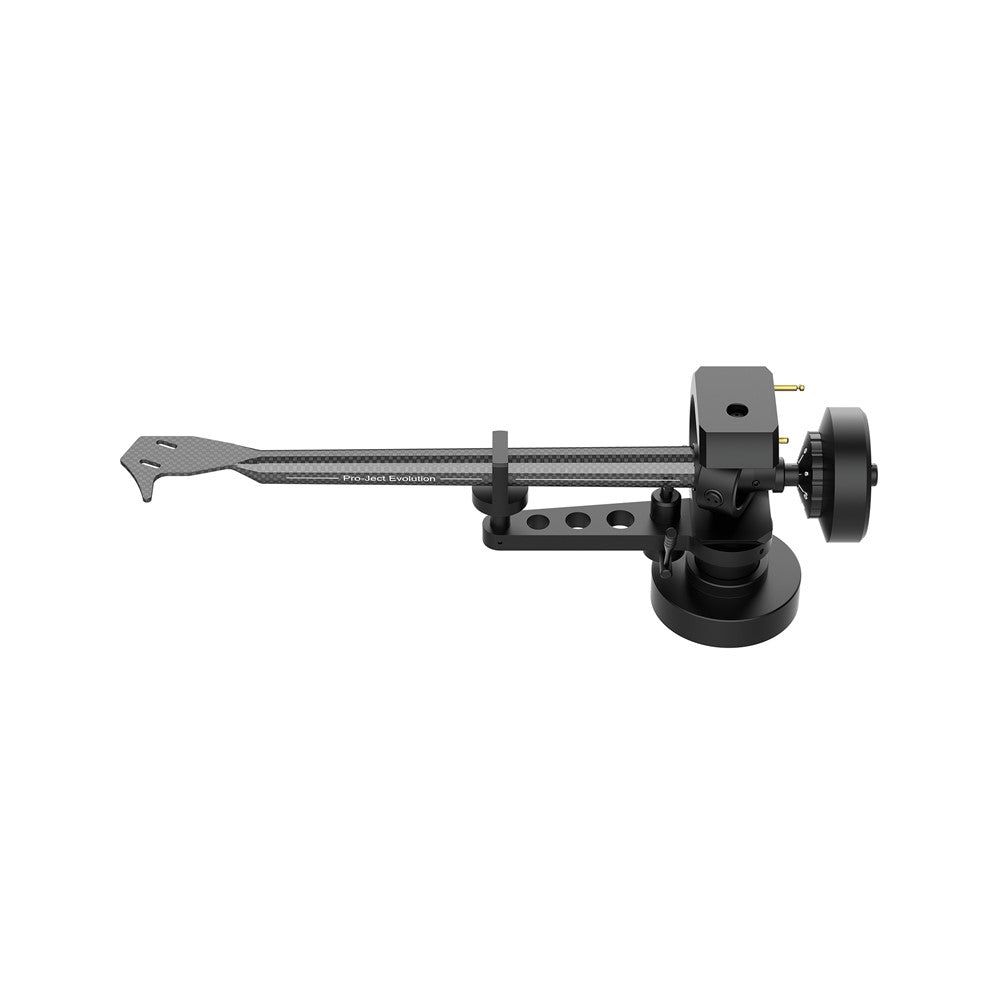

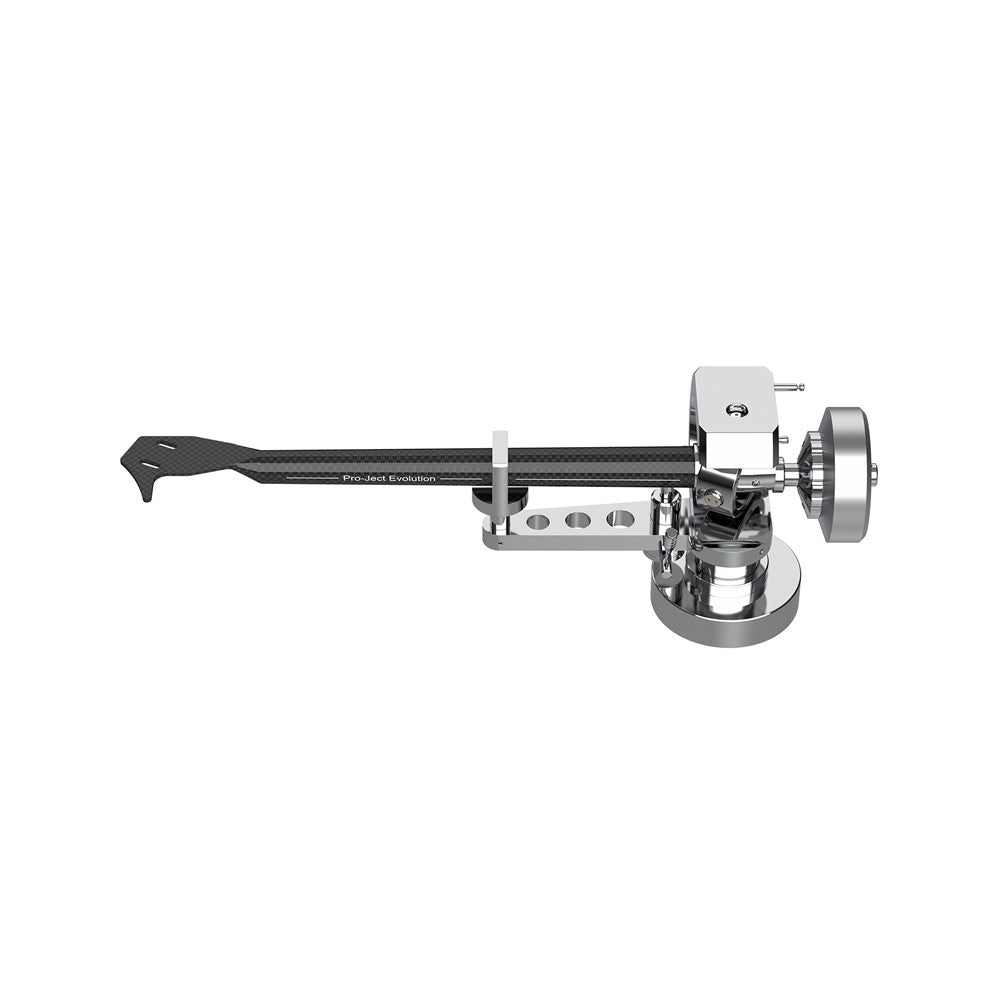

Technical Specifications for 9" Arm:
Effective Tonearm Length: 230mm Mounting Distance: 212mm Offset Angle: 24° Overhang: 18mm Pitch of Mounting Grooves in Headshell: 12.7mm Effective Tonearm Mass: 8g Cartridge Weight: 7-14g Range of the Tracking Forces: 0-3g Minimal Null Point: 130.6mm Maximal Null Point: 243.7mm Tonearm Weight (Without Flange): 265g

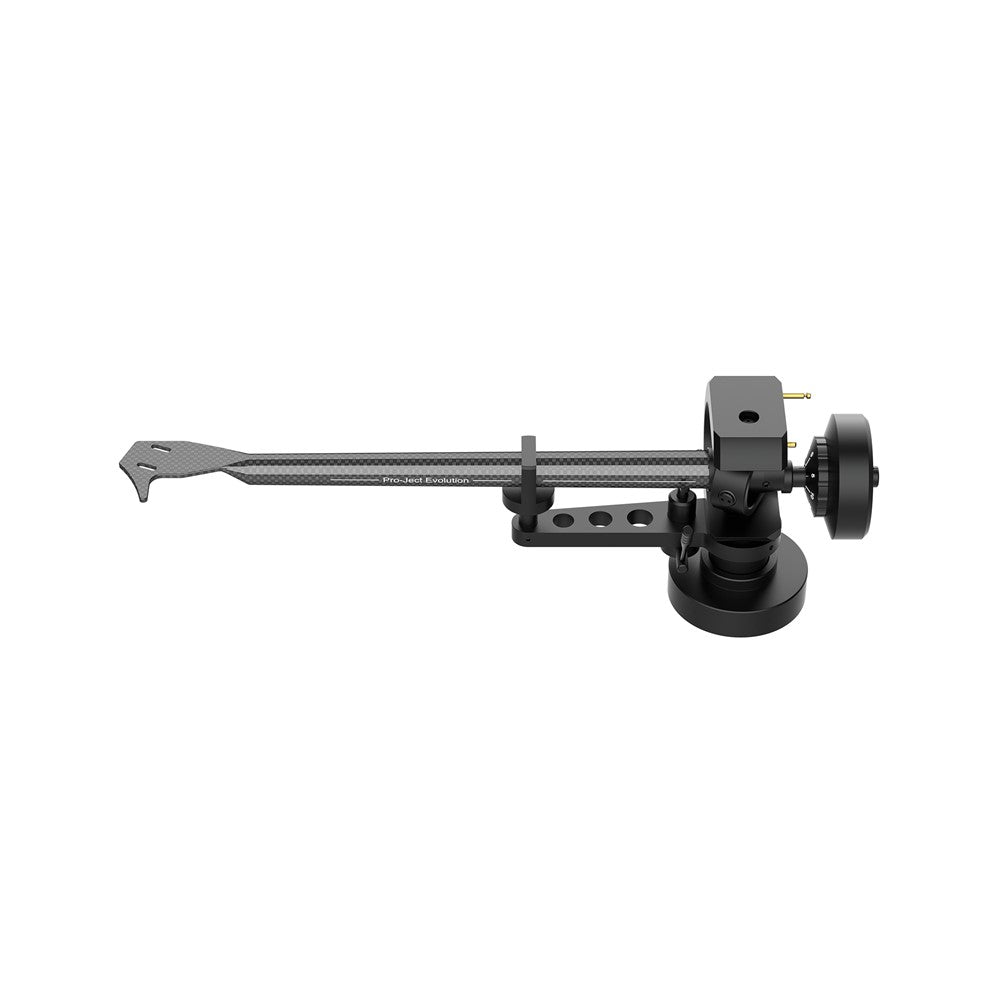

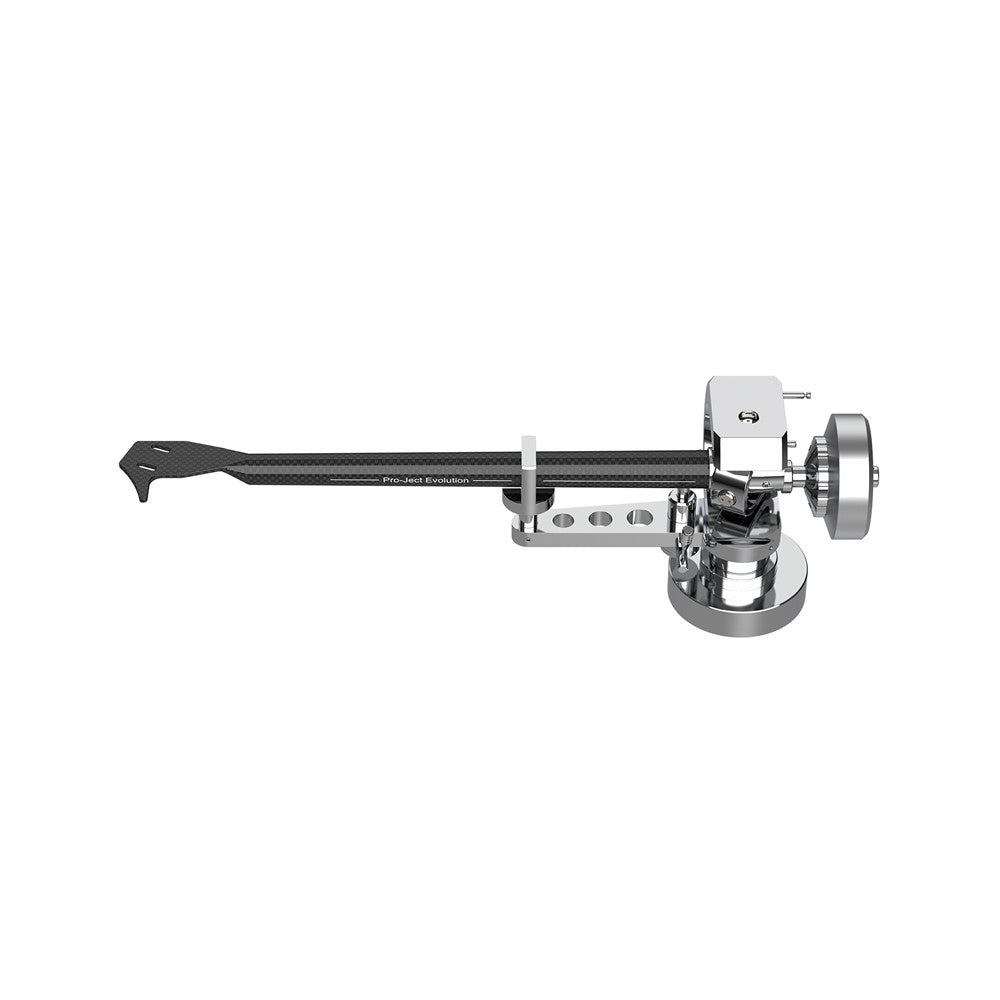

Technical Specifications for 10" Arm:
Effective Tonearm Length: 254mm Mounting Distance: 238mm Offset Angle: 21.4° Overhang: 16mm Pitch of Mounting Grooves in Headshell: 12.7mm Effective Tonearm Mass: 8.5g Cartridge Weight: 6-14g Range of the Tracking Forces: 0-3g Minimal Null Point: 126.8mm Maximal Null Point: 248.2mm Tonearm Weight (Without Flange): 269g

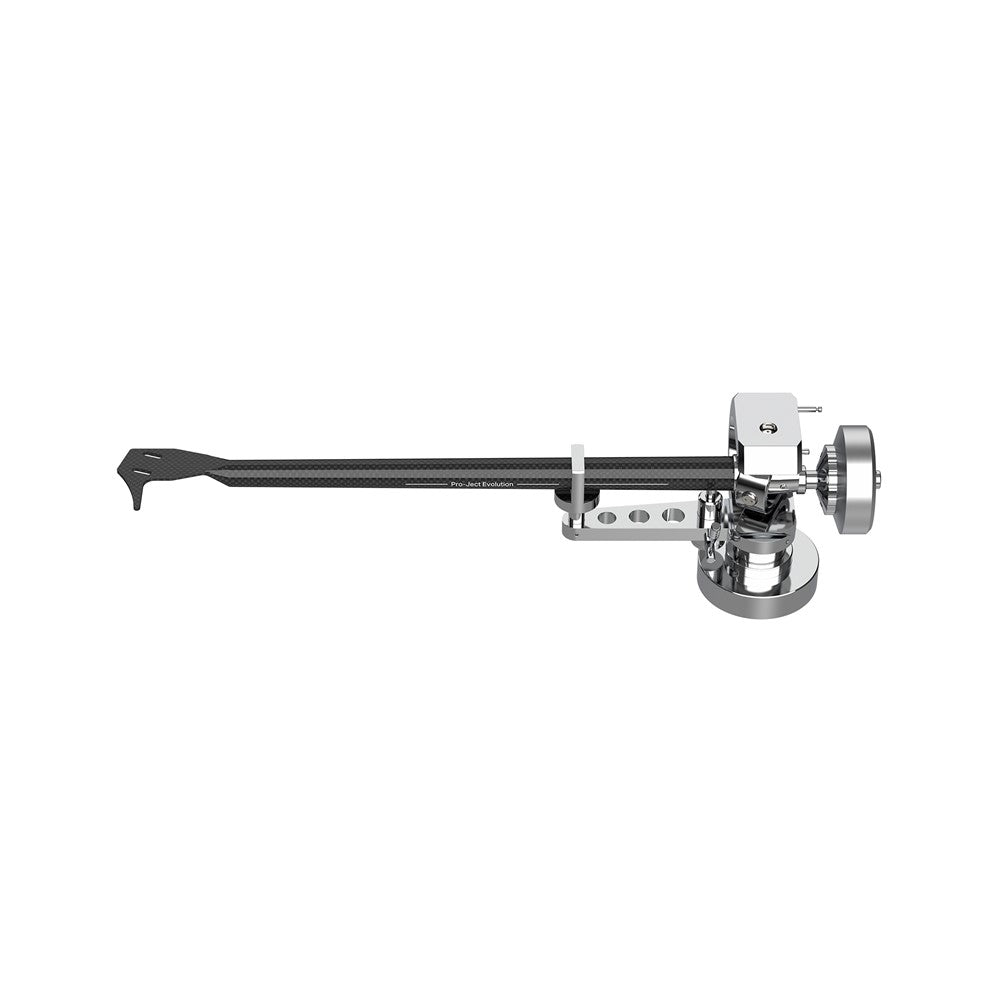

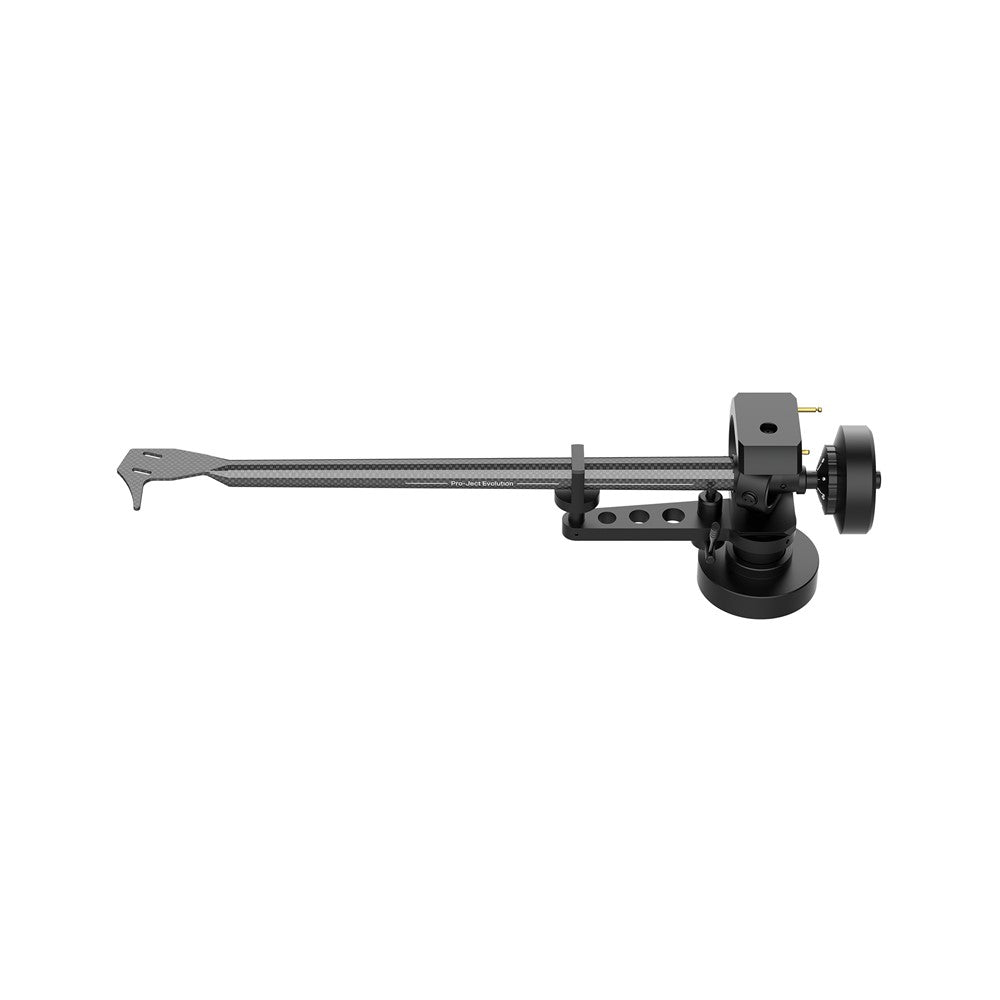

Technical Specifications for 12" Arm:
Effective Tonearm Length: 304.8mm Mounting Distance: 291.6mm Offset Angle: 18° Overhang: 13.2mm Pitch of Mounting Grooves in Headshell: 12.7mm Effective Tonearm Mass: 10.5g Cartridge Weight: 6-15g Range of the Tracking Forces: 0-3g Minimal Null Point: 125mm Maximal Null Point: 251.7mm Tonearm Weight (Without Flange): 271g
