Pro-Ject Evo AS Premium Tonearm

The AS Premium range of arms takes the standard AS range up several notches thanks to the use of a stainless steel bearing housing (rather than aluminium), improved bearings along with silver wiring both inside the arm and also in the headshell. It is available in three lengths and two finishes, it features a Linn mounting and has a removable external arm cable making installations and upgrades easy to do.

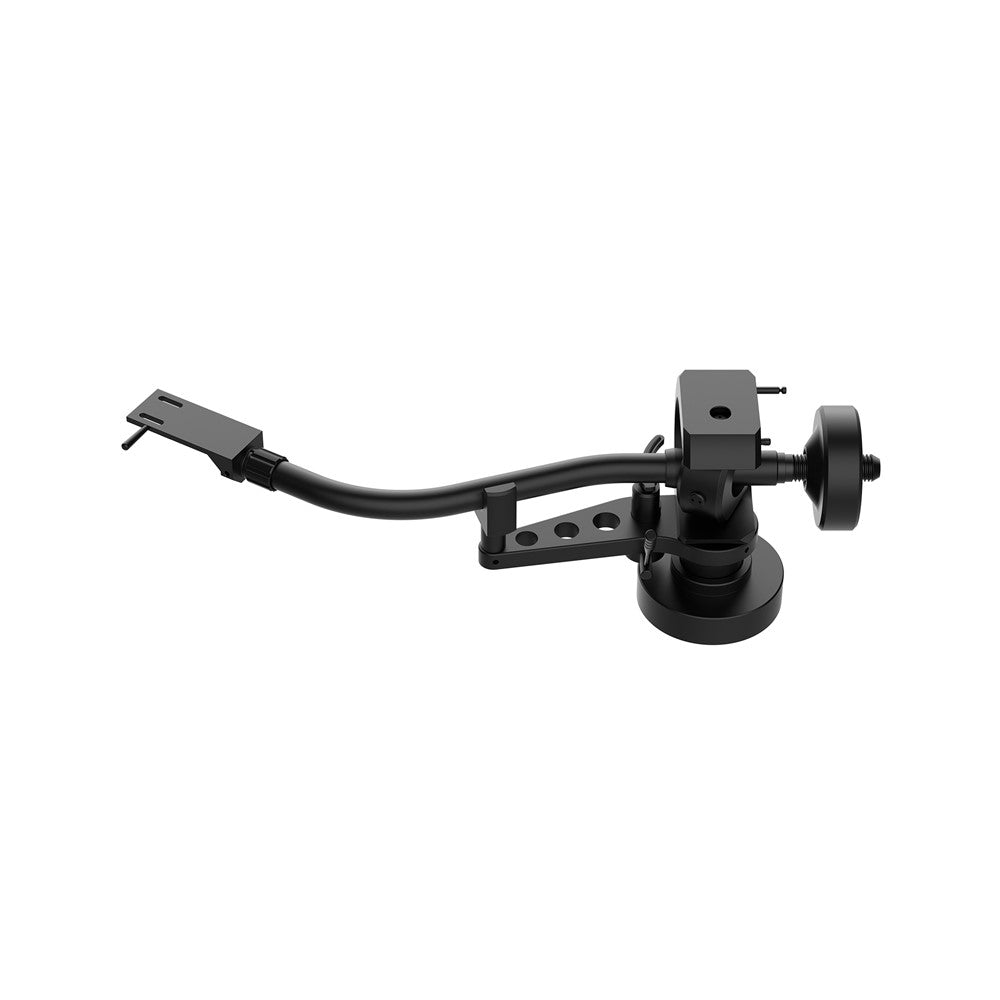

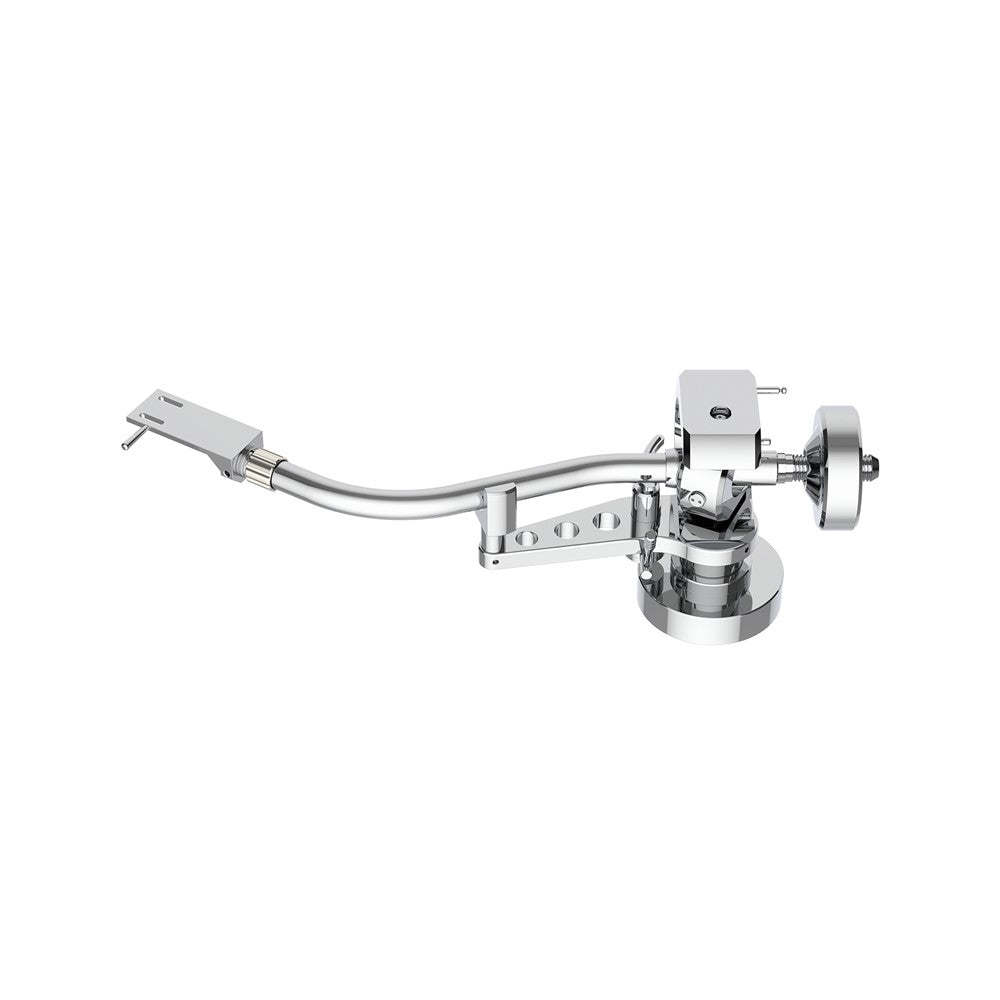

Technical Specifications for 9" Arm:

Effective Tonearm Length: 230mm
Mounting Distance: 212mm
Offset Angle: 24°
Overhang: 18mm
Pitch of Mounting Grooves in Headshell: 12.7mm
Effective Tonearm Mass With/Without Headshell: 24.2g/10.6g
Cartridge Weight: 6.5-16g
Range of the Tracking Forces: 0-3g
Minimal Null Point: 130.6mm
Maximal Null Point: 243.7mm
Tonearm Weight (Without Flange): 506g

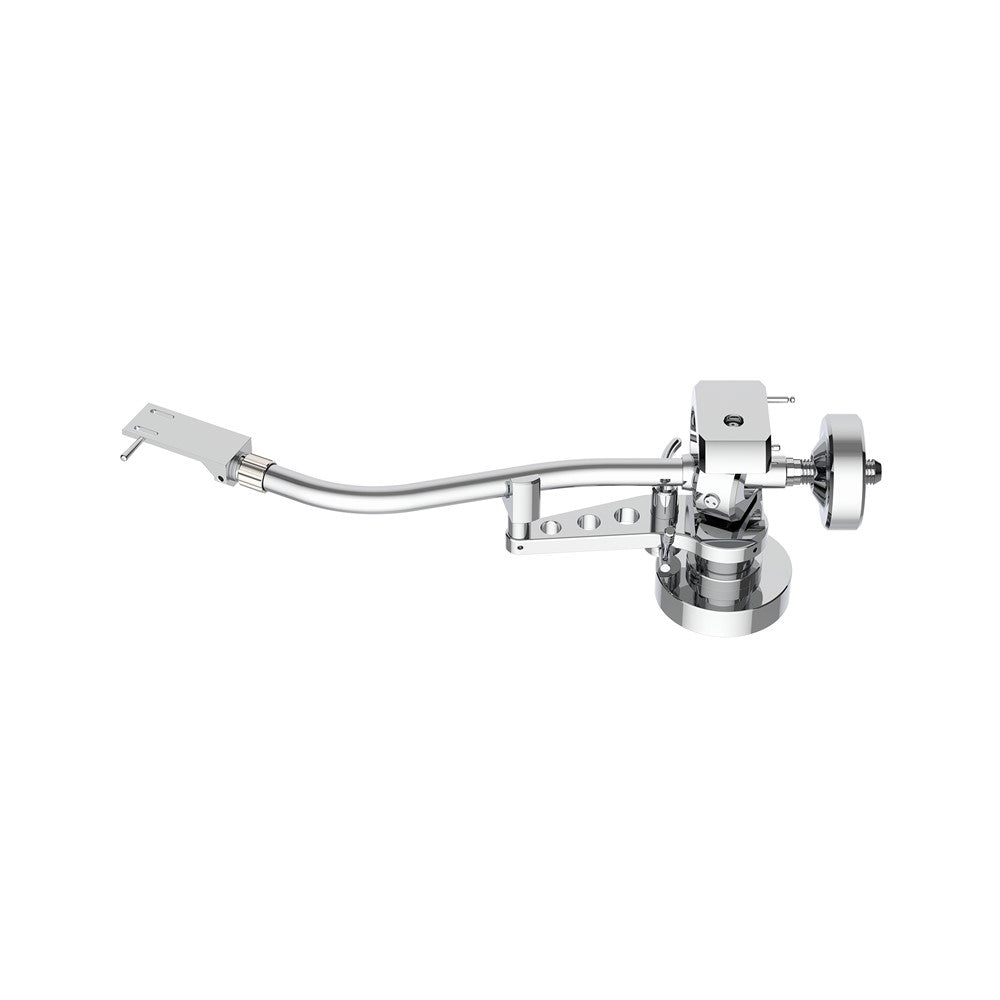

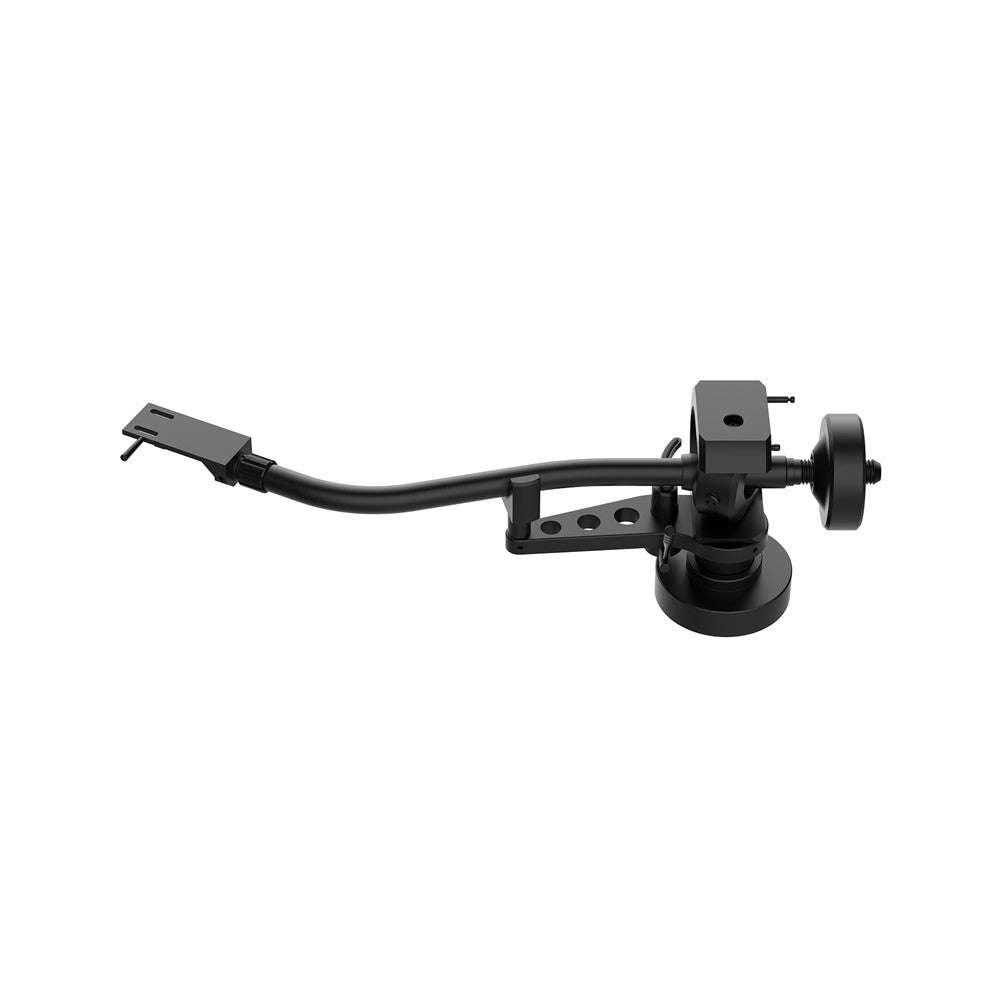

Technical Specifications for 10" Arm:

Effective Tonearm Length: 254mm
Mounting Distance: 238mm
Offset Angle: 21.4°
Overhang: 16mm
Pitch of Mounting Grooves in Headshell: 12.7mm
Effective Tonearm Mass With/Without Headshell: 25g/11.7g
Cartridge Weight: 6.5-18g
Range of the Tracking Forces: 0-3g
Minimal Null Point: 126.8mm
Maximal Null Point: 248.2mm
Tonearm Weight (Without Flange): 507g

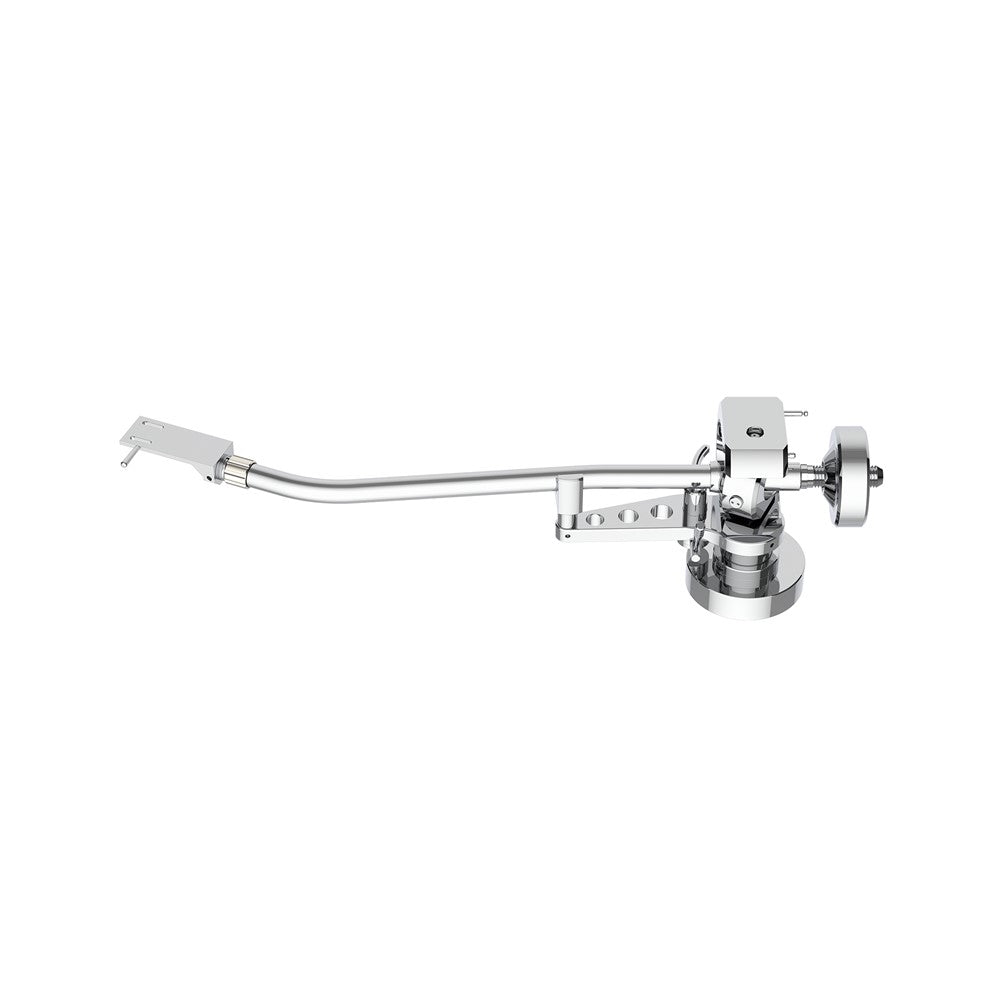

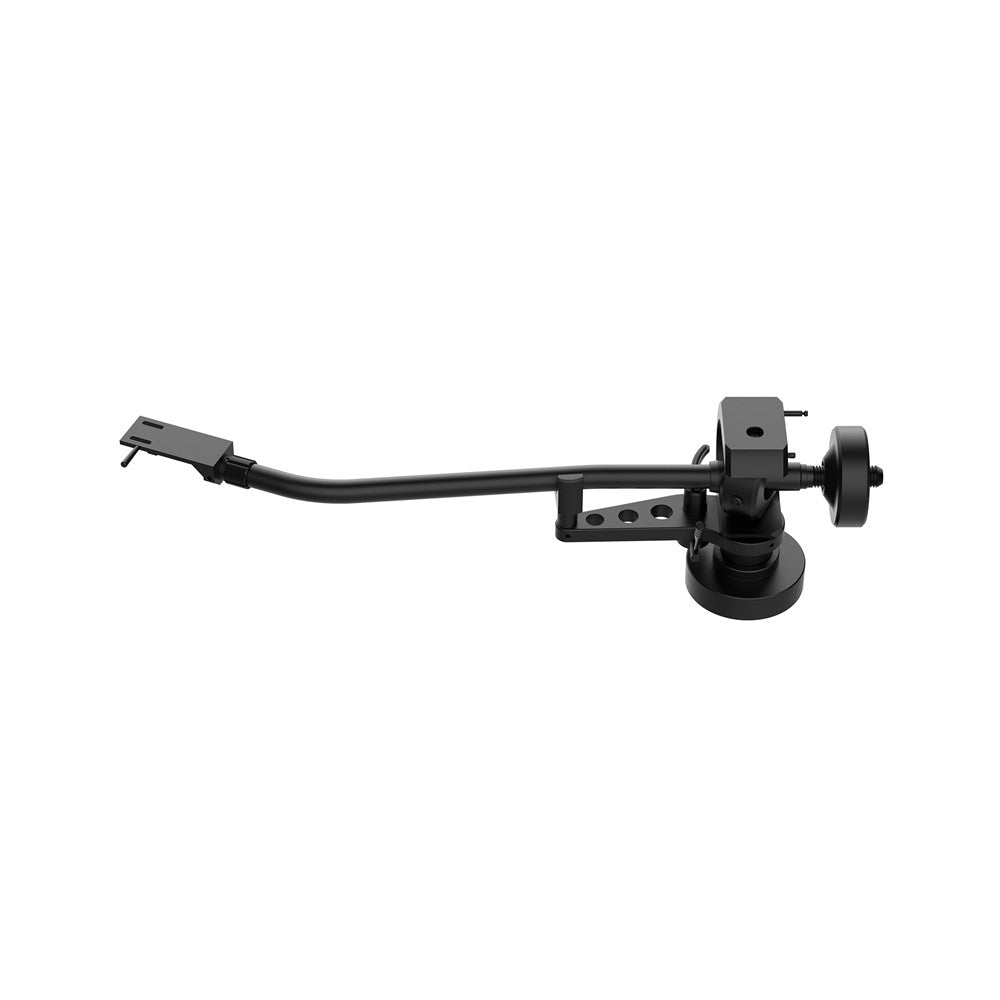

Technical Specifications for 12" Arm:

Effective Tonearm Length: 304.8mm
Mounting Distance: 291.6mm
Offset Angle: 18°
Overhang: 13.2mm
Pitch of Mounting Grooves in Headshell: 12.7mm
Effective Tonearm Mass With/Without Headshell: 28.1g/14.5g
Cartridge Weight: 7-22g
Range of the Tracking Forces: 0-3g
Minimal Null Point: 125mm
Maximal Null Point: 251.7mm
Tonearm Weight (Without Flange): 510g
