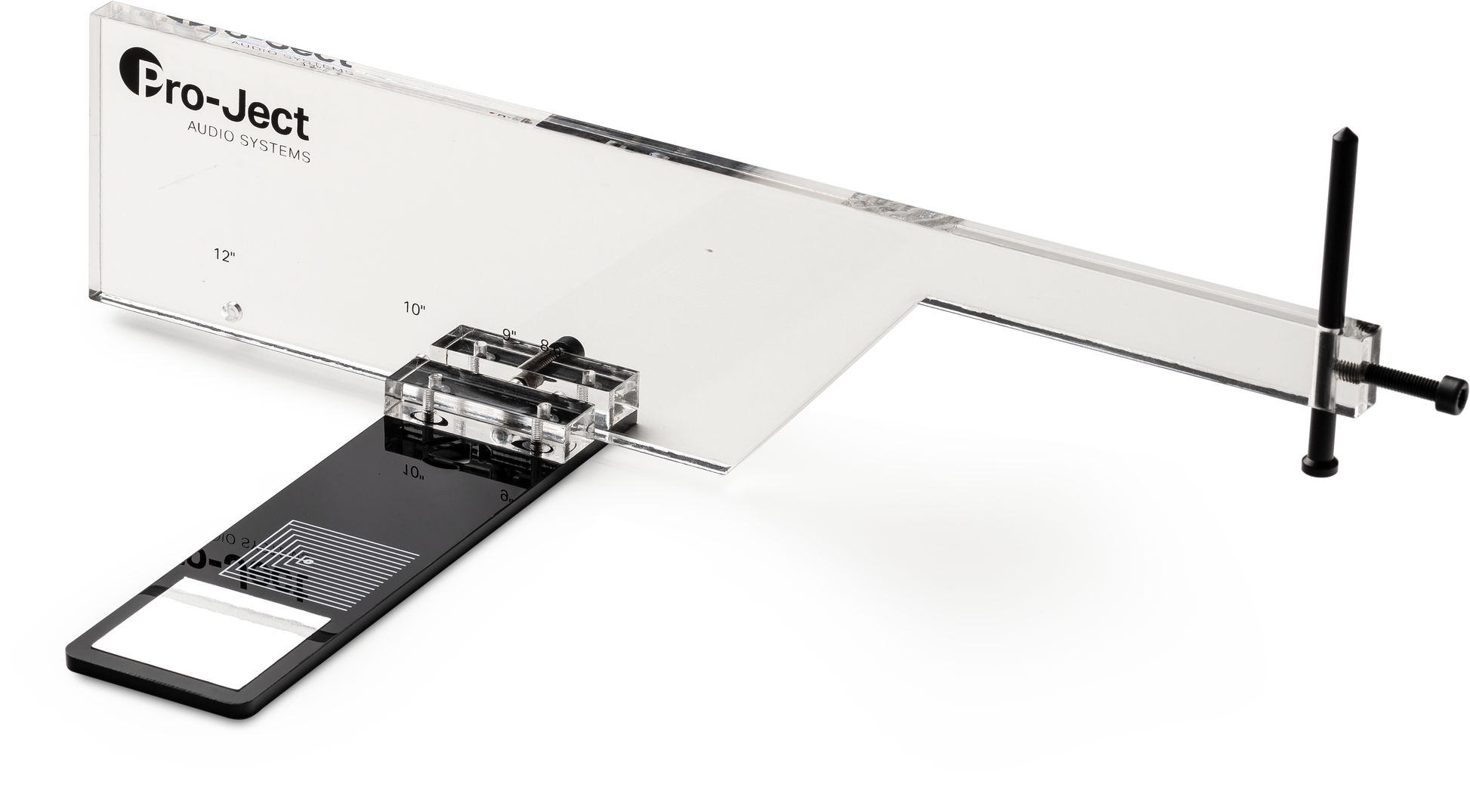

Pro-Ject Align-It PRO Cartridge Alignment Protractor
Pro-Ject Align-It PRO Cartridge Alignment Protractor
Regular price
£135.00 GBP
Regular price
Sale price
£135.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The Align it PRO is suitable for all Pro-Ject tonearms and turntables, it is also suitable for other manufacturers arms if they match one of the four pivot to spindle distances listed in the Technical Data section below.
This design of alignment protractor makes setting up a cartridge easy and straight forward, as it triangulates the spindle, arm pivot and protractor together, getting rid of the need for using two different alignment points as found on many other protractors.
For Pro-Ject tonearms, the fixing rod has two sides. A pointed end - excellent for any type of tonearm or bearing. And a second flat end, which fits exactly into the centre screw of our higher-end tonearms and their bearings (X1, X2, CC and CC Evo, ...). With this approach the exact distance for the overhang is set up in no time - with unmatched accuracy on top. You do not need to go back and forth between the inner and outer null-points for a 100% accurate overhang distance, like you would have to with other kinds of alignment protractors! This is also the reason why only the inner null-point is printed on the Align it PRO!
For beginners or pros, the Align it PRO comes with detailed instructions and background knowledge to equip you with all the information you need to maximise your vinyl playback.
The Align it PRO uses the Baerwald geometry. Baerwald is an excellent allrounder that many people choose to start their alignment journey with. It strikes an ideal balance of inner and outer grooves tracking, while maintaining excellent linearity in the middle part of your vinyl.
Align it PRO is suitable for all Pro-Ject turntables and many other manufacturer‘s turntables and tonearms if their pivot to spindle distance matches those in the Technical Data shown below.
Features:
Overhang, azimuth and tangentiality
Baerwald geometry Alignment for 8,6“, 9“, 10“ and 12“ tonearms (see pivot to spindle distances below)
Suitable for other manufacturer‘s tonearms* Detailed alignment instructions and tonearm geometry explanation included Made in Europe
Technical Data
Material: Acrylic
Geometries: Baerwald
Suitable for tonearms with the following pivot to spindle distance: 200 mm (used on Pro-Ject 8,6” tonearms), 212 mm (used on Pro-Ject 9” tonearms), 238 mm (used on Pro-Ject 10” tonearms), 291,6 mm (used on Pro-Ject 12” tonearms)
This design of alignment protractor makes setting up a cartridge easy and straight forward, as it triangulates the spindle, arm pivot and protractor together, getting rid of the need for using two different alignment points as found on many other protractors.
For Pro-Ject tonearms, the fixing rod has two sides. A pointed end - excellent for any type of tonearm or bearing. And a second flat end, which fits exactly into the centre screw of our higher-end tonearms and their bearings (X1, X2, CC and CC Evo, ...). With this approach the exact distance for the overhang is set up in no time - with unmatched accuracy on top. You do not need to go back and forth between the inner and outer null-points for a 100% accurate overhang distance, like you would have to with other kinds of alignment protractors! This is also the reason why only the inner null-point is printed on the Align it PRO!
For beginners or pros, the Align it PRO comes with detailed instructions and background knowledge to equip you with all the information you need to maximise your vinyl playback.
The Align it PRO uses the Baerwald geometry. Baerwald is an excellent allrounder that many people choose to start their alignment journey with. It strikes an ideal balance of inner and outer grooves tracking, while maintaining excellent linearity in the middle part of your vinyl.
Align it PRO is suitable for all Pro-Ject turntables and many other manufacturer‘s turntables and tonearms if their pivot to spindle distance matches those in the Technical Data shown below.
Features:
Overhang, azimuth and tangentiality
Baerwald geometry Alignment for 8,6“, 9“, 10“ and 12“ tonearms (see pivot to spindle distances below)
Suitable for other manufacturer‘s tonearms* Detailed alignment instructions and tonearm geometry explanation included Made in Europe
Technical Data
Material: Acrylic
Geometries: Baerwald
Suitable for tonearms with the following pivot to spindle distance: 200 mm (used on Pro-Ject 8,6” tonearms), 212 mm (used on Pro-Ject 9” tonearms), 238 mm (used on Pro-Ject 10” tonearms), 291,6 mm (used on Pro-Ject 12” tonearms)
