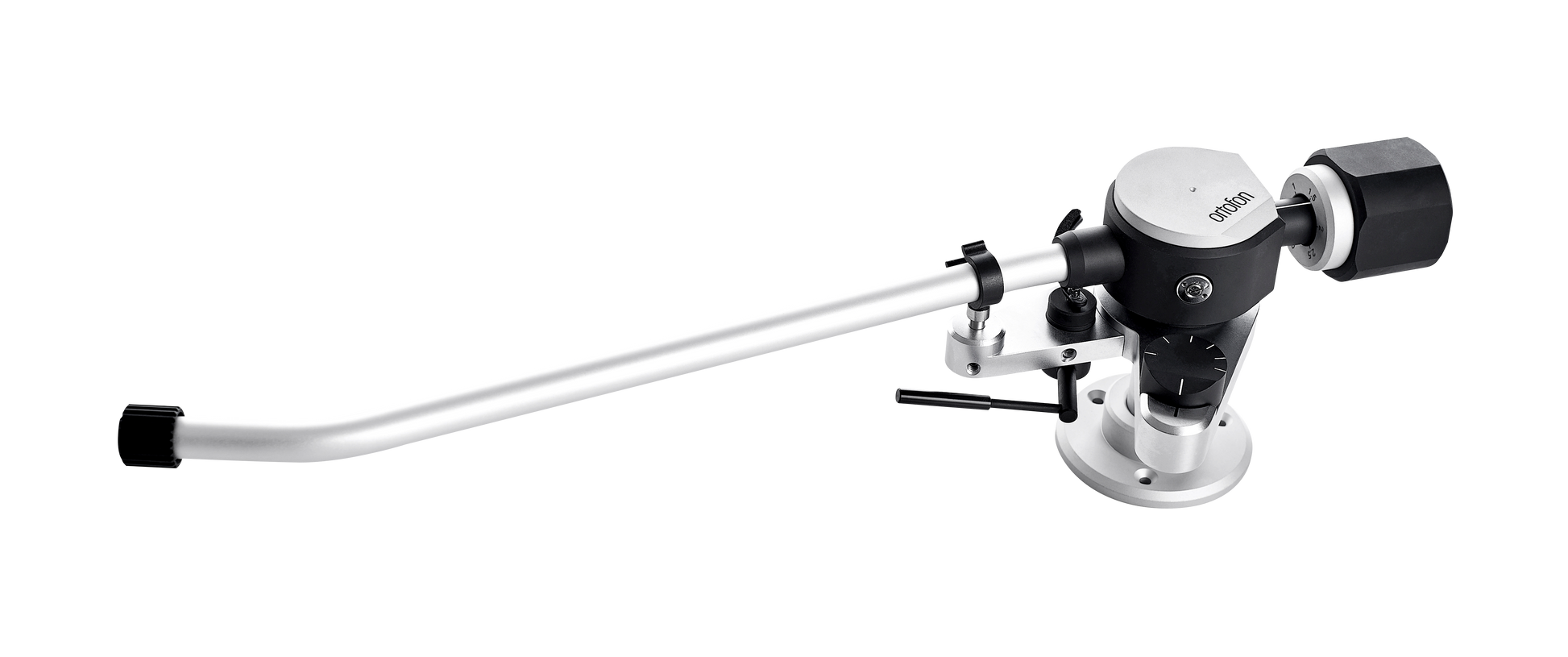

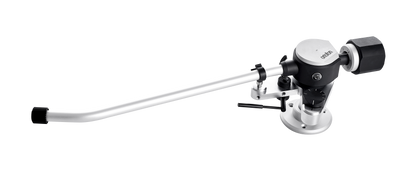

Ortofon Tonearms AS-212R & AS-309R

£2,799.00 GBP

Sale Sold out

Taxes included.

Tonearm Length 9" AS-212R 12" AS-309R

Quantity

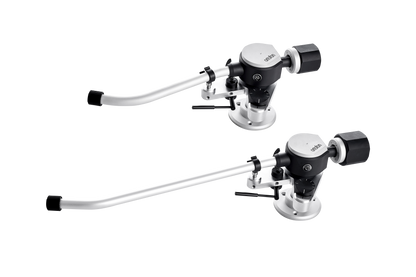

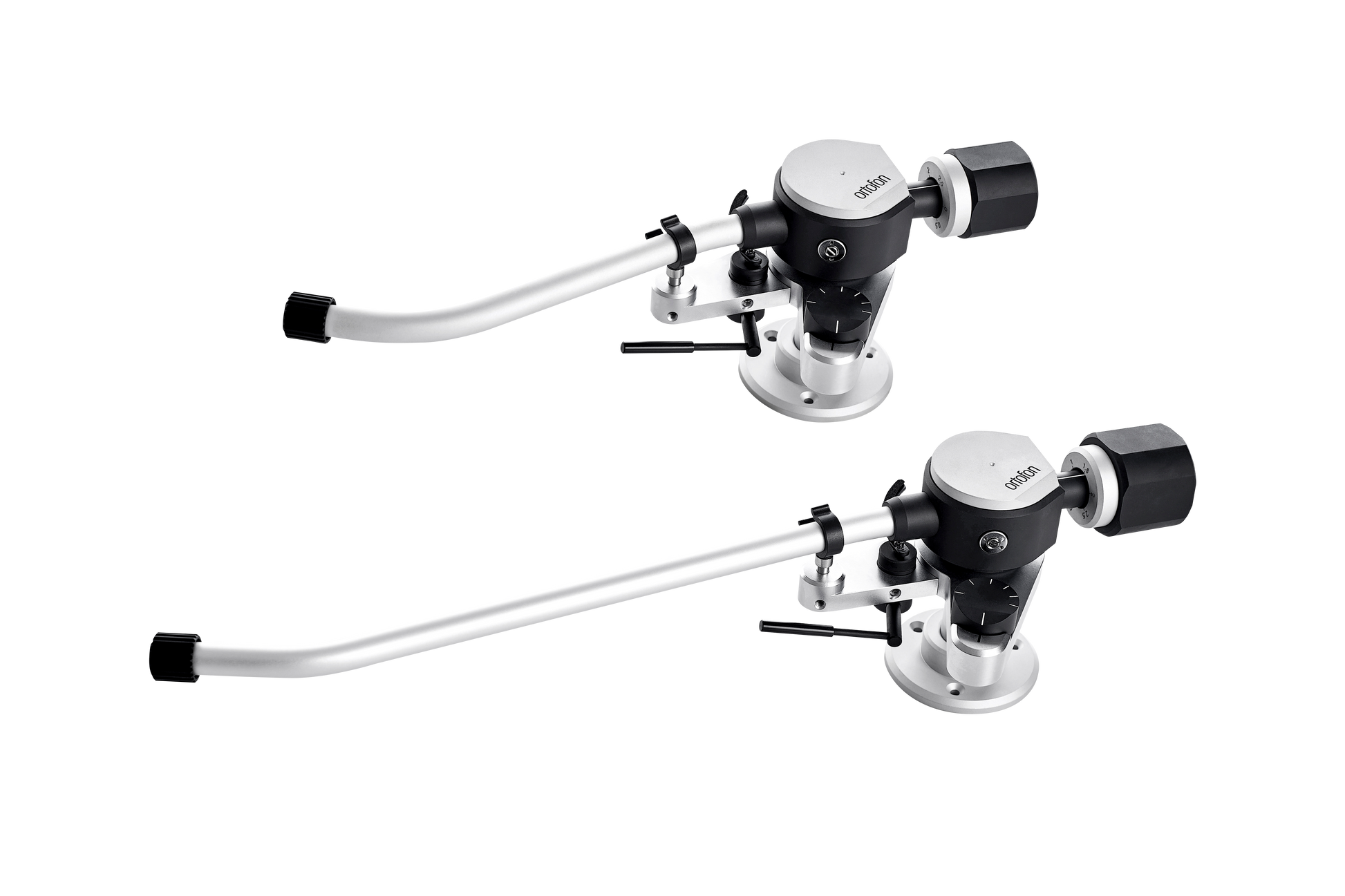

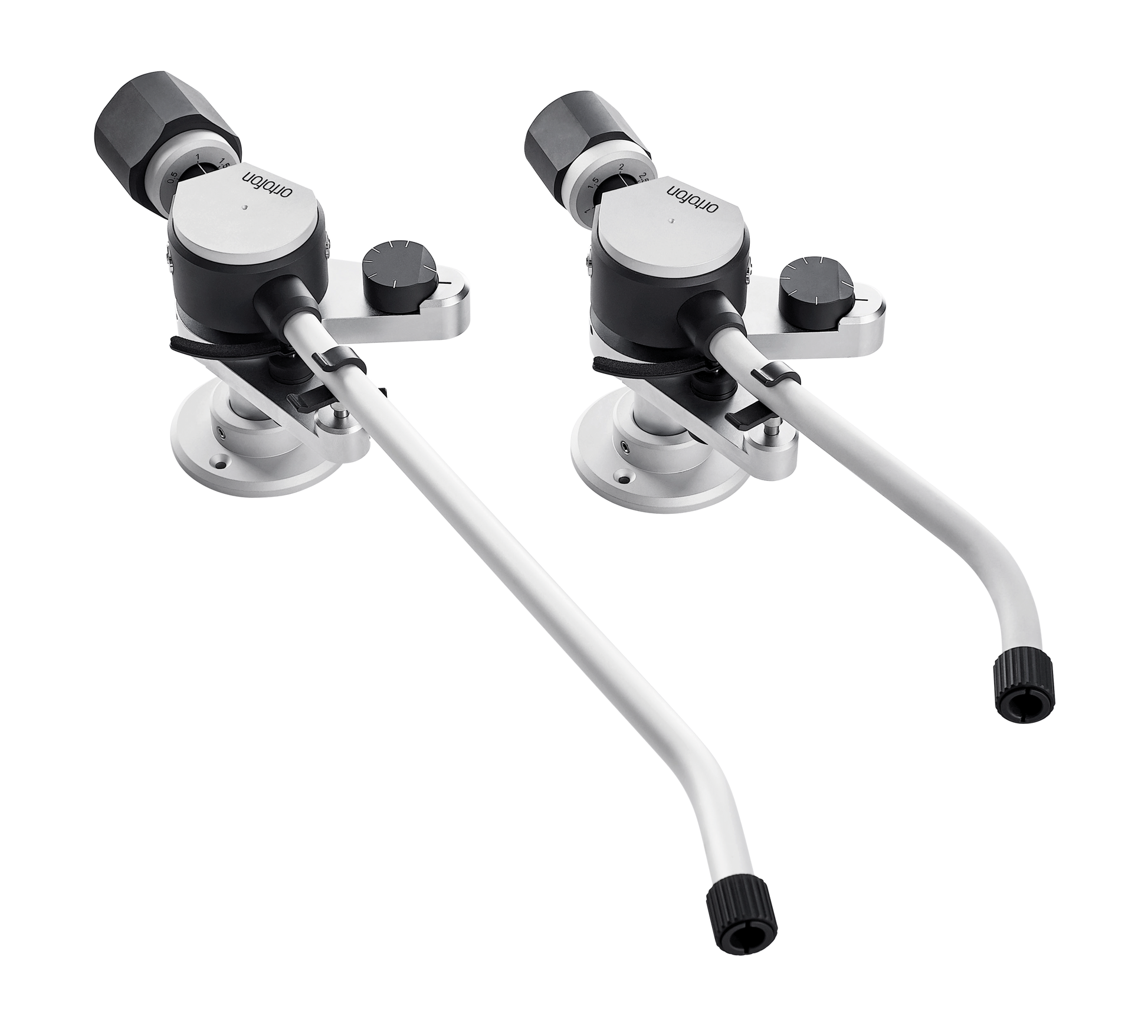

Ortofon have been producing tonearms since 1953 and these arms have more than a nod to that heritage. There are two models available, with the names referring to their pivot to spindle length in mm (but easier to remember them as 9" and 12" variants!). With beautiful engineering and precision Japanese made bearings, these statically balanced tonearms are highly adjustable with both a wide range of VTA adjustment as well as azimuth.

Thanks to the universal SME-style connector the tonearms are also capable of accommodating a wide range of headshell-mounted cartridges (headshell not included), as well as Ortofon’s own iconic SPU cartridge range.

As standard it comes with the high quality Ortofon 6NX-TSW1010 external tonearm cable included (via a base mounted 5pin connector) and two counterweights to cover a wide variety of cartridge and headshell weights.

TECHNICAL SPECIFICATIONS:

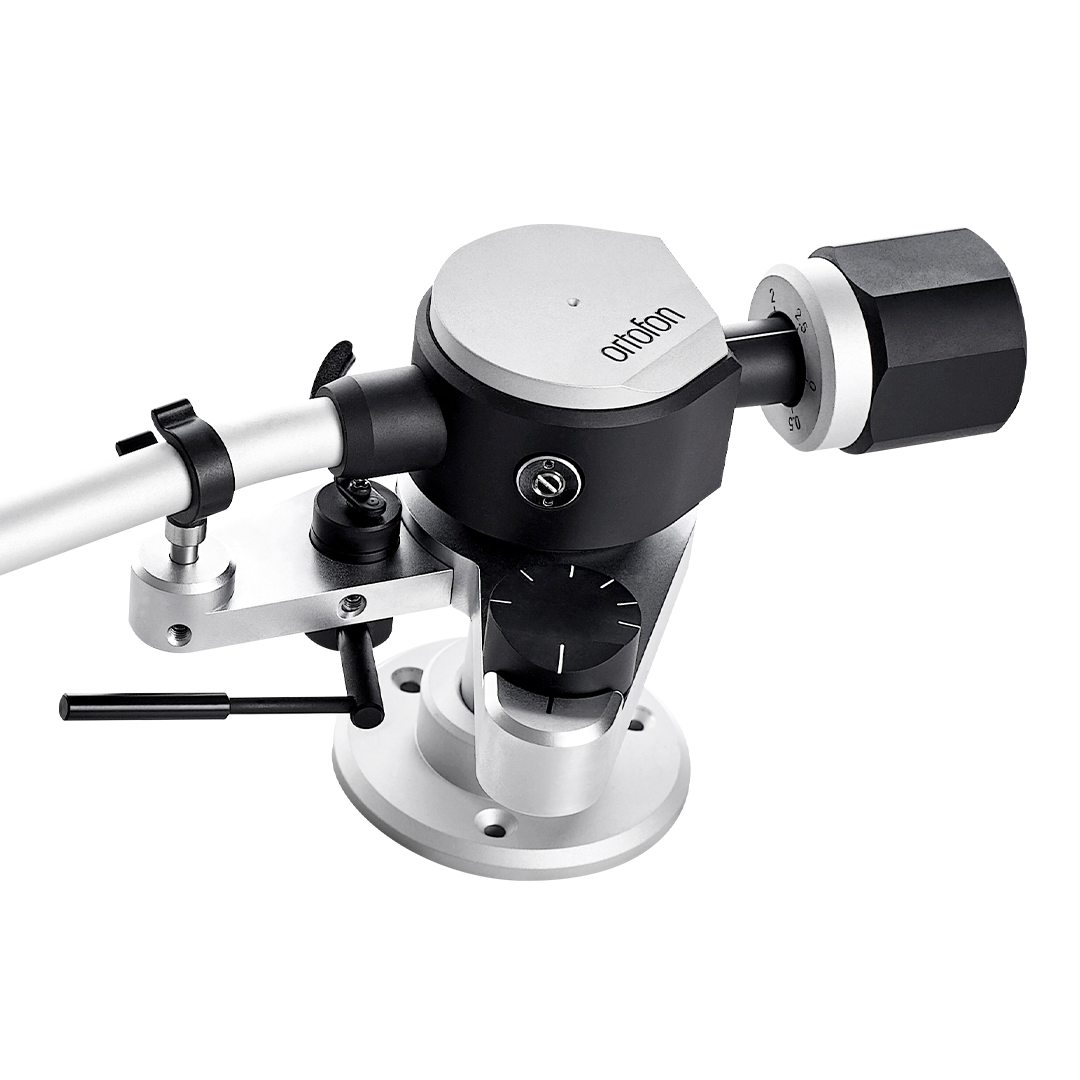

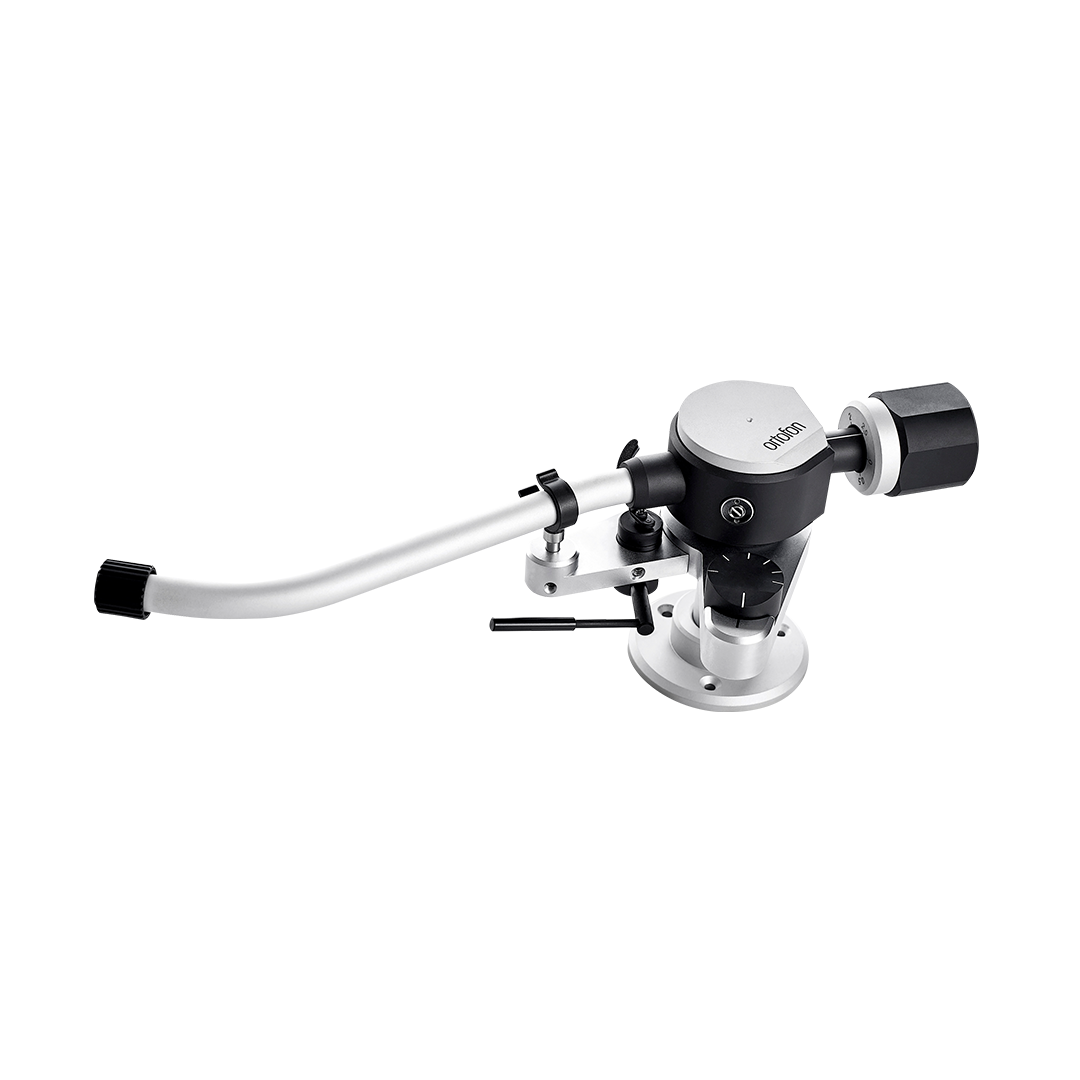

AS-212R:

Tonearm Material Aluminium
Mounting Distance 214 mm
Effective Tonearm Length 232 mm
Overhang 18 mm
Effective Tonearm Mass 7 g
Offset Angle 23.75 °
Height above mounting surface 59-79 mm
Tracking Force Range (with supplied counterweight) 18-38 g
Arm shaft diameter 18 mm
Recommended arm shaft hole diameter 22 mm
Supplied counterweights 600 | 630 g
Counterweight Radial clearance 80 | 89 mm
Cartridge Mounting Distance (Minimum - Maximum Distance from Connector)20-48 mm

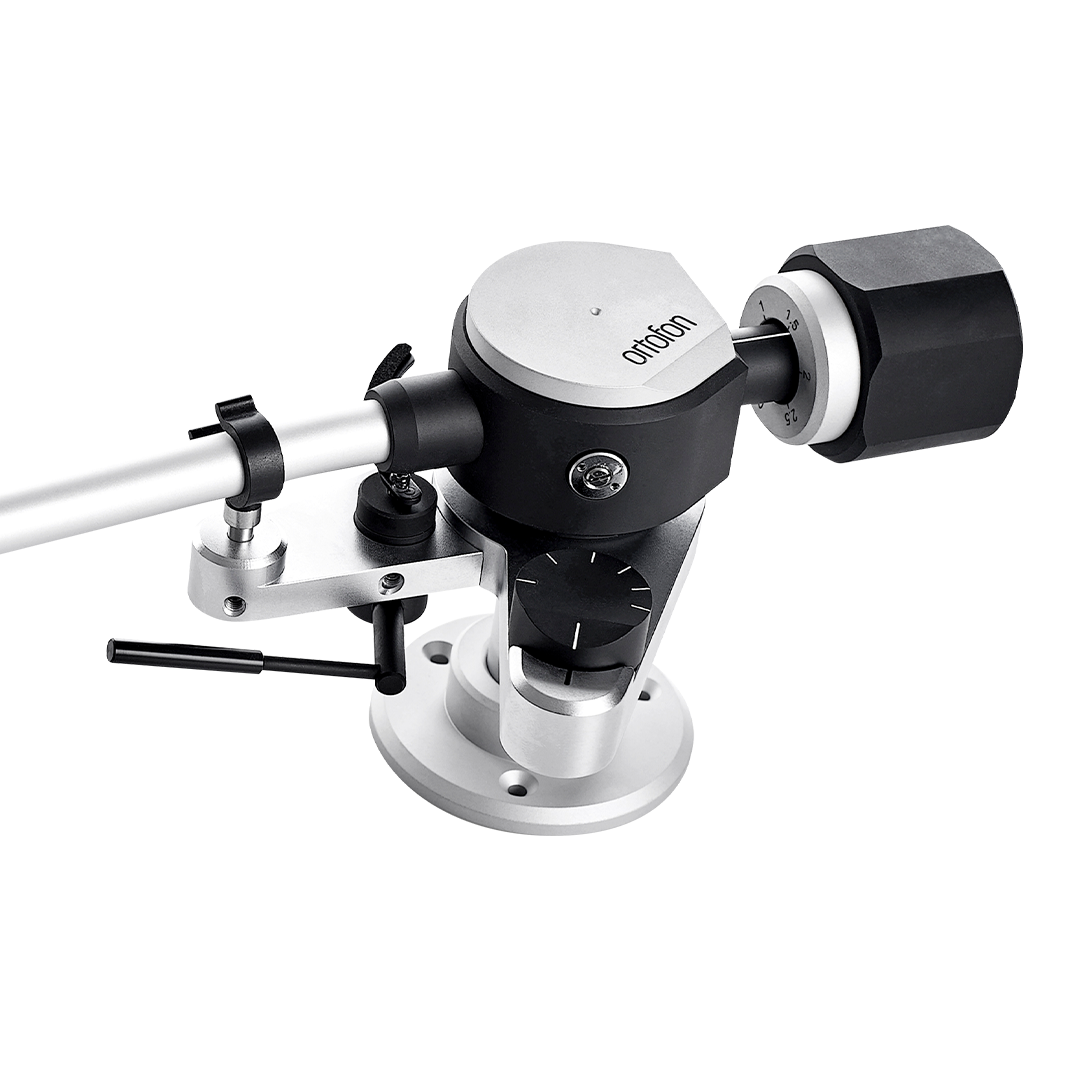

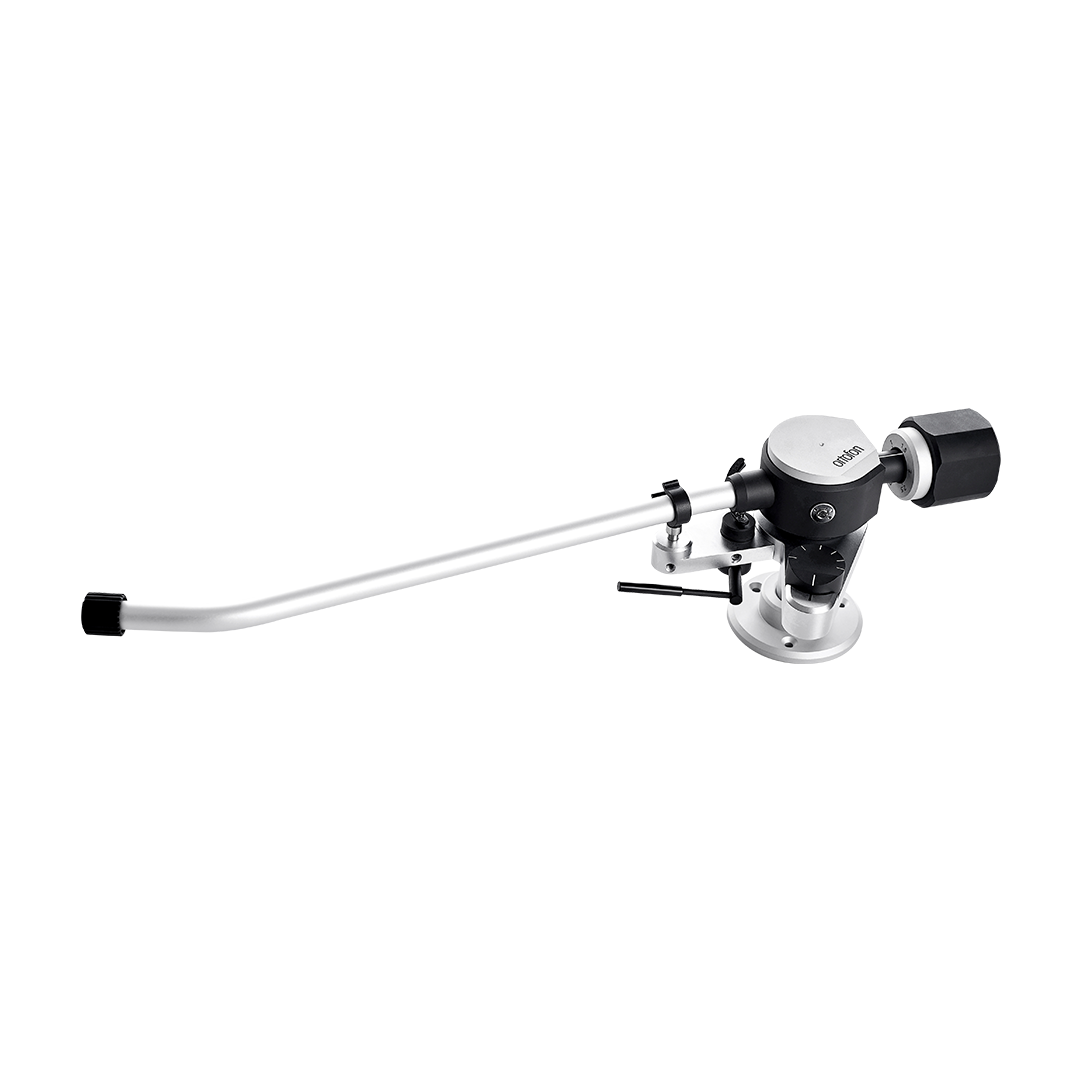

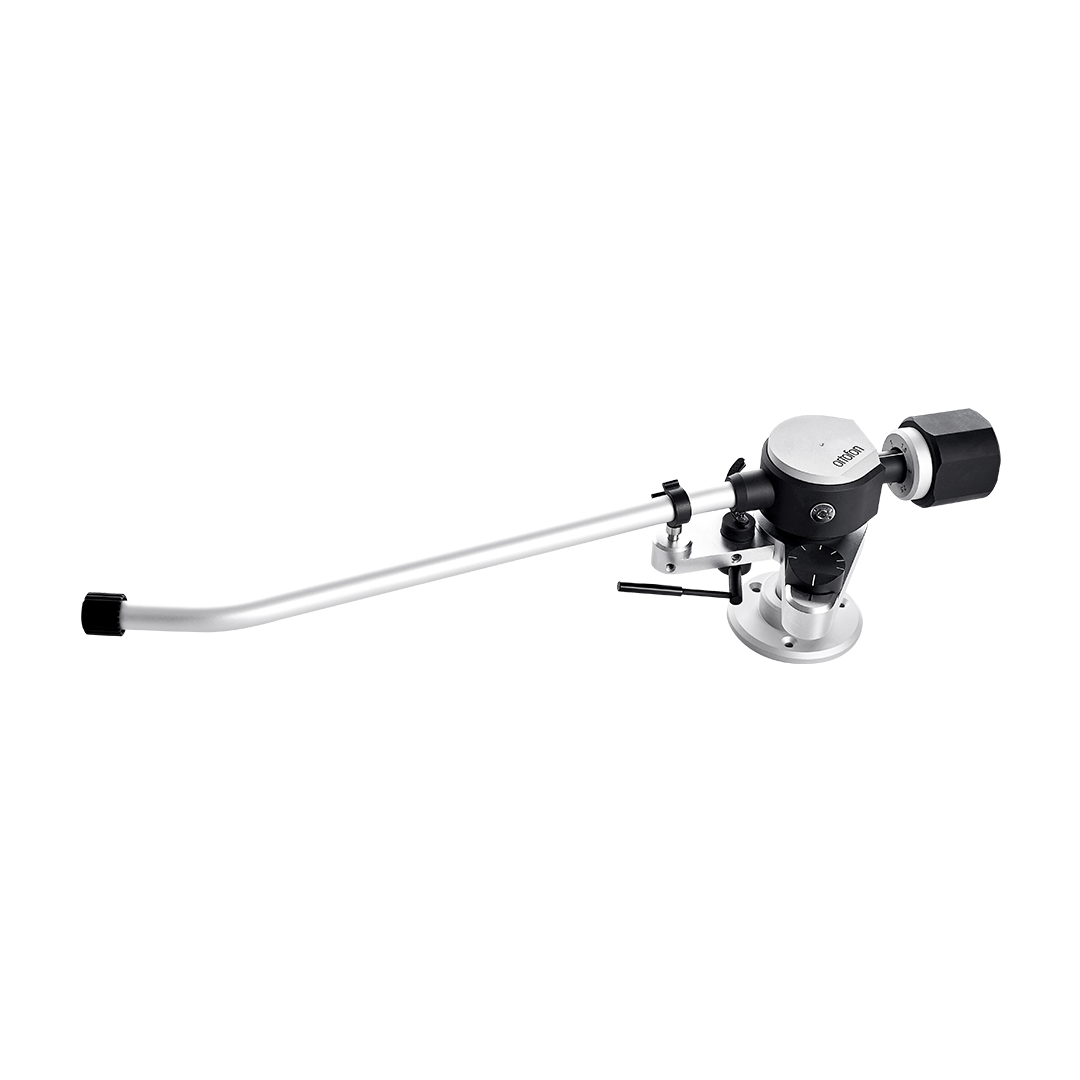

AS-309R:

Tonearm Material Aluminium
Mounting Distance 311 mm
Effective Tonearm Length 323.5 mm
Overhang 12.5 mm
Effective Tonearm Mass 11 g
Offset Angle 16.75 °
Height above mounting surface 59-79 mm
Tracking Force Range (with supplied counterweight) 18-38 g
Arm shaft diameter 18 mm
Recommended arm shaft hole diameter 22 mm
Supplied counterweights 680 | 730 g
Counterweight Radial clearance 85 | 93 mm
Cartridge Mounting Distance (Minimum - Maximum Distance from Connector) 20-48 mm
