Ortofon Stylus 510 mk2 MM Stylus
Ortofon Stylus 510 mk2 MM Stylus
Regular price
£79.00 GBP
Regular price
Sale price
£79.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Ortofon 510 mkII stylus which will fit in any of the Series 500 cartridge bodies.
It features a bonded Elliptical stylus.
It will fit the following cartridge models:
-Ortofon 510
-Ortofon 510mkII
-Ortofon 510P
-Ortofon 520
-Ortofon 520mkII
-Ortofon 520P
-Ortofon 530
-Ortofon 530
-Ortofon 530mkII
-Ortofon 530P
-Ortofon 540
-Ortofon 540mkII
-Ortofon Alpha (as found on some Pro-ject turntables).

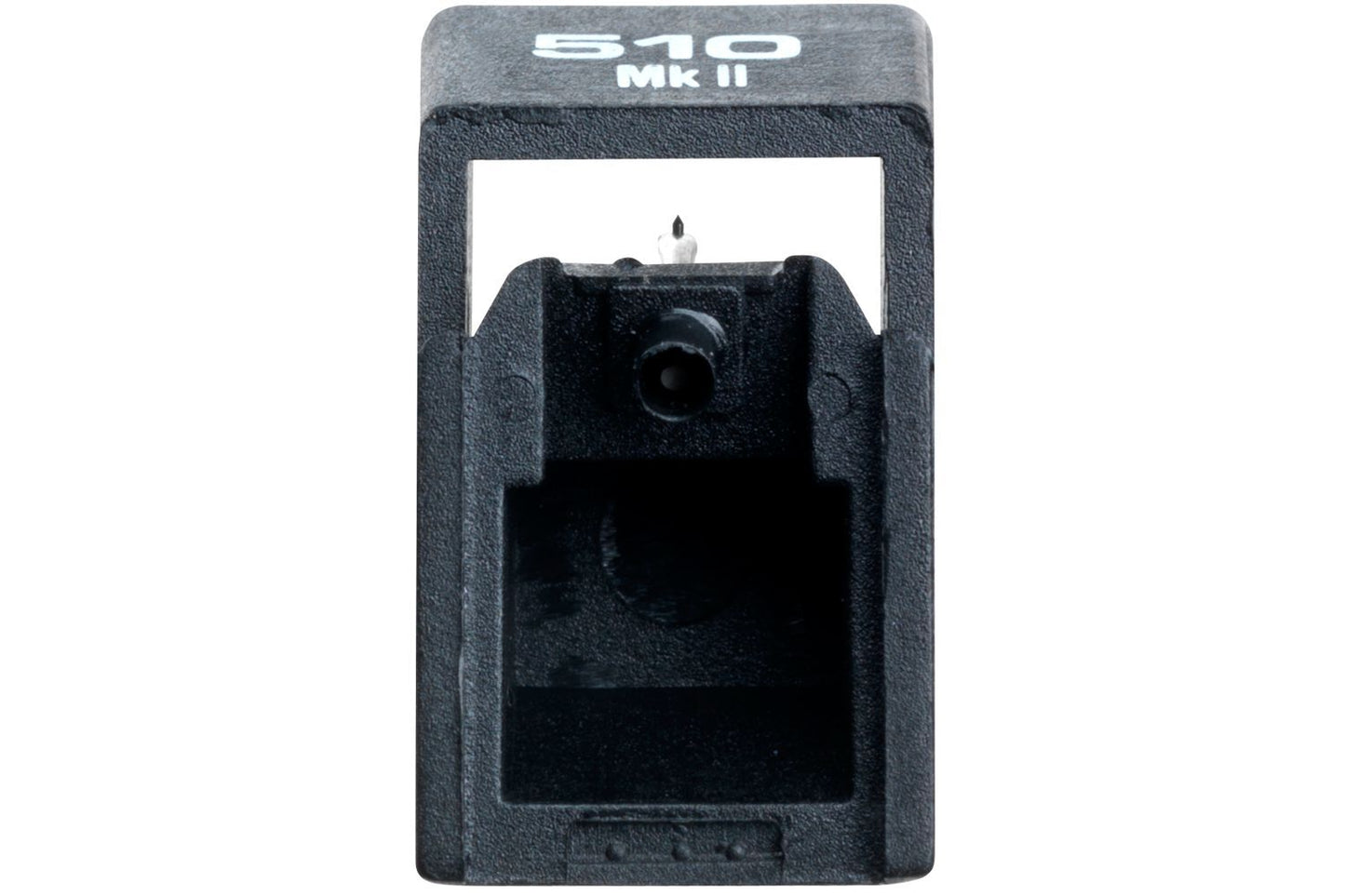

Please note that In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.
To remove and refit the 500 series stylus the guard should be in the forward position (neither up nor down) otherwise it will lock the stylus into place.
Technical Specification:
-Tracking Ability at 315Hz: Typically 60µm
-Compliance, Dynamic, Lateral: 20µm
-Stylus Type: Bonded Elliptical
-Stylus Tip Radius r / R: 8 / 18µm
-Tracking Force Range: 1.25 - 1.75g (12.5 - 17.5mN)
-Recommended Tracking Force: 1.5g (15mN)
-Tracking Angle: 20º
-Stylus Colour: Black
-Ortofon Alpha (as found on some Pro-ject turntables).
Please note that In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.
To remove and refit the 500 series stylus the guard should be in the forward position (neither up nor down) otherwise it will lock the stylus into place.
Technical Specification:
-Tracking Ability at 315Hz: Typically 60µm
-Compliance, Dynamic, Lateral: 20µm
-Stylus Type: Bonded Elliptical
-Stylus Tip Radius r / R: 8 / 18µm
-Tracking Force Range: 1.25 - 1.75g (12.5 - 17.5mN)
-Recommended Tracking Force: 1.5g (15mN)
-Tracking Angle: 20º
-Stylus Colour: Black
