Deco Audio Shop

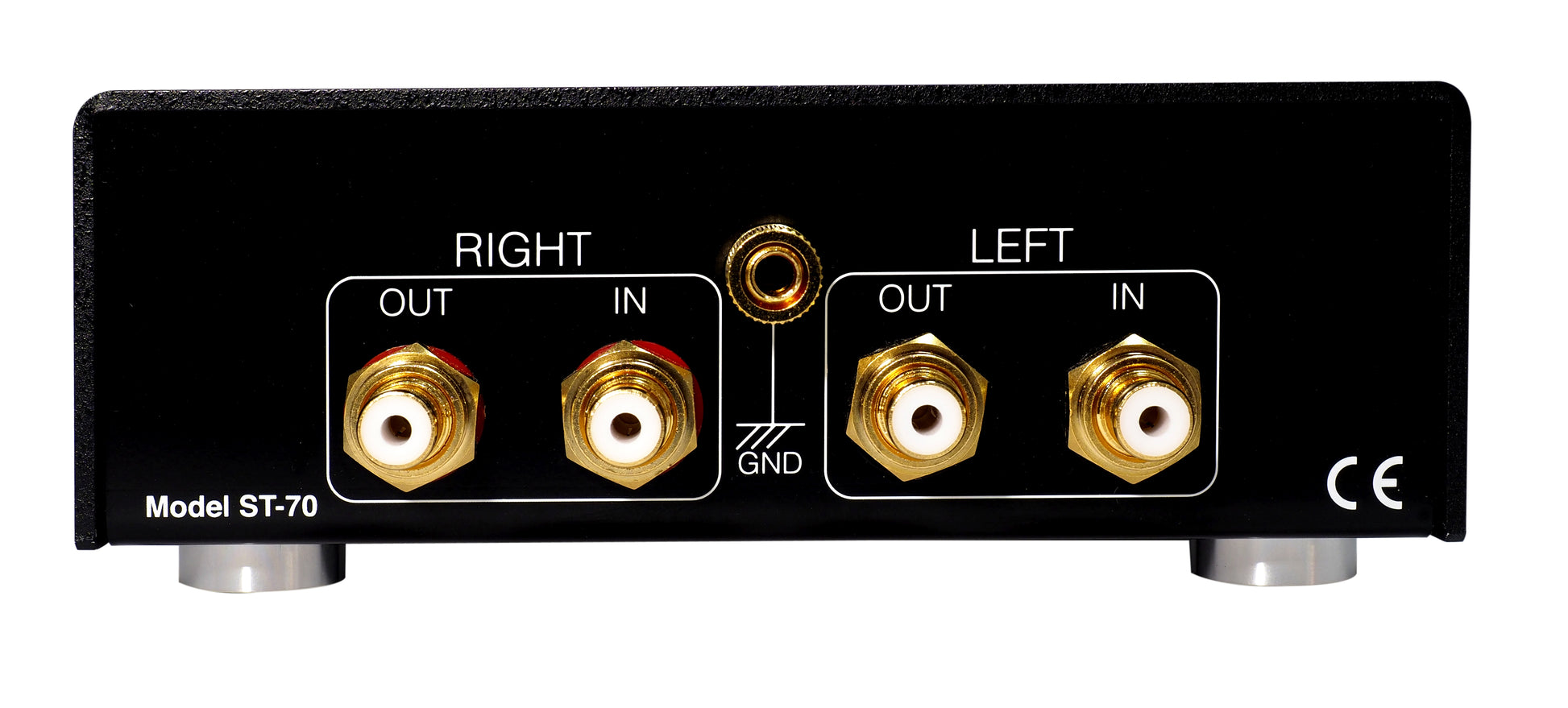

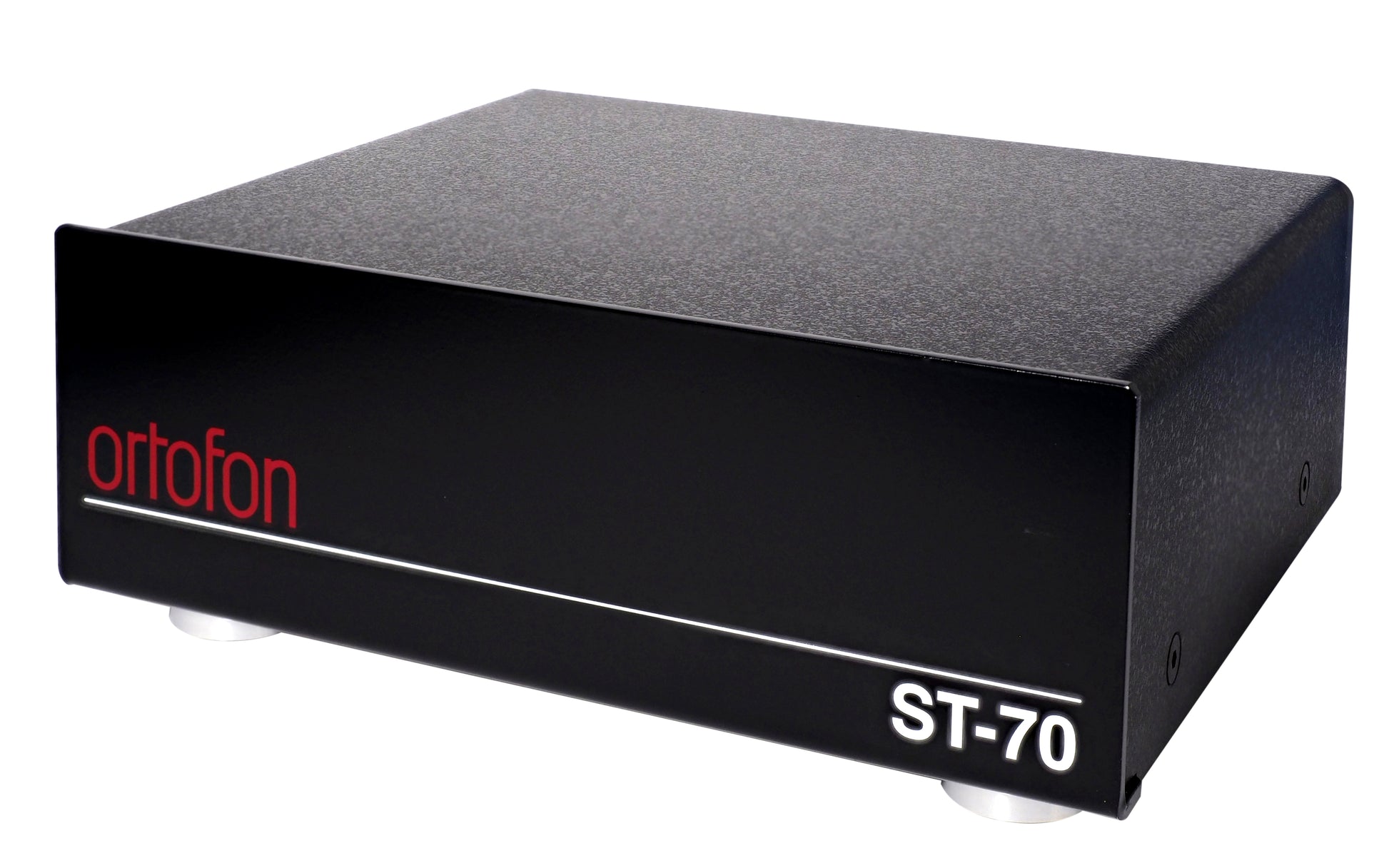

Ortofon ST-70 Step Up Transformer
Ortofon ST-70 Step Up Transformer
Regular price
£1,199.00 GBP
Regular price
Sale price
£1,199.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The ST-70 is the second model up in the Ortofon Step Up transformer range. It features high quality transformers made by the specialists at Lundahl with great attention put on shielding the transformers in mumetal both to reduce the chances of noise pick up as well as offering the widest stereo separation possible within the housing.
Within the Ortofon range of MC cartridges the Cadenza series is the ideal partner, but thanks to the two levels of gain/impedance that the transformers offer, set by internal jumpers, a whole host of models can be accommodated.
Specifications:
Input Impedance (MC) 5 - 50Ω (Config. A) / < 10Ω (Config. B)Frequency Response 10Hz - 100kHz ± 1dB (Config. A) / 10Hz - 80kHz ± 1dB (Config. B)
Transformer Output Load 47kΩ / 200pF
Transformer Gain 24dB @ 1kHz (Config. A) / 30dB @ 1kHz (Config. B)
Dimensions (W x H x D) 135 x 58 x 150 mm
Weight 1.233 kg
