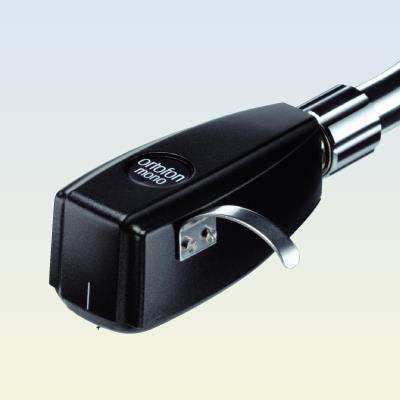

Ortofon SPU MONO G MK II Mono MC Cartridge HOMC
Ortofon SPU MONO G MK II Mono MC Cartridge HOMC
Regular price
£849.00 GBP
Regular price
Sale price
£849.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
The SPU Mono G cartridge is a mono cartridge with a 25 μm spherical tip designed for playback of early vinyl records.
This cartridge has an output of 3mV, so is what's commonly referred to as an HOMC High Output MC and should be connected to an MM phono input.
This cartridge is suited to arms that are moderate to high mass and have an 'SME' type headshell connection.
Due to their nature, there can be a lead time on SPU orders, so please ask before ordering if delivery time scale is critical.
As MC cartridges do not have removable stylus assemblies Ortofon have an 'exchange' scheme where your old worn/damaged Ortofon MC cartridge is used as a credit against any other Ortofon MC cartridge. Please send us a message and we will calculate the cost to change for you, or visit the distributors website page here
SPECIFICATIONS
-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) 3.0 mV
-FREQUENCY RESPONSE (20 - 20,000HZ) +2.0/-1dB dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) 70 μm
-COMPLIANCE, DYNAMIC, LATERAL 12 μm
-STYLUS TYPE Spherical
-TRACKING FORCE RANGE 3.0 - 5.0 g
-RECOMMENDED TRACKING FORCE 4.0 g
-TRACKING ANGLE 20 °
-INTERNAL IMPEDANCE 100 Ω
-RECOMMENDED LOAD IMPEDANCE 47kΩ
-RECOMMENDED TRACKING FORCE 4.0 g
-TRACKING ANGLE 20 °
-INTERNAL IMPEDANCE 100 Ω
-RECOMMENDED LOAD IMPEDANCE 47kΩ
-COIL WINDINGS OFC Copper
-CARTRIDGE WEIGHT 28g
