Ortofon SPU MONO CG 65 DI MK II Mono MC Cartridge

Ortofon SPU MONO CG 65 DI MK II Mono MC Cartridge

£825.00 GBP
£825.00 GBP
Sale Sold out
Taxes included.

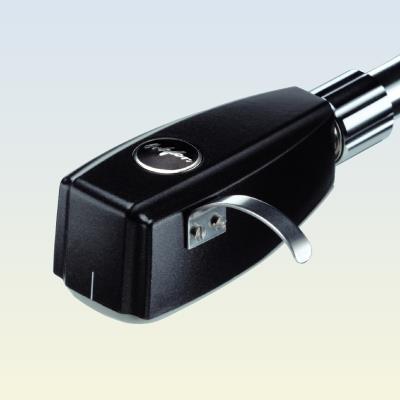

The SPU Mono CG 65 DI mk2 cartridge, is as the name hints at, a mono cartridge with a 65 μm spherical tip designed for playback of early vinyl records and 78 rpm records.  A smaller 25μm version is also available to order in our store.

Please note this cartridge must not be used on Stereo records.

This cartridge has an output of 1.5mV, so is a halfway house between a normal MC output and a HOMC High Output MC.

This cartridge is suited to arms that are moderate to high mass and have an 'SME' type headshell connection.

Due to their nature, there can be a lead time on SPU orders, so please ask before ordering if delivery time scale is critical.

As MC cartridges do not have removable stylus assemblies Ortofon have an 'exchange' scheme where your old worn/damaged Ortofon MC cartridge is used as a credit against any other Ortofon MC cartridge. Please send us a message and we will calculate the cost to change for you, or visit the distributors website page here


SPECIFICATIONS
-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) 1.5 mV
-FREQUENCY RESPONSE (20 - 20,000HZ) +3.0/-1dB dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) 60 μm
-COMPLIANCE, DYNAMIC, LATERAL 7 μm
-STYLUS TYPE Spherical
-TRACKING FORCE RANGE 4.0 - 5.0 g
-RECOMMENDED TRACKING FORCE 4.5 g
-TRACKING ANGLE 20 °
-INTERNAL IMPEDANCE 6 Ω
-RECOMMENDED LOAD IMPEDANCE 100Ω
-COIL WINDINGS OFC Copper
-CARTRIDGE WEIGHT 35g
