Deco Audio Shop
Ortofon SPU #1 S MC Cartridge
Ortofon SPU #1 S MC Cartridge
Regular price
£599.00 GBP
Regular price
Sale price
£599.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability

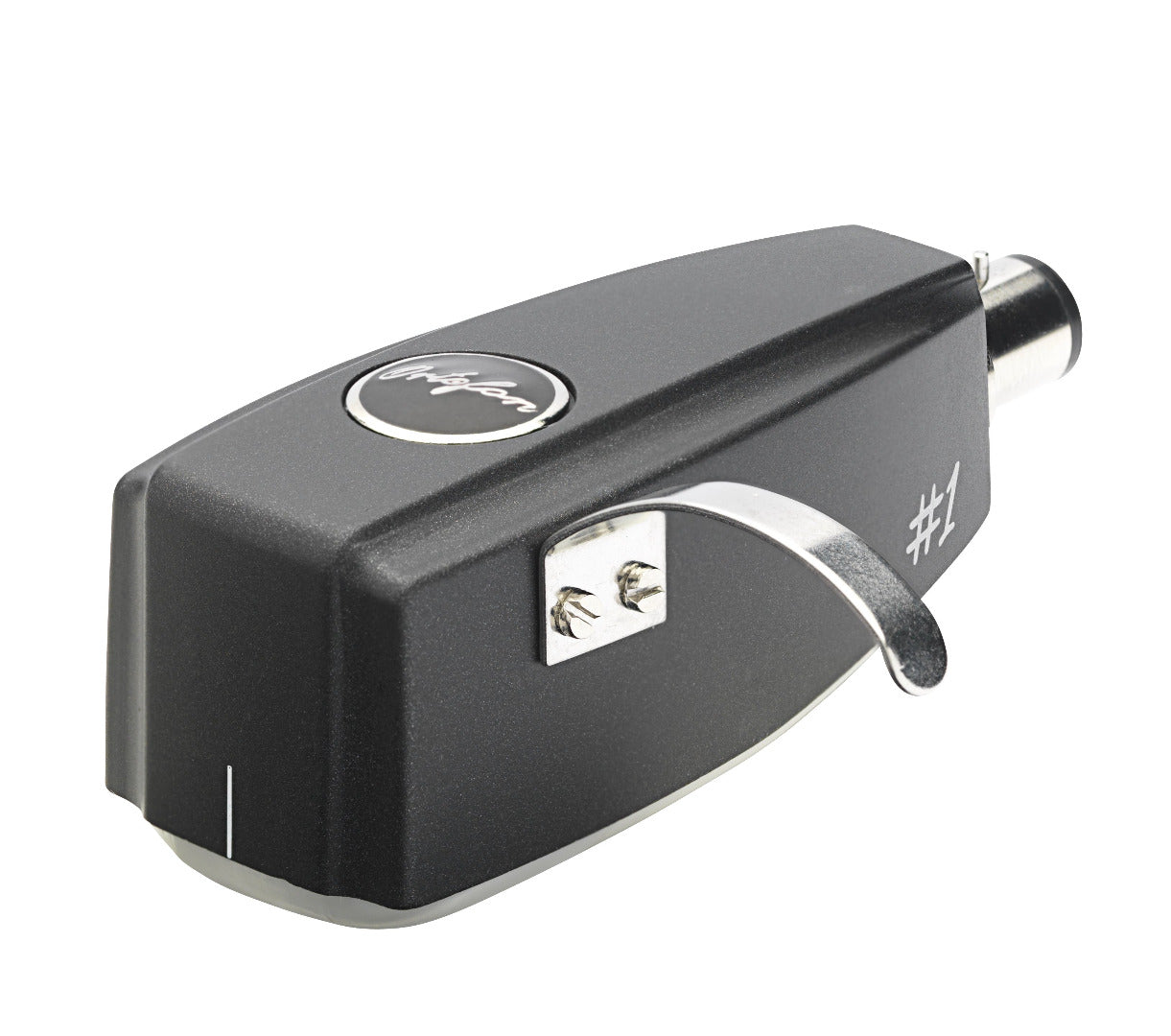

The SPU #1S is the starting point within the famous SPU range of cartridges and is very much the classic recipe you'd expect. It uses a 18 µm spherical bonded stylus profile, copper coils and is contained in a housing made as a composite of wood particles in resin.
The sound is classic SPU, it's all about colour, scale and body, this is no anaemic detail fiend, it paints with broad brush strokes and captures the emotion and vibrancy of the recording in its purest form.
This cartridge is suited to arms that are moderate to high mass and have an 'SME' type headshell connection.
Due to their nature, there can be a lead time on SPU orders, so please ask before ordering if delivery time scale is critical.
As MC cartridges do not have removable stylus assemblies Ortofon have an 'exchange' scheme where your old worn/damaged Ortofon MC cartridge is used as a credit against any other Ortofon MC cartridge. Please send us a message and we will calculate the cost to change for you, or visit the distributors website page here
SPECIFICATIONS
-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) 0.18 mV
-CHANNEL BALANCE (@ 1000HZ) 1.5 dB
-CHANNEL SEPARATION (@ 1000HZ) 20 dB
-CHANNEL SEPARATION (@ 15000HZ) 10 dB
-FREQUENCY RESPONSE (20 - 20,000HZ) 3.0 dB
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) 60 μm
-COMPLIANCE, DYNAMIC, LATERAL 10 μm
-STYLUS TYPE Spherical
-TRACKING FORCE RANGE 3.0 - 5.0 g
-RECOMMENDED TRACKING FORCE 4 g
-TRACKING ANGLE 20 °
-INTERNAL IMPEDANCE 2 Ω
-RECOMMENDED LOAD IMPEDANCE > 10 Ω
-RECOMMENDED TRACKING FORCE 4 g
-TRACKING ANGLE 20 °
-INTERNAL IMPEDANCE 2 Ω
-RECOMMENDED LOAD IMPEDANCE > 10 Ω
-COIL WINDINGS OFC Copper
-CARTRIDGE WEIGHT 28g
