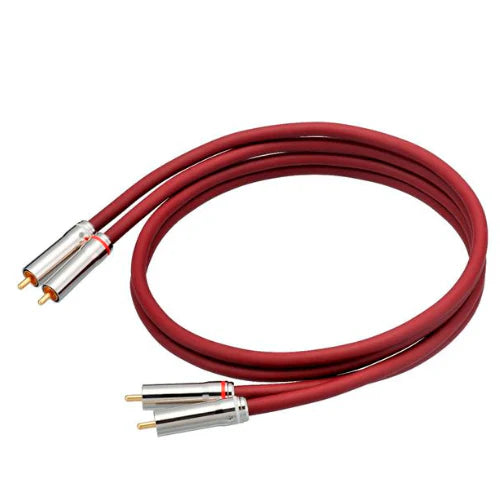

Ortofon Reference Red Interconnect Cable 1m RRP £135

Brand new, last one in stock!

The Reference Red is an interconnect designed and manufactured by Ortofon Japan. The design uses a combination of the 4N OFC (Oxygen Free Copper) and 4N HiFC (High Performance Pure Copper) and in keeping with the Reference Red range produce a natural, rich and well balanced sound.

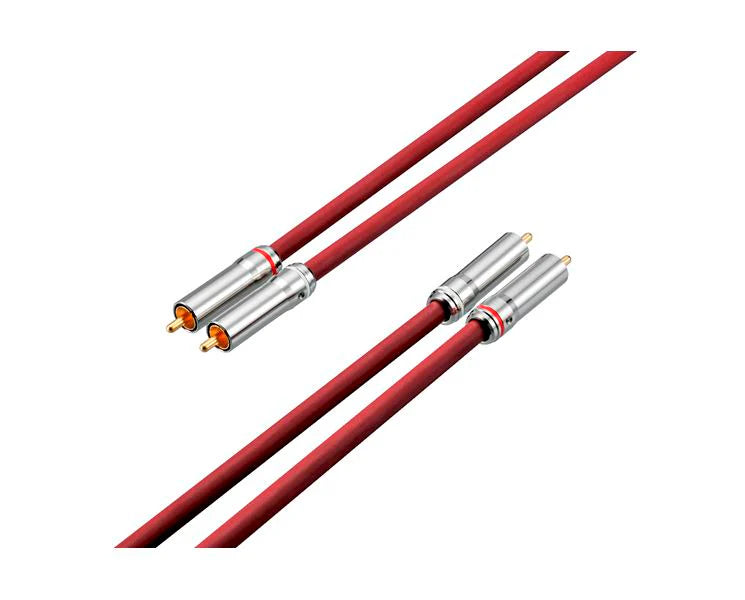

The Reference Red is surrounded by shield of both 16 sets of 0.1 mm x 10 copper wires and aluminium foil to reduce electromagnetic induced noise. The gold-plated RCA terminals provide easy, stable, and durable connection.

• Cable capacitance: 190pF/m

• Cable length: 1.0 m or 1.5 m

• Terminal type: RCA

• 2 pieces per set

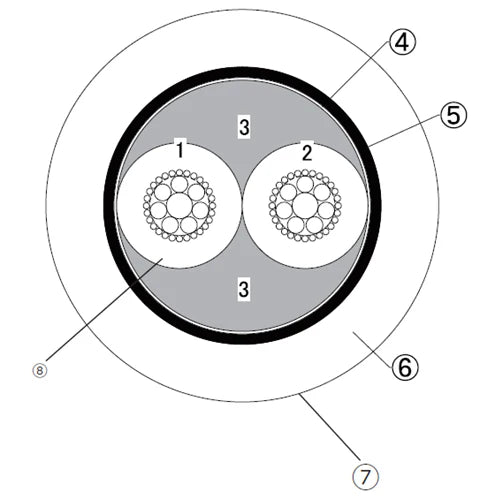

Technical configuration
1 Signal conductors: • OFC (Oxygen-free copper) Ø 0.5 mm + Ø 0.32 mm × 7  • HiFC (High performance pure copper) Ø 0.12 mm × 28

2 Signal conductors:  • OFC (Oxygen-free copper) Ø 0.5 mm + Ø 0.32 mm × 7  • HiFC (High performance pure copper) Ø 0.12 mm × 28

3 Damping material: Cotton fibre

4 Shield: Aluminium tape

5 Shield: Braided Tin-plated 3N copper wire Ø 0.1 mm × 10 × 16

6 Insulation: Halogen-free highly resilient elastomer

7 Cable diameter: 7.5 mm

8 Insulation: PE
