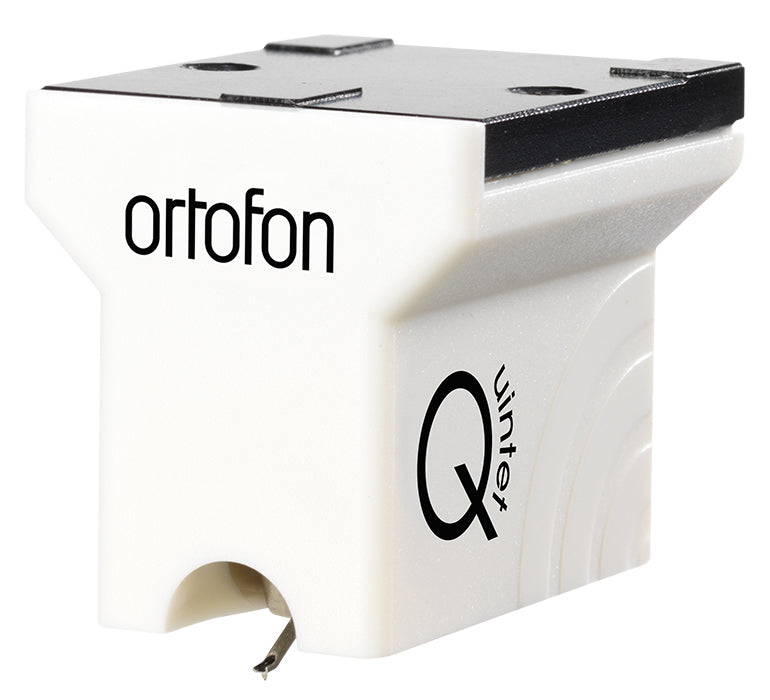

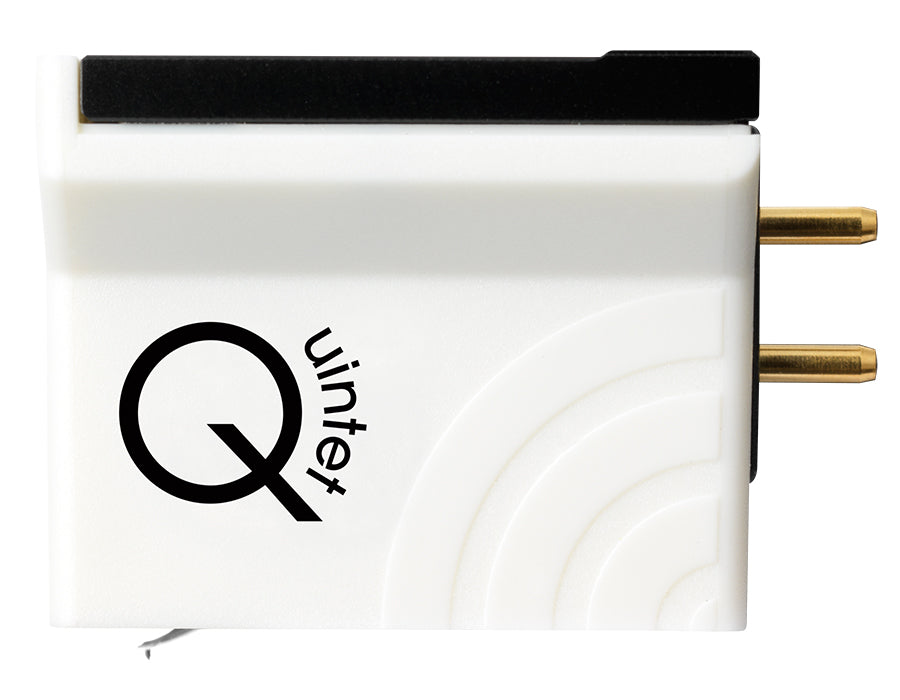

Ortofon Quintet MONO MC Cartridge
Ortofon Quintet MONO MC Cartridge
Regular price
£459.00 GBP
Regular price
Sale price
£459.00 GBP
Unit price
/
per
The Quintet MONO is a moving coil cartridge intended for playback of all 33.3 and 45 rpm mono records (not 78s).
It features a one piece 'Nude' Elliptical r/R 8/18μm stylus that Ortofon have found as being a good solution for playing mono microgroove vinyl records, enabling it to track well through worn or damaged records whilst minimising surface noise. The generator uses a strapped output to deliver the same output signal from both sets of pole pins, meaning that it can be used straight into stereo equipment without any other changes or Mono buttons being required.
Specifications
Output Voltage (@ 1000Hz, 5cm/sec.) 0.3 mV
Frequency Range (@ -3dB) 20 - 25000 Hz
Frequency Response +/- 2.0 dB
Tracking Ability (@ 315Hz at Recommended Tracking Force) 70 μm
Compliance, Dynamic, Lateral 15 μm
Stylus Type Nude Elliptical
Tracking Force Range 2.1 - 2.5g
Recommended Tracking Force 2.3g
Tracking Angle 20 °
Internal Impedance 5 Ω
Cantilever Material Aluminium Tube
Recommended Load Impedance > 20 Ω
Cartridge Weight 9 g
Frequency Range (@ -3dB) 20 - 25000 Hz
Frequency Response +/- 2.0 dB
Tracking Ability (@ 315Hz at Recommended Tracking Force) 70 μm
Compliance, Dynamic, Lateral 15 μm
Stylus Type Nude Elliptical
Tracking Force Range 2.1 - 2.5g
Recommended Tracking Force 2.3g
Tracking Angle 20 °
Internal Impedance 5 Ω
Cantilever Material Aluminium Tube
Recommended Load Impedance > 20 Ω
Cartridge Weight 9 g
