Ortofon OM5E MM Cartridge
Ortofon OM5E MM Cartridge
Regular price
£52.50 GBP
Regular price
Sale price
£52.50 GBP
Unit price
/
per

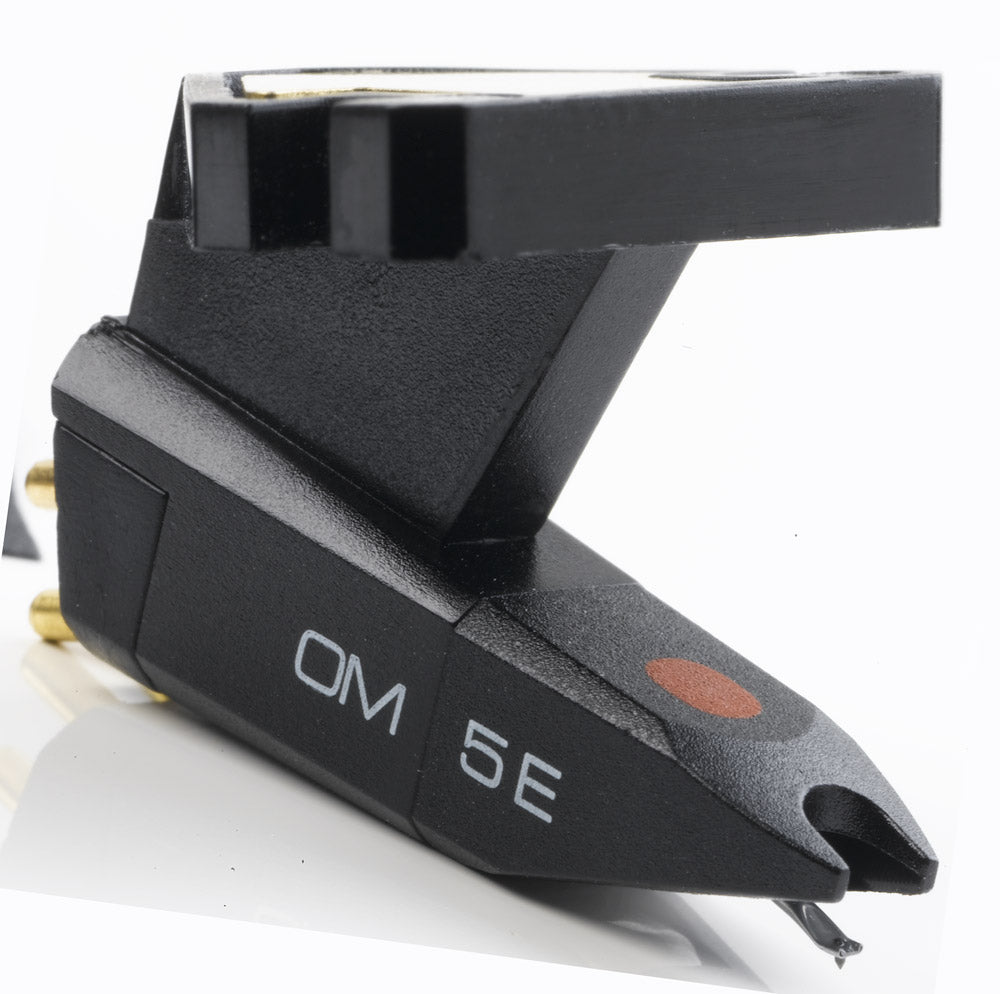

The OM 5E is a long standing classic MM Cartridge. Instantly recognisable for its iconic 'Concorde' shaped body this model has featured on many turntables as a standard fit, or retro fitted as an upgrade.

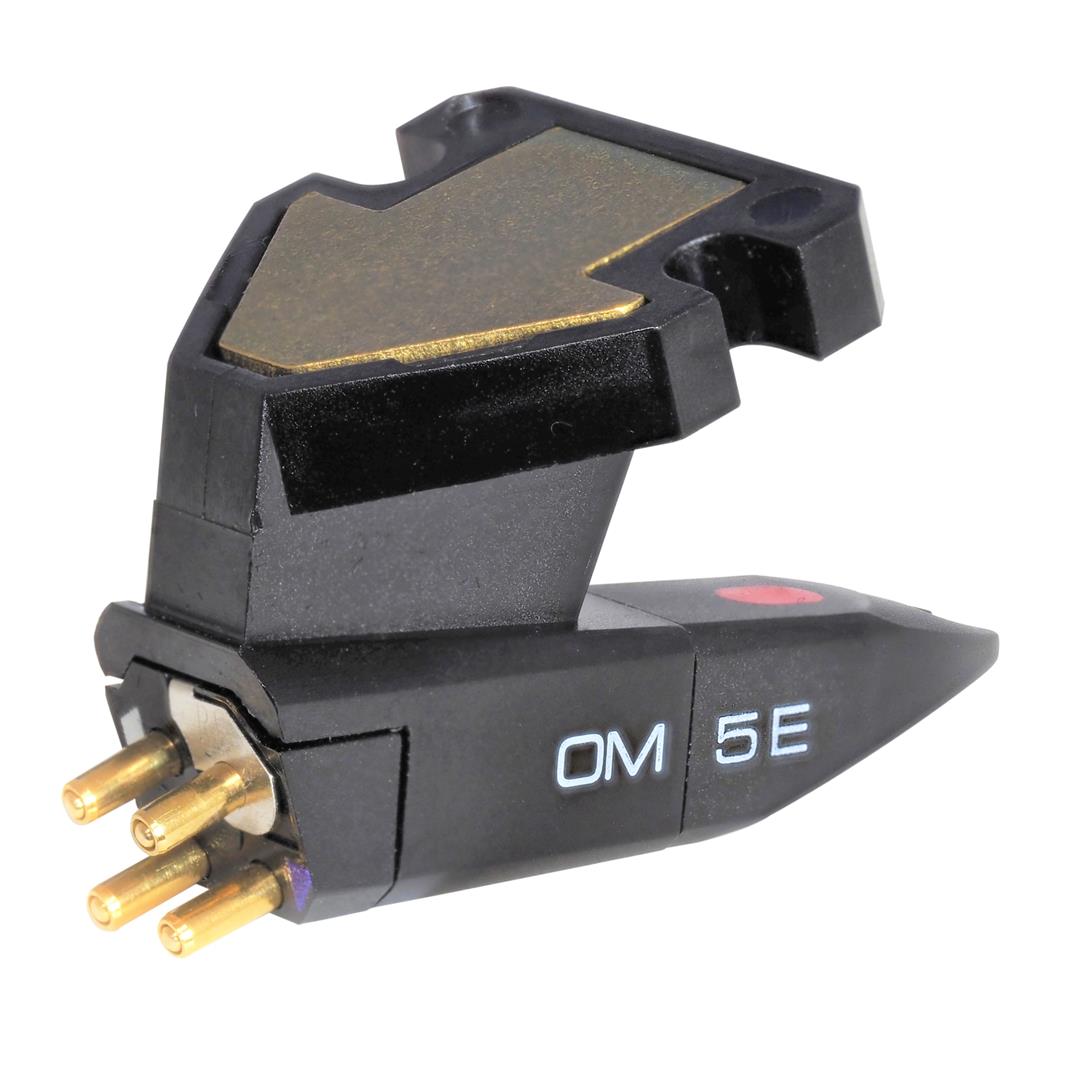

The is the lightest MM cartridge that Ortofon make with a body made from a low mass, low resonance Noryl material. It includes a weight that is housed in the mounting bracket - this is kept in place with most arms, but for very low mass arms it can be removed dropping its mass to just 2.5g
This model features an Elliptical diamond stylus and thanks to the removable stylus assembly you can fit a stylus from other models in the range including Stylus 3S, Stylus 5E (as fitted here as standard), Stylus 10, Stylus 20, Stylus 30, Stylus 40 and the 78 RPM only Stylus 78.
Specifications
-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.): 4 mV
-CHANNEL BALANCE (@ 1000HZ): 2 dB
-CHANNEL SEPARATION (@ 1000HZ): 22 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-FREQUENCY RANGE (@ -3DB) 20 - 250000 Hz
-FREQUENCY RESPONSE ±2DB: 20 - 20000 Hz
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) 65 μm
-COMPLIANCE, DYNAMIC, LATERAL: 20 μm
-STYLUS TYPE: Tipped (bonded) Elliptical
-TRACKING FORCE RANGE: 1.5 - 2.0 g
-RECOMMENDED TRACKING FORCE: 1.75 g
-TRACKING ANGLE: 20 °
-INTERNAL IMPEDANCE: 750 Ω
-INTERNAL INDUCTANCE: 450 mH
-CANTILEVER MATERIAL: Aluminium Tube
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE: 200 - 500 pF
-CARTRIDGE WEIGHT 5g with weight installed, 2.5g without weight.
-CHANNEL BALANCE (@ 1000HZ): 2 dB
-CHANNEL SEPARATION (@ 1000HZ): 22 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-FREQUENCY RANGE (@ -3DB) 20 - 250000 Hz
-FREQUENCY RESPONSE ±2DB: 20 - 20000 Hz
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) 65 μm
-COMPLIANCE, DYNAMIC, LATERAL: 20 μm
-STYLUS TYPE: Tipped (bonded) Elliptical
-TRACKING FORCE RANGE: 1.5 - 2.0 g
-RECOMMENDED TRACKING FORCE: 1.75 g
-TRACKING ANGLE: 20 °
-INTERNAL IMPEDANCE: 750 Ω
-INTERNAL INDUCTANCE: 450 mH
-CANTILEVER MATERIAL: Aluminium Tube
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE: 200 - 500 pF
-CARTRIDGE WEIGHT 5g with weight installed, 2.5g without weight.
