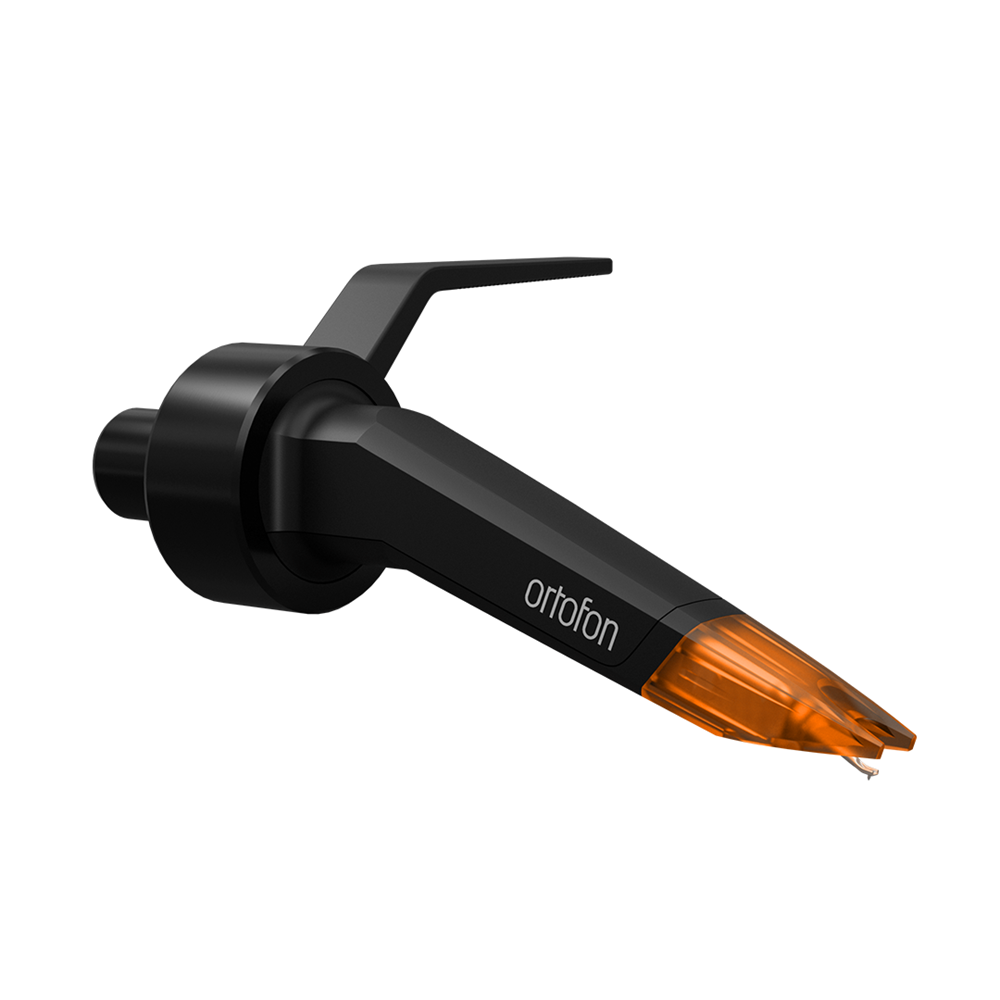

Ortofon Concorde Music Bronze MM Cartridge and Headshell

The Concorde Music series of cartridges is a combined headshell and cartridge design suitable for use in an SME type removable headshell equipped S shaped tonearm. The Music series is intended for hi-fi applications only, unlike the DJ models which have been housed in the same Concorde shaped body for the last few decades, so please don't be confused by their cosmetic similarities.

There are many similarities with this range and the 2M series of Ortofon cartridges and the different levels (designated by the colour) follow a similar progression. These cartridges produce a very healthy 6mV output, helping to reduce noise from your MM phono stage.

The Bronze is the third model up in the range and features a nude fine line diamond. Like other Ortofon Bronze models these tend to be more euphonic than most of the rest of their models, adding a warmer tone at the expense of some life and neutrality.

The styli are interchangeable in the range, so you can upgrade/downgrade the cartridge just by changing the stylus (which are available on the MM stylus section of this website) as the main body of the cartridge is identical throughout the range.

Technical Specifications:

Output Voltage: 6 mV
Channel Balance (@ 1000Hz): 1 dB
Channel Separation (@ 1000Hz): 26 dB
Frequency Response +2 / -0dB: 20-20k Hz
Tracking Ability (@ 315HZ @ Recommended Tracking Force): 80 μm
Compliance, Dynamic, Lateral: 15 μm
Stylus Type: Nude Fine Line
Stylus Tip Radius (R/R): 8/40 μm
Recommended Tracking Force: 1.8 g
Internal Impedance: 1.27 Ω
Internal Inductance: 815 mH
Cantilever Material: Aluminium Tube
Coil Wire Material: Silver Plater OFC Copper
Recommended Load Impedance: 47 Ω
Recommended Load Capacitance: 150-300 pF
Cartridge Weight: 18 g
