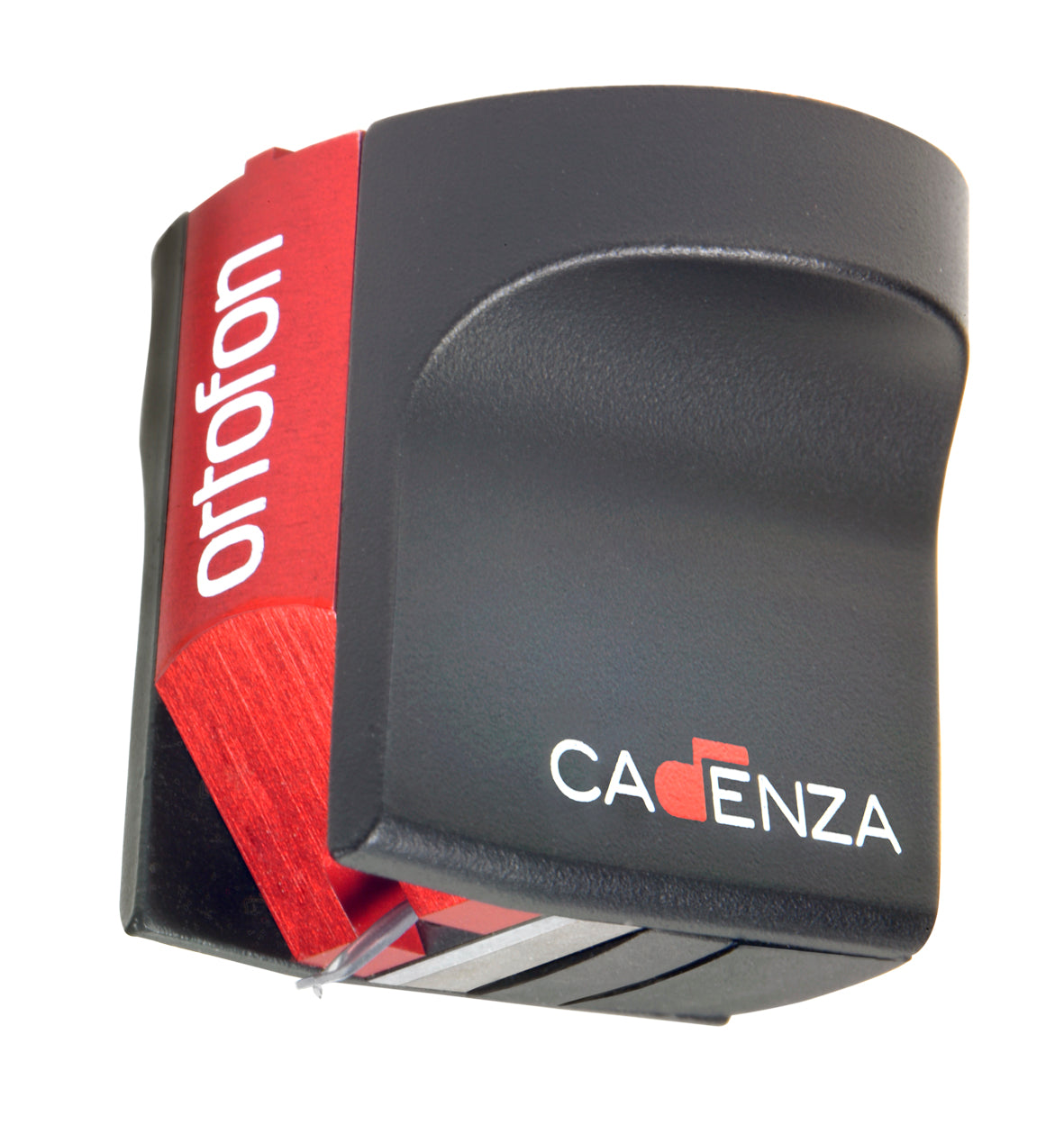

Ortofon Cadenza Red MC Cartridge

Ortofon Cadenza Red MC Cartridge

£1,199.00 GBP
£1,199.00 GBP
Sale Sold out
Tax included.
The Cadenza series is the second level of MC cartridges from Ortofon, and this Red model is the starting point within the range.
It uses a Nude (one piece) Fine Line diamond mounted on an aluminium cantilever, with high purity silver coils. The compact body is made from a combination of stainless steel and aluminium which serve to damp one another producing a relatively lightweight and extremely rigid housing.
Sonically it's perhaps doesn't have the giant slaying abilities of the Quintet Black S, or the dearer Cadenza Blue, but it's a great starting point into the world of the Cadenza cartridges.

As MC cartridges do not have removable stylus assemblies Ortofon have an 'exchange' scheme where your old worn/damaged Ortofon MC cartridge is used as a credit against any other Ortofon MC cartridge. Please send us a message and we will calculate the cost to change for you, or visit the distributors website page here

TECHNICAL SPECIFICATIONS
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.): 0.45 mV
CHANNEL BALANCE (@ 1000HZ): < 1.5 dB
CHANNEL SEPARATION (@ 1000HZ): > 23 dB
CHANNEL SEPARATION (@ 15000HZ): > 15 dB
FREQUENCY RANGE (@ -3DB): 20 - 50000 Hz
FREQUENCY RESPONSE +3 / -1DB: 20 - 20000 Hz
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 80 μm
COMPLIANCE, DYNAMIC, LATERAL: 12 μm
STYLUS TYPE: Nude Fine Line
TRACKING FORCE RANGE: 2.2 - 2.7 g
RECOMMENDED TRACKING FORCE: 2.5 g
TRACKING ANGLE: 20 °
INTERNAL IMPEDANCE: 5 Ω
CANTILEVER MATERIAL: Aluminium Tube
WINDING WIRE: 6 nines pure silver
RECOMMENDED LOAD IMPEDANCE: 50 - 500 Ω
CARTRIDGE WEIGHT: 10.7 g
