Ortofon 2M Red MM Cartridge Range
Ortofon 2M Red MM Cartridge Range
Regular price
£95.00 GBP
Regular price
Sale price
£95.00 GBP
Unit price
/
per
The 2M Red family of cartridges includes 4 variants available to order here.
-2M Red This is the model everyone thinks of when they think of this cartridge, it's a very well reviewed design.

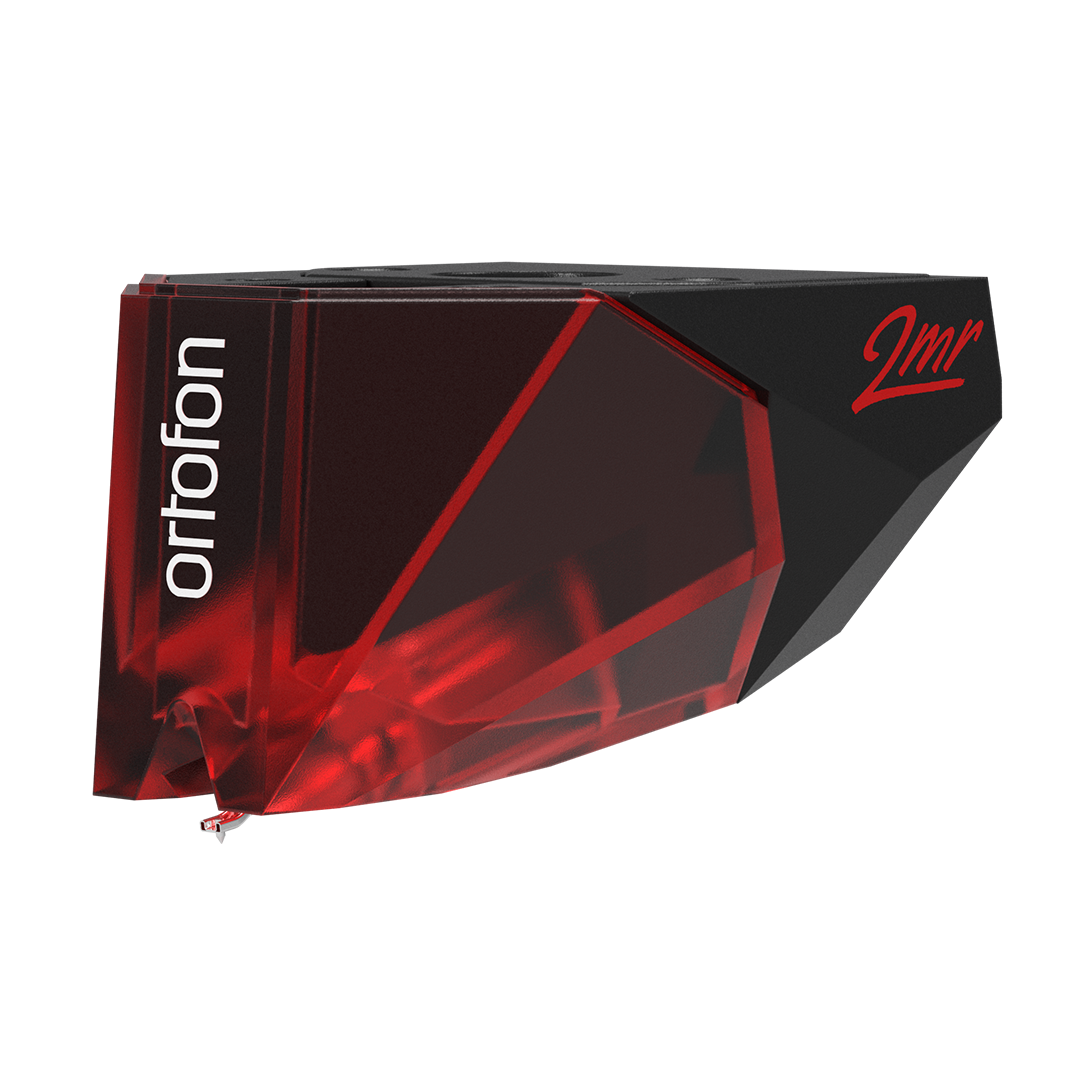

-2MR Red This is an exciting addition to the range - the 2M series are quite tall cartridges, so the 2MR is a shorter height version and is proving popular with owners of turntables with height restrictions (like some Rega decks, for example). This cartridge is a little lighter than the standard model, but otherwise the same.
-2M Red Verso Identical to standard height 2M Red but with male cartridge threads extending out of the cartridge (rather than internal female threads), for use where conventional threaded inserts on the standard model are not usable.
-2M Red Premounted This is a standard 2M Red pre mounted into a 'SME' type removable headshell
The 2M range features Ortofon's Spilt-Pole Pin generator to reduce eddy currents and extend and flatten the frequency response.
All 2M Series styli are interchangeable so you can upgrade the performance easily or even fit a 78 stylus profile if required.
Specifications
-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.): 5.5 mV
-CHANNEL BALANCE (@ 1000HZ): 1.5 dB
-CHANNEL SEPARATION (@ 1000HZ): 22 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-FREQUENCY RANGE (@ -3DB): 20 - 22000 Hz
-FREQUENCY RESPONSE +3 / -1DB: 20 - 20000 Hz
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 70 μm
-COMPLIANCE, DYNAMIC, LATERAL: 20 μm
-STYLUS TYPE: Tipped (Bonded) Elliptical
-TRACKING FORCE RANGE: 1.6 - 2.0 g
-RECOMMENDED TRACKING FORCE: 1.8 g
-TRACKING ANGLE: 20 °
-INTERNAL IMPEDANCE: 1300 Ω
-INTERNAL INDUCTANCE: 700 mH
-CANTILEVER MATERIAL: Aluminium Tube
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE: 150 - 300 pF
-CARTRIDGE WEIGHTS: 2M Red: 7.2g, 2MVerso: 7.2g, 2MR Red: 6g, 2M Red Premounted 16.7 g
