Ortofon 2M Black MM Cartridge Range

£525.00 GBP

Sale Sold out

Taxes included.

Version 2M Black (standard version) 2MR Black (short version) 2M Black Verso (male threaded bolts) 2M Black Premounted (supplied fitted to a headshell)

Quantity

The 2M Black is the forth level up in the 2M range. It retains the improved Noryl Plastic/glass composite material used for the cartridge body and silver plated generator coils as found in the 2M Bronze and adds a one piece (nude) Shibata diamond into the mix. This cartridge has superb resolution, with extended but refined high frequencies and superb tracking.

The 2M Black family of cartridges includes 4 variants available to order here.

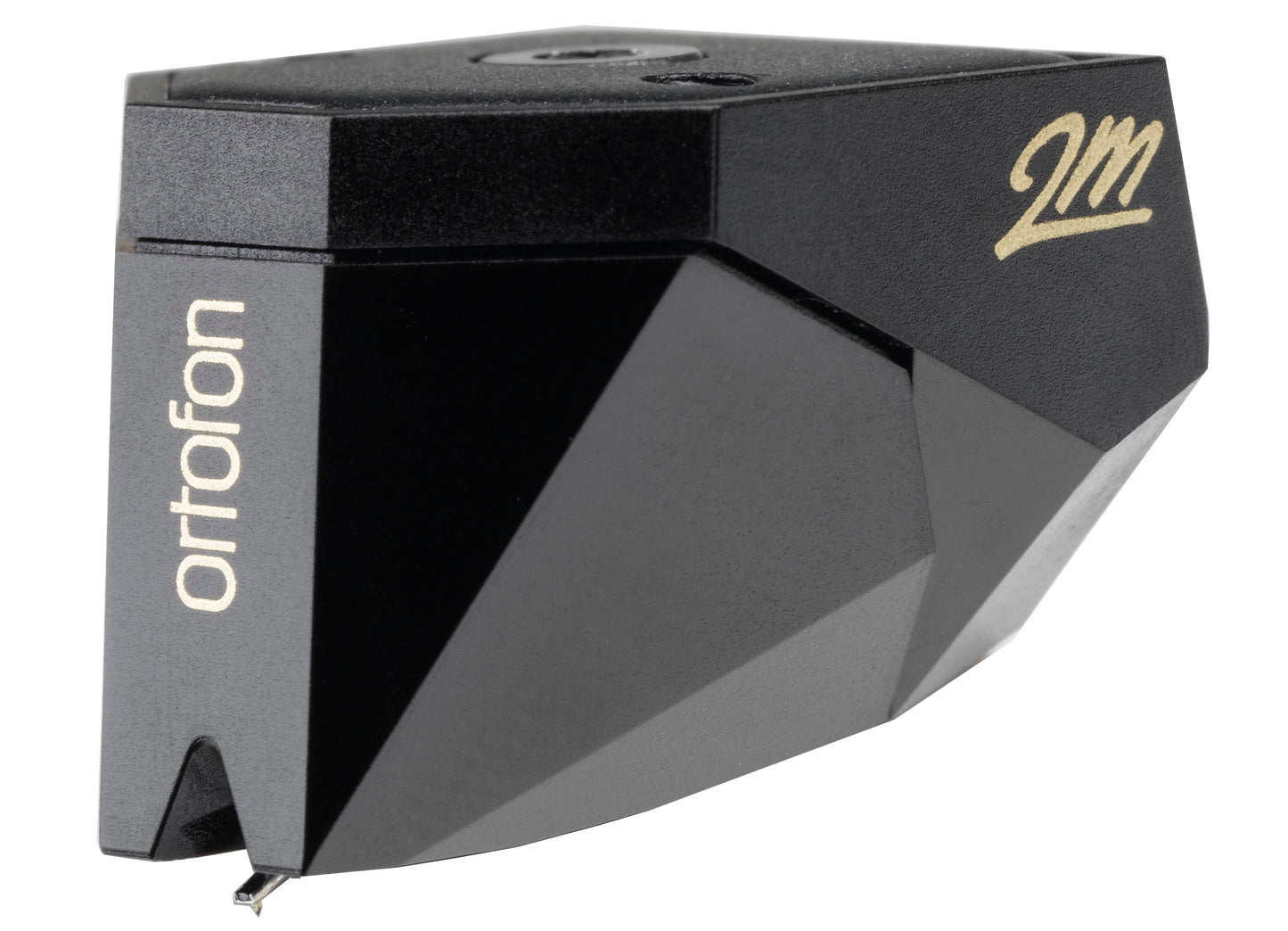

-2M Black This is the model everyone thinks of when they think of this cartridge, it's a very well reviewed design.

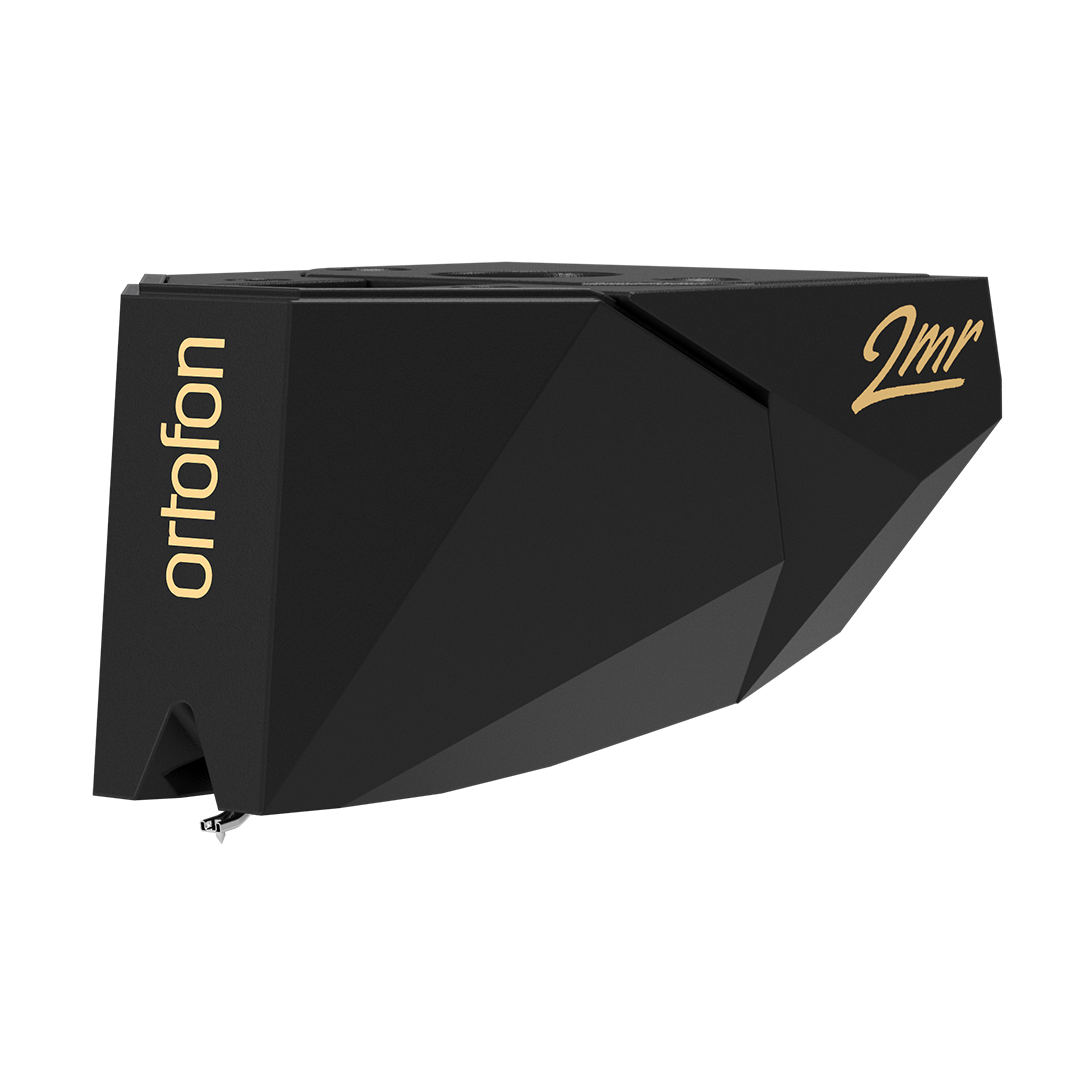

-2MR Black This is an exciting addition to the range - the 2M series are quite tall cartridges, so the 2MR is a shorter height version and is proving popular with owners of turntables with height restrictions (like some Rega decks, for example). This cartridge is a little lighter than the standard model, but otherwise the same.

-2M Black Verso Identical to standard height 2M Red but with male cartridge threads extending out of the cartridge (rather than internal female threads), for use where conventional threaded inserts on the standard model are not usable.

-2M Black Premounted This is a standard 2M Red pre mounted into a 'SME' type removable headshell

The 2M range features Ortofon's Spilt-Pole Pin generator to reduce eddy currents and extend and flatten the frequency response.

All 2M Series styli are interchangeable so you can downgrade/upgrade the performance easily or even fit a 78 stylus profile if required.

Specifications

-OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.): 5 mV
-CHANNEL BALANCE (@ 1000HZ): 1 dB
-CHANNEL SEPARATION (@ 1000HZ): 26 dB
-CHANNEL SEPARATION (@ 15000HZ): 15 dB
-FREQUENCY RANGE (@ -3DB): 20 - 31000 Hz
-FREQUENCY RESPONSE +3 / -1DB: 20 - 20000 Hz
-TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE): 80 μm
-COMPLIANCE, DYNAMIC, LATERAL: 22 μm
-STYLUS TYPE: Nude (Single Piece) Shibata
-TRACKING FORCE RANGE: 1.4 - 1.7 g
-RECOMMENDED TRACKING FORCE: 1.5 g
-TRACKING ANGLE: 20 °
-INTERNAL IMPEDANCE: 1300 Ω
-INTERNAL INDUCTANCE: 700 mH
-CANTILEVER MATERIAL: Aluminium Tube
-RECOMMENDED LOAD IMPEDANCE: 47000 Ω
-RECOMMENDED LOAD CAPACITANCE: 150 - 300 pF
-CARTRIDGE WEIGHTS: 2M Bronze: 7.2g, 2MVerso Bronze: 7.2g, 2MR Bronze: 6g, 2M Bronze Premounted 16.7 g
