Musical Fidelity B1xi Integrated Amplifier
Musical Fidelity B1xi Integrated Amplifier
Couldn't load pickup availability
The iconic 'B1' name makes its return with the B1xi. It's the latest starting point in the Musical Fidelity range of integrated amplifiers and is a well featured integrated amplifier with on board MM phono stage, DAC (with coaxial, optical and ARC inputs for TV connectivity), Bluetooth receiver, 3 line level inputs and pre amp outputs and a home theatre pass through. A remote control is naturally included.

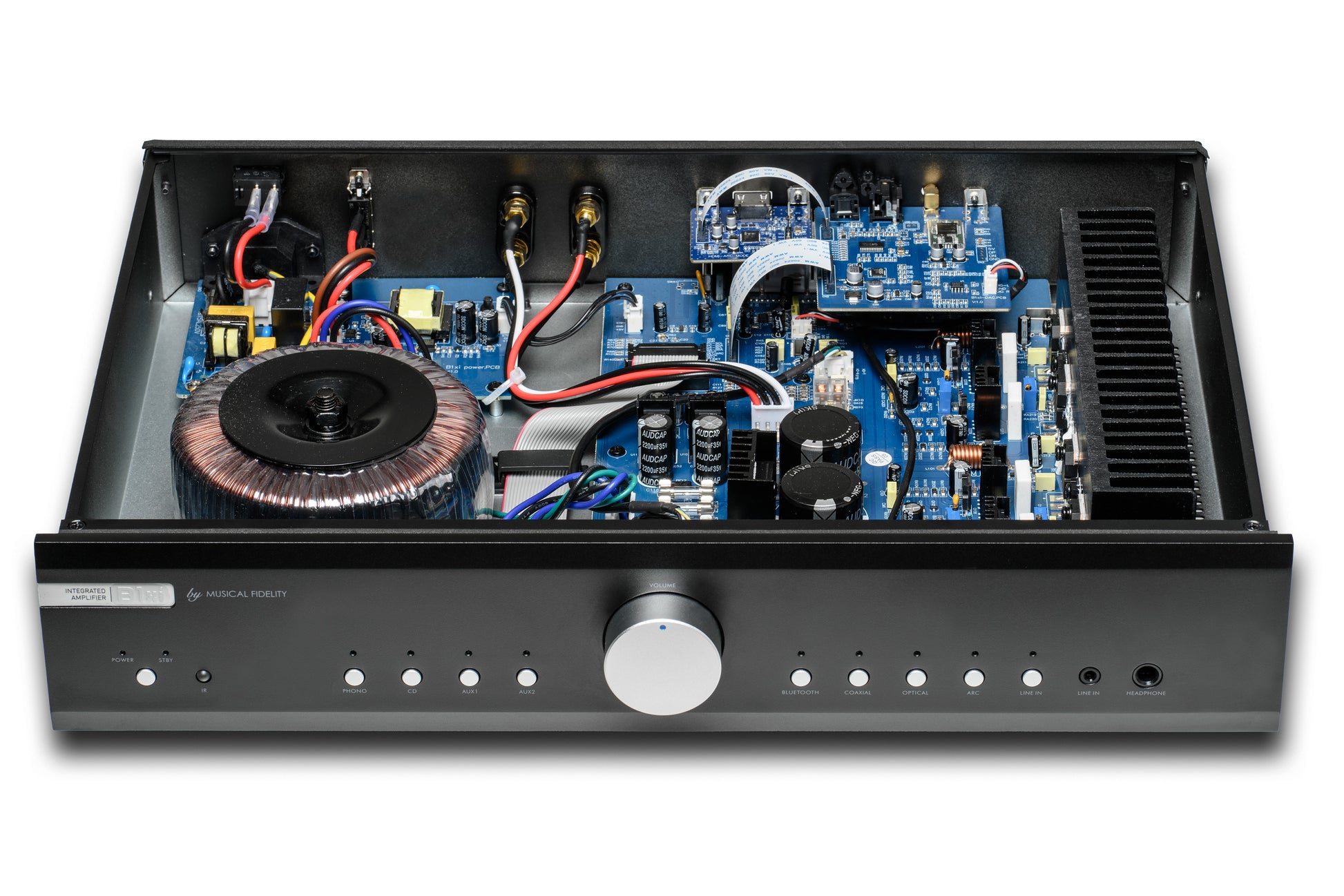

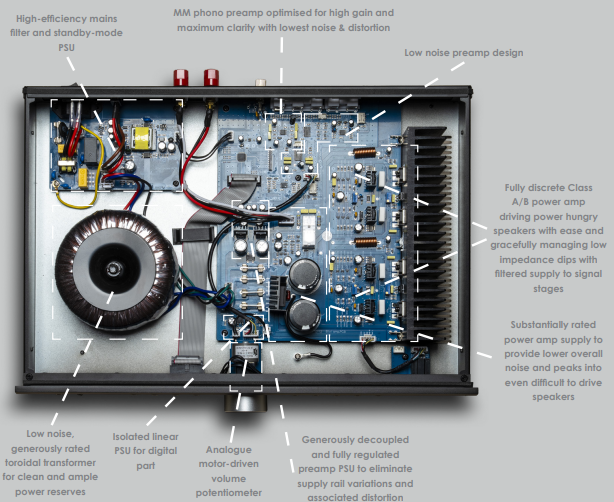

The amplifier is a discrete class A/B design, designed with the aim of combining low crossover distortion with good efficiency. A substantial toroidal transformer forms the heart of the amplifier, with separate for the pre, power and digital stages.
The digital stages are remotely positioned from the analogue stages to reduce RFI noise and the DAC for the coaxial and optical inputs is the highly regarded ESS9018.
Technical Specifications:
• Power, both channels driven @ 1% THD: 60 Watts per channel into 8 Ohms; 100W into 4ohms; 140W peaks into 2 ohms
• Power, both channels driven @ 0.09% THD, 20Hz to 20 kHz: 50 Watts per channel into 8 Ohms; 80W into 4ohms
• Voltage 21 Volts RMS, 20Hz to 20 kHz; onset of clipping
• 30 Volts peak to peak
• Current 8 Amps peak to peak
• Damping factor 30
• Output devices 1 pair per channel
Line input
• THD+N < 0.02 % typical, 20Hz to 20 kHz
• Signal / noise ratio > 100dB ‘A’-weighted
• Input impedance 47k Ohms
• Frequency response +0, –3dB, 10Hz to 30 kHz
Phono input
• Sensitivity (nominal): 5mV (suitable for cartridges giving 1.5mV or more including high output
MC types)
• Signal / noise ratio: >70dB ‘A’-weighted
• Input impedance: 47k Ohms
• Input capacitance: <100pF
• Gain: 42dB
• Frequency response: RIAA/IEC ±1dB, 20Hz to
20 kHz

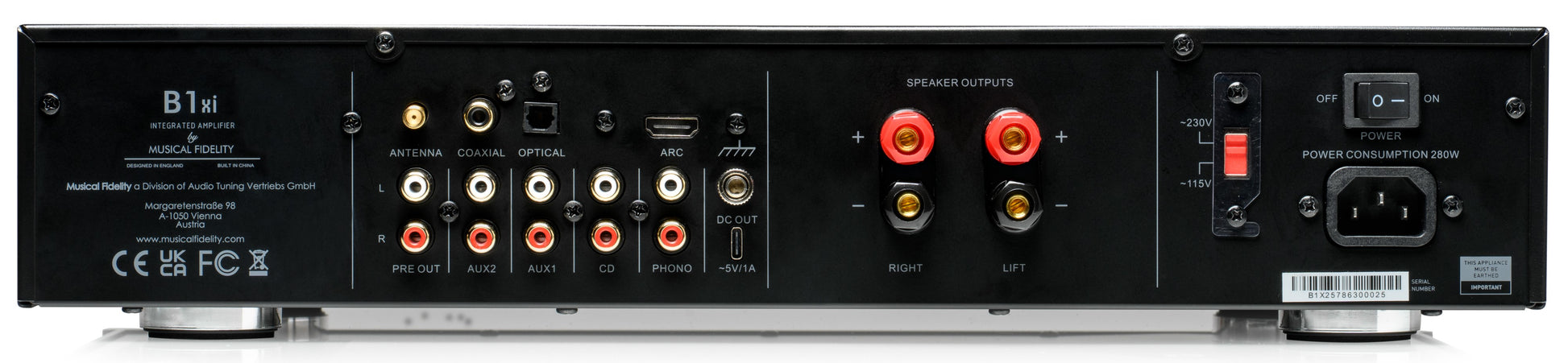

• Line level inputs 3 pairs line level RCA
connectors
• MM phono input
• Optical, coaxial, ARC digital inputs (up to
24bit/192kHz stereo PCM)
• Bluetooth 5.1 input
• 1 pair line level RCA connectors, preamp
outputs for e.g. bi-amping
• Speaker outputs 1 pair 4mm banana plug/
binding posts
Power requirement
• Mains voltages 115/230VAC 50/60Hz (factory
pre-set)
• 100VAC 50/60Hz (alternative)
• Consumption 280 Watts maximum
• Unit only, unboxed 7.2 kg
• In shipping carton 8.9 kg
• Wide 430 mm
• High, including feet 90 mm
• Deep (front to back) including terminals 324mm
