Living Voice Auditorium IBX-RW4 (Click & Collect Only)

Living Voice Auditorium IBX-RW4 (Click & Collect Only)

£12,090.00 GBP
£12,090.00 GBP
Sale Sold out
Tax included.
Finish

There are effectively two versions of the top of the range Living Voice Auditorium model. This, the IBX, which stands for 'In Board Xover' has all the elements found in the OBX for those that want exceptional performance but don't have the space to accommodate the external crossovers as found on the OBX.

The internal crossovers result in small trade off in terms of definition compared to the OBX but there are gains from the crossover components having less wiring between them and the drivers, so it's arguably not completely one sided.

As with all the models in this series the enclosure is a reasonably compact floorstander, with an elegant aesthetic that looks rather smaller than the bold and colourful sound it is able to recreate.

The top of the line Auditoriums are a wonderfully musical speaker, they envelop the listener in music and have the ability to dig into the recording without over analysing any particular elements, producing a comfortable and balanced sound that is involving and foot tapping to listen to.


TECHNICAL SUMMARY:
High sensitivity, wide dispersion MTM driver topology
Hardwood composite enclosure with Maple lining veneer
Stiff internal double bracing
Proprietary hand wound air core inductors
Mechanically isolated crossover
Optimised crossover layout
Star Earthing
Crystal oriented internal wiring harness.
Proprietary non-inductive wire wound resistors, proprietary LV film capacitors
Cryogenic treatment to: Gold WBT binding posts Internal wiring harness Crossover components.

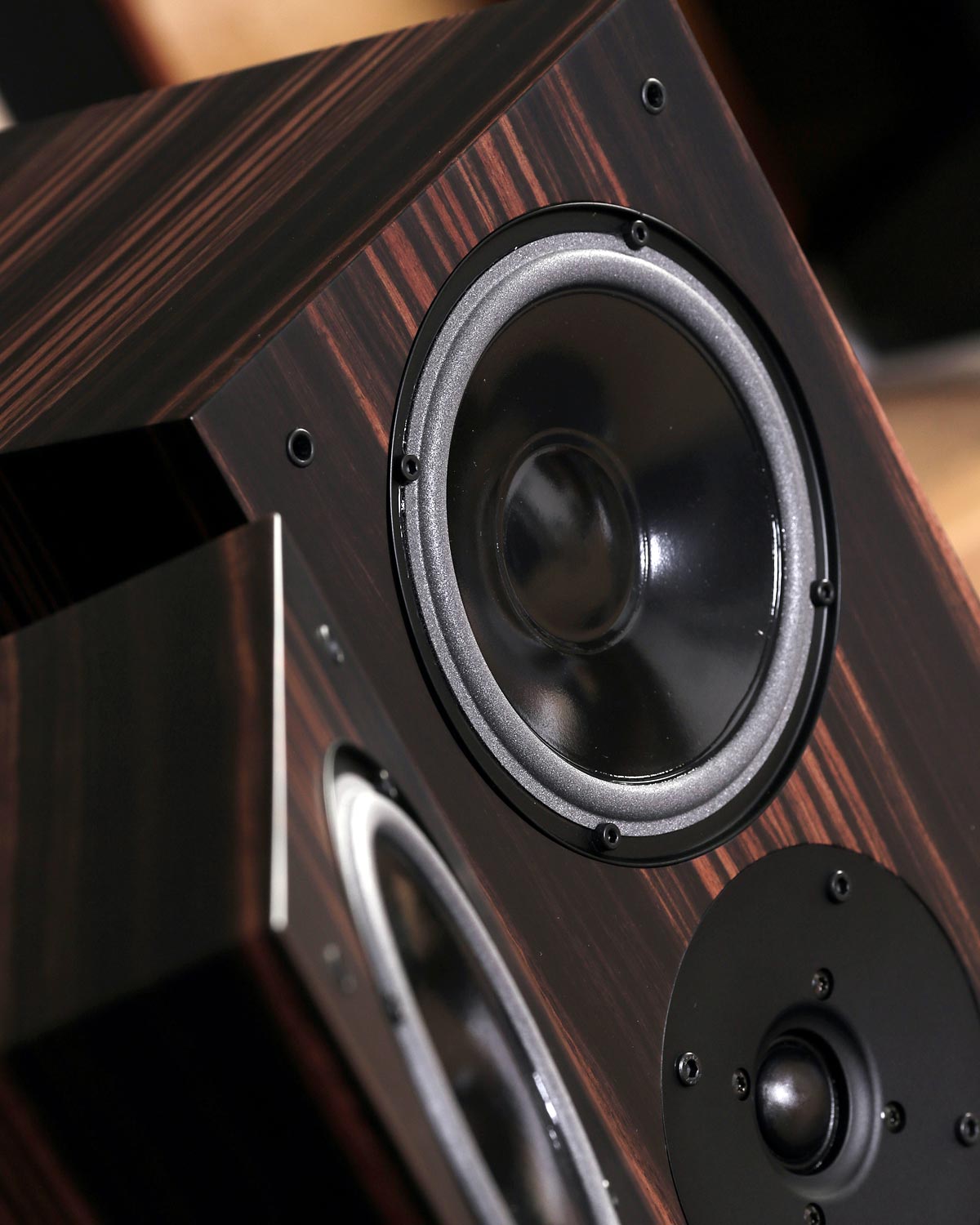

H/F: Proprietary tweeter made for Living Voice by Scanspeak. 29mm fabric dome with wave guide.
Bass/Mid: Proprietary Living Voice 17cm doped paper coned drivers – made by Scanspeak.


SENSITIVITY:    94dB
NOMINAL IMPEDANCE:    6 Ohms
LOADING:    Reflex port to rear of cabinet.
FREQUENCY RESPONSE:    35Hz–25kHz
POWER HANDLING:    100 Watts
CABINET DIMENSIONS:    W 215mm × D 270mm × H 1030mm
PLINTH:    W 215mm × D 270mm × H 140mm (Black textured finish).
GROSS WEIGHT:    21Kgs per cabinet.

Premium furniture grade, book-matched grain-filled natural veneers: Cherry, Walnut, Maple, Santos, Flat White, Matt Black. Burr Oak, Ebony, Gloss Ebony.
