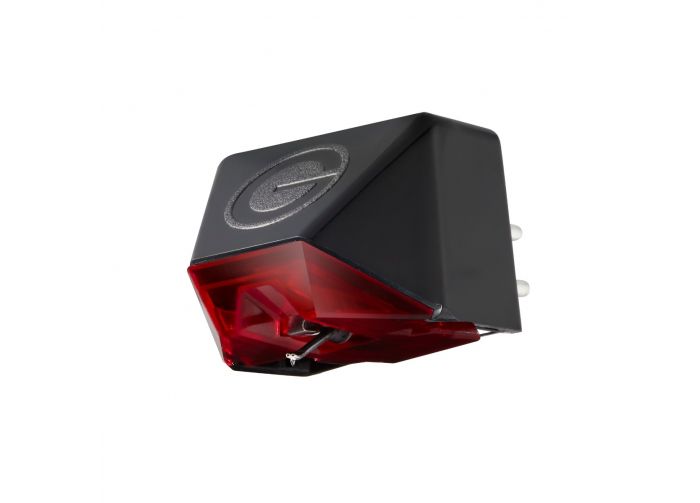

Goldring E1 Cartridge

Goldring E1 Cartridge

Regular price £65.00 GBP
Regular price Sale price £65.00 GBP
Sale Sold out
Tax included.

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series are designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment. The E1 cartridge, the first in the range, utilises a carbon fibre reinforced cantilever with a bonded, spherical (0.6 mil) stylus with a round shank. Carbon is an effective alternative to more premium aluminium or boron materials, producing comparable results in most entry level hi-fi applications.

Technical Specifications:

Stylus Radius: 0.6 mil
Frequency Range: 20 Hz - 20kHz
Channel Balance: 1.5 dB at 1kHz
Channel Separation: >20 dB at 1 kHz
Sensitivity: 3.5 mV (1 kHz @ 5 cm/sec)
Static Compliance: 20 mm/N
Vertical Tracking Angle: 208
Load Resistance: 47 kOhm
Load Capacitance: 100 - 200 pF
Internal Inductance: 400 mH
Internal Resistance: 410 Ohm
Cartridge Mass: 6.9 g
Fixing Centres: 12.7 mm (0.5 in)
Playing Weight: 1.5 g - 2.5 g (2.0 g Recommended)

We are an authorised Goldring dealer. You will receive a brand-new-in-box cartridge.
