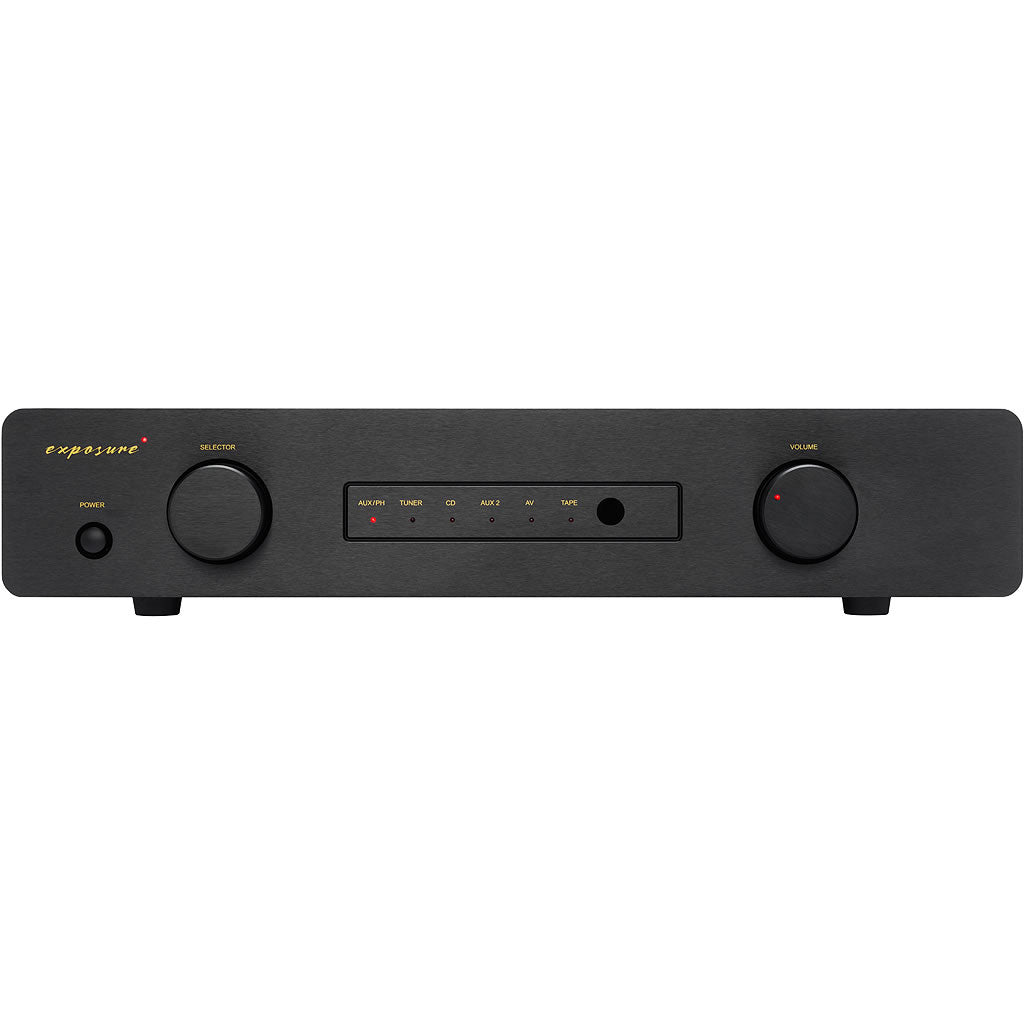

Exposure 3510 Pre-Amplifier

The 3510 pre amplifier is a full sized remote controlled design which uses a discrete class A transistor output stage and an oversized power supply, featuring a substantial toroidal transformer.

As standard it is a 6 line level input design. There are optional cards that can be fitted, there's an MM phono stage, and MC phono stage and a DAC card, only one card can be fitted at a time and doing so drops it to 5 line level inputs.

There are two pre amplifier outputs and a tape output.

Technical specifications:

Maximum Output: 7.7V RMS @ 1kHz
Frequency Response: 20Hz - 20kHz ± 0.25dB
Total Harmonic Distortion: <0.005%, @ 1kHz, ref rated output
Signal to Noise Ratio: >100dB, A weighted
Input Impedance: 18K Ohms minimum
Input Sensitivity: 250mV
Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
Fuse: T5AL for 110/120V units & T2.5AL for 220/240V units
Power Consumption: <25W
Dimensions (HxWxD): 90mm x 440mm x 300mm
Net Weight: 7kg
Gross Weight: 9kg
