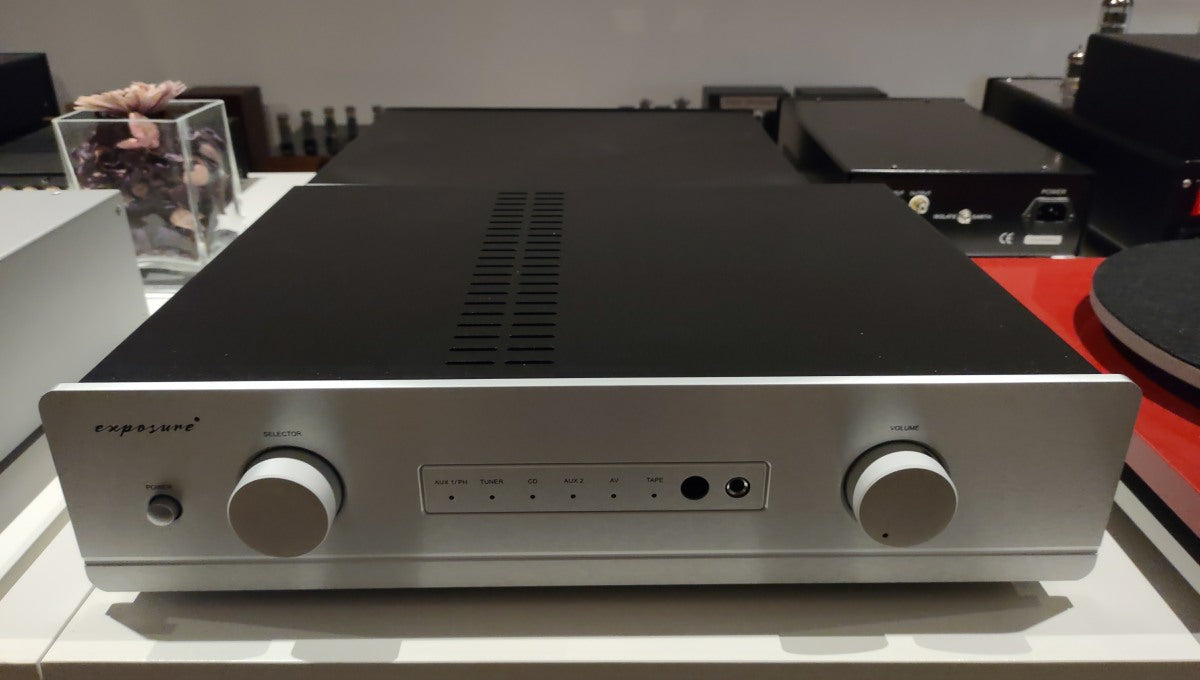

Exposure 3510 Integrated Amplifier

Exposure 3510 Integrated Amplifier

Regular price £2,600.00 GBP
Regular price Sale price £2,600.00 GBP
Sale Sold out
Tax included.

The 3510 is the successor to the very popular 3010S2D. Housed in the same size chassis, it has a lot in common with its predecessor. The main improvements are in current delivery of the output stage, which is now much higher and seriously impressive for an amplifier at this price point (presumably thanks to an even larger mains transformer). This should bode well with driving difficult speaker loads. Internal cards can be added for a phono stage or a DAC (but not both at the same time).

Technical specifications:

Power Output (Stereo): 110W per channel at 1kHz into 8 Ohms
Pre-Amplifier Output: 1.9V for rated input (gain +18dB full volume)
Maximum Output: 7.7V RMS @ 1kHz
Frequency Response: 20Hz - 20kHz ± 0.5dB
Total Harmonic Distortion: <0.03% at rated output, ref. 1kHz
Signal to Noise Ratio: >100dB, ref. rated output
Channel Separation: >60dB, 20Hz - 20kHz
Output Impedance: <12 Ohms at 1kHz
Maximum Level into 33 Ohms @ 1kHz & 0.05% THD: 4.8V RMS, (700mW)
Total Harmonic Distortion @ 2V Output 1kHz: <0.02%, (120mW)
Maximum Level into 330 Ohms @ 1kHz & 0.02% THD: 7V RMS (150mW)
Total Harmonic Distortion @ 2V Output 1kHz: <0.015%, (12mW)
Input Impedance: 17K Ohms minimum (line input)
Input Sensitivity: 250mV
Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
Fuse: T8AL for 110/120V units & T4AL for 220/240V units
Power Consumption: <400W, 8 Ohms load, both channels driven
Dimensions (HxWxD): 115mm x 440mm x 300mm
Net Weight: 12kg
Gross Weight: 14kg
