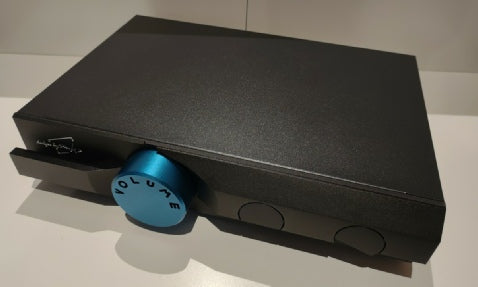

Design by Mr. K PPA Pre-Amplifier
Design by Mr. K PPA Pre-Amplifier
Regular customers will know of our love for a well designed TVC pre amplifier, and the Design by MR K is just that.
Made in Hong Kong by Advanced Avionics, this is a purist pre amplifier that is simple in its execution. C core Transformer Volume Controls allow 59 fine steps of adjustment via a really high quality rotary control. There are two versions available, both have a total of three inputs, the PPA-01 has RCA sockets and the PPA-02B (Balanced) has both RCA and XLR inputs and outputs. There is a choice of four gain settings, for most setups we recommend the standard x1 setting, but if you require additional gain then it is available via a rotary control on the fascia.
PPA-01 Technical Specifications:
Core Type: C Core
Core Material: Confidential
Voltage Steps: 59 Steps
Output Range: +20dB-80dB
Frequency Response: 20-20kHz (+/-3dB) @ 1x Gain
Inputs: 3 RCA
Outputs: 1 RCA
GND: 1 HG, 1 AG
Dimensions (WxDxH): 350mm x 280mm x 80mm
Net Weight: 5.2kg
Gross Weight: 7.6kg
PPA-02B Technical Specifications:
Core Type: C Core
Core Material: Confidential
Voltage Steps: 59 Steps
Output Range: +20dB-80dB
Frequency Response: 20-20kHz (+/-3dB) @ 1x Gain
Inputs: 3 RCA, 3XLR
Outputs: 1 RCA, 1XLR
GND: 1 Housing Ground, 1 Audio Ground
Dimensions (WxDxH): 350mm x 280mm x 80mm
Net Weight: 5.6kg
Gross Weight: 8kg
