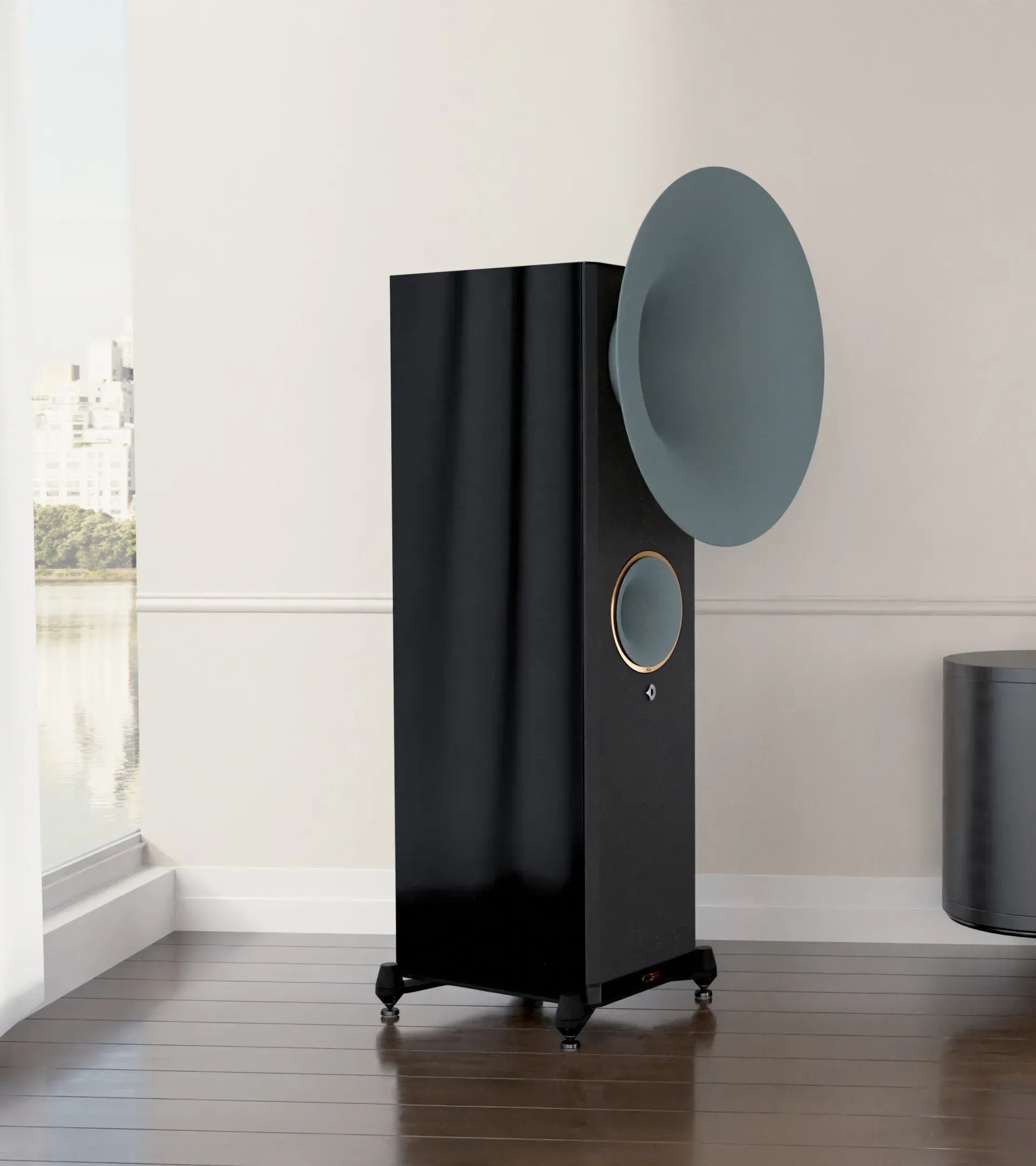

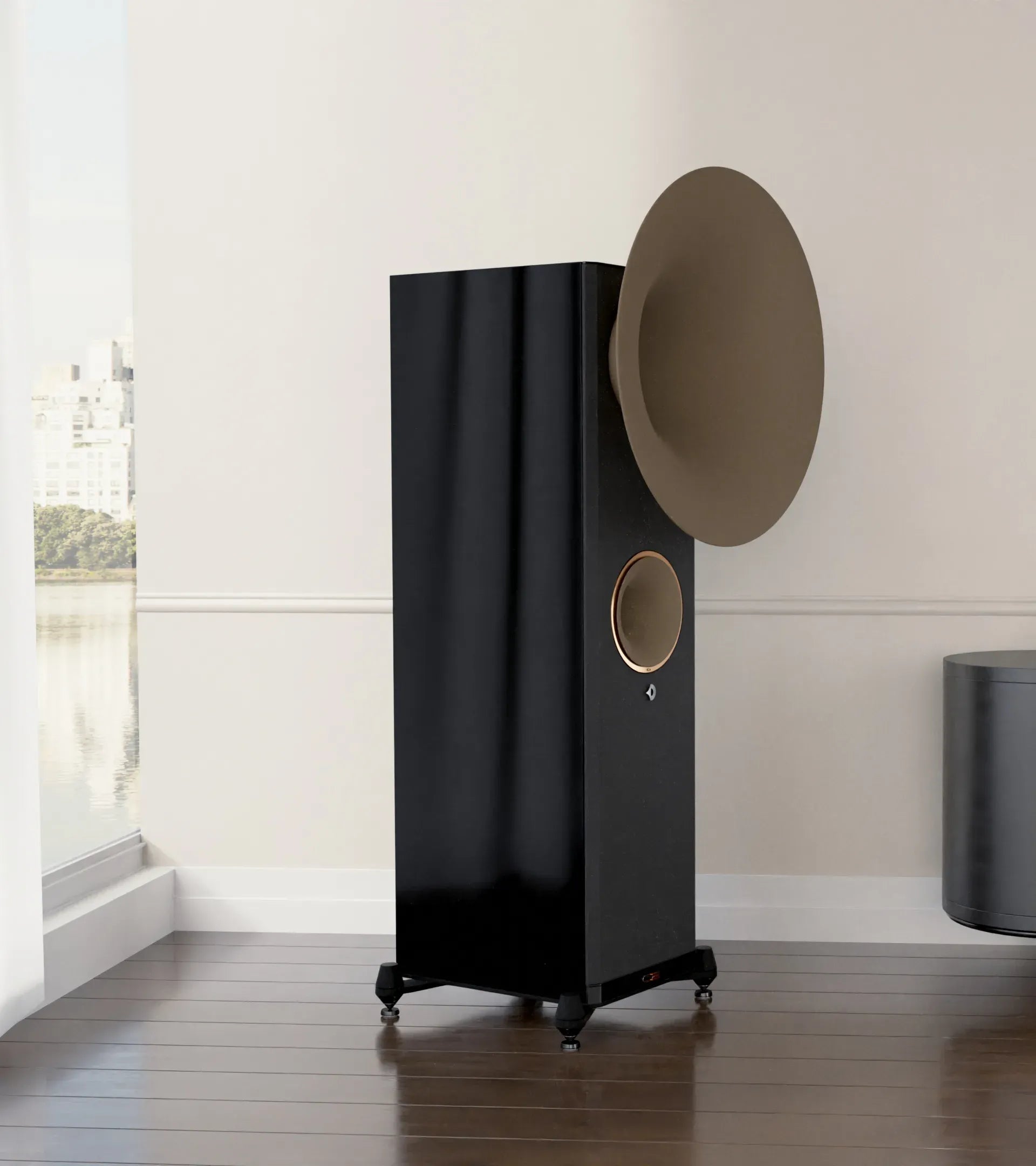

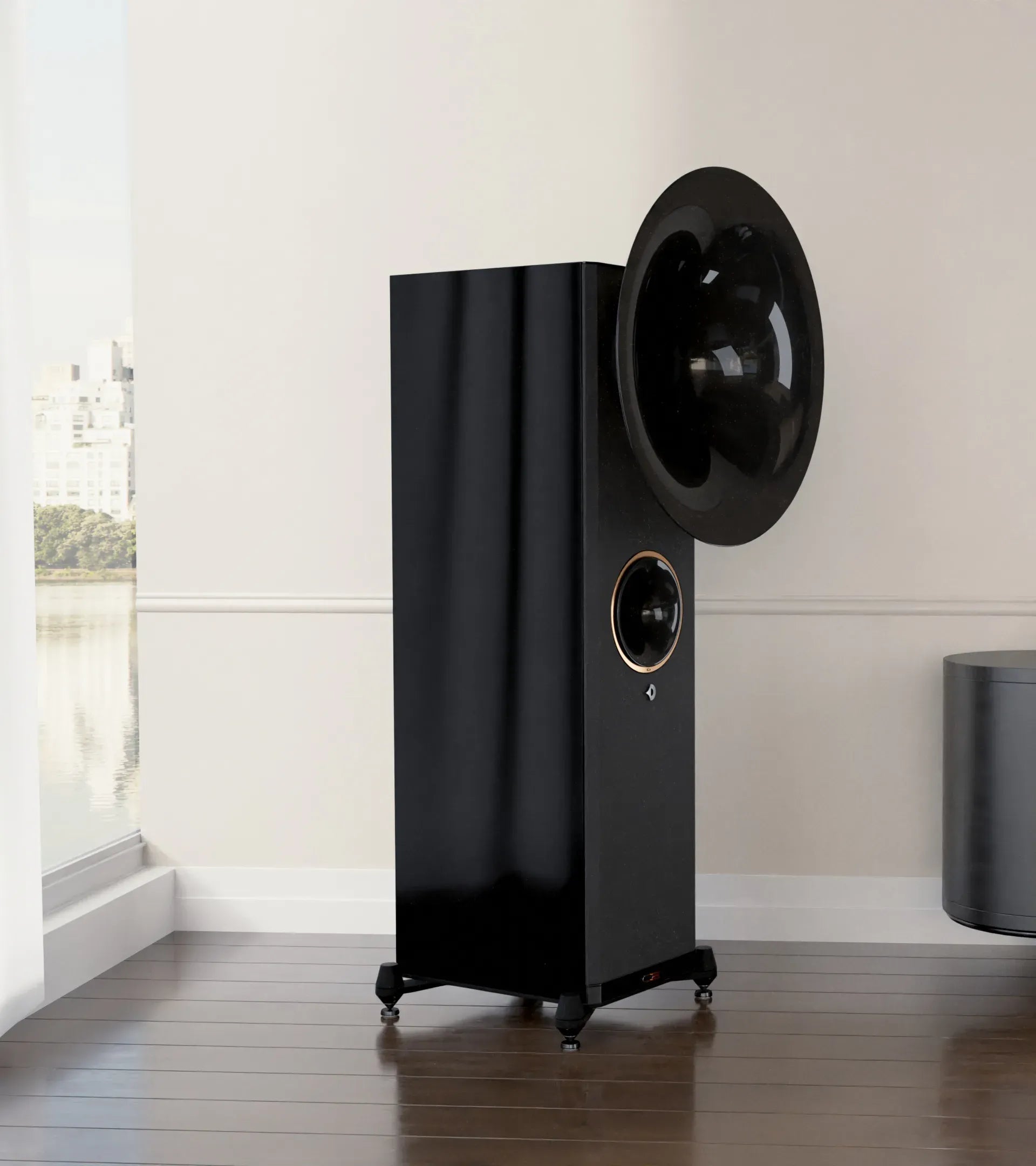

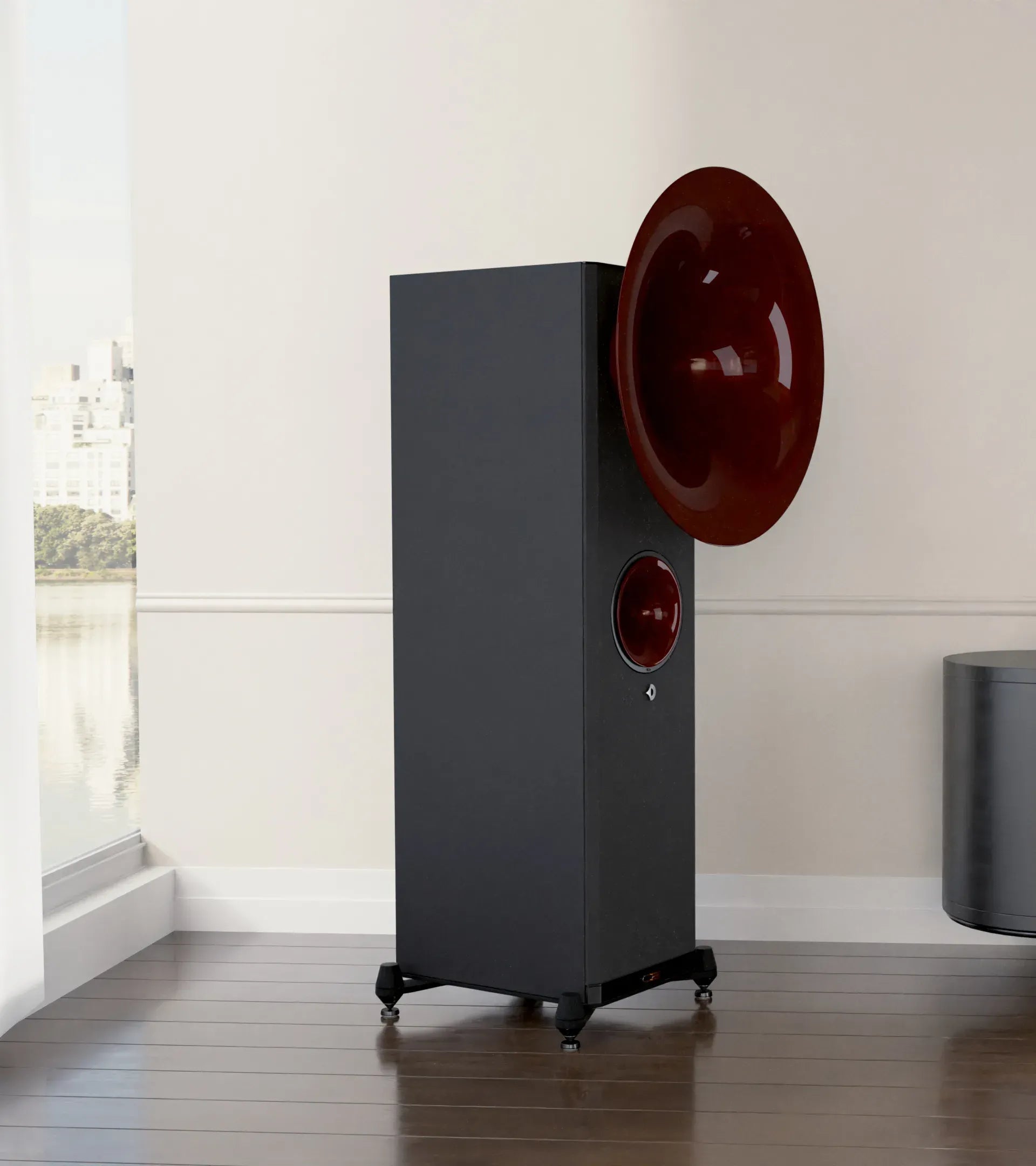

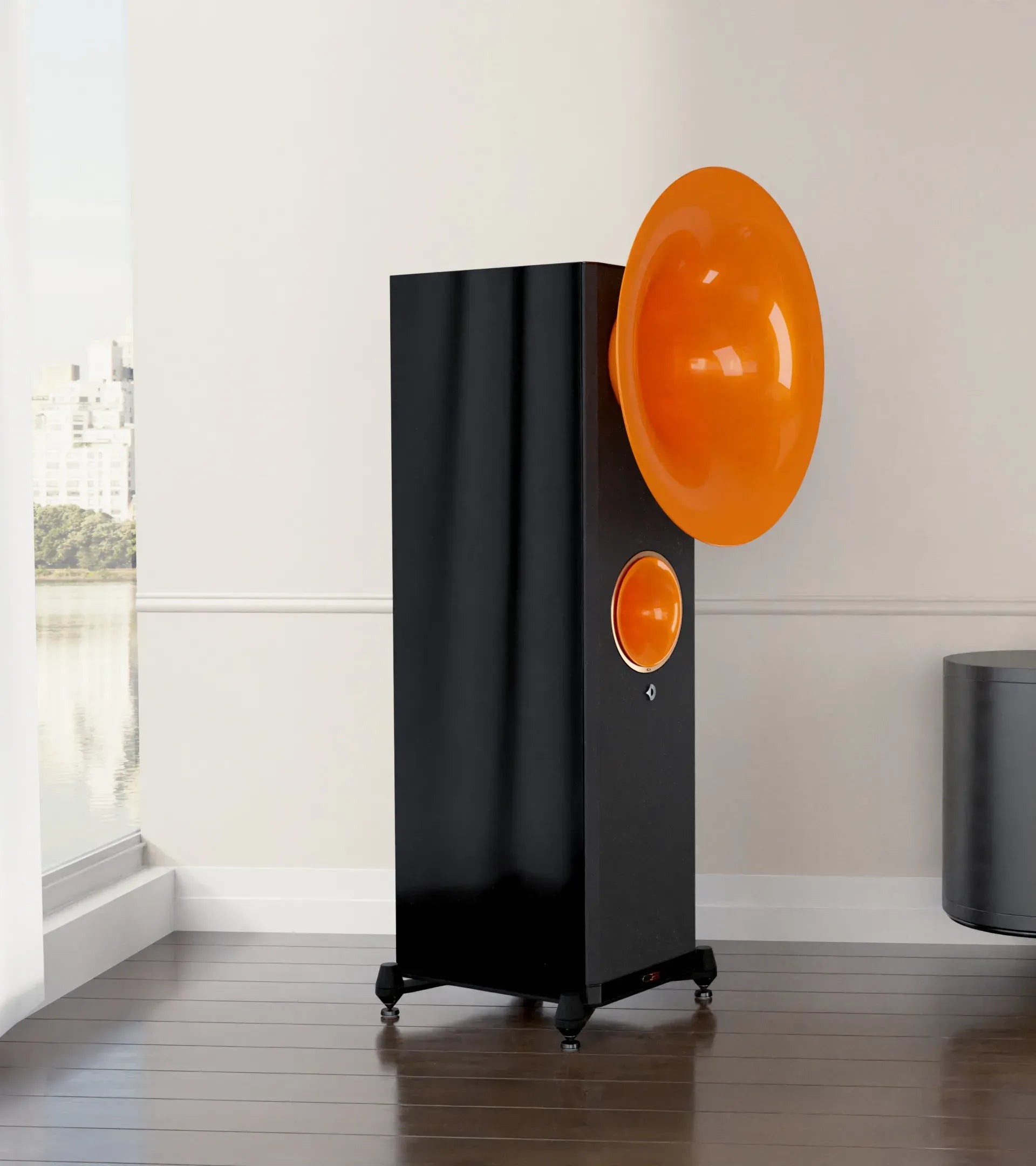

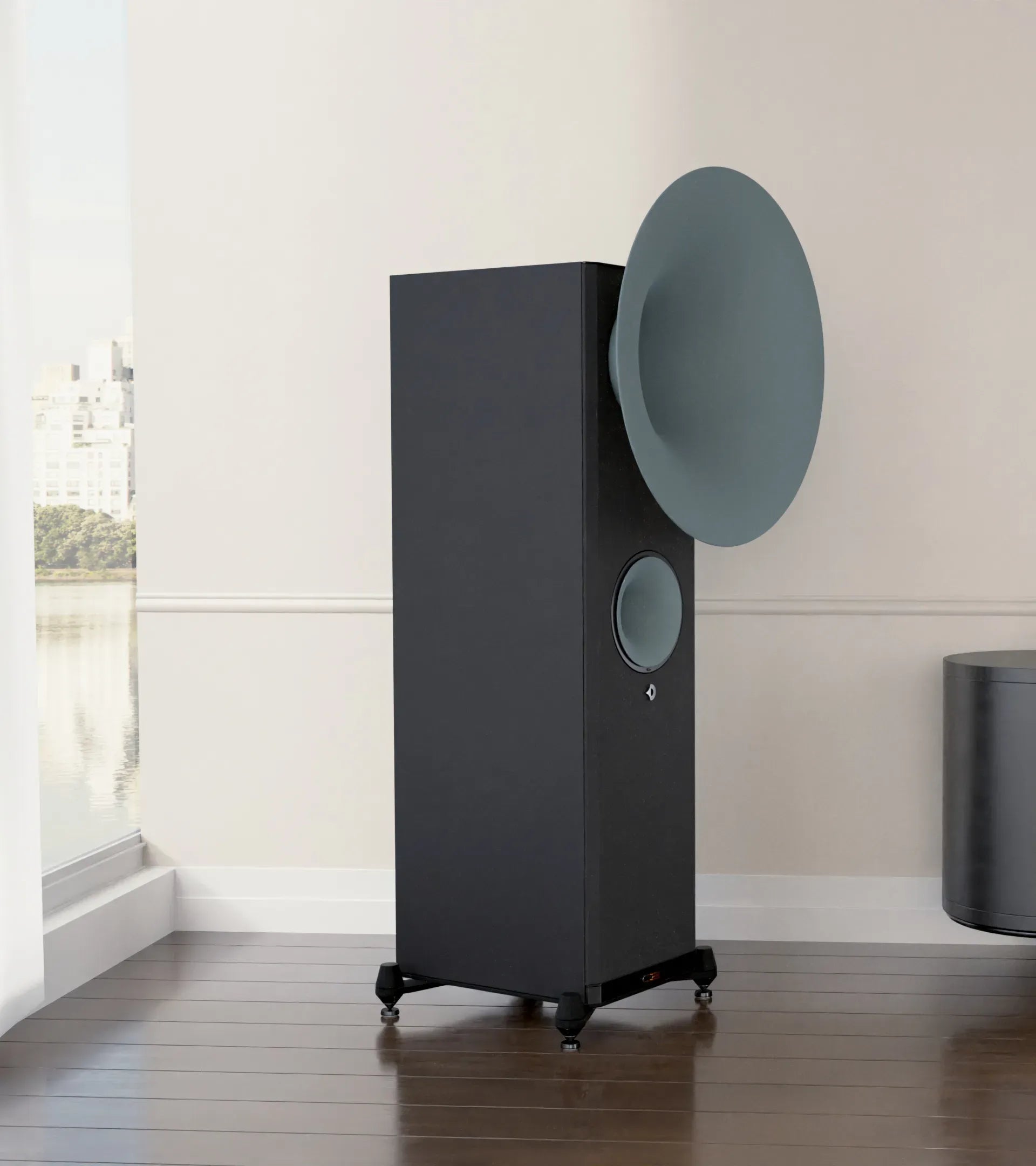

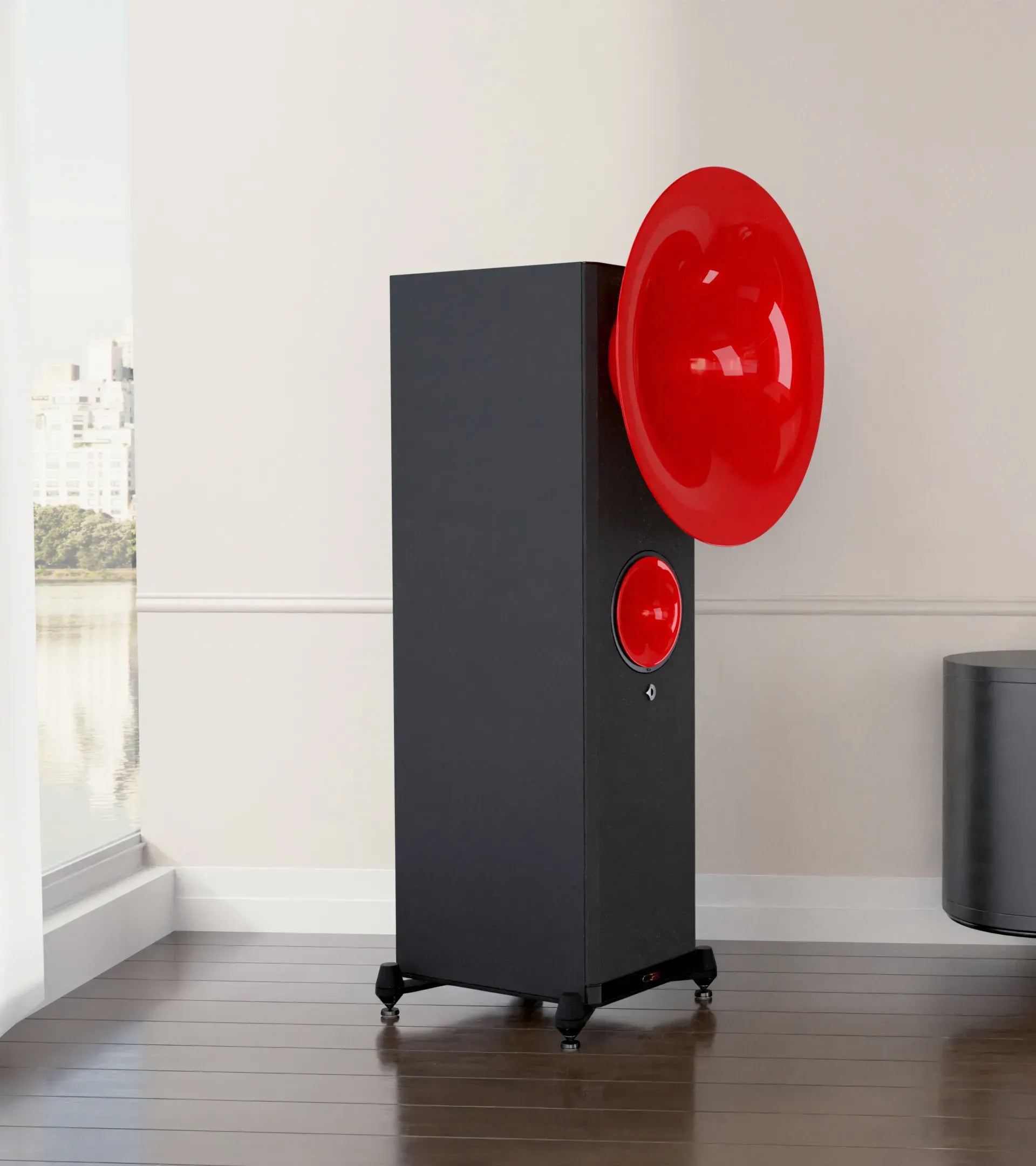

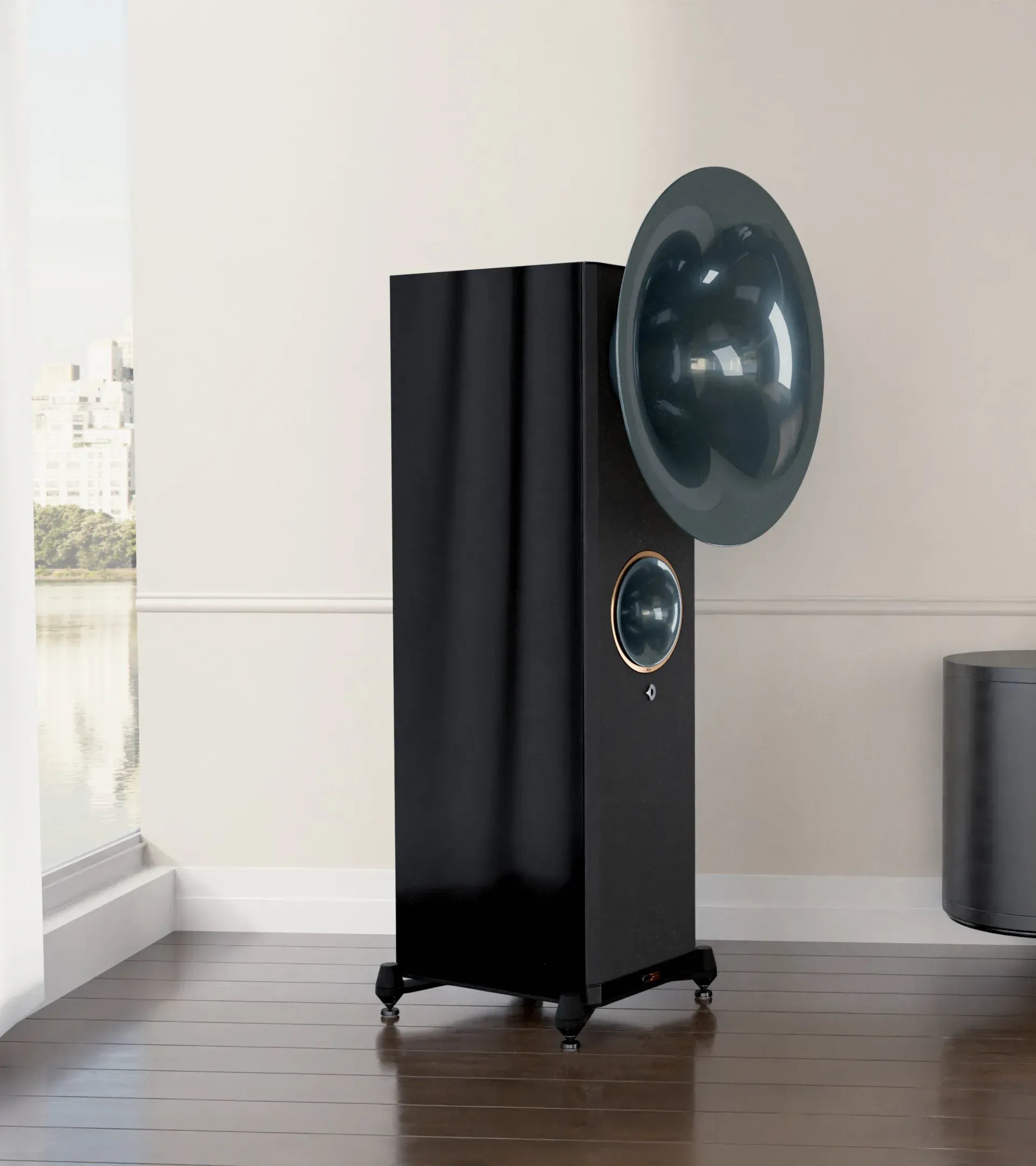

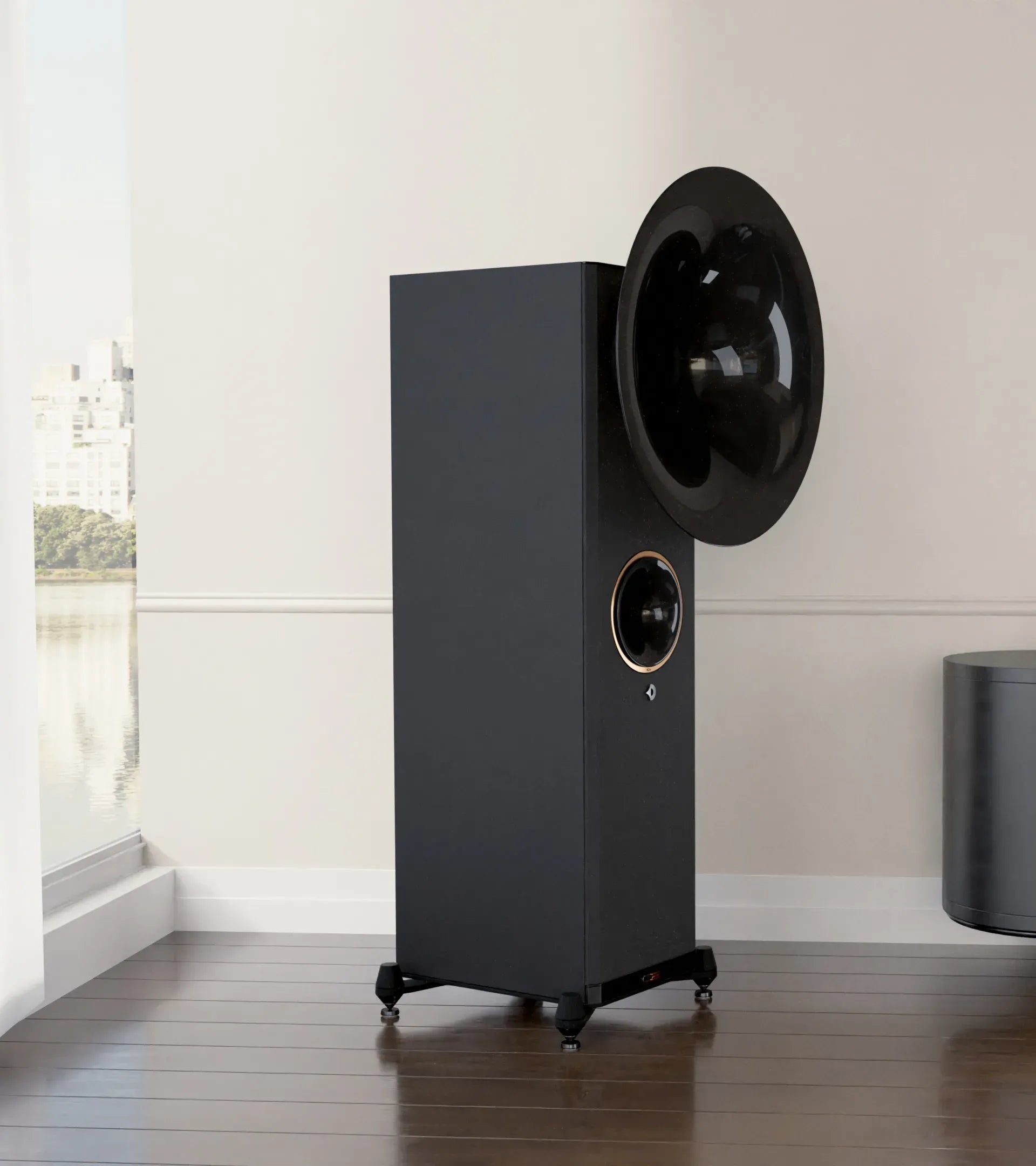

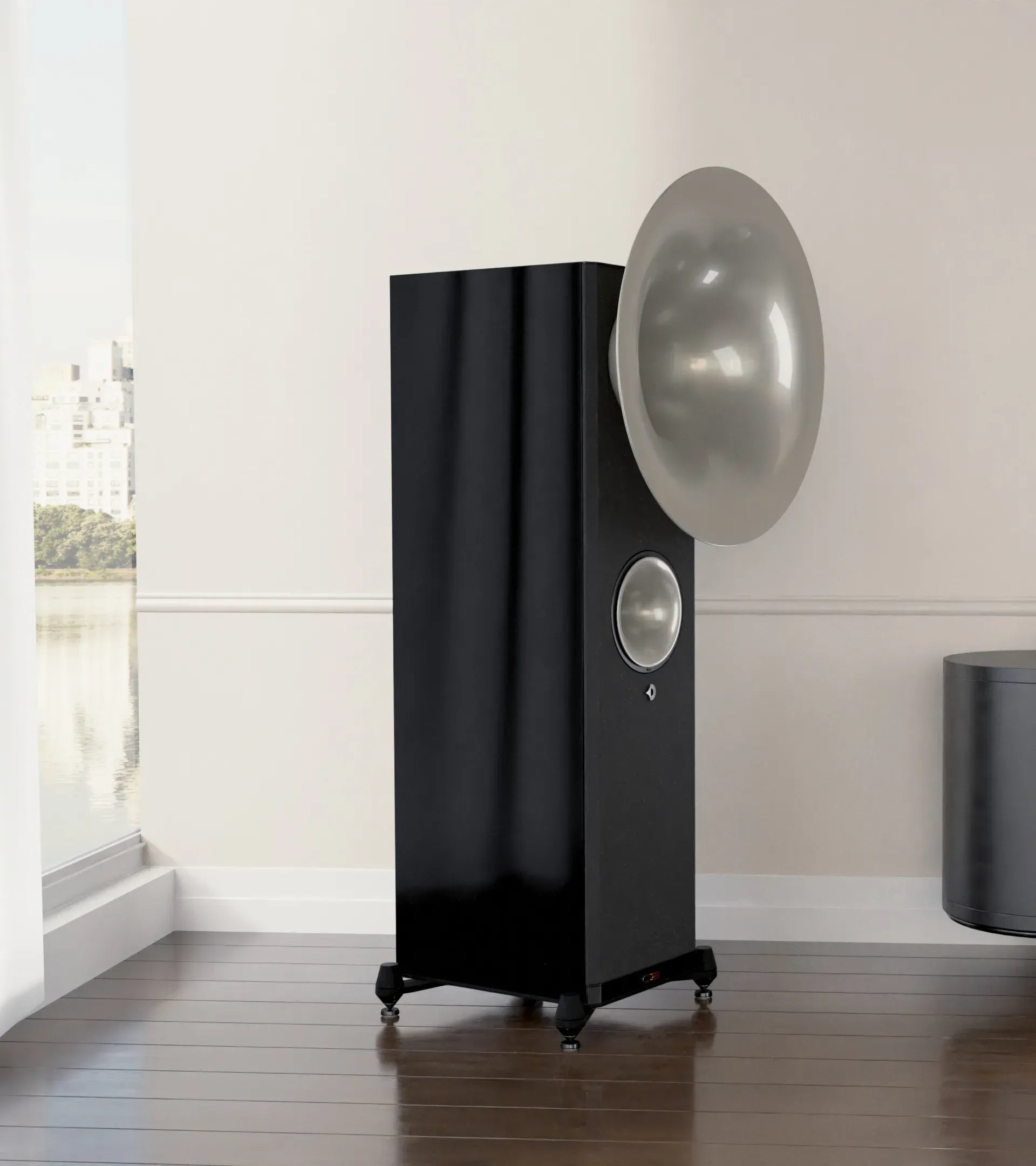

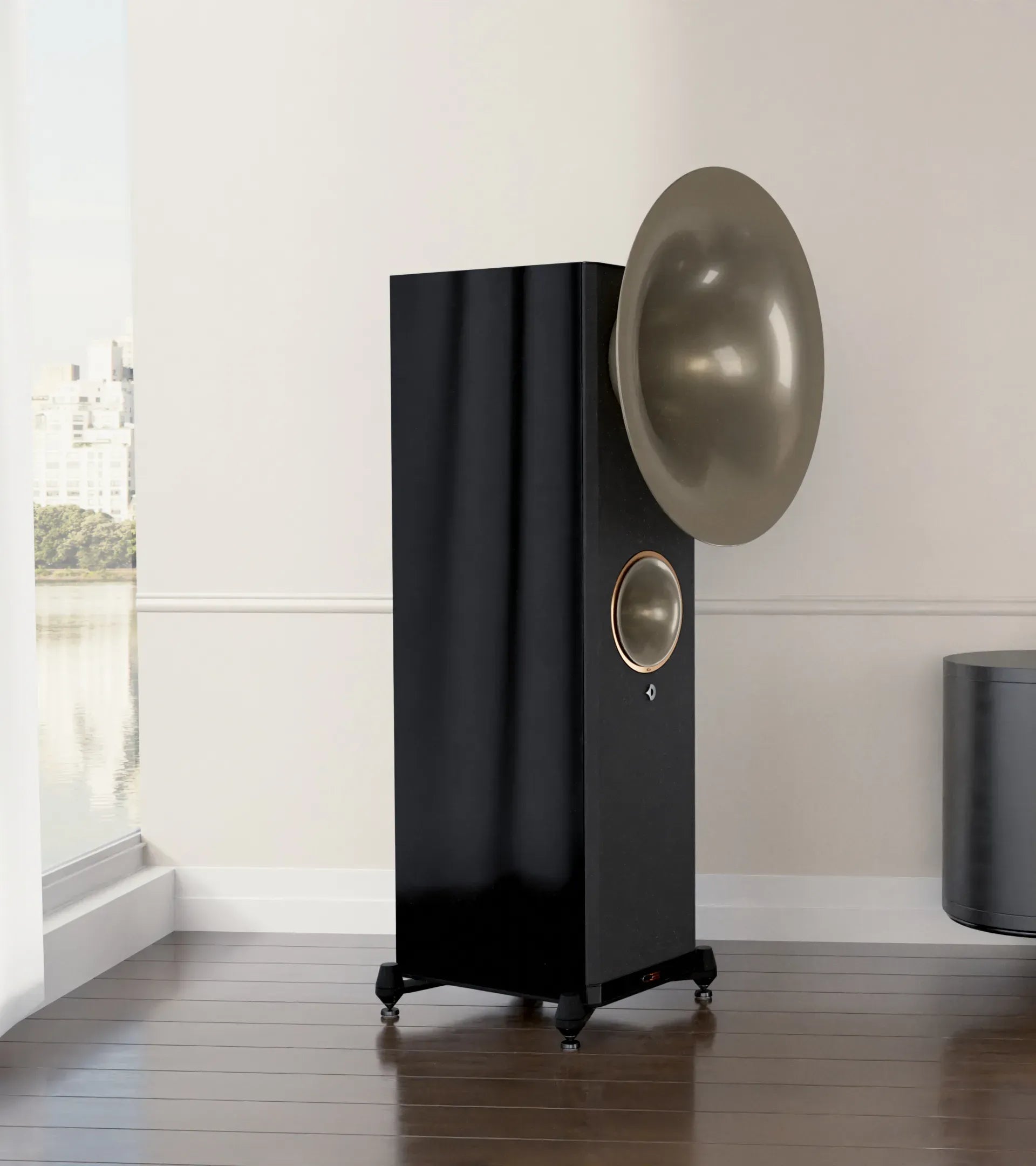

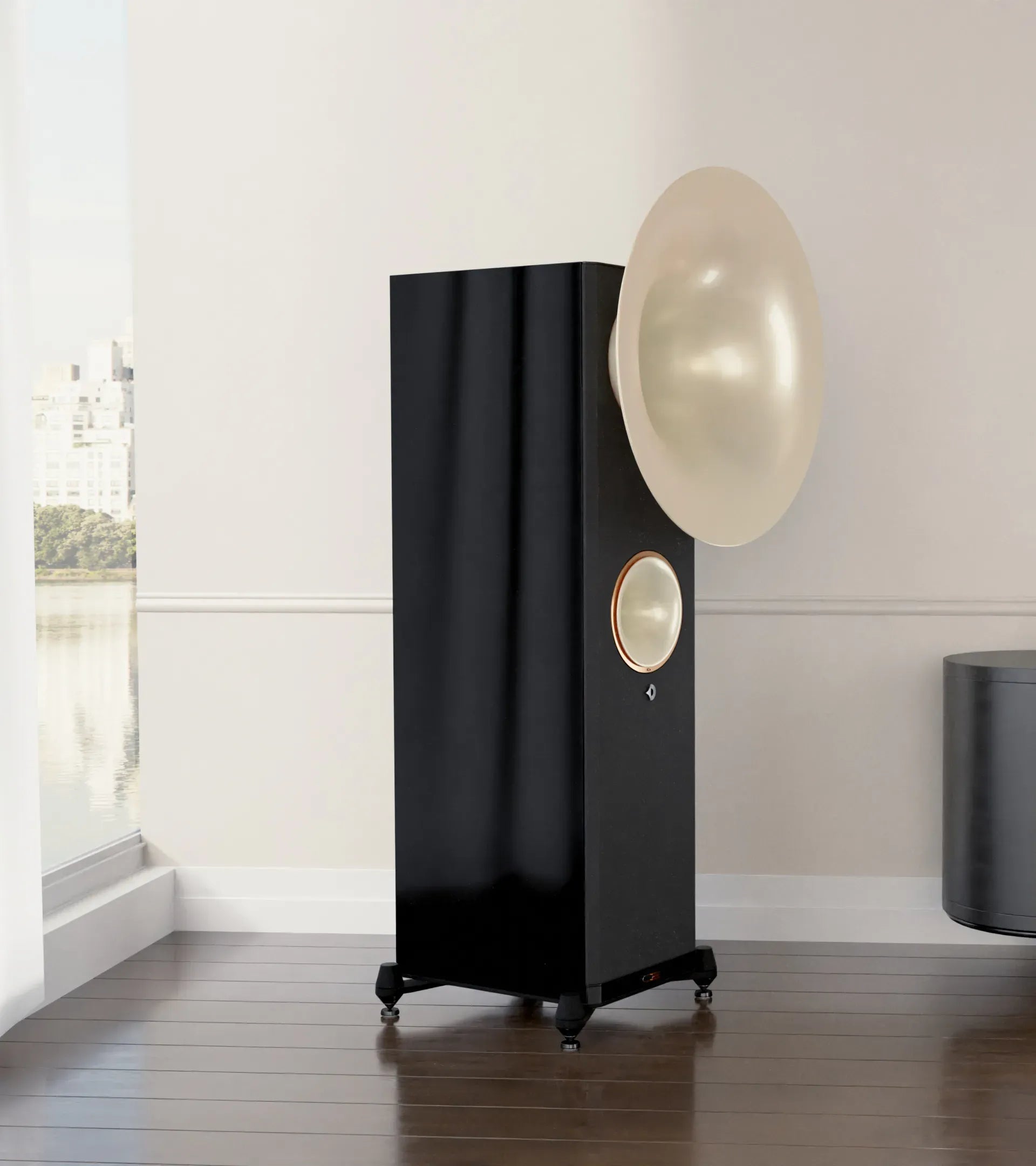

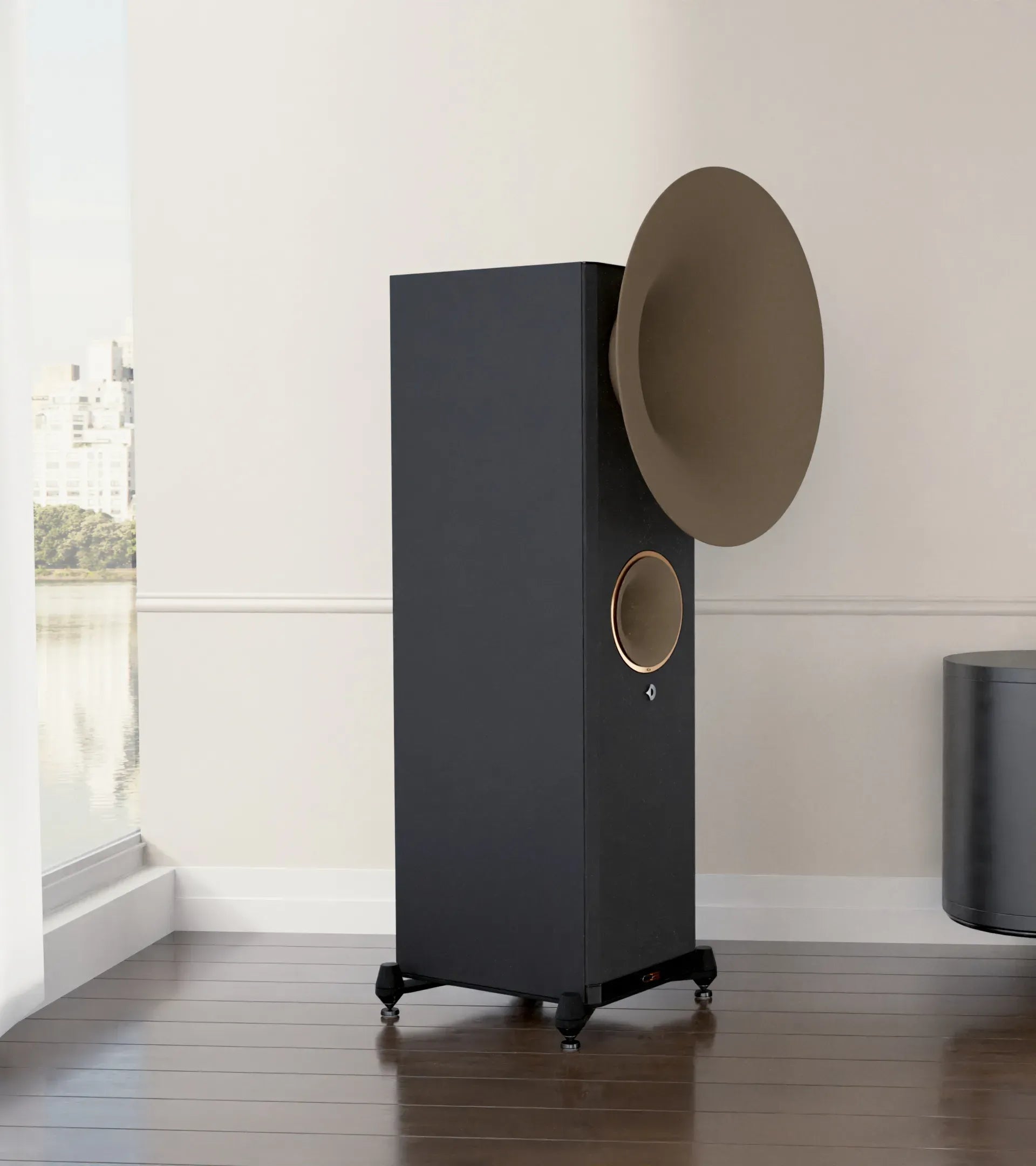

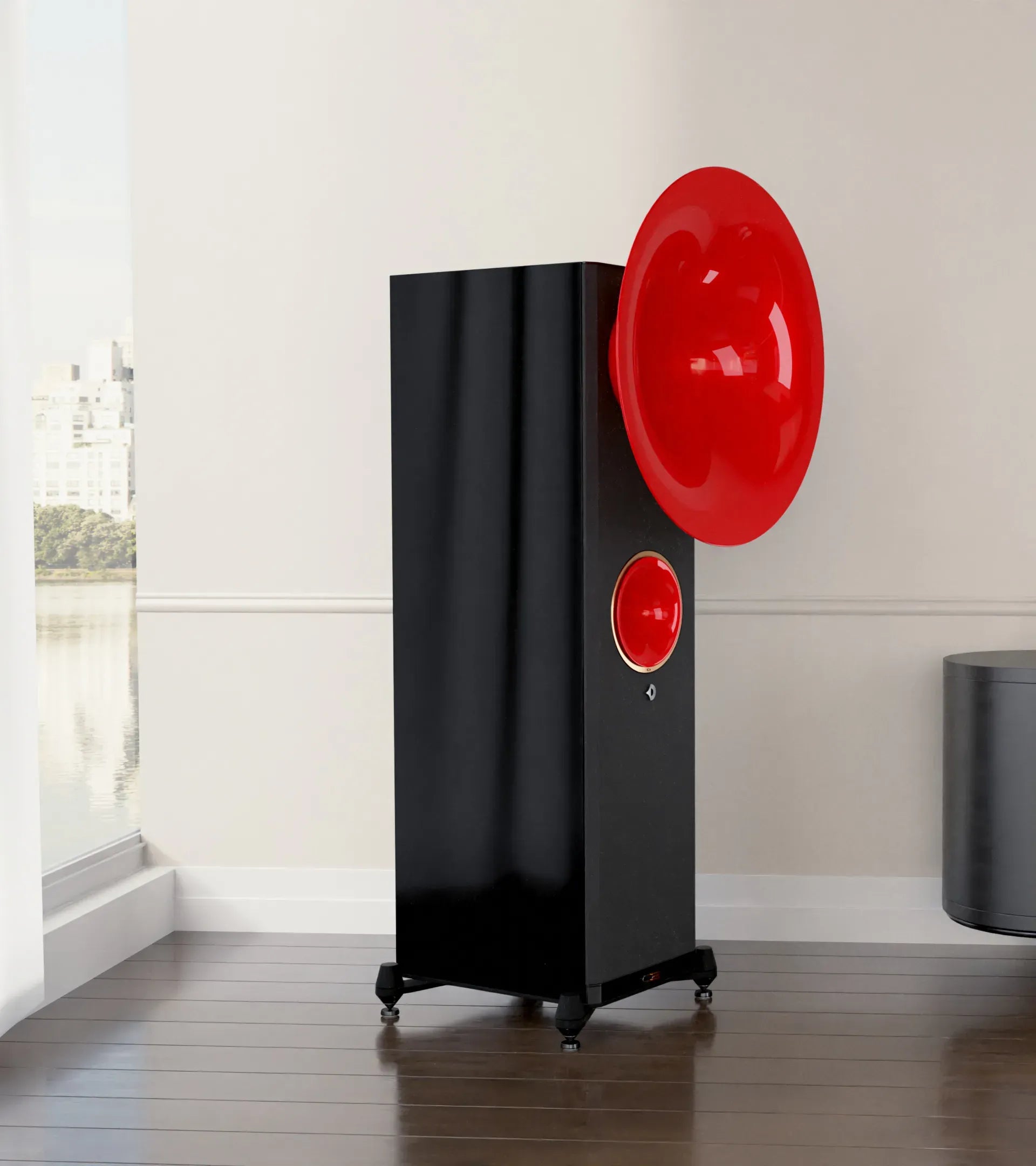

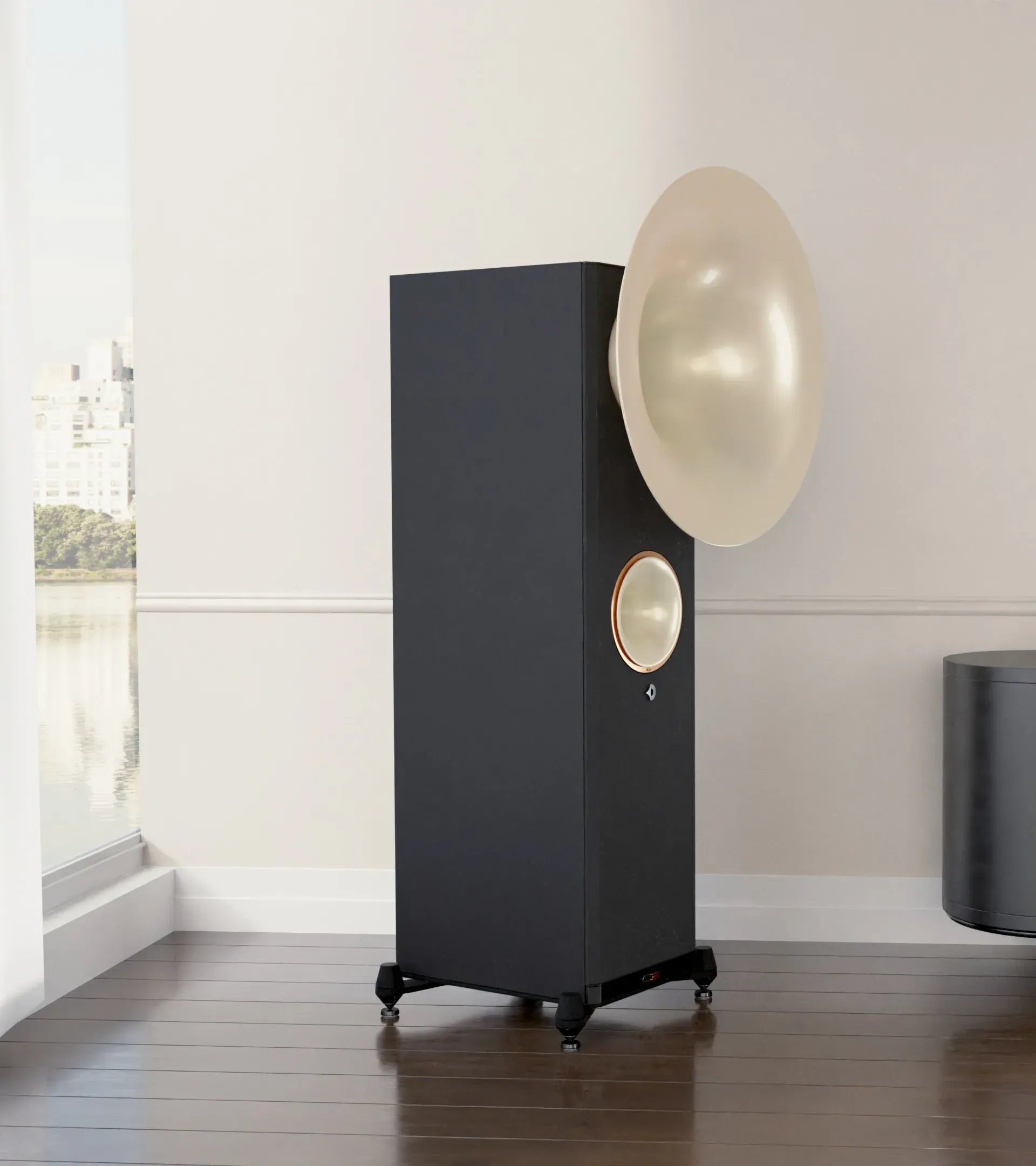

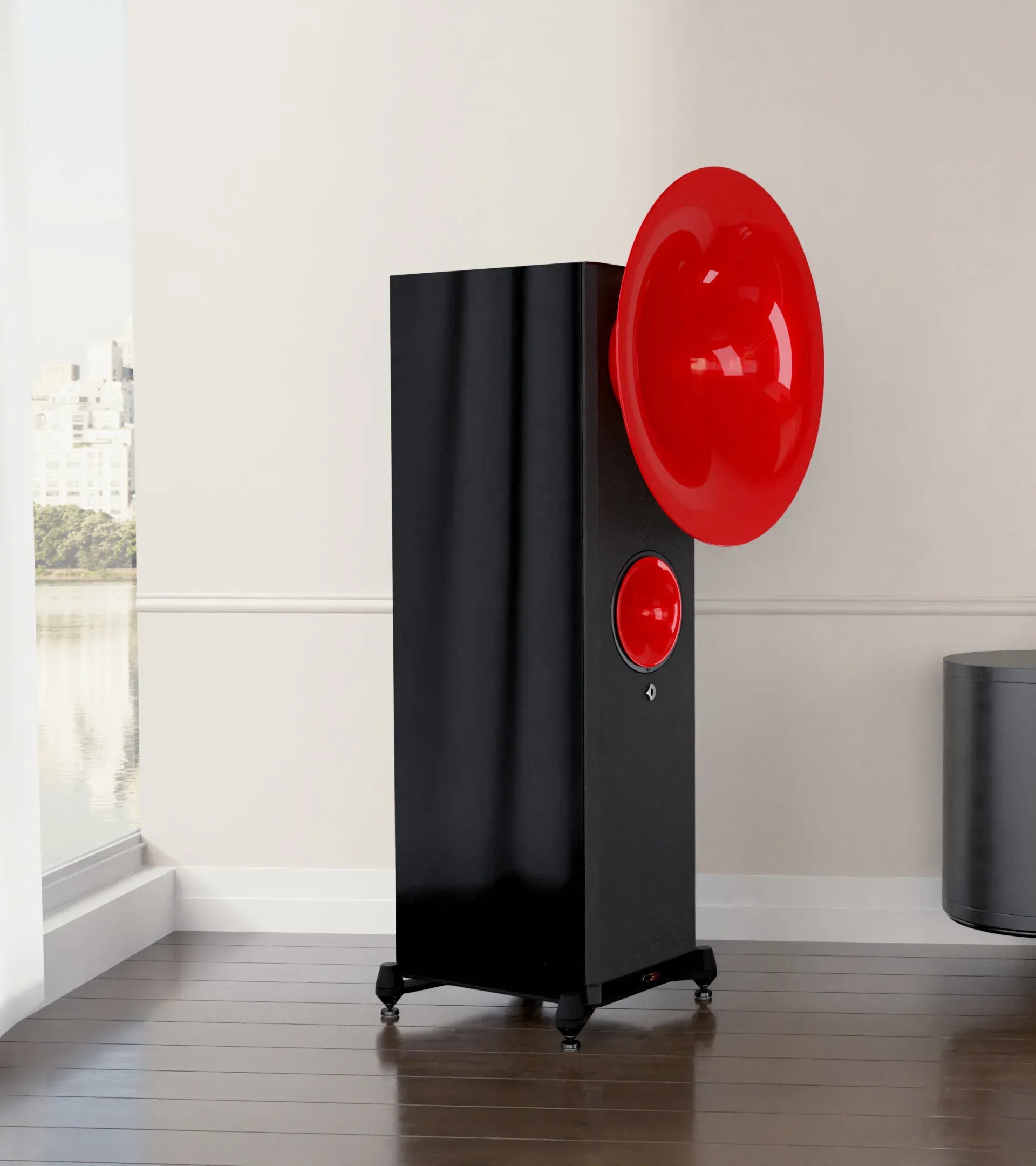

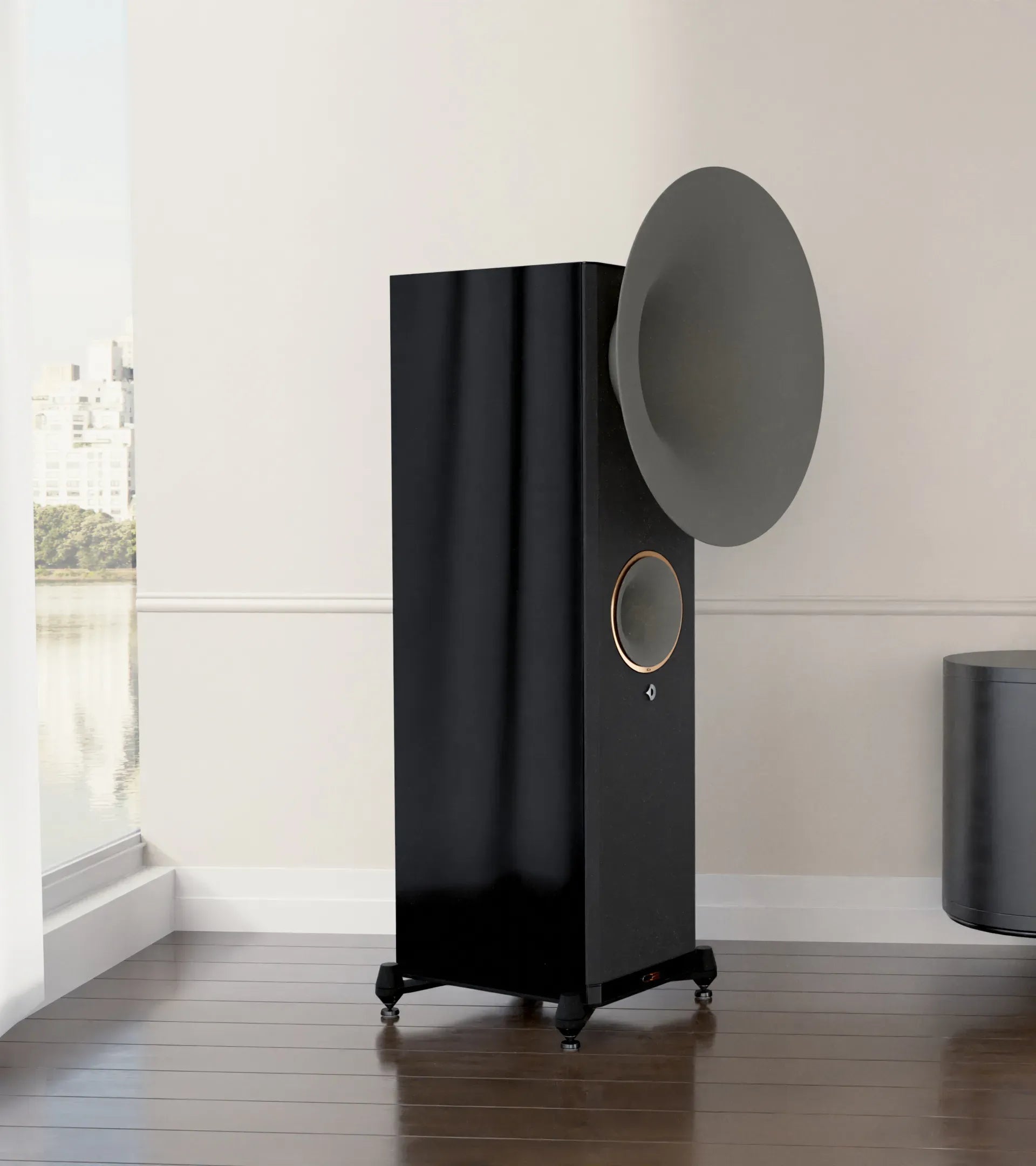

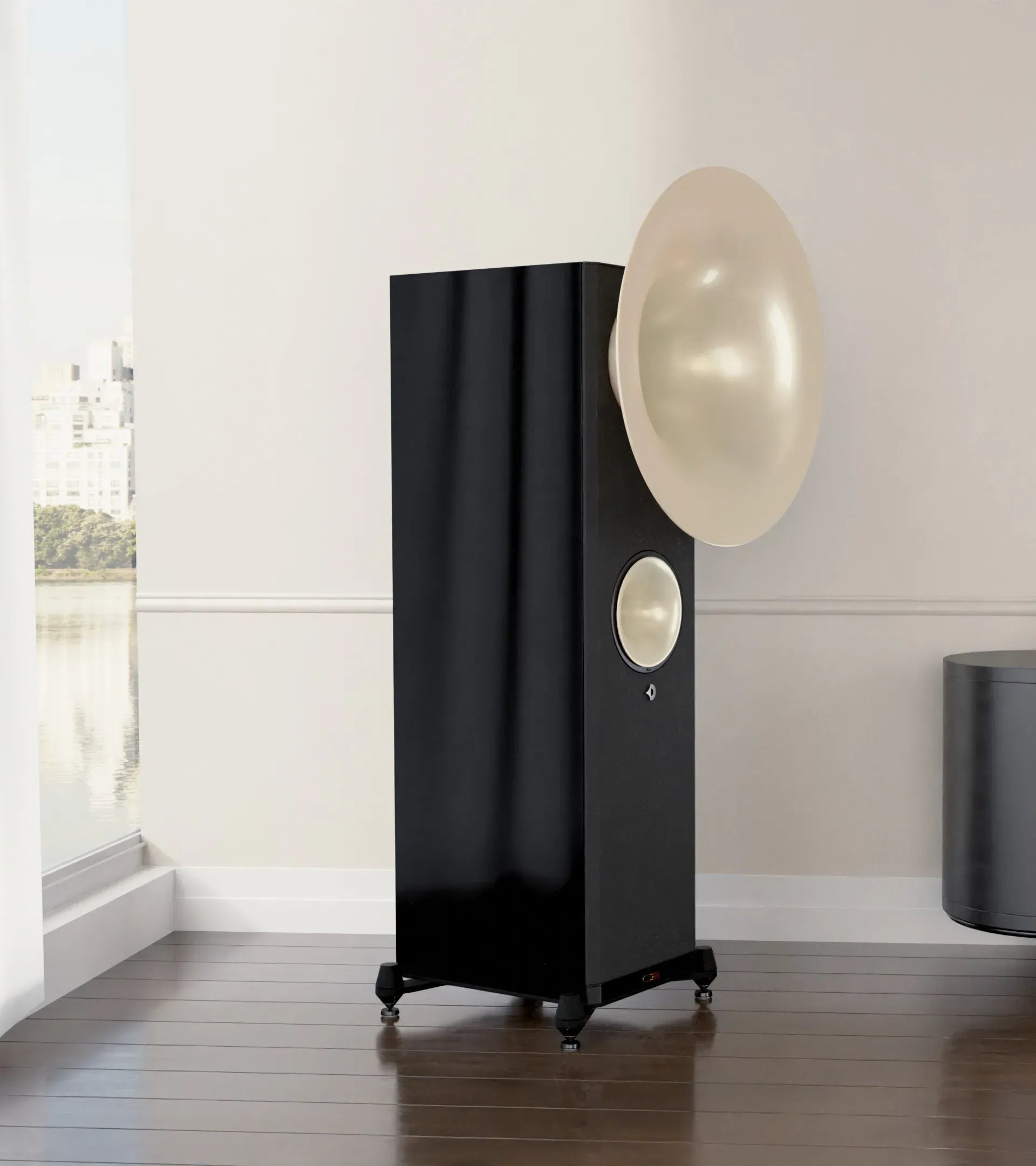

Avantgarde Acoustic Duo SD

Avantgarde Acoustic Duo SD

Regular price £36,900.00 GBP
Regular price Sale price £36,900.00 GBP
Sale Sold out
Tax included.
Cabinet Finish
Horn Colour
Horn Mount Ring

The Duo SD takes the Uno SD recipe (detailed elsewhere) and scales it up, both physically and also technologically.

In comparison the Duo features a larger mid range horn which means it can work down to even lower frequencies and therefore reduce the crossover point to the bass system.

The driver is larger too, up from 5" to 7" and an Alnico magnet is used, which are rightly prized for their improved texture, speed, reduced grain and more natural tonality than than ferrite magnets.

A larger tweeter horn has also been fitted and a higher crossover point is used.

The bass driver is a larger 12" cone and is housed in a enclosure with a much greater internal volume.

All of these refinements are sure to take the already exceptional performance of the Uno onto an entirely new level of realism.

Technical Specifications:

Frequency Range Satellite: 170-28,000 Hz
Frequency Range Subwoofer: 18-350 Hz
Power Handling: 100 Watt
Sensitivity (1 Watt/1 m): >107 dB
Crossover Frequencies: 170/3,500 Hz
Nominal Impedance: 18 Ohm
Recommended Amplifier Power: >10 Watt
Recommended Room Size: >20 sqm
Coplanar driver alignment: Yes
OmegaDrive: Yes
AirGate: Yes
NatureCap Incl. PolarizationPlus Circuitry: Yes

Horn Type: Spherical Horn
Horn Aperture Angle: 180 Degrees
Horn Diameter Midrange: 670 mm
Horn Diameter Tweeter: 200 mm

Diameter midrange: 170 mm/7 inches
Diameter Tweeter: 25 mm/1 inch

Driver size: 300 mm/12 inches
Number of Drivers: 1x XB12
Voice Coil Diameter: 153 mm
Flux Density: 1.15 Tesla/480 mm
Pole Plate: Low Carbon Steel
Membrane Material: Paper/Carbon Fiber Compound

Output Power (RMS): 1x 500 Watt
Digital Crossover: DSP
Equalizer: 8 BAND EQ
Digital Room Adjustment: Yes

Dimensions Width: 670 mm
Dimensions Depth: 652 mm
Dimensions height (+/- 10 mm): 1,552 mm
Weight: 94.0 kg
