Audio Technica AT81CP T4P Cartridge
Audio Technica AT81CP T4P Cartridge
Regular price
£25.99 GBP
Regular price
Sale price
£25.99 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability

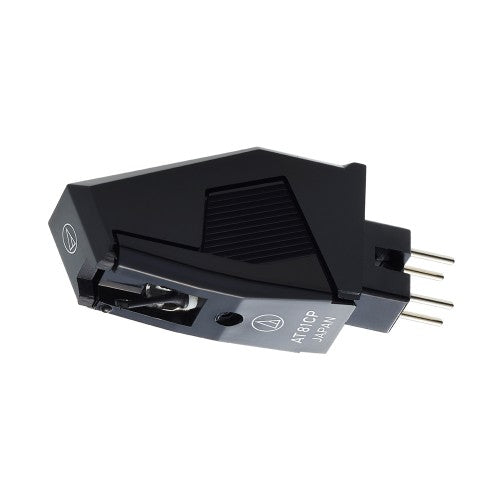

This is the Audio Technica entry level T4P mounting cartridge. It uses a Conical bonded diamond and will only fit turntables that display the T4P logo (P Mount). It will plug into any MM phono input.
Specifications
Type: T4P MM cartridge
Tracking force 1-1.5gm (1.25gm standard)
Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB at 1kHz
Vertical Tracking Angle 20°
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 ohms
Coil Inductance 400mH (1 kHz)
Output Voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)
Output Channel Balance 2.5 dB
Stylus Shape Conical
Cantilever Carbon Fibre Reinforced ABS
Mounting P-mount
Dimensions H10.0×W15.3×D35.1 mm
Recommended Load Capacitance 100-200 pF
Replacement Stylus ATN81CP
Stylus Size 0.6 mil
Type Dual Magnet
Weight 6.0g
Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB at 1kHz
Vertical Tracking Angle 20°
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 ohms
Coil Inductance 400mH (1 kHz)
Output Voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)
Output Channel Balance 2.5 dB
Stylus Shape Conical
Cantilever Carbon Fibre Reinforced ABS
Mounting P-mount
Dimensions H10.0×W15.3×D35.1 mm
Recommended Load Capacitance 100-200 pF
Replacement Stylus ATN81CP
Stylus Size 0.6 mil
Type Dual Magnet
Weight 6.0g
