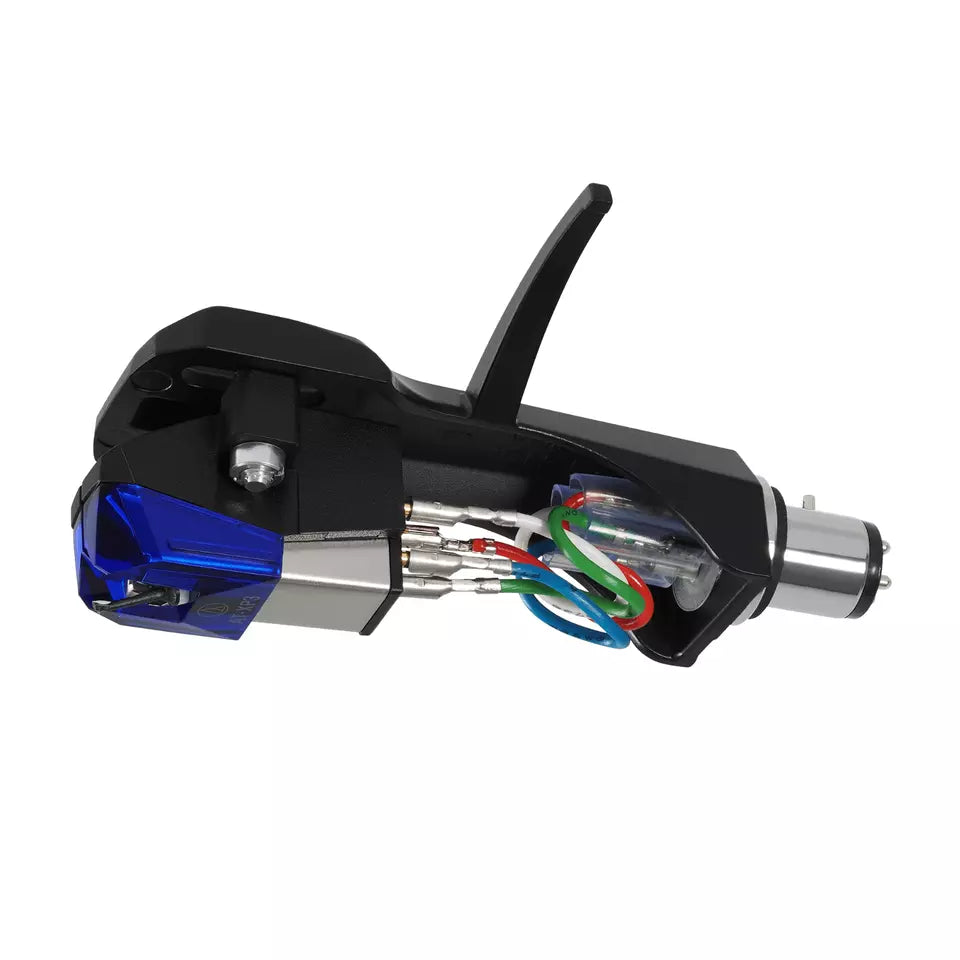

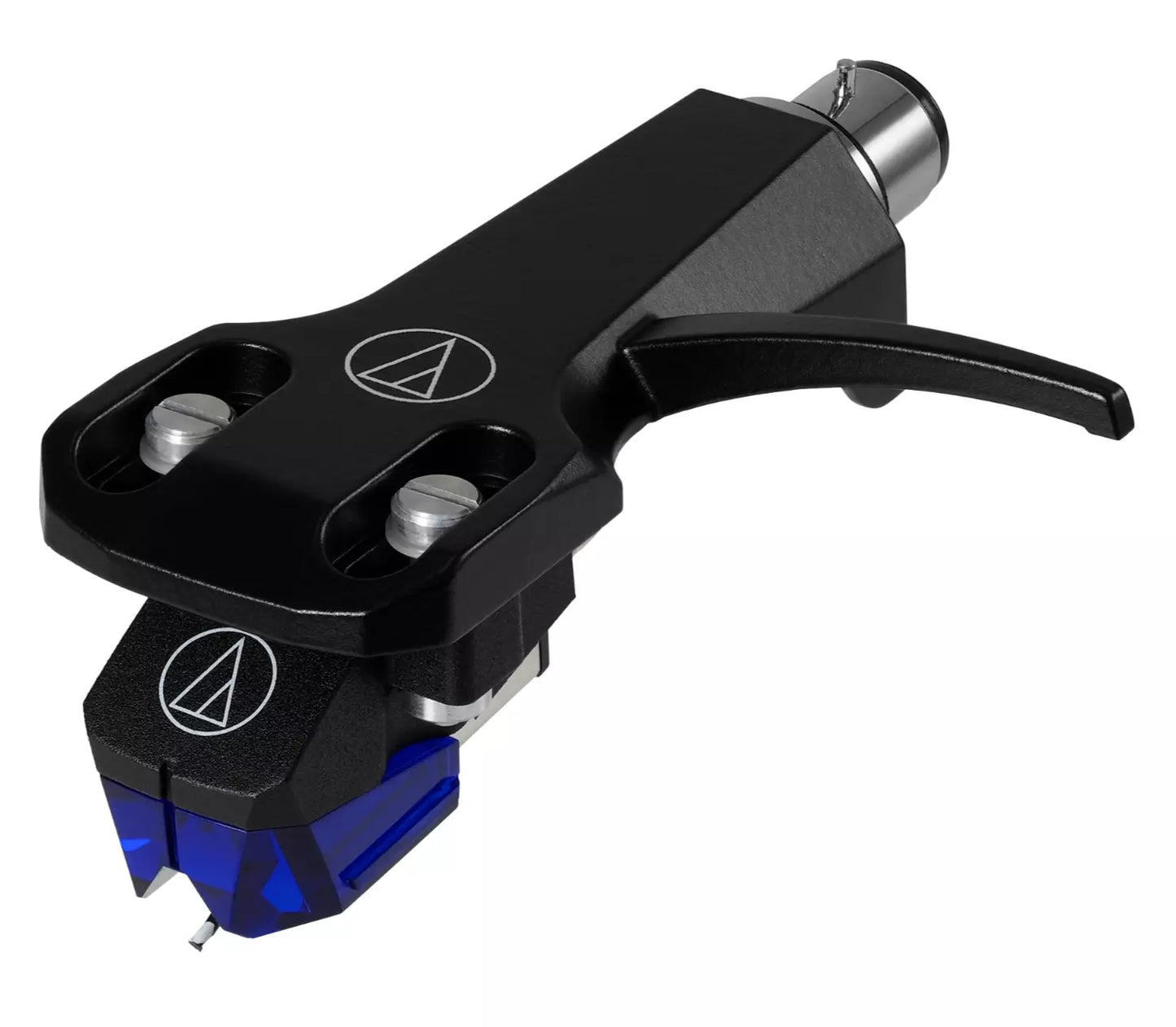

Audio Technica AT-XP3/H DJ MM Cartridge & Headshell Package

Audio Technica AT-XP3/H DJ MM Cartridge & Headshell Package

Regular price £74.99 GBP
Regular price Sale price £74.99 GBP
Sale Sold out
Tax included.

The AT-XP3/H is a combination of the AT-XP3 DJ cartridge pre fitted by Audio Technica onto their AT-HS6BK Headshell, which makes installation onto your turntable incredibly simple - just adjust the tracking force and anti skate and you're ready to play!

If you're in any doubt as to whether this headshell will fit your turntable please message us before purchasing (it uses the industry standard 'SME' fitting). Designed to offer audiophile sound quality with the robustness suitable for DJ use, the XP range uses strong cantilevers (a carbon fibre reinforced ABS, with nylon wire suspension) and a high 5.5mV output making it ideal for use live usage where electrical noise can often be an issue. The XP3 is the entry level model in this range, it can be upgraded with the styli from the other models in the XP series.

Technical Specifications:

Model: AT-XP3/H Cartridge & Headshell
Type: VM Stereo Dual Magnet
Mounting: 1/2” centres
Frequency Response: 20 - 18,000 Hz
Channel Separation: 20 dB (1 kHz)
Output Channel Balance: 2.0 dB (1 kHz)
Output Voltage: 5.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 23° Vertical
Tracking Force Range: 2.0 - 4.0g (standard 3.0 g)
Stylus Shape Conical Size: 0.6 mil
Stylus Construction: Bonded Round Shank
Cantilever: Carbon Fibre reinforced ABS
Coil Impedance: 6.7 kΩ (1 kHz)
Coil Inductance: 550 mH (1 kHz)
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 6 x 10 – 6 cm / dyne (100 Hz)
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 15.6g
Dimensions (HxWxD): 17.2mm x 18.9mm x 28.3mm
Replacement Stylus: AT-NXP3
