Audio Technica AT-VM95SP/H 78rpm Premounted Cartridge & AT-HS6 Headshell
Audio Technica AT-VM95SP/H 78rpm Premounted Cartridge & AT-HS6 Headshell
Regular price
£99.99 GBP
Regular price
Sale price
£99.99 GBP
Unit price
/
per

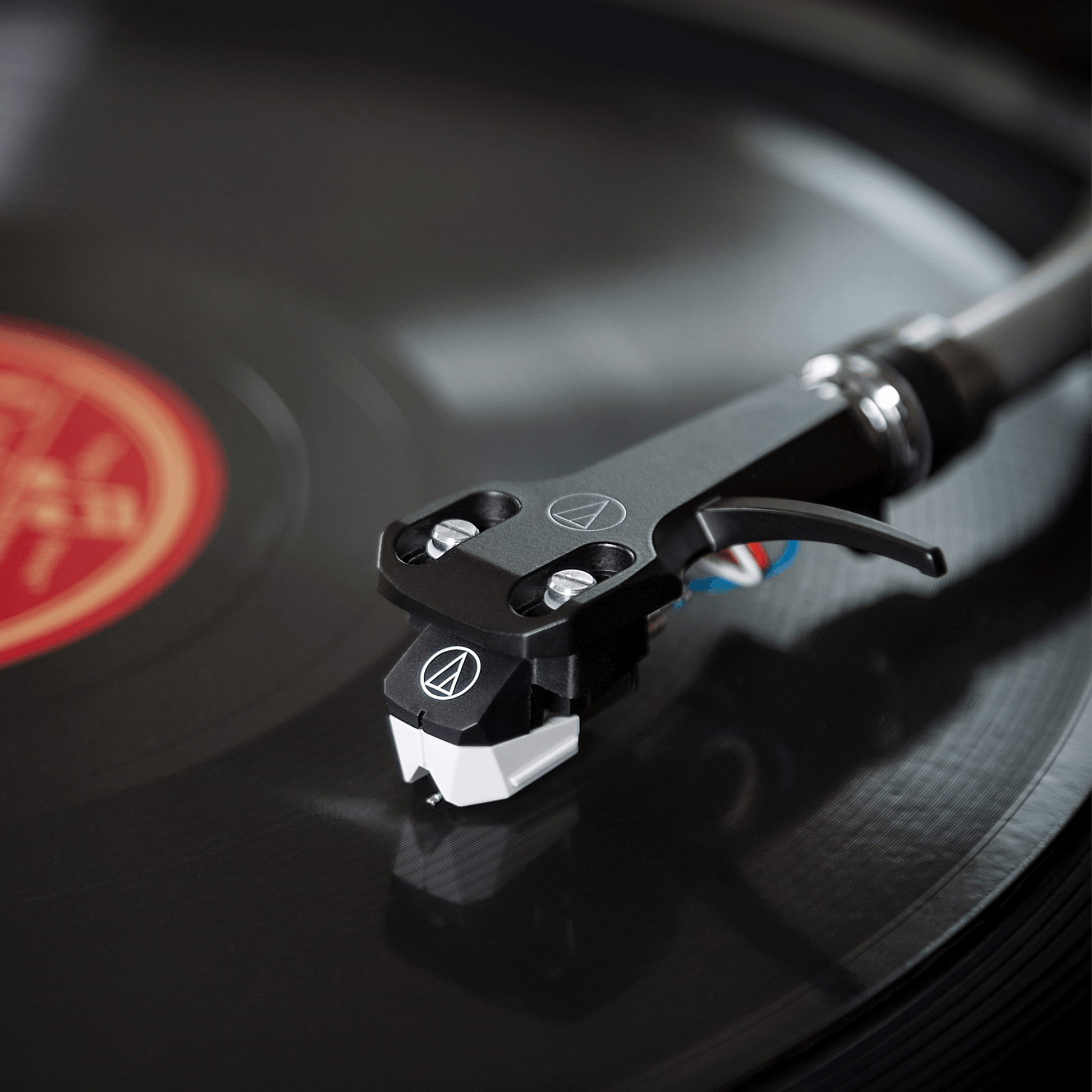

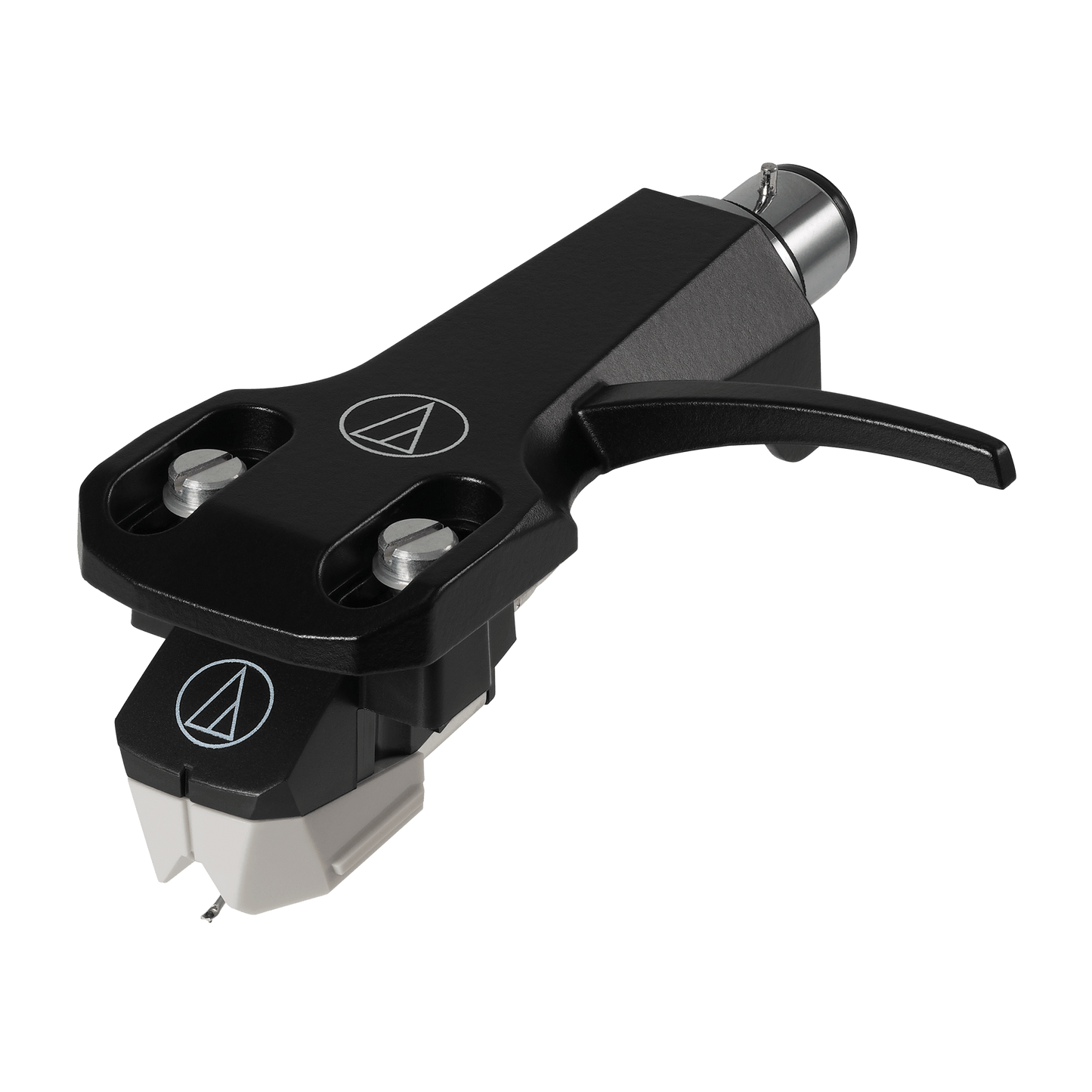

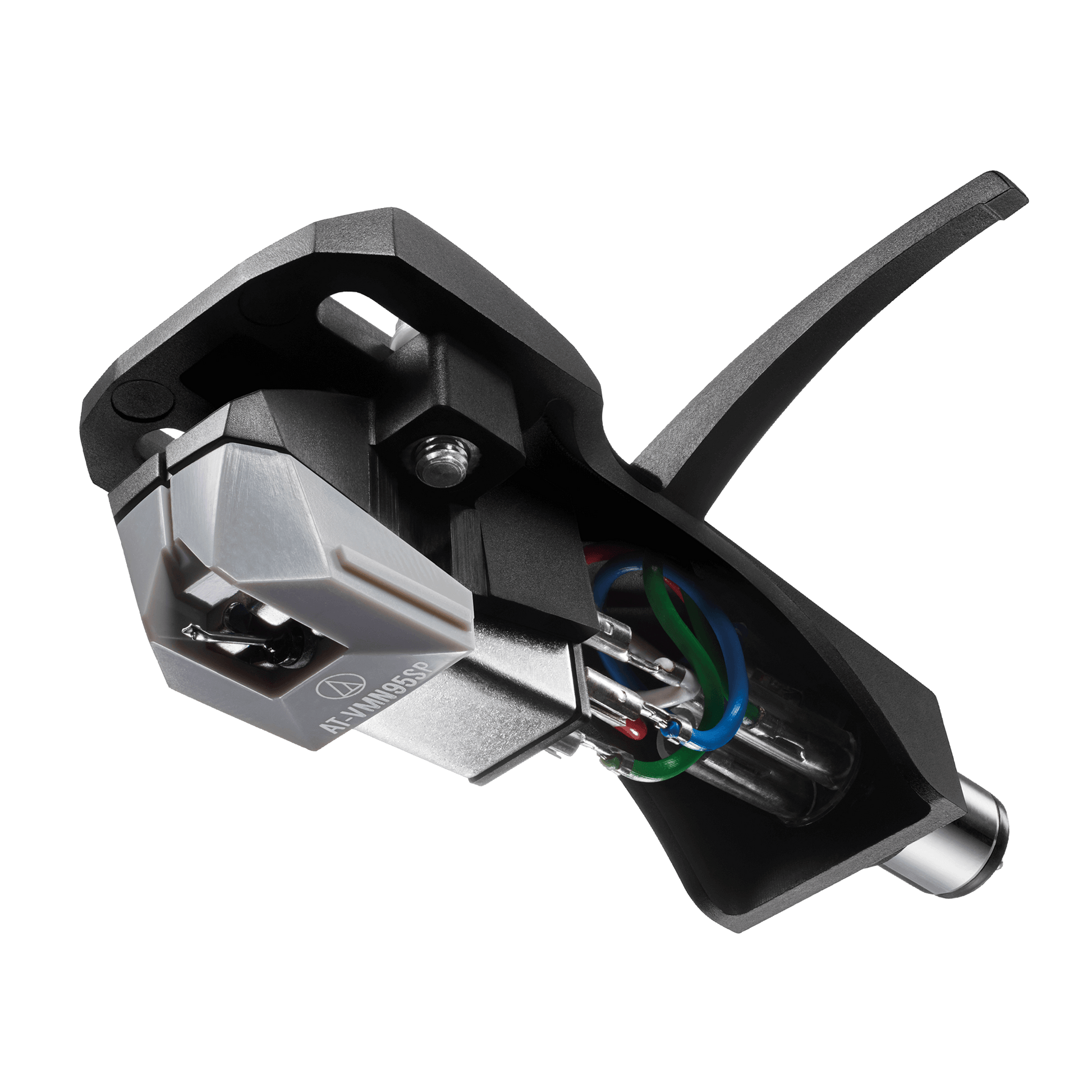

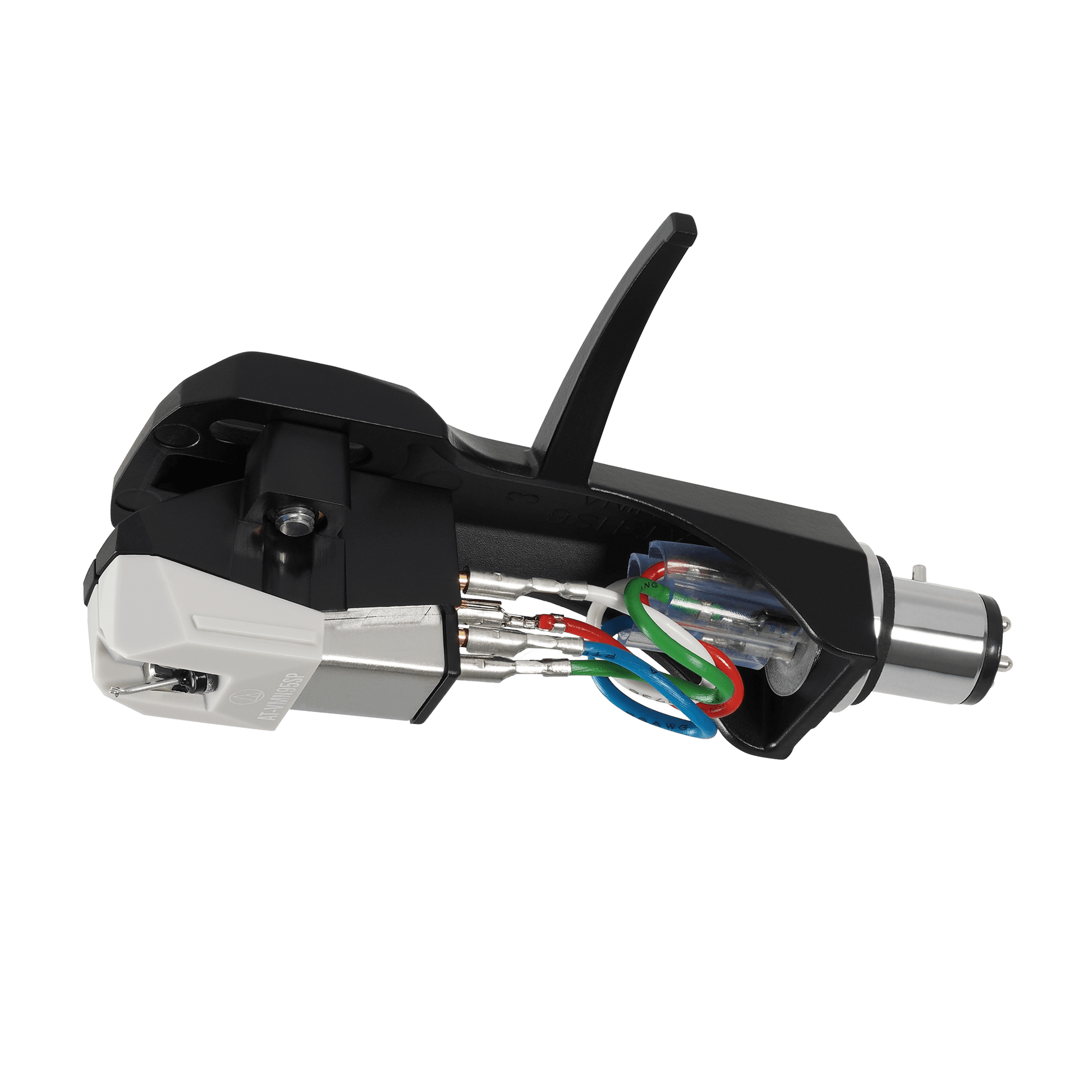

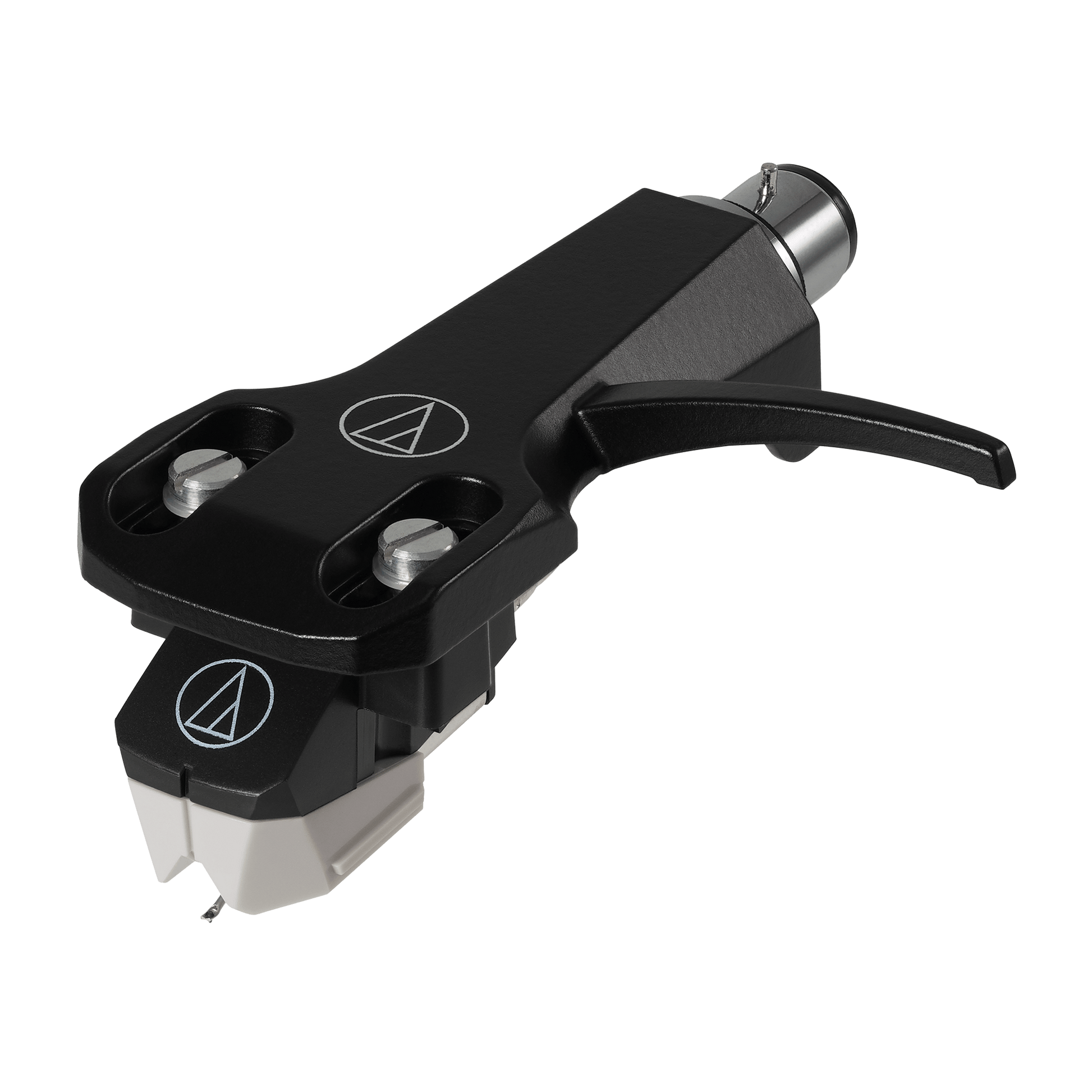

This is a package of the AT-VM95SP 78rpm cartridge pre mounted in the factory in Japan to the Audio Technica AT-HS6BK headshell. This makes for an almost plug and play solution for users with S or J shaped tonearms that have the industry standard 'SME' removeable headshell.
This SP (which stands for Short Play) cartridge features a stylus profile designed for playback of 78rpm records only. It uses the same body as all the other models in the new AT-VM95 series, so you can easily buy and then retrofit one of the other styli in their range (please see our other listings) for playback of conventional LPs (please note you will have to change the tracking force when swapping between a LP and 78 styli).
The cartridge body produces an output out of both channels (i.e. there's a mono signal coming out of the left and right outputs) so it is recommended that for lowest surface noise a Mono button is used on your amplifier (if available), but it will work into a normal stereo input.
For the serious archiver with a specialised phono preamplifier/equaliser the two channel output allows different combinations to be tried to find the lowest surface noise (i.e. Mono L+R, Mono L, Mono R, LR Variable Mix) which allows professional archivers to minimise noise and distortion by sampling the least damage side of the grooves from an old record.
A 3mil stylus tip is used to minimise surface noise, this is a bonded tip on an aluminium cantilever.
The cartridge body produces an output out of both channels (i.e. there's a mono signal coming out of the left and right outputs) so it is recommended that for lowest surface noise a Mono button is used on your amplifier (if available), but it will work into a normal stereo input.
For the serious archiver with a specialised phono preamplifier/equaliser the two channel output allows different combinations to be tried to find the lowest surface noise (i.e. Mono L+R, Mono L, Mono R, LR Variable Mix) which allows professional archivers to minimise noise and distortion by sampling the least damage side of the grooves from an old record.
A 3mil stylus tip is used to minimise surface noise, this is a bonded tip on an aluminium cantilever.
Technical Specifications:
Frequency Response: 20 - 20,000 Hz
Vertical Tracking Angle: 23°
Vertical Tracking Force: 4.5 to 5.5g (standard 5.0g)
Stylus Construction: Bonded Round Shank
Recommended Load Impedance: 47,000 Ω
Coil Impedance: 3.3 kΩ (1 kHz)
DC Resistance: 485 Ω
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 2.7 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance: 1.5 dB (1 kHz)
Stylus Shape: SP 3 mil Conical Bonded
Cantilever: Aluminium Pipe
Static Compliance: 12 x 10 – 6 cm / dyne
Dynamic Compliance: 2 x 10 – 6 cm / dyne (100 Hz)
Mounting: 1/2” centres
Cartridge Weight: 6.1g
Cartridge & Headshell combined weight 15.5g
Cartridge Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
Cartridge and Headshell dimensions: 21.2 x 21.4 x 62.4 (H x W x D)
Cartridge and Headshell dimensions: 21.2 x 21.4 x 62.4 (H x W x D)
Accessories Included: Two 11 mm installation screws; Two 8 mm installation screws; Two washers
Model: AT-VM95SP/H
Recommended Load Capacitance: 100-200 pF
Replacement Stylus: AT-VMN95SP
Stylus Size: 3 mil
Type: VM Stereo Dual Magnet
Wire Used for Coil: T.P. Copper
Model: AT-VM95SP/H
Recommended Load Capacitance: 100-200 pF
Replacement Stylus: AT-VMN95SP
Stylus Size: 3 mil
Type: VM Stereo Dual Magnet
Wire Used for Coil: T.P. Copper
