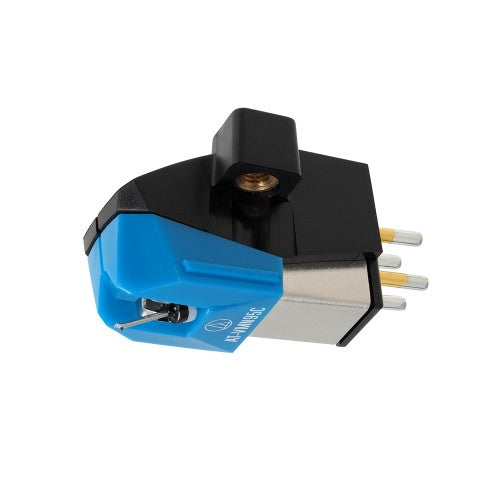

Audio Technica AT-VM95C MM Cartridge
Audio Technica AT-VM95C MM Cartridge
Regular price
£33.99 GBP
Regular price
Sale price
£33.99 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The 'C' (for Conical) is the entry level model in the Audio Technica AT-VM95 range.
This makes an excellent first cartridge as it sounds great at its price level and can easily be upgraded as budget allows. The cartridge body is threaded reducing some of the fiddliness of fitting a cartridge and this model features a Conical diamond which is easy to align and tracks well. The cantilever is made of Aluminium.
Thanks to the removable stylus assembly you can fit styli from other models in the VMN95 range to upgrade the performance or even to play 78 rpm records on it (on a suitable turntable naturally).
Specifications
-Frequency Response 20 - 20,000 Hz
-Channel Separation 18 dB (1 kHz)
-Vertical Tracking Angle 23°
-Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
-Stylus Construction Bonded Round Shank
-Recommended Load Impedance 47,000 Ω
-Coil Impedance 3.3 kΩ (1 kHz)
-DC Resistance 485 Ω
-Coil Inductance 550 mH (1 kHz)
-Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
-Output Channel Balance 2.5 dB (1 kHz)
-Stylus Shape Conical
-Cantilever Aluminium Pipe
-Static Compliance 17 x 10 – 6 cm / dyne
-Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
-Cartridge Weight 6.1g
-Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
-Recommended Load Capacitance 100-200 pF
-Replacement Stylus AT-VMN95C
-Stylus Size 0.6 mil
-Wire Used for Coil T.P. Copper
-Channel Separation 18 dB (1 kHz)
-Vertical Tracking Angle 23°
-Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
-Stylus Construction Bonded Round Shank
-Recommended Load Impedance 47,000 Ω
-Coil Impedance 3.3 kΩ (1 kHz)
-DC Resistance 485 Ω
-Coil Inductance 550 mH (1 kHz)
-Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
-Output Channel Balance 2.5 dB (1 kHz)
-Stylus Shape Conical
-Cantilever Aluminium Pipe
-Static Compliance 17 x 10 – 6 cm / dyne
-Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
-Cartridge Weight 6.1g
-Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
-Recommended Load Capacitance 100-200 pF
-Replacement Stylus AT-VMN95C
-Stylus Size 0.6 mil
-Wire Used for Coil T.P. Copper
