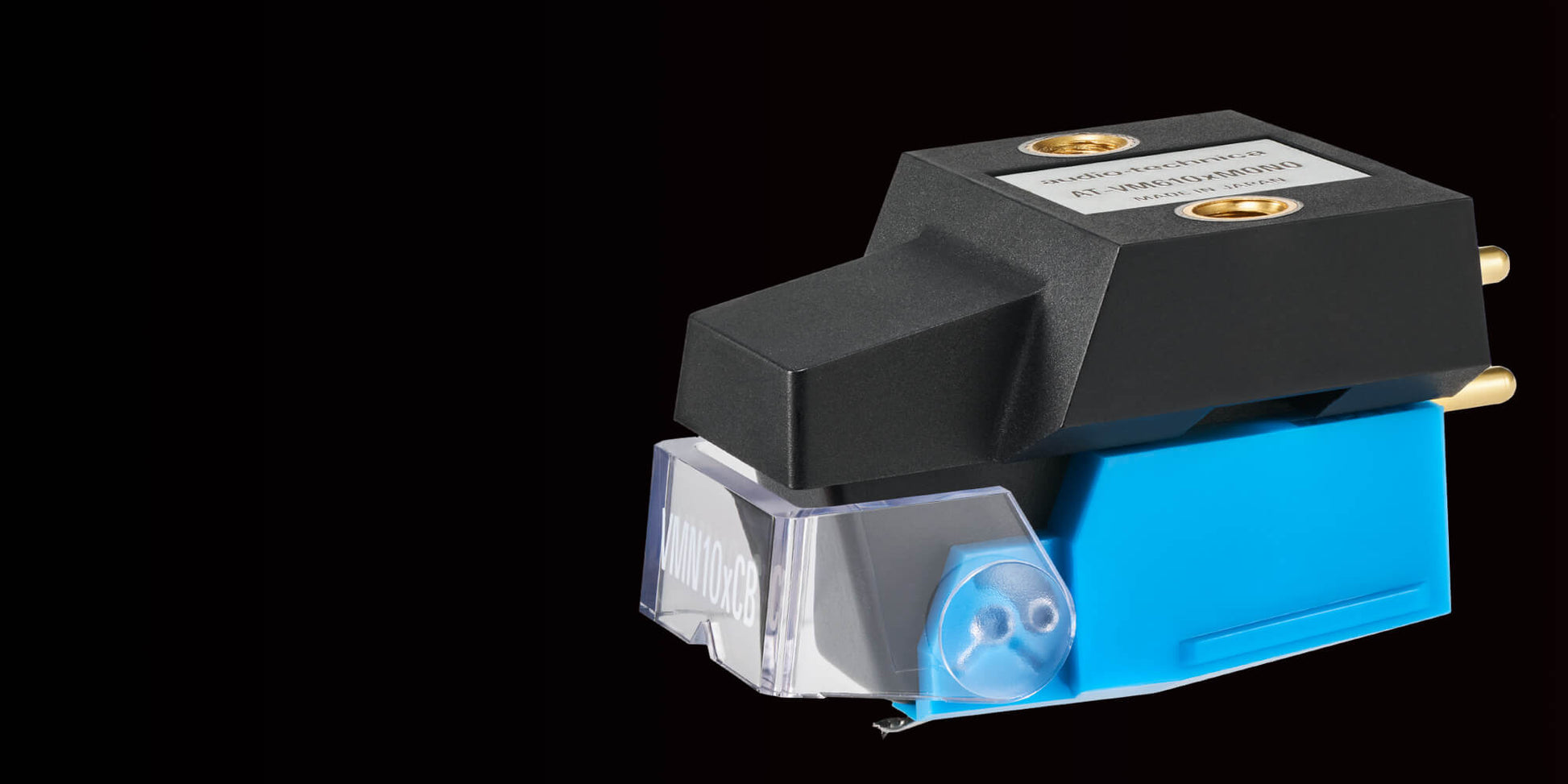

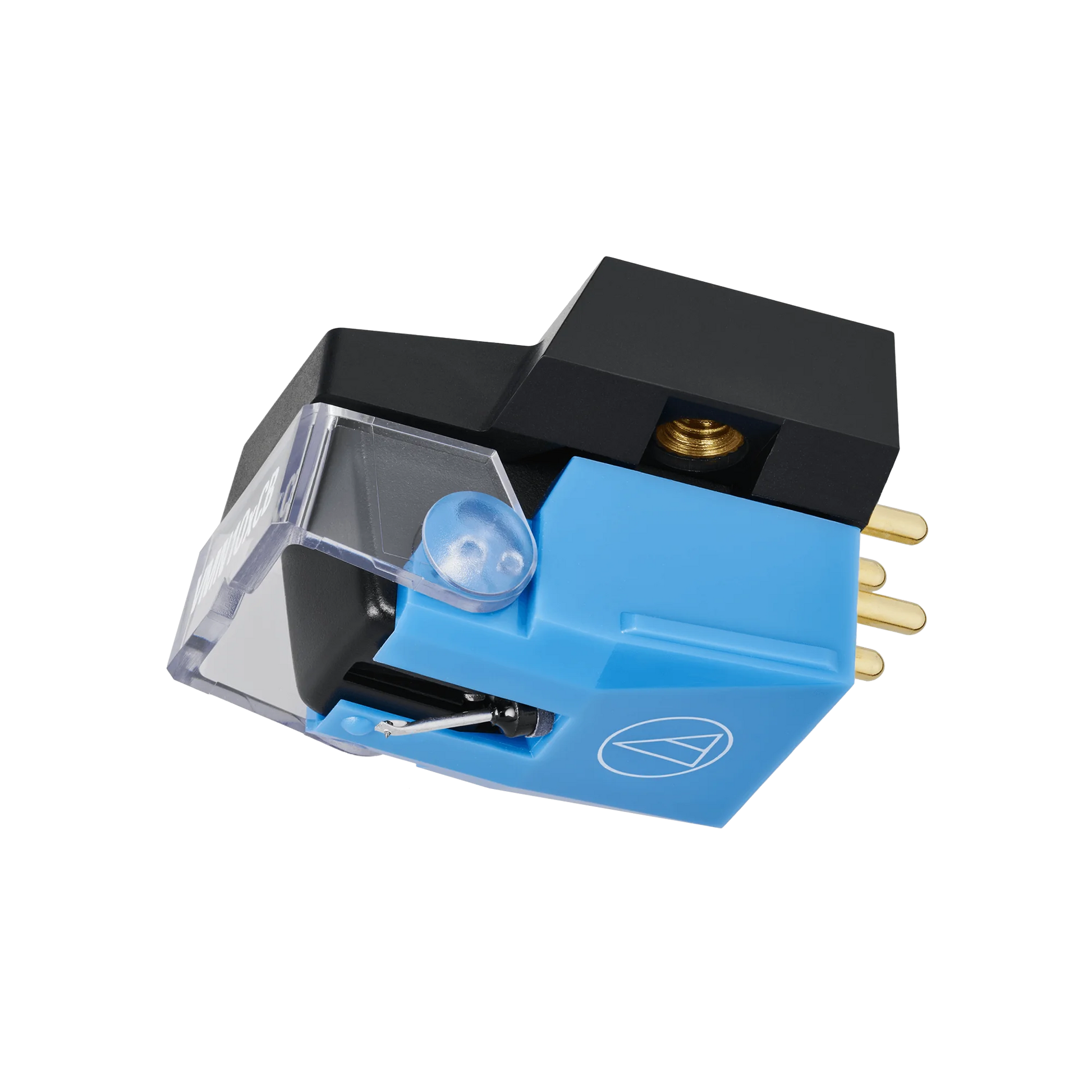

Audio Technica AT-VM610xMONO MM Cartridge for Mono LP playback

Getting the best results from your Mono LPs and singles requires a dedicated Cartridge/Stylus and the VM610x Mono is designed to do just that.

Featuring a conical bonded stylus profile for faithful tracking and mono internal wiring, you get low surface noise and a strong central 'image'. The cartridge body features internally summed left and right outputs (so you connect it to the Red, White, Green and Blue wires as you would with any stereo cartridge), so no mono button or rewiring is required to get mono sound through both loudspeakers.

This latest 'x' version has much greater output than the previous generation, helping to reduce noise even further.

The stylus has a flip down stylus guard to protect it when not in use.

This cartridge is not suitable for use with 78rpm records.

Specifications:
-Cartridge & Stylus Frequency Response 20 - 20,000Hz

-Recommended Tracking Force 1.8gm to 2.2gm (2gm standard)
-Vertical Tracking Angle 20˚
-Stylus Construction Bonded Round Shank
-Recommended Load Impedance 47,000Ω
-Coil Impedance 1,600Ω (1kHz)
-Output Voltage 5.0mV (1kHz, 5cm/sec.)
-Stylus Shape Conical Bonded
-Cantilever Aluminium Pipe
-Static Compliance 23 x 10-6 cm/dyne
-Dynamic Compliance 7 x 10-6 cm/dyne (100Hz)
-Mounting 1/2” centres
-Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
-Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
-Recommended Load Capacitance 150 – 250pF
-Replacement Stylus VMN10xCB
-Stylus Size 0.6 mil Type VM Type
-Weight 7.0g
