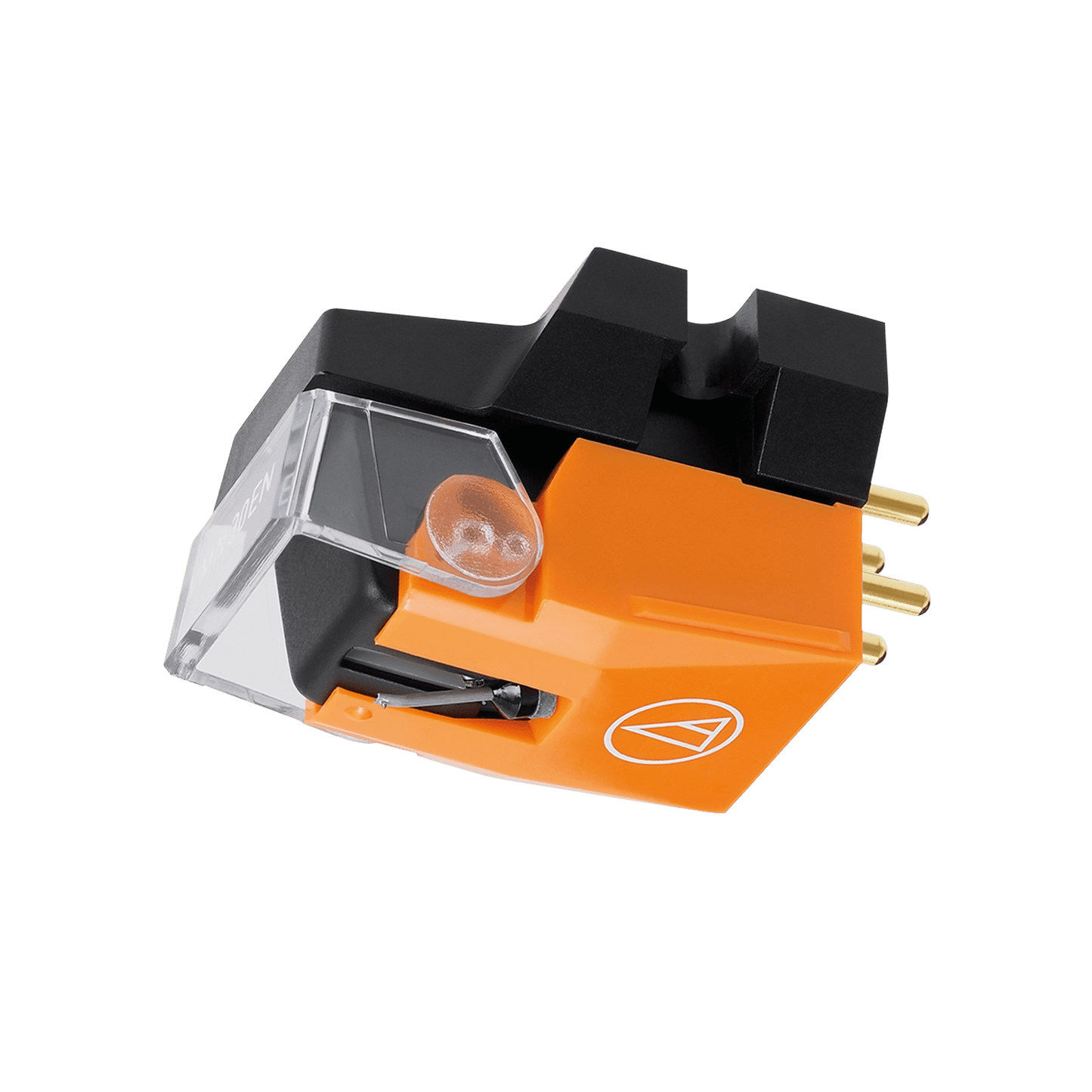

Audio Technica AT-VM530EN MM Cartridge
Audio Technica AT-VM530EN MM Cartridge
Regular price
£169.99 GBP
Regular price
Sale price
£169.99 GBP
Unit price
/
per
The VM530EN is a high quality MM cartridge with a one piece (Nude) Elliptical diamond stylus profile, which combines tip rigidity and low mass to give great performance from your LPs.
Features:
-Nude Elliptical Diamond
- Aluminium cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between the left and right channels reduces crosstalk
- Durable low resonance polymer housing
Features Audio-Technica’s internationally-patented Dual Magnet design which replicates the structure of the cutter head instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal coils improve generating efficiency and offer superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. The permeability of the cores is also optimised through the use of laminated cores with a Permalloy centre shield plate reducing crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself. The coils are wound with 6N-OFC (Oxygen Free Copper) coil wire.
Specifications:
-Type Moving Magnet (MM) design
-Cartridge & Stylus Frequency Response 20 - 25,000Hz
-Channel Separation 27dB (1kHz)
-Vertical Tracking Angle 23˚
-Stylus Construction Nude Round Shank
-Recommended Load Impedance 47,000Ω
-Coil Impedance 2,700Ω (1kHz)
-Output Voltage 4.0mV (1kHz, 5cm/sec.)
-Output Channel Balance 1.5dB (1kHz)
-Stylus Shape Elliptical Bonded
-Cantilever Aluminium Pipe
-Static Compliance 35 x 10-6 cm/dyne
-Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
-Mounting 1/2” centres
-Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
-Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2 Recommended Load
-Capacitance 100 – 200pF
-Replacement Stylus VMN30EN
-Stylus Size 0.3 x 0.7 mil
-Type VM
-Type Weight 6.4g
