Audio Technica AT-VM520EB/H MM Cartridge & Headshell Package
Audio Technica AT-VM520EB/H MM Cartridge & Headshell Package
Regular price
£139.99 GBP
Regular price
Sale price
£139.99 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability

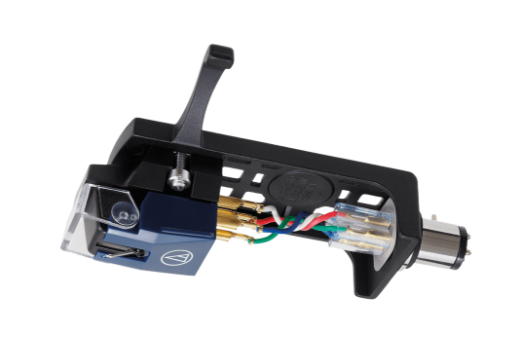

The VM520EB/H is a package of the AT-VM520EB cartridge pre fitted to the HS10 headshell, making it an almost plug and play solution (bar changing the tracking force) on any turntable with an SME style heashell connector and S or J shaped tonearm.

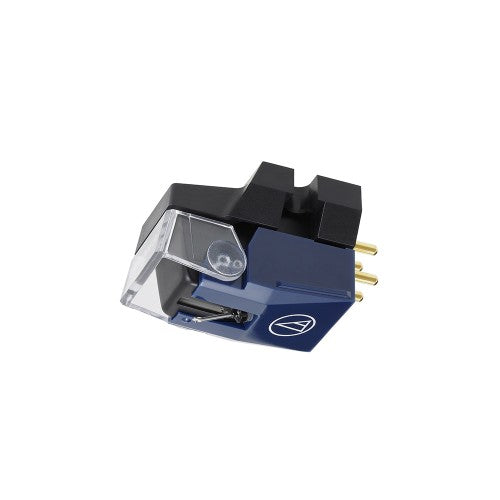

The VMS520EB cartridge features an Elliptical bonded stylus that features lower distortion over a Spherical profile along with more accurate sound quality.
The stylus has a flip down stylus guard to protect it when not in use.
- Aluminium cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between the left and right channels reduces crosstalk
- Durable low resonance polymer housing
Features Audio-Technica’s internationally-patented Dual Magnet design which replicates the structure of the cutter head instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal coils improve generating efficiency and offer superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. The permeability of the cores is also optimised through the use of laminated cores with a Permalloy centre shield plate reducing crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself. The coils are wound with 6N-OFC (Oxygen Free Copper) coil wire.
- Aluminium cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between the left and right channels reduces crosstalk
- Durable low resonance polymer housing
Features Audio-Technica’s internationally-patented Dual Magnet design which replicates the structure of the cutter head instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal coils improve generating efficiency and offer superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. The permeability of the cores is also optimised through the use of laminated cores with a Permalloy centre shield plate reducing crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself. The coils are wound with 6N-OFC (Oxygen Free Copper) coil wire.
The HS10 headshell the cartridge is fitted to is made from diecast aluminium, making it both strong and light.
Specifications:
-Type Moving Magnet (MM) design
-Cartridge & Stylus Frequency Response 20 - 23,000Hz
-Channel Separation 27dB (1kHz)
-Vertical Tracking Angle 23˚
-Stylus Construction Bonded Round Shank
-Recommended Load Impedance 47,000Ω
-Coil Impedance 2,700Ω (1kHz)
-Output Voltage 4.0mV (1kHz, 5cm/sec.)
-Output Channel Balance 1.5dB (1kHz)
-Stylus Shape Elliptical Bonded
-Cantilever Aluminium Pipe
-Static Compliance 35 x 10-6 cm/dyne
-Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
-Mounting 1/2” centres
-Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
- Recommended Load 47k Ohms
-Capacitance 100 – 200pF
-Replacement Stylus VMN20EB
-Stylus Size 0.3 x 0.7 mil
-Type VM
-Type Weight 16.8 total weight of cartridge and headshell (cartridge weight 6.4g)
Specifications:
-Type Moving Magnet (MM) design
-Cartridge & Stylus Frequency Response 20 - 23,000Hz
-Channel Separation 27dB (1kHz)
-Vertical Tracking Angle 23˚
-Stylus Construction Bonded Round Shank
-Recommended Load Impedance 47,000Ω
-Coil Impedance 2,700Ω (1kHz)
-Output Voltage 4.0mV (1kHz, 5cm/sec.)
-Output Channel Balance 1.5dB (1kHz)
-Stylus Shape Elliptical Bonded
-Cantilever Aluminium Pipe
-Static Compliance 35 x 10-6 cm/dyne
-Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
-Mounting 1/2” centres
-Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
- Recommended Load 47k Ohms
-Capacitance 100 – 200pF
-Replacement Stylus VMN20EB
-Stylus Size 0.3 x 0.7 mil
-Type VM
-Type Weight 16.8 total weight of cartridge and headshell (cartridge weight 6.4g)
