Audio Technica AT-PEQ30 MM & MC Phono Stage
Audio Technica AT-PEQ30 MM & MC Phono Stage
Regular price
£214.99 GBP
Regular price
Sale price
£214.99 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability

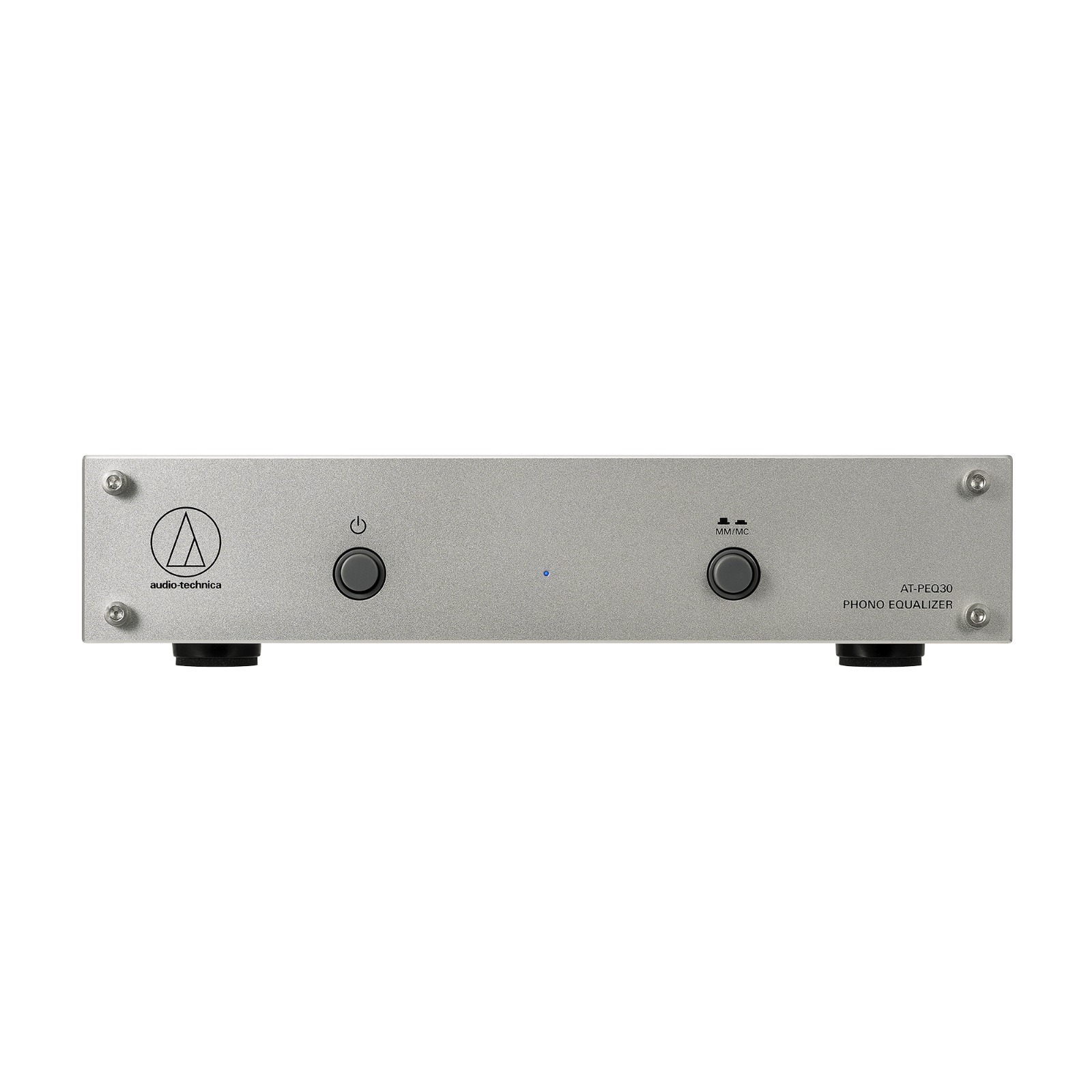

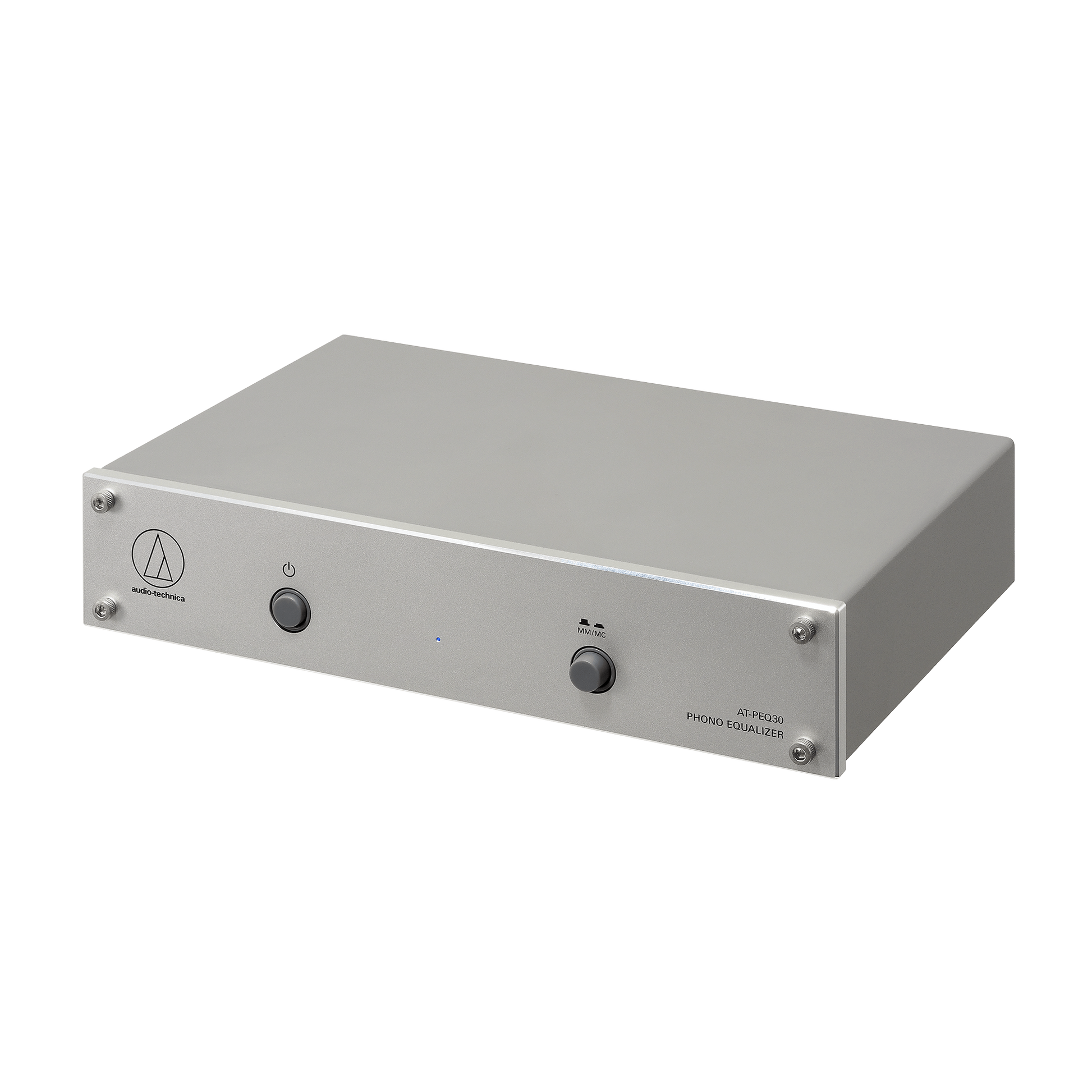

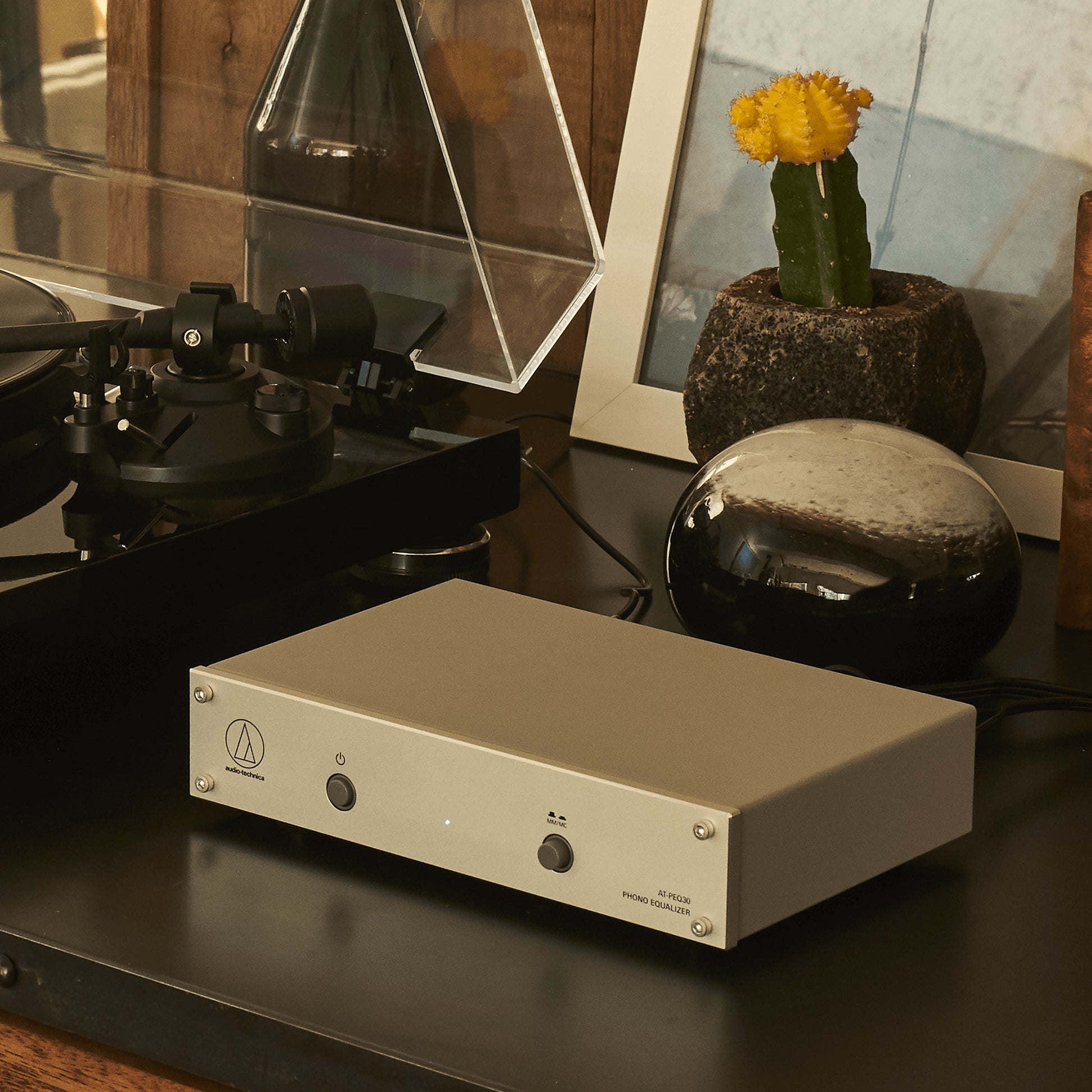

The Audio Technica AT-PEQ30 is a high quality external MM and MC phono stage perfect for adding a turntable into a system that only has a line level input or for upgrading the performance of most budget or mid level amplifiers. It is a compact unit with external 'wall wart' power supply which helps keep noise to a minimum
Features
-Selectable MM and MC input with fixed gain and impedance, which allows for compatibility with a wide range of moving magnet and moving coil cartridges
-High-quality FET inputs ensure a low noise, with a negative feedback-type phono equaliser circuit
-Precision components provide an excellent RIAA response for best-in-class performance
-The all metal construction enclosure provides superior isolation from radio and electronic noise interference

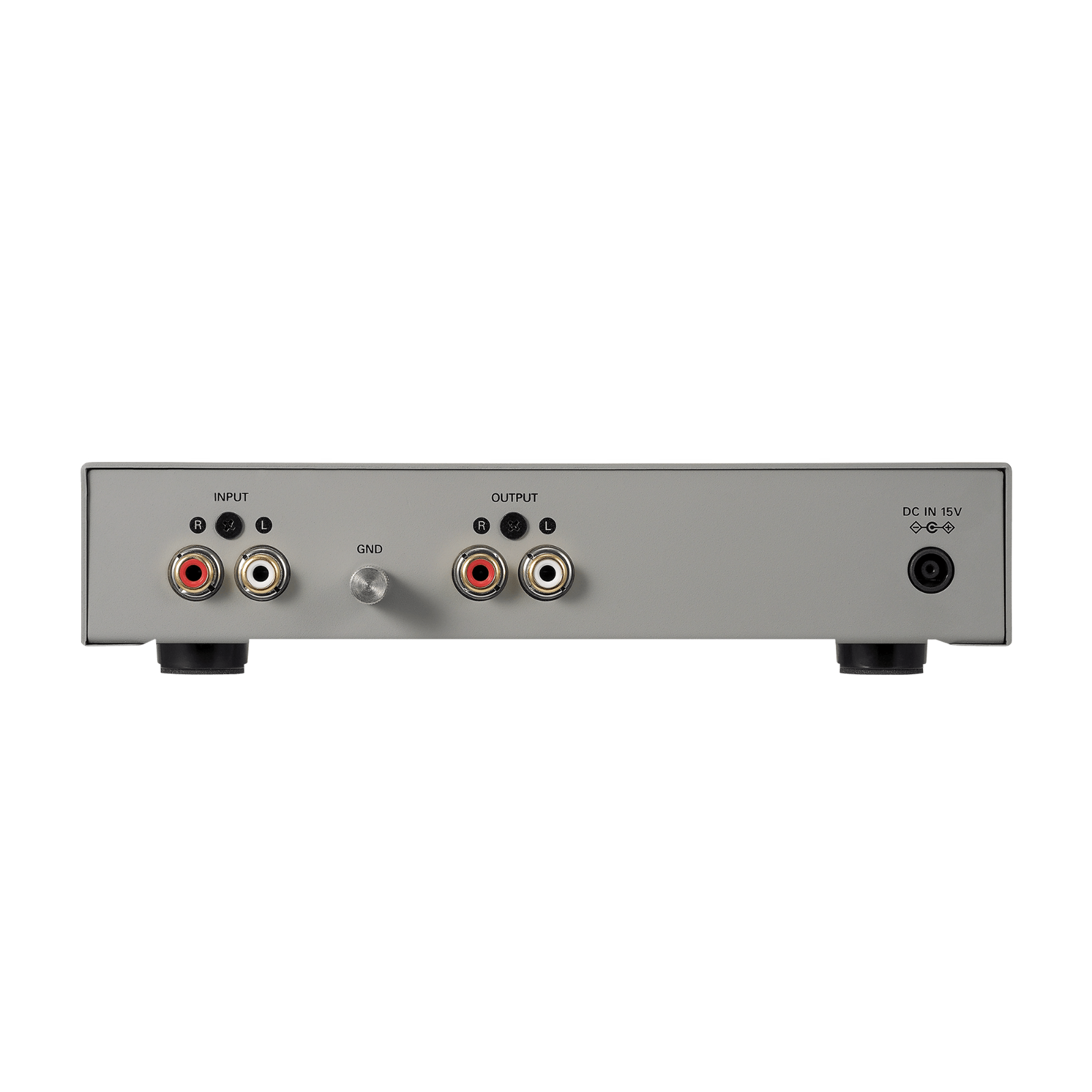

-The machined aluminium front panel and gold-plated input/output RCA connectors
Specifications
-Input Impedance MM: 47 kOhms. MC: 120 ohms
-Input Sensitivity MM: 4.5 mV, MC: 0.28 mV
-Rated Output MM type: 250 mV MC type: 250 mV
-Gain MM: 35 dB, MC: 59 dB
-Signal-to-Noise Ratio MM: 100 dB MC: 74 dB
-Signal-to-Noise Ratio MM: 100 dB MC: 74 dB
-RIAA Deviation (20 to 20kHz) MM type: ±0.5 dB, MC type: ±0.5 dB
-Power Supply DC 15 V, 1.2 A
-Power Consumption 2.5 W
-Dimensions H: 47 mm, W: 197.5 mm, D:125.5 mm (excluding protrusions)
-Weight: 890 g
-Accessories Included AC adapter
-Power Supply DC 15 V, 1.2 A
-Power Consumption 2.5 W
-Dimensions H: 47 mm, W: 197.5 mm, D:125.5 mm (excluding protrusions)
-Weight: 890 g
-Accessories Included AC adapter
