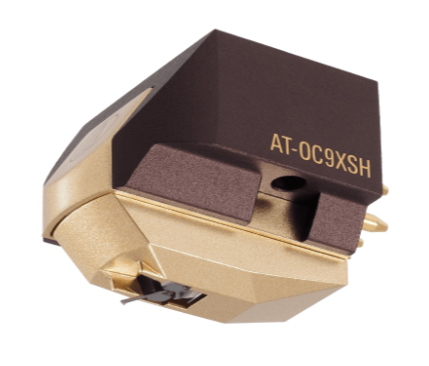

Audio Technica AT-OC9XSH MC Cartridge

Audio-Technica’s AT-OC9XSH is from their new OC9X range of MC cartridges. This is the fourth model up in the range and features a Nude one piece Shibata diamond mounted onto a cantilever made from Boron. This combination offers a great blend of low wear with excellent detail retrieval and high frequency quality.

Features:

-Features a low mass Nude (one Piece) Shibata stylus and Boron cantilever

-A neodymium magnet and pure iron yoke provides increased magnetic energy

-Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell with just two screws – no nuts required

-Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction

-Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible



Specifications:

-Frequency Response: 20-47,000 Hz
-Channel Separation: 27 dB (at 1 kHz)
-Vertical Tracking Force: 1.88-2.2 grams (standard: 2.0 grams)
-Recommended Load Impedance Min. 100 ohms (when head amplifier is connected)
-Output 0.4 mV (at 1 kHz, 5 cm/sec)
-Channel Balance: 1.0 dB (at 1 kHz)
-Stylus Shape: Nude Microlinear (2.7 x 0.26mil)
-Cantilever: Boron (0.28mm diameter)
-Mount: Half-inch (threaded body)
-Weight: 7.6gm
-Accessories: non magnetic screw driver, brush; 2 washers, 4 pairs of mounting screws (5mm, 8mm, 10mm, 12mm), Stylus Guard.
