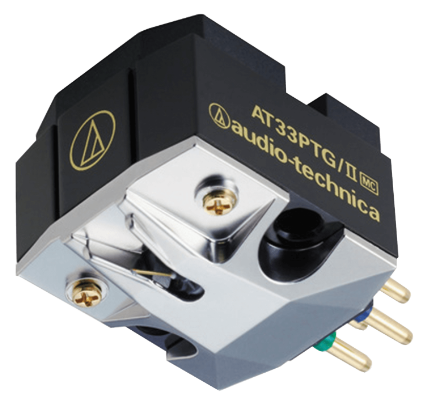

Audio Technica AT-33PTG/II MC Cartridge

This is the latest version of the classic Audio Technica AT33PTG MC Cartridge. It features various refinements that take it to the next performance level. Key to this is a thinner and shorter cantilever which is made from gold plated Boron making it extremely light and stiff - perfect for transmitting the information from the grooves

The stylus is a nude (i.e. single piece) 'MicroLine' Diamond. This line contact profile is very highly polished which benefits both sound quality as well as reducing wear to itself (and the LP).

The Moving Coils are made from high purity PCOCC wire (Pure Copper Ohno Continuous Cast) and are specially resin fixed to the cantilever.

Mounting 1/2" Centers
Frequency Response 15 - 50,000Hz
Body Material Aluminium/Synthetic Resin
Channel Separation 30dB (1kHz)
Output Channel Balance 1dB (1kHz)
Output Voltage 0.3mV (1kHz and 5cm/sec.)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.8 - 2.2g (2.0g standard)
Stylus Shape MicroLine™ Stylus Curvature Radius Micro linear
Stylus Construction Nude Square Shank
Cantilever Gold-plated solid boron
Coil Impedance 10Ω (1kHz)
Coil Inductance 22µH (1kHz)
DC Resistance 10Ω
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Terminal Pins Brass
Recommended Load Impedance Min 100Ω
Weight 6.9g
Dimensions H16×W16.6×D26.5mm

 Accessories Included 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
