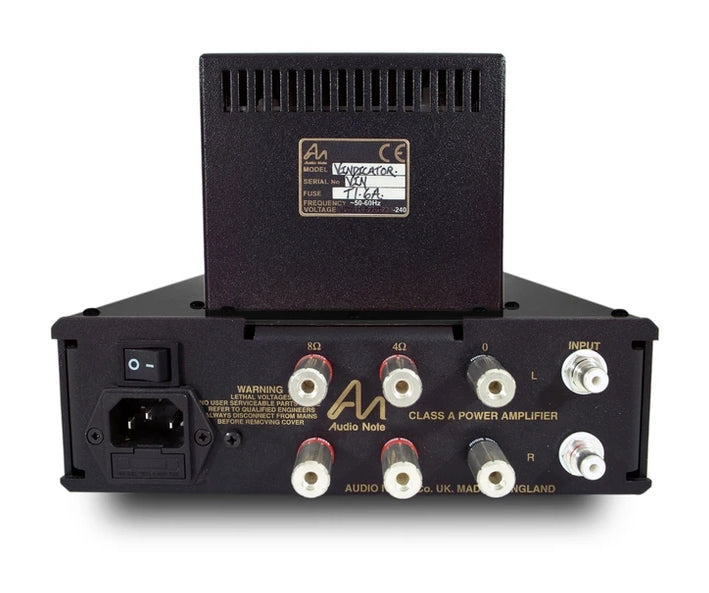

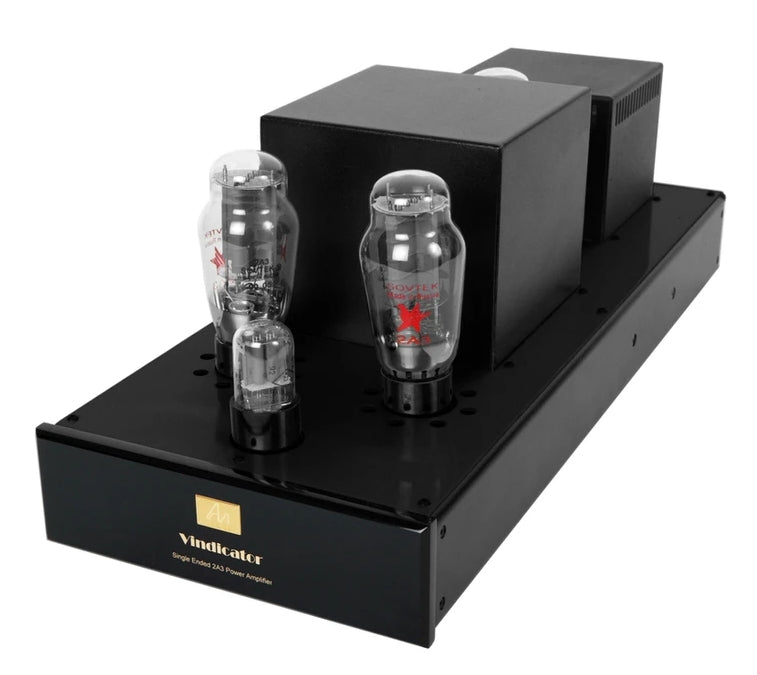

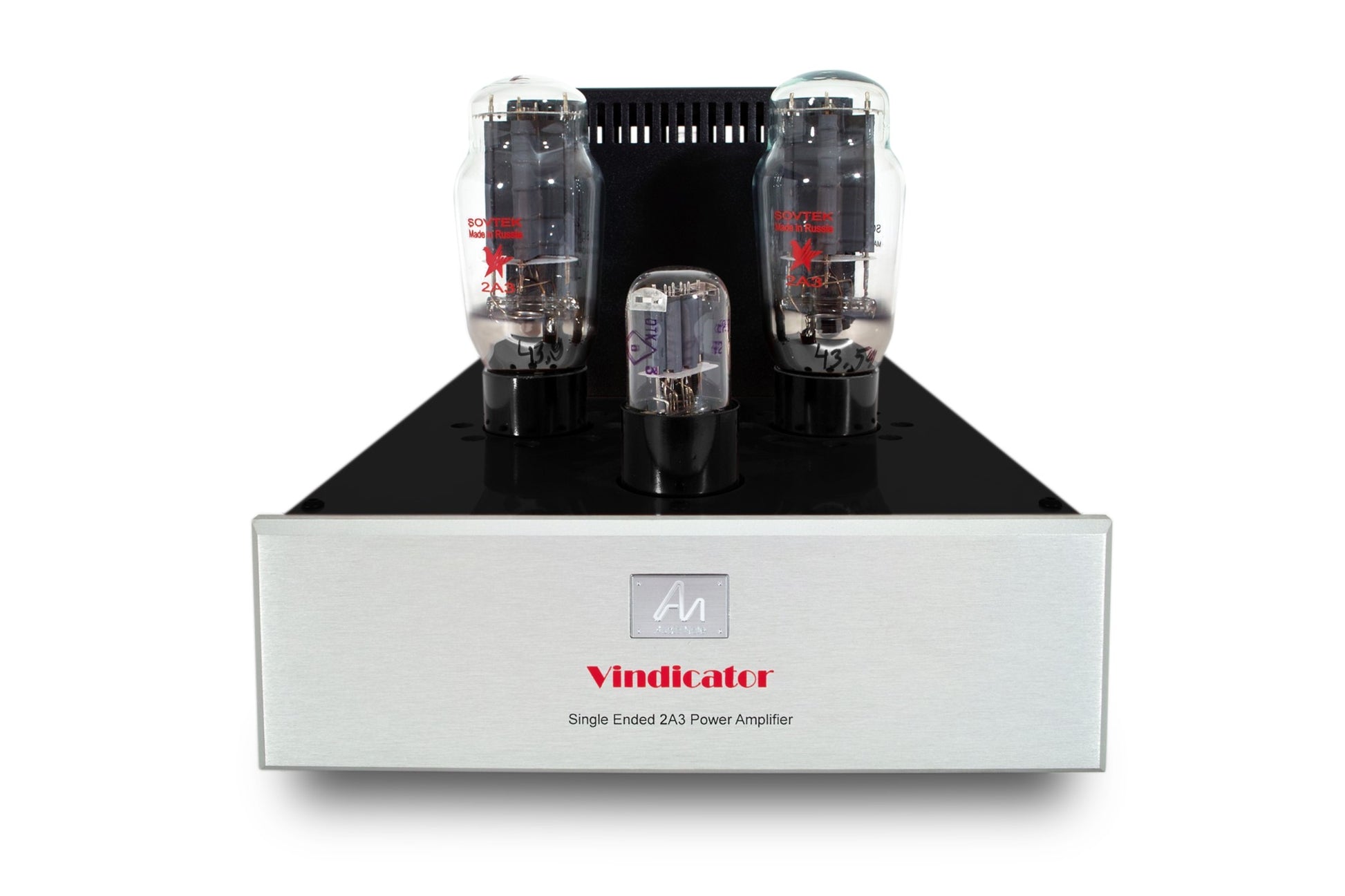

Audio Note Vindicator Single Ended 2A3 Power Amplifier
Audio Note Vindicator Single Ended 2A3 Power Amplifier
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*
The Vindicator is a stereo power amplifier using a single 2A3 output valve per channel.
Please note that the 2A3 is a low power output valve when used single ended, with an output in the region of 3.5 watts, so it is only recommend for people with very high efficiency speakers or highly efficient speakers used in the near field at low to medium levels.
Like the Conqueror, which shares the same chassis, there's a 5R4GY rectifier in the power supply and naturally quality parts are used throughout.
Technical Specifications:
Input Impedance: 100K Ohm, line level
Input Sensitivity: 250mV for full output
Maximum Output: 3.5 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 1 x 6SL7GT, 2 x 2A3 & 1 x 5R4GY
Unit Weight: 20kg
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm
Max. Power Consumption: 270 VA
Input Sensitivity: 250mV for full output
Maximum Output: 3.5 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 1 x 6SL7GT, 2 x 2A3 & 1 x 5R4GY
Unit Weight: 20kg
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm
Max. Power Consumption: 270 VA
