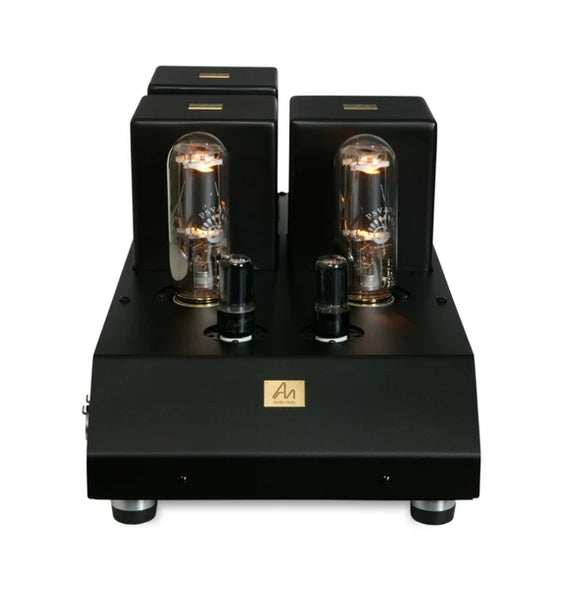

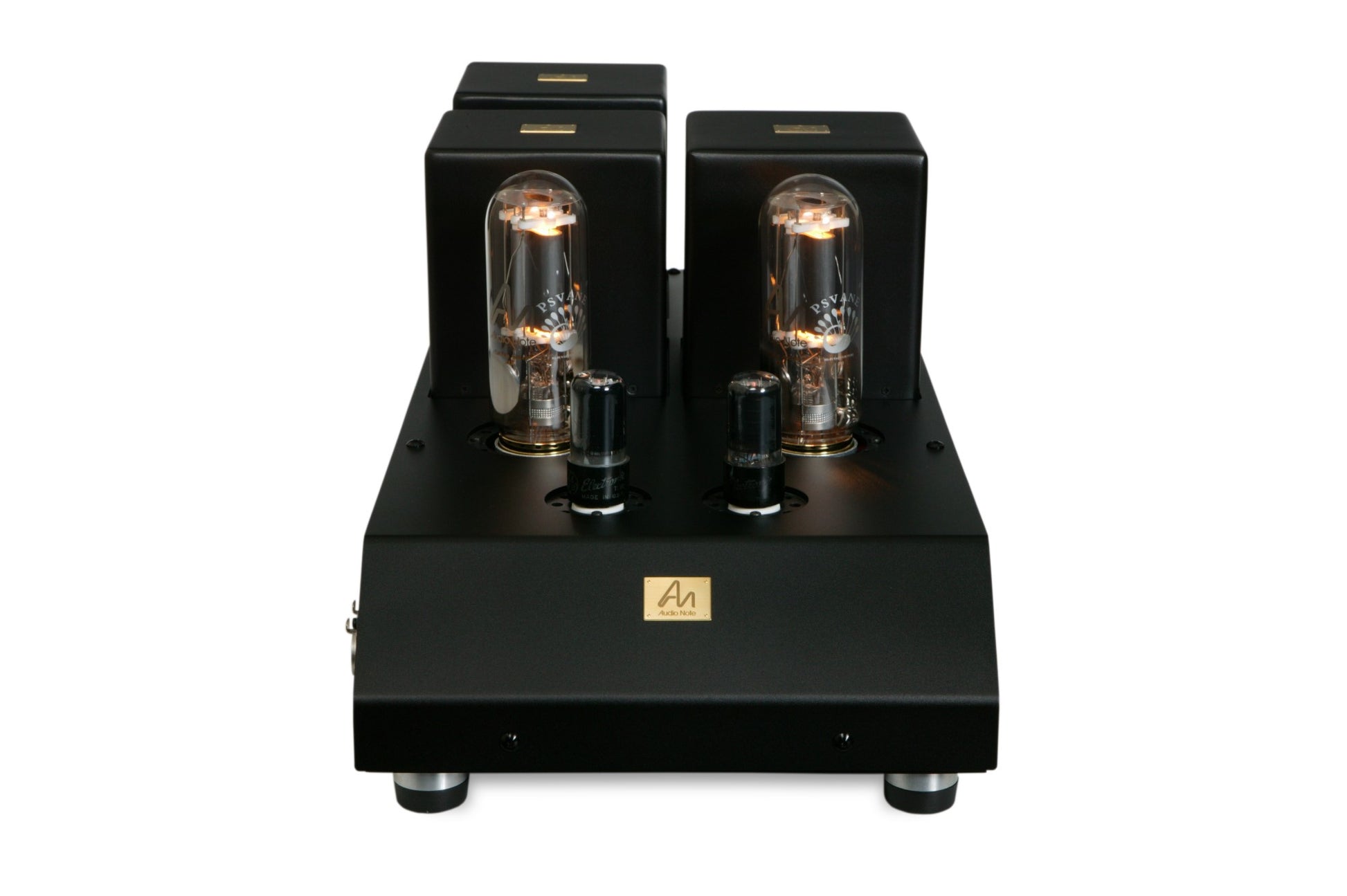

Audio Note Tomei Kensei Power Amplifier
Audio Note Tomei Kensei Power Amplifier
Regular price
£50,813.85 GBP
Regular price
Sale price
£50,813.85 GBP
Unit price
/
per
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*
The Tomei Kensei is a stereo power amplifier that is the intermediary step between the Jinro Shochu and Ongaku Kensei power amps. It features the same fundamental layout but instead uses 6V6 valves for the input stage, an interstage transformer and copper primary and silver secondaries for the audio transformers. The connection to the pre amplifier is via XLR inputs (but naturally these can be wired in single ended or balanced as necessary).
Technical Specifications:
Input Impedance: 2.4K Ohm, line level
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211 & 2 x 6V6
Unit Weight: 38kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200 Watts
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211 & 2 x 6V6
Unit Weight: 38kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200 Watts
