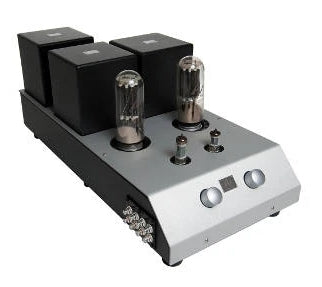

Audio Note Tomei Integrated Amplifier

*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The Tomei is the intermediary step between the Jinro and Ongaku, it features the same fundamental layout but instead uses 6463 valves for the input stage, an interstage transformer with a copper and silver wiring mix on high quality C-cores with the parts list including tantalum resistors with Black Gate and Cerafine caps used in critical locations.

Technical Specifications:

Input Impedance: 100K Ohm, line level
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211, 1 x ECC82 / 5814a & 1 x 7044
Unit Weight: 27.5 kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Mains Input: AC 100-120V/220-240V  50/60Hz
Max. Power Consumption: 200W
