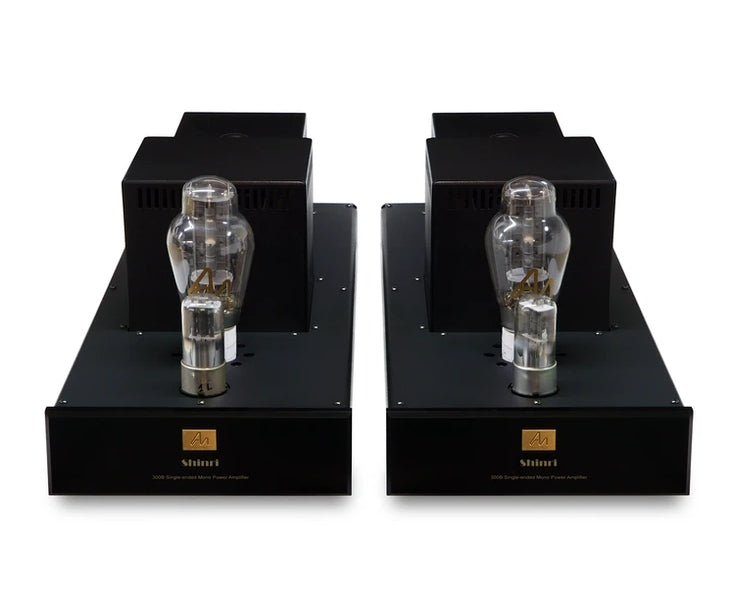

Audio Note Shinri Mono Block Power Amplifier
Audio Note Shinri Mono Block Power Amplifier
Regular price
£29,632.13 GBP
Regular price
Sale price
£29,632.13 GBP
Unit price
/
per
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*
The Shinri series of power amplifiers use a single 300B per channel driven from a 6SN7. It's closely related to the Neiro in concept and specification bar the different output valves.
The output transformers used have copper primary and silver secondaries, and are combined with silver internal wiring, copper foil in oil capacitors and tantalum resistors.
A low gain version is available for use with very efficient speakers and/or a high gain pre amplifier.
Technical Specifications:
Input Impedance: 100KOhm
Input Sensitivity: 250mV for full output (standard gain)
Maximum Output: 8 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4GY (1 per chassis), 2 x 300B (1 per chassis) & 2 x 6SN7 (1 per chassis)
Unit Weight: 20kg (per amplifier)
Unit Dimensions: 195mm x 205mm x 500mm (per amplifier)
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200 Watts
Input Sensitivity: 250mV for full output (standard gain)
Maximum Output: 8 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4GY (1 per chassis), 2 x 300B (1 per chassis) & 2 x 6SN7 (1 per chassis)
Unit Weight: 20kg (per amplifier)
Unit Dimensions: 195mm x 205mm x 500mm (per amplifier)
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200 Watts
