Audio Note P3 Tonmeister Power Amplifier

*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

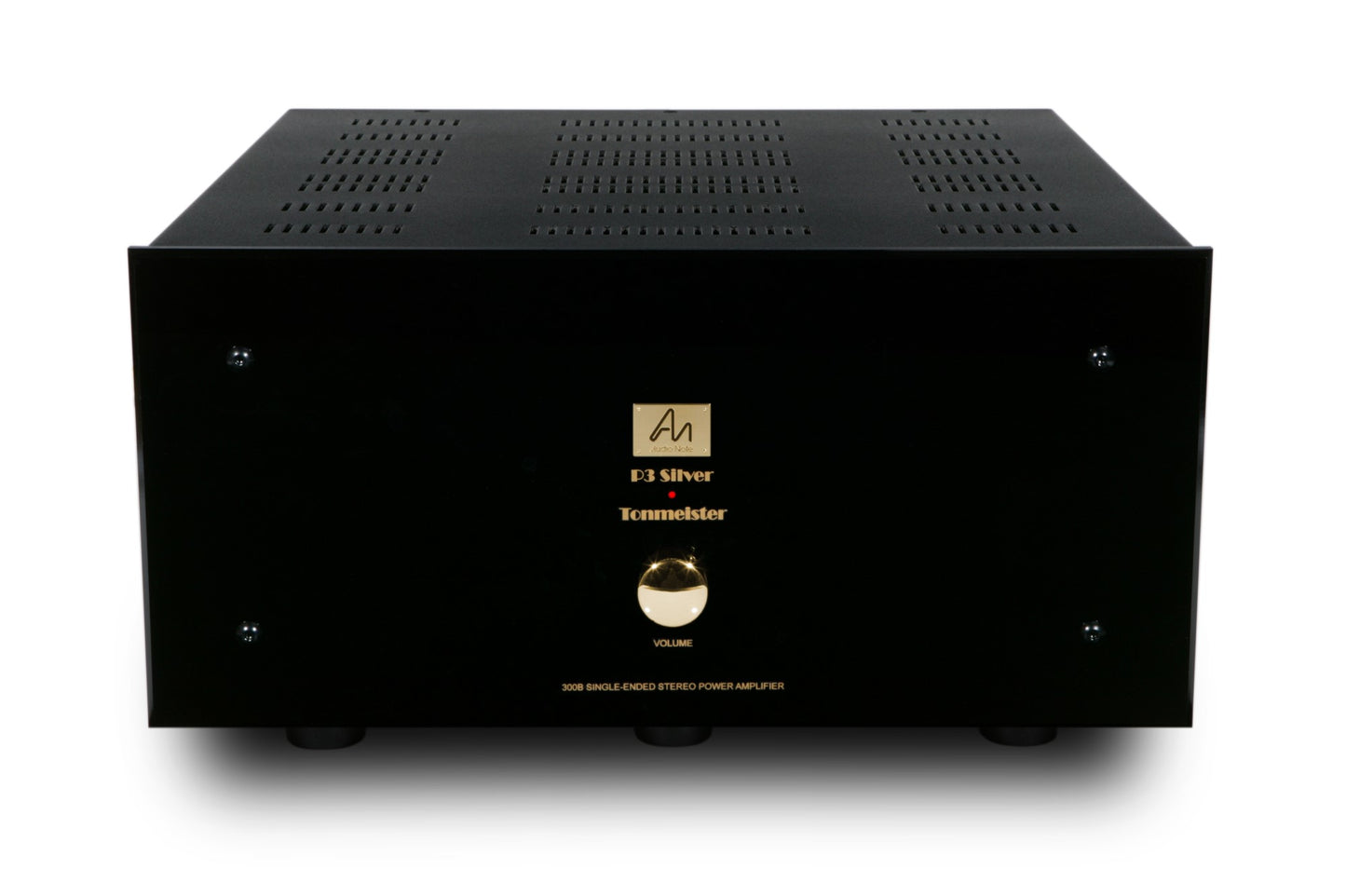

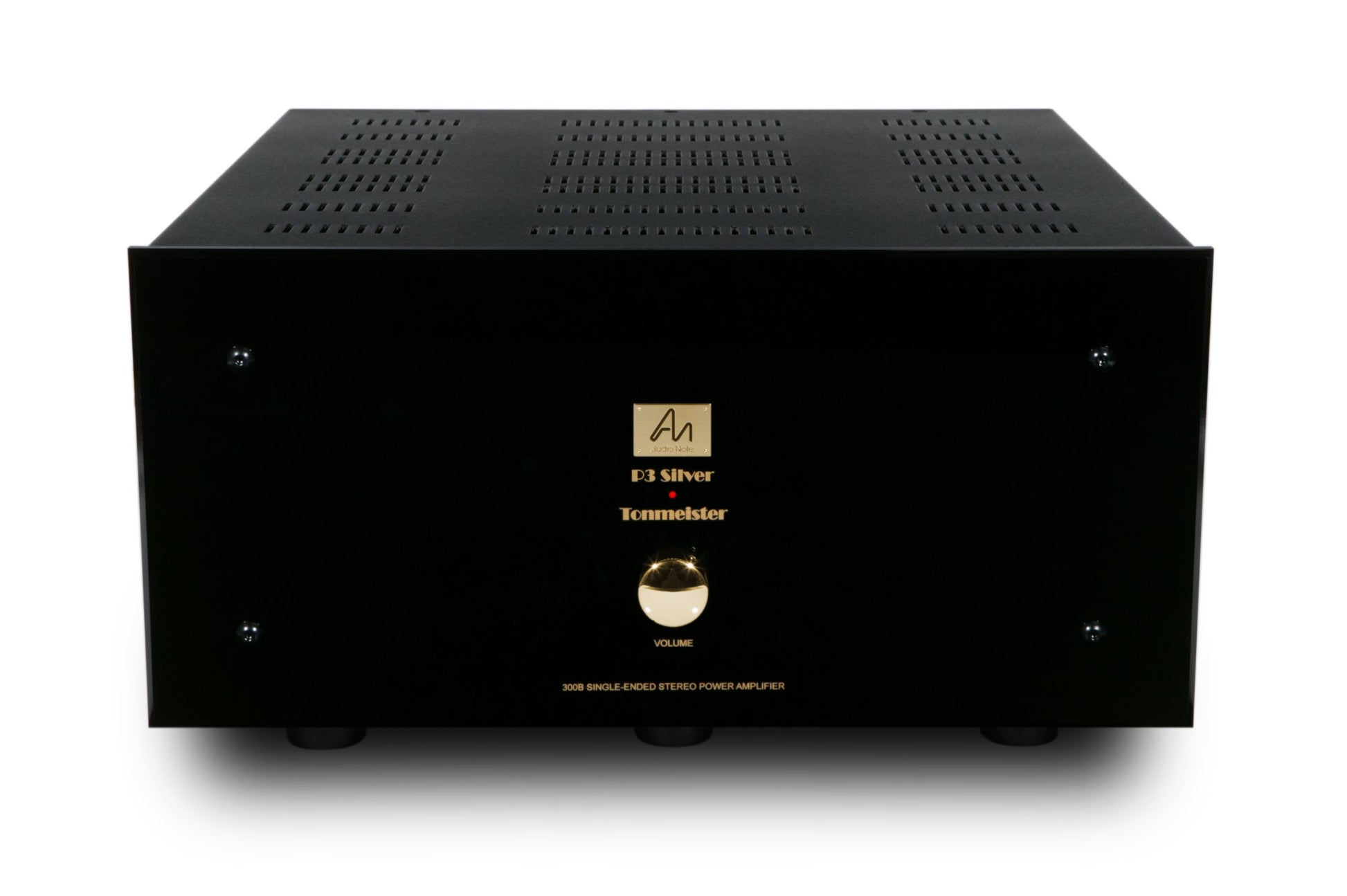

The P3 Tonmeister is a substantial stereo power amplifier in an enclosed chassis. The topology is similar to the power amplifier section of the Meishu Tonmeister and as such presents a defining shift in performance over the original non Tonmeister version.

A 5687 and ECC82 are capacitor coupled together and feed the 300B directly heated triode output valve via an interstage transformer. The result is a deceptively simple purist circuit which owes a lot to Audio Notes ability to custom wind transformers to very precise specifications.

The power supply is intentionally kept simple with a single 5U4G valve rectifier used combined with choke smoothing.

Component quality consists of copper wiring, copper foil in oil capacitors and Tantalum resistors.

The fascia mounted volume control is useful to act as a gain control when using very efficient speakers and/or a high gain pre amplifier, naturally it can also be used as a volume control when using a single source too.



Technical Specifications:

Input Impedance: 100K Ohm, line level
Input Sensitivity: 450mV for full output
Maximum Output: 8 Watts RMS  per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 1 x 5U4GB, 2 x 300B, 2 x 5687 & 1 x ECC82
Unit Weight: 27.5 kg
Unit Dimensions (HxWxD): 220mm x 460mm x 530mm
Max. Power Consumption: 200 Watts
